Market Insight: Enamel Jumper Wire

Market Analysis: Winding Wire – Enamel Jumper Wire in Transformer Applications

The global transformer industry continues to drive steady demand for high-performance winding wire, with enamel jumper wire emerging as a critical component in both distribution and power transformer assemblies. As a specialized segment within the broader electromagnetic wire market, enamel jumper wire serves the essential function of establishing reliable electrical connections between primary and secondary windings, tap changers, and terminal leads. Its application is particularly vital in oil-immersed and dry-type transformers used in utility substations, industrial plants, and renewable energy infrastructure such as solar inverters and wind turbine step-up systems.

Industrial demand for enamel jumper wire is intrinsically linked to transformer reliability, efficiency, and service life. Unlike standard magnet wire, jumper wire must endure mechanical stress during coil assembly, thermal cycling during operation, and exposure to insulating oils or epoxy resins. These operational conditions necessitate a wire construction that combines high electrical insulation integrity, thermal stability, and mechanical flexibility. The enamel coating—typically composed of polyurethane, polyesterimide, or polyamide-imide—must exhibit excellent dielectric strength, resistance to partial discharge, and compatibility with varnishes and impregnating compounds used in transformer manufacturing.

At Luoyang Xinzhaohe Aluminum Co., Ltd, with over two decades of specialization in aluminum-based winding wire, we recognize that quality in enamel jumper wire is non-negotiable. Substandard insulation or inconsistent film thickness can lead to insulation breakdown, short circuits, and premature transformer failure. In high-voltage applications, even microscopic defects in the enamel layer can initiate corona discharge, accelerating insulation degradation. Moreover, aluminum jumper wire must maintain stable mechanical properties across repeated bending cycles, as improper ductility can result in conductor fracture during installation or thermal expansion.

Quality assurance extends beyond the enamel coating to include precise control over aluminum purity, tensile strength, and elongation. Our production processes adhere to IEC 60317 and GB/T 23312 standards, ensuring that each batch of jumper wire delivers consistent performance under rigorous operating conditions. We employ advanced在线检测 systems for diameter tolerance, insulation thickness, and high-potential (hi-pot) testing, minimizing the risk of field failures.

The growing emphasis on energy efficiency and grid resilience further amplifies the importance of high-quality enamel jumper wire. As transformer manufacturers strive to meet Tier 1 and Tier 2 efficiency standards, the integrity of every internal connection becomes a factor in minimizing losses and improving thermal management. In this context, sourcing from experienced, technically capable suppliers is not merely a procurement decision—it is a strategic investment in product reliability and long-term operational performance.

Parameter	Typical Requirement for Enamel Jumper Wire
Conductor Material	EC-grade Aluminum (99.99% min purity)
Insulation Type	Polyesterimide or Polyamide-imide
Temperature Class	180°C (Class H) or 200°C (Class C)
Dielectric Strength	≥8 kV (1 min, AC)
Bend Test (Mandrel)	Pass 6x diameter, 180° bend
Solderability	250°C, 3 sec, clean wetting

In summary, the industrial demand for enamel jumper wire in transformers is shaped by the need for robust, long-lasting electrical connections that support grid stability and equipment efficiency. Quality directly influences transformer lifespan and safety, making technical precision and manufacturing excellence paramount in supplier selection.

---

Technical Specs: Enamel Jumper Wire

Technical Specifications: Enamel Jumper Wire for Precision Winding Applications
Luoyang Xinzhaohe Aluminum Co., Ltd leverages 20+ years of metallurgical and winding wire expertise to deliver enamel jumper wire meeting stringent global industrial standards. Our aluminum conductor-based solutions prioritize electrical integrity, mechanical resilience, and thermal stability for demanding transformer, inductor, and motor assembly environments. Critical specifications are rigorously controlled per IEC 60317 and UL 1446 frameworks, with aluminum purity maintained at 99.7% minimum to ensure optimal conductivity and oxide layer management during enameling.

Insulation Breakdown Voltage
The dielectric strength of our enamel insulation is non-negotiable for operational safety. Breakdown voltage is measured per IEC 60317-0-4 using both AC (50/60 Hz) and DC test methods. Minimum breakdown thresholds scale inversely with conductor diameter: for 0.05–0.20 mm wires, AC breakdown exceeds 1,200 Vrms, while DC withstand surpasses 3,000 V. Thicker gauges (0.21–1.00 mm) maintain AC >1,800 Vrms and DC >4,500 V. These values are validated after 100% spark testing during production, ensuring zero defects in insulation continuity. Voltage endurance directly correlates with enamel density and adhesion—parameters optimized through our proprietary multi-layer polymer application process.

Elongation Characteristics
Mechanical ductility is critical for jumper wire forming and terminal attachment without insulation fracture. Our aluminum alloy conductors achieve controlled elongation of 8–25% (ASTM E8), dependent on temper (H12 to H18). This range balances formability during automated winding with tensile strength retention post-assembly. Elongation below 8% risks brittle fracture during bending; exceeding 25% compromises dimensional stability. All batches undergo mandrel bend testing per IEC 60851-5 to verify insulation cohesion at 180° bends. Consistent elongation ensures reliable crimping and soldering while preventing conductor pull-out in high-vibration applications.

Thermal Class Performance
Thermal endurance defines the wire’s operational ceiling. Our enamel systems are engineered for classes 130°C (B) to 220°C (R), validated via thermal aging per IEC 60216. The thermal index (TI) represents the temperature at which insulation retains 50% of its initial elongation after 20,000 hours. Standard grades use polyester-imide (155°C, F) for cost-sensitive applications, while high-reliability segments deploy polyamide-imide (200°C, H) or polyimide (220°C, R) for aerospace and EV power electronics. Crucially, thermal class is distinct from maximum operating temperature—actual service limits must incorporate derating for ambient conditions and duty cycles.

Core Parameter Summary
The following table details baseline specifications for our standard aluminum enamel jumper wire portfolio. Custom formulations for extreme thermal or chemical exposure are available upon engineering review.

Parameter	Test Standard	Class 130 (B)	Class 155 (F)	Class 180 (H)	Class 220 (R)
Min. Breakdown Voltage (AC)	IEC 60317-0-4	1,000 V	1,200 V	1,500 V	1,800 V
Conductor Elongation	ASTM E8	10–20%	8–18%	8–15%	8–12%
Thermal Index (TI)	IEC 60216	130°C	155°C	180°C	220°C
Solderability (280°C)	IEC 60851-6	Pass	Pass	Pass	Pass
Adhesion (Mandrel Bend)	IEC 60851-5	6x dia.	8x dia.	10x dia.	12x dia.

Implementation Guidance
Select thermal class based on hotspot temperature calculations—not ambient conditions. For Class 220 (R) wire, verify compatibility with potting compounds to prevent chemical degradation. Always validate elongation against your winding tension parameters; excessive stretch during processing accelerates insulation fatigue. Luoyang Xinzhaohe provides full material test reports (MTRs) with every shipment, including lot-specific breakdown voltage histograms and thermal aging data. Contact our technical team for application-specific validation protocols.

---

Factory Tour: Manufacturing

Manufacturing Process of Enamel Jumper Wire at Luoyang Xinzhaohe Aluminum Co., Ltd

The production of high-performance enamel jumper wire at Luoyang Xinzhaohe Aluminum Co., Ltd follows a tightly controlled, multi-stage manufacturing process designed to ensure consistent electrical, mechanical, and thermal properties. With over two decades of expertise in winding wire technologies, our facility integrates precision engineering and rigorous quality assurance to meet the demanding requirements of global industrial and electronics markets.

The process begins with rod drawing, where high-purity aluminum rods (typically 99.7% Al or higher) are fed into a continuous drawing machine. The rods are progressively reduced in diameter through a series of tungsten carbide or diamond dies, achieving the precise wire gauge required—ranging from 0.05 mm to 2.0 mm. This cold drawing process enhances the tensile strength and dimensional accuracy of the wire while maintaining metallurgical integrity. Throughout drawing, the wire is continuously lubricated and cooled to prevent overheating and surface defects.

Following drawing, the wire undergoes a controlled annealing process in an inert atmosphere furnace. This step is critical for restoring ductility and electrical conductivity, which are diminished during cold working. Our annealing line operates under nitrogen-purged conditions to prevent oxidation, ensuring a clean, oxide-free surface essential for optimal enamel adhesion. Temperature profiles are precisely regulated based on wire diameter and alloy composition, with real-time monitoring to maintain uniform metallurgical softness.

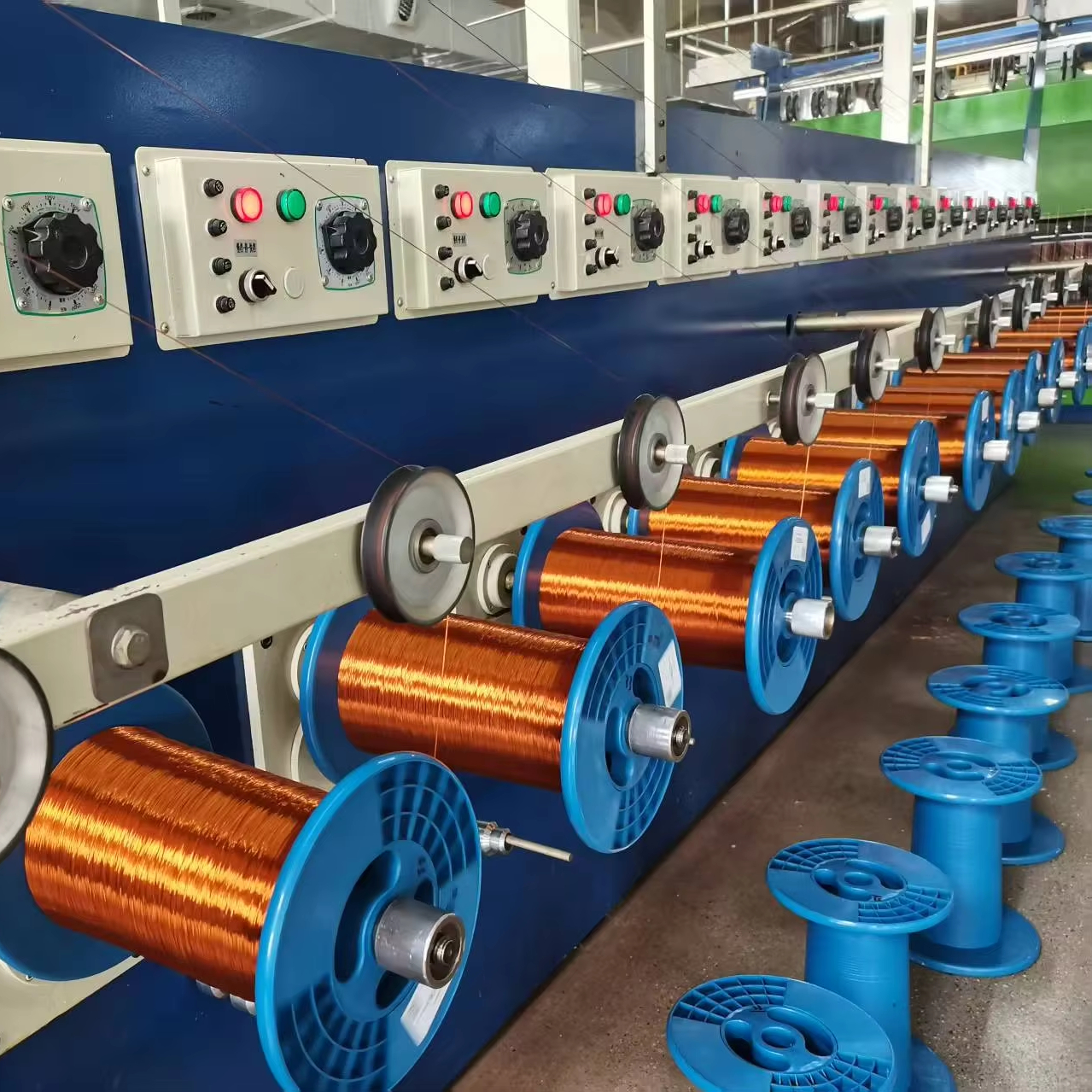

The annealed wire then proceeds to the enameling stage, where a thin, uniform layer of polymer insulation is applied via multiple passes through a precision coating die. We utilize high-temperature resistant enamel formulations such as polyurethane (PU), polyester (PE), or polyamide-imide (PAI), selected based on customer specifications for thermal class (up to 220°C) and solderability. Each coat is immediately cured in a series of temperature-gradient ovens, ensuring complete polymerization and dielectric strength. Multiple layers may be applied to achieve enhanced insulation properties or meet specific voltage endurance requirements.

Integrated inline testing is performed throughout the enameling line to ensure product conformity. Key parameters monitored include film thickness uniformity, dielectric breakdown voltage (tested up to 6 kV), and continuity. Spark testing is conducted at every curing stage to detect pinholes or insulation defects. Additionally, surface smoothness and abrasion resistance are verified using optical and mechanical sensors.

Final quality control includes off-line sampling for elongation, springback, and thermal shock resistance per IEC 60317 and GB/T 6109 standards. Every production batch is traceable, with documentation of mechanical, electrical, and dimensional test results. This end-to-end process control ensures that our enamel jumper wire delivers reliable performance in motor windings, transformers, and electronic assemblies.

---

Packaging & Logistics

Export Packaging Specifications for Enamel Jumper Wire

Luoyang Xinzhaohe Aluminum CO., Ltd implements rigorously engineered export packaging protocols for enamel jumper wire to ensure product integrity during global maritime transit. With over two decades of specialization in precision winding wire manufacturing, our packaging methodology addresses critical hazards inherent in sea freight, including humidity exposure, salt corrosion, physical impact, and container condensation. This section details our standardized approach, validated through 20+ years of international logistics experience.

Wooden Pallet Specifications
All enamel jumper wire reels are secured to ISPM 15-certified kiln-dried hardwood pallets. These pallets undergo thermal treatment at 56°C for a minimum of 30 minutes to eliminate biological contaminants, complying with international phytosanitary regulations. Pallet dimensions are standardized at 1100 mm × 1100 mm × 150 mm, engineered to maximize container cube utilization while maintaining ISO 11607 load stability thresholds. Reels are affixed using stainless steel strapping rated for 5,000 N tensile strength, with edge protectors preventing strap-induced deformation. Critical metal components, including reel flanges and fasteners, receive electro-galvanized corrosion inhibition treatment to withstand saline environments.

Moisture-Proof Barrier System
A multi-layer moisture barrier system is deployed to mitigate humidity-induced enamel degradation during extended voyages. The primary layer consists of 120-micron metallized cast polypropylene film with a water vapor transmission rate (WVTR) of ≤0.5 g/m²/day at 38°C and 90% RH. This film is hermetically sealed using impulse heat welders calibrated to 220°C ± 5°C, ensuring seam integrity per ASTM F88 standards. An intermediate layer incorporates vapor corrosion inhibitors (VCI) impregnated non-woven fabric, releasing organic amines that form protective molecular films on aluminum conductors. Desiccant packs (silica gel, 33% moisture absorption capacity) are positioned at reel core and periphery, targeting internal humidity levels below 60% RH throughout transit.

Sea Freight Integration Protocol
Our packaging design directly counteracts maritime-specific risks. Palletized units are arranged in shipping containers using a brick-stacked configuration, minimizing lateral movement during vessel roll/pitch cycles. Container pre-cooling to 15°C precedes loading to reduce thermal shock-induced condensation. Humidity indicator cards (HICs) are embedded within each package, providing visual verification of moisture control efficacy at destination. All shipments include data loggers recording temperature, humidity, and shock events per ISO 17025, with reports available upon request. This integrated system ensures enamel jumper wire arrives with dielectric strength retention exceeding 98% of pre-shipment baselines, even on routes exceeding 45-day durations.

Luoyang Xinzhaohe Aluminum CO., Ltd guarantees that every export shipment adheres to these protocols, eliminating moisture-related failures and physical damage. Our packaging architecture reflects 20+ years of metallurgical and supply chain expertise, delivering unwavering performance for global winding wire applications.

---

Sourcing from Luoyang Xinzhaohe

Partner with Luoyang Xinzhaoanghe Aluminum Co., Ltd for High-Performance Enamel Jumper Wire

With over two decades of specialized expertise in the production of winding wire, Luoyang Xinzhaohe Aluminum Co., Ltd stands as a trusted leader in the global supply of high-purity, precision-engineered enamel jumper wire. Our manufacturing capabilities are built upon a foundation of metallurgical excellence, rigorous quality control, and deep process optimization, enabling us to deliver products that meet the most stringent performance requirements in transformer, inductor, and high-frequency electronic applications.

Our production facility is equipped with fully integrated, automated enamel coating lines, designed to ensure uniform dielectric insulation thickness and consistent adhesion across every meter of wire. We utilize high-conductivity, 99.99% pure aluminum (Al 1350 and Al 1100 grades), sourced through a vertically controlled supply chain that guarantees material traceability and minimizes impurity content. This foundational purity is critical to achieving low resistivity, superior thermal conductivity, and long-term reliability in demanding electrical environments.

All enamel jumper wire products are manufactured under ISO 9001-certified quality management systems, with in-line monitoring of key parameters including coating thickness (±2 µm tolerance), elongation (≥25%), and breakdown voltage (tested up to 6 kV). Our proprietary curing process ensures optimal cross-linking of the enamel resin—typically polyurethane (PU), polyester (PE), or polyamide-imide (PAI)—delivering excellent thermal stability (up to 200°C), chemical resistance, and mechanical durability during winding and potting operations.

We specialize in custom configurations tailored to client specifications, including diameter ranges from 0.10 mm to 3.00 mm, multi-layer insulation systems, and spooling options (wooden reels, plastic spools, or bulk coils). Our R&D team collaborates directly with customers to optimize wire performance for specific dielectric, thermal, and space-factor requirements, particularly in high-density transformer and EV power electronics applications.

Backed by a 30,000-ton annual production capacity and a logistics network spanning Asia, Europe, and North America, Luoyang Xinzhaohe ensures on-time delivery with batch-to-batch consistency. Our technical support team provides full documentation, including material test reports (MTRs), RoHS/REACH compliance certificates, and process validation data, to streamline integration into regulated manufacturing environments.

Partnering with Luoyang Xinzhaohe means securing a long-term, technically capable supplier committed to innovation, quality, and responsive service. As the demand for efficient, lightweight, and thermally robust winding solutions continues to grow, our enamel jumper wire delivers measurable performance advantages across industrial, automotive, and renewable energy sectors.

For technical inquiries, sample requests, or volume quotations, contact us directly at cathy@transformerstrip.com. Our engineering and supply chain teams are prepared to support your next-generation product development with data-driven material solutions.

---
