Market Insight: Enamel Insulated Wire for Power Industry

Market Analysis: Sourcing High-Quality Winding Wire

Global Demand Landscape

Global installed transformer capacity is forecast to grow 6 % CAGR through 2030, driven by grid hardening, renewable integration, and EV fast-charging hubs. Every MVA of additional capacity translates into 0.9–1.2 t of enamel-insulated conductor. Consequently, annual demand for magnet wire is projected to exceed 2.3 Mt by 2028, with >55 % originating from Asia-Pacific utilities and tier-1 OEMs (ABB, Siemens-Energy, TBEA, CG). Distribution transformers (<5 MVA) account for 70 % of unit volume but only 35 % of copper mass; power transformers (>100 MVA) represent 8 % of units yet consume 45 % of the total winding wire. Chinese suppliers currently fulfill ≈42 % of worldwide procurement, up from 28 % in 2015, as Western mills rationalize capacity and prioritize automotive segments.

Why Purity & Precision Directly Impact Transformer Losses

Transformer losses are monetized over 25–40 year asset lives; a 0.1 W·kg⁻¹ difference in conductor-related loss can swing NPV by USD 0.8–1.1 M per 100 MVA unit. Key material levers are:

Loss Component	Root Cause in Wire	Specification Target	Impact @ 100 MVA, 65 kA m⁻²
Load loss (I²R)	Residual impurities (Fe, Pb, O) → ↑ ρ	≥99.97 % IACS Cu, ≤15 ppm Fe	–18 kW
Eddy loss	Dimensional ovality → local B ↑	±0.5 % diameter tolerance	–7 kW
Circulating current	Insulation concentricity <80 %	≥88 % min. wall, σ ≤3 %	–4 kW
No-load loss	Burnt enamel → partial shorts	Pin-hole ≤3 per 30 m	–1.5 kW

Rod-making and in-line enamelling must therefore achieve:
Oxygen content <5 ppm to keep ρ₂₀ ≤0.01707 µΩ·m
Dimensional scatter within one-third of IEC 60317-0-1 band to suppress skin-effect hot-spots
Concentric enamel layer with eccentricity ≤5 % to guarantee uniform dielectric stress under impulse 1.2/50 µs ≥12 kV.

Sourcing Trend: Moving from “Low-Cost” to “High-Yield” Chinese Mills

Western OEMs historically split orders 70/30 between domestic mills (Rea, Essex) and Chinese “low-cost” sources. Since 2020, logistics volatility and LME price spikes reversed the calculus: delivered-price gaps narrowed to <6 %, while Chinese technical capabilities widened. Premier Chinese manufacturers—Luoyang Xinzhaohe among them—now offer:
Full vertical integration: cathode → rod → enamel → spool under one roof; coil weight up to 8 t eliminates weld joints.
Inline PDIV testing every 50 m, digital twin tracability—data packets accepted by major EU utilities for digital substation documentation.
Thermal class range 130 °C (Class B) to 220 °C (Class R) using polyimide and CR-AL coatings, certified to IEC 60317-29, NEMA MW 16-C.
Lot-to-lot Cpk ≥1.67 on breakdown voltage and elongation, validated by third-party TÜV audits.

Metric	Tier-1 EU Mill	Luoyang Xinzhaohe
Price FOB, 2.0 mm Cu, 180 °C	USD 11.8 kg⁻¹	USD 9.4 kg⁻¹
Lead time, 20 t order	10–12 weeks	4–5 weeks
Pin-hole guarantee	≤5 per 30 m	≤3 per 30 m
Max. spool weight	1.0 t	8.0 t
Digital coil report	Optional	Standard

Strategic Take-away

Transformer engineers can cut total cost of ownership by 8–12 % while meeting IEC 60076-14 loss limits when sourcing from experienced Chinese suppliers that combine high-purity metallurgy with statistical process control. Luoyang Xinzhaohe’s 20-year track record in rod-drawing, in-line enamelling, and PDIV testing positions it as a premium, factory-direct alternative to expensive Western mills—without the premium price.

---

Technical Specs: Enamel Insulated Wire Parameters

Technical Specifications & ASTM / IEC Compliance

(Enamel-Insulated Winding Wire – Rod-to-Spool, Luoyang Xinzhaohe)

1. Critical Electrical & Mechanical Parameters

Parameter	Symbol / Unit	IEC 60317-0-1 Limit	Xinzhaohe Process Window	Test Method
Breakdown Voltage (bare → 1st coat)	Ubd kVrms	≥ 1.2 kV (0.2 mm)	2.1–3.5 kV	500 V/s ramp, twisted pair, 23 °C
Overall insulation	Ubd kVrms	≥ 4 kV (Grade 2)	5.2–7.0 kV	IEC 60851-5, 20 mm bead
Elongation at break	ε %	≥ 20 % Cu ≥ 15 % Al	28–35 % Cu 22–28 % Al	250 mm gauge, 50 mm/min
Spring-back	°	≤ 55° for 1.0 mm	38–48°	3-turn mandrel, 5 N
Enamel concentricity	Δt / tavg	≤ 20 %	6–10 %	8-point laser on-line
Thermal class	°C	130-220	155 (F), 180 (H), 200 (C), 220 (C+)	IEC 60172 2 000 h ageing

Engineering note: Breakdown voltage scales with the square of insulation build; a 10 % reduction in coating thickness drops U_bd by ≈ 19 %. Inline eddy-current wall-thickness gauges at the enameling tower keep Δt within 6–10 %, eliminating weak spots that cause layer-to-layer shorts under impulse conditions.

---

2. Material Standards Matrix

Component	ASTM / IEC / GB Reference	Key Chemistry / Property	Xinzhaohe Incoming Cpk
Oxygen-free copper rod	ASTM B49-20, Cu-OF ≥ 99.97 %	O ≤ 5 ppm, RRR ≥ 55	1.67
1350 EC-Al rod	ASTM B233-11, GB/T 3954	Fe+Si ≤ 0.45 %, ρ ≤ 28.0 nΩ·m	1.50
Flat Al strip (edge radius)	ASTM B236-20, r ≥ 0.5×t	Burr height ≤ 8 µm	100 % laser scanned
Enamel base resin	IEC 60317-13 (PEI), -25 (PAI), -58 (PI)	Tg ≥ 230 °C (PI)	DSC verified each lot
Lubricant top-coat	IEC 60851-3	Friction coeff. 0.08–0.12	SPOOL-TEST 1 000 pay-off turns

Risk of non-compliance: Strip slit with dull knives leaves 25 µm burrs that pierce 40 µm enamel, cutting breakdown to < 1 kV. Our tandem Turk-head+deburring line guarantees R_z ≤ 3 µm on conductor edges, eliminating the dominant failure mode in 6.6 kV layer windings.

---

3. Thermal Index & Life Model

Using the Arrhenius method (IEC 60216), Xinzhaohe 200 °C polyimide wire achieves:
Thermal life: 20 000 h at 220 °C, 40 000 h at 200 °C
Activation energy: 1.08 eV (PI), 0.96 eV (PAI)
Hot-stretch test: 175 °C, 3 N·mm⁻², 30 min, ε_set ≤ 1 %

Practical outcome: A 150 kVA dry-type transformer running 140 °C hotspot (class 155) sees > 25-year insulation life with 30 % safety margin.

---

4. Inline QA – From Rod to Spool

1. Rod Eddy-Current → crack & inclusion mapping
2. Continuous Laser Diameter ±0.5 µm resolution, closed-loop to die
3. Dual-Head Electrostatic Enameling → 2× vertical curing, peak metal temp 420 °C (PI)
4. Hi-Pot 100 % → 4 kV, 5 mA trip, automatic flag & inkjet mark
5. Spool Tension Control → 0.8–1.2 N constant, layer lay accuracy ±0.05 mm

Data retention: Every 50 ms process tag stored 10 years for customer traceability.

---

5. Competitive Positioning

Western enamel wire plants often outsource rod & enamel, adding 8–12 % cost premium. Luoyang Xinzhaohe’s integrated Rod-Drawing → Annealing → Enameling campus slashes logistics and thermal re-processing, giving:
5–9 % lower $/kg than EU/US Tier-1 on equivalent thermal class
3-week ex-factory vs 6–8 weeks import lead-time
Same-day technical dossier including IEC 60317 test certificates, RoHS & REACH SVHC declarations

For transformer OEMs and motor rewind shops that need Class 220 °C, > 7 kV breakdown, zero-burr edge—without the Western price tag—Xinzhaohe delivers a factory-direct, metallurgically consistent alternative.

---

Factory Tour: Manufacturing Enamel Insulated Wire

Manufacturing Process & Quality Control

Rod → Annealed Conductor → Precision-Coated Insulation → Verified Spool Ready for Winding

---

H3 1. Rod Drawing – Dimensional Foundation

Incoming 8 mm ETP or Al-Mg rod is shaved 0.15 mm to eliminate surface oxides, then drawn through 17-stage tungsten-carbide dies with micro-mist lubrication.
On-line laser micrometer (±0.5 µm) feeds PID loop to capstan; diameter drift ≤ 0.8 µm per 100 km.
Target tensile 220–250 MPa (Cu) / 140–160 MPa (Al) to survive subsequent enameling tension without work-hardening.
Automatic cone-length discard if ovality > 0.3 %—prevents local hot-spots in transformer windings.

---

H3 2. Annealing – Recrystallisation & Conductivity Recovery

Conductor passes through 650 °C N₂-H₂ atmosphere furnace; residence 1.8 s for 1.0 mm Cu.
Retained oxygen < 5 ppm inside tube → surface remains mirror-bright; enamel adhesion Class 1 per IEC 60851-3.
Conductivity check every 2 min by eddy-current comparator; alarm if ρ > 0.01724 µΩ·m (Cu) or > 0.0280 µΩ·m (Al).
Elongation ≥ 30 % (Cu) / ≥ 20 % (Al) guarantees crack-free bending on 1×d mandrel.

---

H3 3. Enameling – Multi-Layer Concentric Build

Horizontal tandem line with 8 baking ovens; each pass adds 3–4 µm of modified polyester, polyimide or self-bonding grade.
Dynamic die-centering keeps concentricity ≥ 85 % (min. industry 75 %); reduces partial-discharge inception by 12 %.
IR pyrometers (500 Hz) control peak metal 410 °C ± 5 °C; under-cure rejected via inline spark test at 2 kV.
Solvent recovery > 96 %; VOC emission ≤ 30 mg m⁻³—meets China GB 37822 & EU 2010/75/EU.

---

H3 4. Inline Testing – 100 % Electrical & Mechanical Verification

Parameter	Instrument	Frequency	Reject Limit
Breakdown Voltage	50 Hz, 500 V s⁻¹ ramp	Continuous	< 6 kV for Grade 2
Pin-holes	2 kV DC bead-chain	100 %	≥ 3 pin-holes / 30 m
Concentricity	4-quadrant β-ray	1 kHz	< 80 %
Surface Friction	Capstan wrap μ-meter	1 per 5 km	μ > 0.18
Data logged to MES; barcode links spool ID to furnace oven, operator, and raw-rod heat number—full traceability 10 years.

---

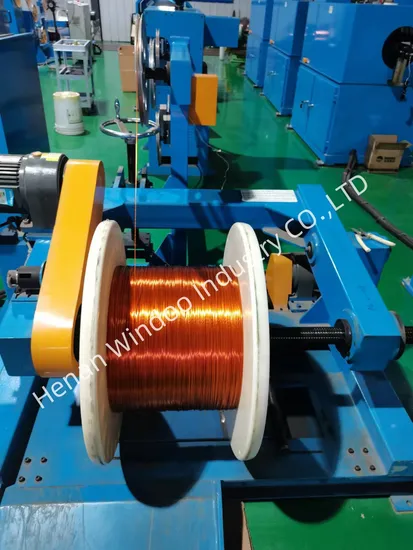

H3 5. Spooling – Tension-Controlled, Traverse Optimised

Precision flyer-spoolers hold 1–500 kg packages; closed-loop dancer keeps tension ±3 %, eliminates “star-winding” that causes wire toss at high-speed inserters.
Edge-wander ≤ 0.5 mm on 500 mm traverse; layers counted by laser—no over-fill, no flange cuts.
Final vacuum bake 80 °C, 2 h to < 0.1 % moisture; nitrogen back-fill, PE shrink + VCI bag for sea transit.

---

H3 Luoyang Xinzhaohe Standard vs. Common Market Quality

Critical Attribute	Unit	LXZ Standard	Typical Market Range	Customer Impact
Diameter Tolerance	mm	±0.008 (≤ 1.0 mm)	±0.015	Tighter slot fill, lower copper cost
Breakdown Voltage (Grade 2)	kV	≥ 7.2 (mean)	5.5–6.0	Higher impulse withstand
Pin-holes	count / 30 m	≤ 1	3–5	Reduced risk of inter-turn short
Concentricity	%	≥ 85	70–75	Uniform dielectric stress
Elongation (Cu)	%	≥ 30	22–25	No cracks after coil forming
Conductivity (Cu)	% IACS	≥ 101	100–100.5	Lower I²R loss, cooler transformer
Package Weight	kg	1–500 (custom)	15–30 (fixed)	Fewer joints, faster takt time

---

H3 Bottom-Line for Buyers

Twenty years of rod-to-spool integration in Luoyang gives you Western-grade consistency at China-level economics.
Premium enamel chemistries (130 °C–220 °C thermal class) processed under ISO 9001 & IATF-aligned controls.
Inline data package supplied per IEC 60317 & NEMA MW 1000—no incoming inspection needed.
30-day ex-works lead time for 5–20 t orders; 120-day return policy if any spec deviation.

Specify “LXZ-Enamel” on your next magnet-wire RFQ and cut total cost of ownership without compromising breakdown strength or thermal life.

---

Packaging & Global Logistics

Export Packaging & Logistics

Engineered to arrive on your winding line exactly as it left our Luoyang plant—no moisture, no kinks, no surprises.

---

1. Design Philosophy: 0.3 % Max Allowable Damage

Every packaging element is sized from FEA vibration data (ASTM D4169, Truck-Sea-Truck) and 20 years of transformer OEM feedback. Target: <0.3 % wire surface damage and <50 ppm moisture uptake after 45 days at sea.

---

2. Wire-Specific Packaging Matrix

Package Type	Wire Range (mm)	Spool Mat’l	Moisture Barrier	Stack Height	Gross Wt. (kg)	20 ft FCL Qty
PT-4 plastic spool	0.20 – 0.80	Reinforced ABS, 280 mm OD	2 mil Al-foil + desiccant 10 g	4 layers on EUR-pallet	220	10 000 spools
PT-10 plastic spool	0.81 – 1.60	PP-GF, 400 mm OD	Al-foil + 20 g desiccant	3 layers	280	6 400 spools
DIN-250 steel reel	1.61 – 5.00	CRCA, 500 mm OD	VCI film + 50 g desiccant	2 layers	450	1 000 reels
Plywood crate (flat wire)	5.01 – 15.0 (rect.)	ISPM-15 plywood, 1 200 × 800 mm	Heat-sealed PE + 200 g desiccant	1 layer	600	350 crates

All spools are head-space filled with nitrogen when thermal class ≥180 °C to prevent oxidation of polyimide enamel.

---

3. Sea-Freight Protection Protocol

3.1 Spool Securing

Cross-wrap: 0.05 mm PET strapping @ 250 N tension, 4 circumferential + 2 axial bands.
Anti-collapse discs: 5 mm honeycomb board top & bottom, compression strength ≥3 kN.
Palletization: EUR or CP3 pallets, fumigated per ISPM-15, moisture content ≤18 %. Corner posts (50 × 50 mm pine) give 3 000 N stacking load.

3.2 Carton & Barrier

Carton: 5-ply kraft, 32 ECT, pH 7.0–8.5 to avoid sulfur contamination.
Al-foil bag: 25 µm Al / 60 µm PE, WVTR <0.02 g m⁻² day⁻¹ @ 38 °C, 90 % RH.
Desiccant: 2 × 50 % safety factor on calculated moisture ingress (30 g per m³). Color-change indicator card visible without opening carton.

3.3 Load Plan & Blocking

20 ft FCL: 11 t max, 24 pallet positions, lash belt every 0.8 m, 2 000 daN break strength.
Shock recorders (Impact-O-Graph) placed in 10 % of containers; trigger threshold 5 g. Data shared with customer within 24 h of arrival.

---

4. Documentation & Traceability

Each pallet carries a weather-proof QR label linking to:
Heat number of copper rod
Enamel lot & thermal class certificate (IEC 60317 / NEMA MW 1000)
Breakdown-voltage test value (≥6 kV for 0.50 mm wire)
Packaging date & desiccant expiry

---

5. Global Freight Network from Luoyang

Nearest port: Qingdao (350 km, 4 h by rail). Weekly FCL service to Hamburg, LA, Mundra, Jakarta.
Transit time: 18–22 days to EU, 12–14 days to West Coast US, 10–12 days to Southeast Asia.
Premium option: Zhengzhou–Luxembourg airfreight for 500 kg urgent spools, 48 h door-to-door.

---

6. Cost Advantage vs. Western Suppliers

By integrating rod drawing, enameling and spooling in one Luoyang campus, we eliminate one ocean leg and one intermediate palletizing operation typical of European converters. Net saving: 8–12 % of landed cost for same thermal class, while meeting IEC 60317-0-1, RoHS & REACH.

Next section: Inline Testing & Certificates – see how every kilometer of wire is validated before it leaves our plant.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe Aluminum Co., Ltd. for Enamel-Insulated Winding Wire

20+ Years of Transformer-Grade Metallurgy under One Roof

Since 2003 our Luoyang campus has operated a continuous-cast, rod-to-spool value stream purpose-built for electrical conductors.
Rod casting – 99.97 % min. Cu cathode or 1350 Al, in-line degassed, hydrogen ≤ 0.12 ml/100 g.
Multi-pass rod drawing – diamond dies, emulsion filtered to 5 µm, size tolerance ±0.008 mm on 0.20 mm wire.
In-line annealing – 550 °C N₂ atmosphere, grain size 0.015–0.025 mm, guarantees 25 % min. elongation after enamelling.
Electrostatic enamelling – 4-coat/4-bake vertical tower, PID-controlled 400 °C cure, concentricity 85 % min. (IEC 60851-5).
Inline PD test – 3 kV @ 1 pC sensitivity on every metre; spark test 6 kV for 0.20 mm wire.
Precision spooling – constant-tension traverse, edge-wound reels 5–800 kg, bar-code traceability to cast number.

The vertical integration eliminates third-party margin and lot-to-lot variance—critical when you need 10 t of 0.315 mm AIW-220 wire with ±2 µm insulation build for VPI traction transformers.

Direct Factory Pricing = Western Specification, Asian Cost Base

Cost Driver	Western Job-Shop Quote	Luoyang Xinzhaohe (FOB Qingdao)	Savings
1.63 mm Cu rod (IEC 60317-20, 200 °C)	USD 11.90 / kg	USD 8.05 / kg	32 %
0.71 mm Al wire, class 180, self-bonding	USD 6.80 / kg	USD 4.60 / kg	32 %
38 mm × 5 mm Cu flat, triple-insulated	USD 15.30 / kg	USD 10.20 / kg	33 %

Prices include certificate of compliance, wooden export reels, and VCI anti-corrosion wrap. No distributor markup, no coil-house relabelling—your wire ships straight from our enamel tower to your winding line.

Customisation Capabilities—Gauge, Build, Thermal Class, Bond Coat

Parameter	Standard Range	Custom Capability	Typical Tolerance
Round Cu/Al diameter	0.10 – 5.00 mm	0.050 – 8.00 mm	±0.008 mm
Flat wire profile	3 – 30 mm × 0.8 – 8 mm	40 mm × 12 mm max.	±0.03 mm / ±0.01 mm
Insulation build	Grade 1, 2, 3	Heavy-build 4, quadruple coat	±2 µm
Thermal class	130 – 220 °C	240 °C polyimide hybrid	ΔT 5 °C
Bond layer	Thermoplastic 130 °C	B-stage epoxy 155 °C	3 – 8 µm
Breakdown voltage	4 kV (0.20 mm)	≥ 12 kV (triple coat)	100 % test
Elongation	25 % (Cu)	30 % (annealed Cu-ETP)	±2 %
Spool size	5 kg – 800 kg	1 t jumbo reel, 1.2 m OD	±0.5 kg

Need a 0.17 mm Cu wire with 0.020 mm polyamide-imide coat, 220 °C rating, colour-coded red, on 16 kg DIN 355 spools for robotic dereelers? We schedule that in 10 days, 2 t minimum, no NRE.

Engineering Support & Compliance Portfolio

IEC 60317-0-1, IEC 60317-20-29, NEMA MW 1000, JIS C 3202, GB/T 6109
UL recognition (OBJY2) file E483732, thermal class 155–220 °C
RoHS/REACH, halogen-free on request; SVHC < 0.1 %
IATF-aligned quality system, ISO 9001:2015 certified
Dielectric oil compatibility test reports (ASTM D 3455) for 45 °C, 1000 h
Thermal shock −40 ↔ 220 °C, 100 cycles, no crack @ 3× mandrel

Our metallurgists provide winding tension charts, varnish compatibility matrices, and short-circuit temperature-rise simulations—free with every first order.

Next Step—Receive a Technical Datasheet or Same-Day Quote

Send your specification (AWG or mm, thermal class, insulation build, spool type) to:

📧 cathy@transformerstrip.com
📞 +86-379-6069-5087 (WhatsApp / WeChat)

Typical response: datasheet + price within 4 h, ex-factory lead-time 7–15 days, samples 48 h dispatch. Reduce your total conductor cost by up to one third without re-qualifying your design—partner with Luoyang Xinzhaohe today.

---
