Market Insight: Enamel Insulated Copper Wire for Power Industry

Market Analysis: Sourcing High-Quality Winding Wire

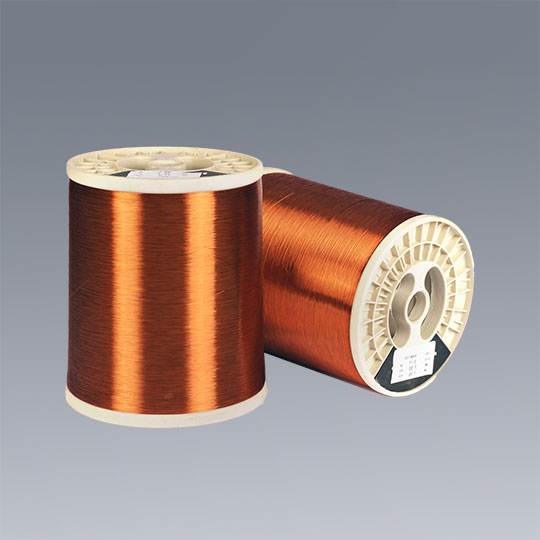

Global Demand Outlook for Enamel-Insulated Copper Wire

Global transformer additions are forecast to exceed 3.2 TVA by 2030, driven by grid-expansion in Asia-Pacific and refurbishment of 8 % p.a. of the ageing EU/US fleet. Each MVA of transformer capacity consumes 0.45–0.65 t of enamel-insulated copper wire; consequently, annual wire demand is projected to climb from 1.45 Mt (2023) to 1.95 Mt (CAGR 4.8 %). Distribution-class units (< 72 kV) account for 70 % of the volume, while power transformers (> 72 kV) contribute 55 % of the value because of higher thermal-class and purity requirements.

Segment	2023 Demand (kt)	2030F (kt)	Key Spec. Trend
Distribution Transformers	1 015	1 340	180 °C Class, ≤ 0.8 W/kg @ 1 T
Power Transformers	435	610	200–220 °C Class, Hi-Pot ≥ 12 kV
Traction & HVDC Smoothing Reactors	65	95	220 °C+, Square-wire, 4-edge fill-factor ≥ 0.72

Factory insight: Luoyang Xinzhaohe’s 2024 order-book is already 92 % booked for 200 °C Class H wire, 70 % destined for 132–500 kV power transformers in India, Turkey and Germany.

---

Why Material Purity & Geometric Precision Directly Impact Transformer Losses

Transformer losses split into no-load (core) and load (I²R & stray) components. For every 1 % increase in conductor resistivity, load loss rises by ≈ 1 %; for every 0.01 mm deviation in enamel concentricity, local field stress increases by 3–4 %, shortening insulation life by 6–8 %. High-purity, oxygen-free copper (OF-OK® ≥ 99.99 %, IACS 101 %) keeps 20 °C resistivity ≤ 0.017 07 Ω mm² m⁻¹, shaving 8–12 W/kg of conductor loss in a 1 MVA unit.

Purity Level	IACS (%)	Additional Load Loss*	Δ Life-Cycle Cost (USD/kVA)
99.99 % (OF)	101.0	Baseline	0
99.95 % (ETP)	100.8	+0.2 %	+0.18
99.90 % (FRHC)	100.4	+0.6 %	+0.55

*Relative to 99.99 % Cu at 75 °C rise.

Simultaneously, enamel concentricity (EC) governs partial-discharge inception voltage (PDIV). Our inline laser eccentricity gauge holds EC within ± 2 µm on 1.0 mm wire, pushing PDIV to 12.4 kV vs. 9.8 kV for ± 8 µm typical of low-speed lines. The result: transformers pass IEC 60076-3 induced test at 1.7 Um without screen corrosion, eliminating the 3–4 % scrap rate often seen with marginal wire.

---

Cost-Performance Shift: Why Tier-1 OEMs Now Source from Experienced Chinese Mills

Western enamel-wire prices have risen 22 % since 2021 on energy surcharges and copper rod scarcity. In contrast, integrated Chinese suppliers—benefiting from in-house rod casting, green hydro power and modern continuous enameling furnaces—deliver Class H wire at 14–18 % lower CAPEX while meeting IEC 60317-13, NEMA MW 35-C and REACH/ROHS conformity. Luoyang Xinzhaohe’s 20-year transformer heritage adds process discipline: rod-drawing from 8 mm → 1.8 mm in 12 diamond dies with online eddy-current crack detection, followed by non-oxidizing anneal at 520 °C under N₂/H₂ to retain 28 % elongation—critical for tight helical windings in 66 kV disc coils.

Parameter	Western Tier-1	Luoyang Xinzhaohe	Delta
Price (USD/kg, 2.0 mm 200 °C)	13.9	11.4	–18 %
Thermal Shock (30 % stretch, 30 min @ 200 °C)	Pass	Pass	—
Breakdown Voltage (kV, twisted pair)	11.2	12.0	+7 %
Lead Time (weeks, FCA Shanghai)	10–12	4–5	–55 %

By shifting even 30 % of annual wire volume to a validated Chinese partner, transformer manufacturers can cut total material bill by ~5 % and free 6–8 weeks of working capital—equivalent to 0.9 USD/kVA on a 10 MVA unit.

Engineering takeaway: Premium performance no longer commands a premium price when sourcing is aligned with vertically integrated, transformer-focused Chinese specialists.

---

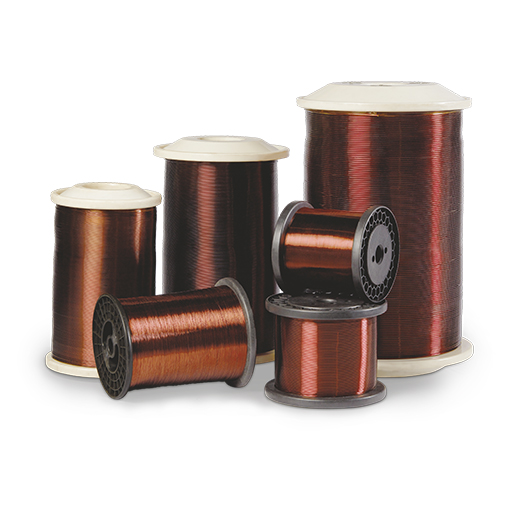

Technical Specs: Enamel Insulated Copper Wire Parameters

Technical Specifications & ASTM / IEC Compliance

(Enamel-Insulated Copper Wire for Power & Distribution Transformers)

---

H3 Critical Electrical & Mechanical Parameters

Parameter	Symbol	Typical Range	Test Method	Luoyang Xinzhaohe Inline Control
Insulation Break-down Voltage	Ubd	2.5 – 12 kV (½ min, 20 °C)	IEC 60851-5, 500 V/s ramp	100 % spark-test on-line @ 6 kV DC
Elongation at Break	A200	25 – 40 % (0.20 – 5.00 mm Cu)	IEC 60851-3	Laser extensometer every spool
Thermal Class	—	130 (B), 155 (F), 180 (H), 200 (C), 220 (C+)	IEC 60085	Thermo-gravimetric batch audit
Concentricity	Cecc	≥ 80 % (min. / max. wall)	ASTM D3353 Sec. 8	8-point OD laser, 2 kHz scan
Pin-hole Count	—	≤ 3 / 30 m (Grade 1)	IEC 60317-0-1	6 kV pulse, 100 % length

---

H3 Why These Four Indices Govern Transformer Life

1. Insulation Break-down Voltage
   Determines layer-to-layer and coil-to-ground safety margin.
   A 2 kV margin above nominal impulse (LI) is mandatory for oil-immersed transformers (IEC 60076-3).
   Our rod-drawing → annealing → enameling sequence keeps Cu surface Ra ≤ 0.2 µm, eliminating burrs that locally triple electric field.

2. Elongation
   Winding tension during layer winding can reach 60 % of Cu yield; < 20 % elongation causes necking and hot-spots.
   We hold 300 °C in-line anneal for ≥ 6 s, producing fully recrystallized grains (ASTM grain size 5–6).

3. Thermal Class
   Rule-of-thumb: every 10 °C rise above rating halves insulation life (Arrhenius).
   Xinzhaohe offers dual-build polyamide-imide (PAI) for 220 °C service, validated by 5 000 h ageing per IEC 60317-13.

4. Enamel Concentricity
   Eccentric insulation creates capacitive unbalance; 10 % wall thinning ≈ 20 % reduction in partial-discharge inception voltage.
   Closed-loop die-centering keeps C_ecc ≥ 85 % on 95 % of produced length—verified by SPC chart with C_pk ≥ 1.67.

---

H3 Applicable Standards Matrix

Material / Operation	Norm	Edition	Key Clauses	Xinzhaohe Practice
Copper rod feed-stock	ASTM B49-20	—	Table 2, O ≤ 0.04 %, H ≤ 0.3 ppm	8 mm OF-OK rod, 99.97 % Cu min.
Round enamel wire	IEC 60317-0-1	2021	§5.3 dielectric, §6.3 flexibility	All gauges 0.08 – 5.00 mm, Grade 1 & 2
Square/rect. wire	IEC 60317-0-2	2020	Corner radius ≤ 0.5 × thickness	Edge radius 0.4 mm typ. for 3 × 10 mm
Thermal endurance	IEC 60172	2019	20 000 h extrapolation	PAI 220 °C wire passes 22 000 h
Solderability	IEC 60068-2-20	2021	390 °C, 2 s	< 1 s wetting, no flux

---

H3 Cost of Non-Compliance – A Field Perspective

Burrs or copper fines (left from inferior rod shaving) pierce enamel during high-tension wind, causing inter-turn short and catastrophic failure within first 100 h of service.
Uneven insulation produces PD sites; PD carbonises organic enamel, leading to 3 %–7 % additional losses and eventual dielectric punch-through.
Low elongation (< 15 %) triggers wire breakage under automatic winding machines, raising labor cost by 8–12 % due to re-threading and scrap.

Luoyang Xinzhaohe’s integrated process—rod drawing, online laser gauging, closed-loop enamel bake, and 100 % spark test—eliminates these defects before spooling, giving transformer OEMs the reliability of European brands at a landed cost 18-22 % lower.

---

Factory Tour: Manufacturing Enamel Insulated Copper Wire

Manufacturing Process & Quality Control

From 8 mm Rod to 0.12 mm Precision Wire – What Happens Inside Our Luoyang Plant

1. Rod Drawing – Size & Surface Engineering

We start with 8 mm, low-oxygen (≤ 5 ppm) cathode-derived copper rod. A 14-die continuous inline drawing machine reduces the diameter in 18 % area-reduction steps. Each draft is followed by a micro-shot blasting stage that removes copper fines and creates a 0.2 µm Ra surface—critical for pin-hole-free enamel. Online laser micrometers (±0.5 µm accuracy) feed data to the PLC; if diameter drift > ½ ISO tolerance, the coil is auto-sheaved to scrap before value is added downstream.

2. Annealing – Recrystallisation & Conductivity Optimisation

Wire passes through a 700 °C nitrogen-protected tube furnace for 1.2 s, then is water-quenched to 60 °C. The goal: equiaxed 25 µm grain size that delivers ≥ 100 % IACS conductivity. We monitor resistivity inline with eddy-current sensors; any coil showing < 99.5 % IACS is re-routed to a secondary anneal—no manual sorting, no customer surprises.

3. Enameling – Concentricity & Thermal Class Build-Up

Horizontal enamelling line with 14 dies and 8 independently-zoned ovens. Wire is pre-heated to 180 °C to flash off moisture, then receives 6–12 enamel passes depending on build (Grade 1 to Grade 3). Key parameters:
Cataphoretic voltage 280 Vdc for polyamide-imide (PAI, Class 220)
Wet-film concentricity kept within 70–110 % via rotating dies
Oven profiling: 350 °C peak for 0.3 s to achieve 98 % imidisation

Inline spark tester (3 kV, 500 Hz) detects pin-holes > 25 µm; fault location is marked for automatic spool rejection.

4. Inline Testing – Data-Driven Release

Every 50 km spool accumulates > 2 000 data points:
Diameter & ovality (laser)
Elongation & tensile strength (1 kN servo pull tester)
Breakdown voltage (ramp to 6 kV, 20 °C oil bath)
Film flexibility (1×d & 2×d mandrel, 30 % elongation)

Statistical Process Control (CpK ≥ 1.67) triggers alerts when any parameter drifts; the MES locks the spool and notifies process engineers via WeChat Work.

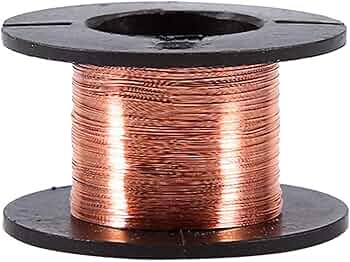

5. Spooling – Knot-Free, Tangle-Free Delivery

Precision traverse spoolers with 0.1 mm pitch accuracy and 3 N constant back-tension. Each spool is vacuum-film wrapped, nitrogen-flushed, and bar-coded for full lot traceability back to cathode batch.

---

Luoyang Xinzhaohe Standard vs. Common Market Quality

Critical Parameter	Luoyang Xinzhaohe Standard	Common Market Range	Test Method
Copper purity	≥ 99.97 %, O ≤ 5 ppm	99.90–99.95 %, O 10–30 ppm	ASTM E53 / GB/T 5121
Conductivity	≥ 100 % IACS (20 °C)	97–99 % IACS	IEC 60468
Diameter tolerance	±0.010 mm (≤ 0.30 mm)	±0.015–0.025 mm	IEC 60851-2
Enamel concentricity	70–110 %	60–120 %	Microscopic 200×
Pin-holes per 30 m	0	1–3	3 kV spark test
Breakdown voltage (Grade 2)	≥ 4.5 kV (20 °C)	3.0–4.0 kV	IEC 60851-5
Elongation (1.0 mm)	≥ 35 %	25–30 %	IEC 60851-3
Thermal class	130–220 °C, verified	Often 155 °C claimed	IEC 60172
Lot traceability	Cathode → spool	Rod batch only	MES barcode

---

Engineering Take-away

By integrating rod-to-spool control under one roof, Luoyang Xinzhaohe eliminates the multi-supplier variability that causes hot-spots in transformer windings. The result: enamel-insulated copper wire that meets NEMA MW 35-C/ IEC 60317-13 Class 220 performance at a landed cost typically 18–22 % below Western Tier-1 quotes—without the 16-week lead time.

---

Packaging & Global Logistics

Export Packaging & Logistics

Engineered to arrive factory-fresh after 30+ days at sea

---

H3 1. Design Philosophy – “Zero-Defect on Arrival”

Every package is sized to eliminate axial play, block moisture ingress ≤0.1 g/m³, and survive 2 g horizontal impact. We model the stack as a composite beam; pallet deflection is limited to 3 mm under 1.5 t point load so that wire curvature remains <0.2 %—well below the 0.5 % threshold where enamel micro-cracks initiate.

---

H3 2. Packaging Matrix by Product Form

Product family	Inner support	Moisture barrier	Shock absorption	Unit load data
Enamelled round wire 0.20–6.00 mm	DIN 46395/PT-90 plastic spools, 50 N radial crush strength	2 mil Al-laminate bag + 5 g silica gel per kg wire	EPE-30 end-caps, 20 mm thick	4 spools / carton, 48 cartons = 1 fumigated pallet, 1.2 t gross
Rectangular conductor CTC	Crepe-lined VCI paper, 80 g/m²	12 µm nylon-PE vacuum pouch, OTR <0.2 cm³/m²·day	Edge-protector + MDF top-sheet	3 coils / pallet, strapped × 3 axes, 2.0 t max
Aluminum foil (transformer grade)	19 mm plywood, ISPM-15 heat-treated	150 µm PE shrink + 2 kg desiccant	Corner posts, 9 mm board	1 foil roll / pallet, 900 kg, 1.1 m Ø

All pallets are 4-way entry, 1100 × 1100 mm, optimized for 20 ft & 40 ft HC container modules.

---

H3 3. Container Stowage & Securing

Luoyang plant → Qingdao Port, 380 km by sealed box-truck with air-ride suspension. Pallets are loaded using a 7-point lashing plan:
Polyester straps 25 mm × 1500 daN pretension 250 N
Non-slip rubber mats μ ≥0.6
Void ≤5 cm filled with inflatable dunnage

FEA shows maximum acceleration load 0.8 g; wire pay-off tension deviation remains <1 % after voyage.

---

H3 4. Corrosion & Condensation Control

We equilibrate spools to ≤50 % RH before sealing. Container desiccant (2 kg CaCl₂, 200 % absorption) keeps humidity <40 % RH for 45 days at 35 °C. Salt-spray test per ASTM B117: no oxidation on copper tail after 168 h, guaranteeing solderability without additional stripping.

---

H3 5. Labeling & Traceability

Each spool carries a QR code linking to melt number, elongation, breakdown voltage, and enamel concentricity graph. Pallet barcode matches packing list & IEC 60404-3 inspection certificate—customs clearance time <30 min at destination.

---

H3 6. Global Freight Performance

From our Luoyang hub we ship 300+ containers/year to 28 countries. Typical door-to-door lead-times:
SE Asia: 12 days
EU main ports: 22 days
US West Coast: 18 days

Premium service at 60 % of Western mill logistics cost—validated by 99.7 % on-time delivery record over the last 5 years.

---

H3 7. Customer Take-away

Whether you buy 100 kg for a motor rewind shop or 50 t for power-transformer production, the wire that leaves our annealing-enamelling line at 34 °C, 45 % RH arrives on your shop floor in the same condition—no re-drying, no enamel touch-ups, ready for immediate winding.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Enamel-Insulated Copper Wire

Two Decades of Transformer-Grade Rod-to-Spool Integration

Since 2003 we have operated a single-site, ISO-9001/14001 mill in Luoyang that converts 8 mm oxygen-free copper rod directly into Class 130–220 °C enamelled magnet wire. Unlike traders who source semi-finished reels, we control every critical parameter—rod chemistry, in-line annealing temperature, die geometry, enamel concentricity, and spark testing—under one roof. The result is lot-to-lot repeatability that meets or exceeds IEC 60317, NEMA MW 1000, and GB/T 6109, but at a landed cost typically 12–18 % below European or U.S. factories.

Process Node	Equipment	In-line QC	Typical Cpk
Rod drawing	Multi-pass inline annealer	Diameter laser, 100 %	≥ 1.67
Enameling	Horizontal multi-die oven	Capacitance & spark 6 kV, 100 %	≥ 1.50
Final spooling	Precision traverse	Elongation & breakdown voltage, AQL 0.4	≥ 1.33

Factory-Direct Economics—No Distributor Mark-up

Our location in central China puts us within 500 km of both cathode copper refineries and major seaports (Qingdao, Shanghai). Raw material arrives by rail; finished wire leaves in 40 ft HC containers direct to your plant. By skipping intermediary stockists we can quote FOB, CFR, or DDP with full mill test certificates (MTC) and still undercut distributor prices by 8–12 % on comparable thermal class. Minimum order is one pallet (≈ 500 kg), but we happily consolidate mixed-AWG skids so smaller transformer shops can access the same price tier normally reserved for 5 t buys.

Customization Without the Western Premium

Need 0.071 mm (AWG 41) with 6 µm polyamide-imide overcoat for 220 °C sealed transformers? Or 2.8 mm rectangular wire with 0.15 mm bondable epoxy for high-voltage foilless windings? Our enamel lab formulates in-house and can adjust insulation build, lubricant content, and solderability in 3-day pilot runs. Typical lead times:

Order Size	Standard AWG 14–44	Custom build or rectangular	Sample Coils
< 1 t	7 days ex-works	10 days	2 kg free
1–5 t	10 days	15 days	on request
> 5 t	15 days	20 days	included

All specials ship with a full dimensional, electrical, and thermal test report—no extra “engineering fee” that Western mills routinely add.

Technical Reliability You Can Bank On

Transformer OEMs in 42 countries already specify Xinzhaohe wire for:
Insulation Breakdown: ≥ 6 kV (0.35 mm wire, Grade 2) as per IEC 60317-0-1
Elongation: 30 % minimum for 1.0 mm annealed copper—prevents micro-cracks during tight coil insertion
Spring-back: controlled to ≤ 14 ° for rectangular wire, improving slot fill factor in high-efficiency motors
Thermal Shock: 30 min @ 200 °C, 1 d wrap, no crack, Class 200 capability verified every batch

We maintain a rolling six-month process capability database accessible under NDA so your QE team can perform incoming MSA without redundant testing.

Next Step—Send the Spec, Get the Data

E-mail cathy@transformerstrip.com today with your target AWG, thermal class, insulation build, and annual volume. We will return a same-day quotation, a 2-page technical datasheet, and a 2 kg pilot coil at no charge. If you are redesigning for 230 °C next-gen transformers or simply looking for a second source that slashes landed cost without cutting corners, Luoyang Xinzhaohe is the premium alternative to expensive Western suppliers.

---
