Market Insight: Electrical Steel Laminations Manufacturer for Power Industry

Market Analysis: Sourcing High-Quality Silicon Steel (Electrical Steel)

Global Demand Outlook

Power-grid expansion and renewable integration are pushing transformer production to record levels. The International Energy Agency forecasts 7 % CAGR for medium- and large-power transformers through 2030. Each kVA of transformer capacity consumes 0.18–0.25 kg of silicon steel; therefore, an additional 1.8–2.2 Mt of electrical steel will be required annually by the end of the decade. Distribution-equipment OEMs and motor-repair shops are simultaneously shifting toward higher-grade, lower-loss grades to meet IEC 60076-20 and DO-2019 efficiency mandates, tightening the supply window for <0.9 W kg⁻¹ @ 1.5 T material.

Segment	2023 Steel Intensity	2030 Projection	Preferred Grade
Power transformer ≥100 MVA	0.23 kg kVA⁻¹	0.21 kg kVA⁻¹	0.23 mm HIB, P₁₇/₅₀ ≤0.85 W kg⁻¹
Distribution ≤5 MVA	0.19 kg kVA⁻¹	0.17 kg kVA⁻¹	0.27 mm CRGO, P₁₇/₅₀ ≤1.00 W kg⁻¹
Traction & welding	0.25 kg kVA⁻¹	0.23 kg kVA⁻¹	0.30 mm CRNO, P₁₅/₅₀ ≤1.25 W kg⁻¹

Why Material Purity & Geometric Precision Drive Transformer Losses

Core loss (Pc) is the sum of hysteresis (Ph) and eddy-current (Pe) components. Both are exponentially sensitive to chemistry and burr height:

Pc ≈ Ph + Pe = kₕ f Bⁿ + kₑ (f B t)² / ρ
Chemistry: 0.005 % C or 0.02 % S increases kₕ by 4–6 %. Vacuum-degassed, MnS-inclusion-free steel keeps kₕ low.
Thickness tolerance: ±0.008 mm on 0.27 mm sheet changes Pe by ±3 %. Slitting with Ra ≤0.4 µm and controlled 4 µm burr reduces Pe by 5–7 %.
Flatness & gap: A 10 µm inter-lamination gap raises magnetizing current 1.3 %, adding to no-load loss. Precision leveling to ≤1 I-unit and CNC stacking (<20 µm step-lap mismatch) are mandatory.

Load losses are dominated by copper I²R, but stray flux from poor core geometry can add 0.5–0.8 % extra loss; hence, tight dimensional repeatability (±0.025 mm on EI-54 legs) is specified by tier-1 transformer OEMs.

Critical Parameter	Typical Western Spec	Luoyang Xinzhaohe Mill Capability	Impact on Pc
Si+Al content	3.1 ±0.05 %	3.15 ±0.02 %	↓ Ph 1.2 %
Thickness	0.27 ±0.012 mm	0.27 ±0.008 mm	↓ Pe 2 %
Burr height	≤12 µm	≤4 µm	↓ Pe 3 %
Insulation coating	1.0 ±0.2 µm, Cr-free	0.8 ±0.1 µm, Cr-free	↓ inter-lamination eddy 1 %

Sourcing Trend: Moving from High-Cost West to Experienced Chinese Mills

Lead times from European mills now exceed 28 weeks, and surcharges for <0.85 W kg⁻¹ grades have reached USD 1,050 t⁻¹. Chinese producers with 20-plus-year transformer-material heritage—such as Luoyang Xinzhaohe—deliver equivalent or tighter property windows at 18–22 week lead and 18–25 % lower cost. Our integrated line (slitting → hydrogen annealing → tension leveling → insulation coating → laser/punch cutting) keeps total process capability Cpk ≥1.67, meeting ABB, Siemens and State-Grid audits. All material is RoHS & REACH compliant, with full ICP-OES melt records and per-coil loss mapping supplied via QR-coded test certificates.

For transformer builders and motor-repair shops facing margin pressure, sourcing from Luoyang Xinzhaohe provides premium magnetic performance without the Western price premium—while ensuring repeatable, lot-to-lot core loss that keeps your transformers inside IEC 60076-20 Tier-2 loss limits.

---

Technical Specs: Electrical Steel Laminations Manufacturer Parameters

Technical Specifications & ASTM / IEC Compliance

Factory-direct precision from Luoyang Xinzhaohe Aluminum Co., Ltd. – 20 years slitting-to-cutting integration

---

H3 Critical Magnetic & Geometric Parameters

Parameter (Unit)	ASTM / IEC Reference	LXZ-A Typical Range	Consequence if Out-of-Spec
Core Loss @ 1.5 T, 50 Hz, W/kg	IEC 60404-2 §10.2	0.90 – 1.15 (M5) 1.25 – 1.45 (M6)	Excess heat → oil ageing, derating
Magnetic Flux Density B800 (T)	ASTM A677 Annex A1	≥ 1.68 T (29 gauge) ≥ 1.72 T (26 gauge)	Lower permeability → bigger core, higher cost
Lamination Flatness (I-unit)	ASTM A971	≤ 5 I-units / 300 mm	Air gap → audible hum, 3–5 % loss increase
Burr Height (µm)	IEC 60404-1-1	≤ 15 µm (punch) ≤ 8 µm (laser)	Inter-laminar short, circulating current
Insulation Coating Insulation Resistance (Ω·cm²)	IEC 60404-1-1 §7.3	≥ 20 Ω·cm² / layer (C-5) ≥ 100 Ω·cm² (C-6)	Breakdown @ 600 V, hot-spot failure
Coating Thickness (µm)	ASTM A976	0.8 – 1.5 (organic) 1.5 – 3.0 (inorganic)	Too thick → stacking factor < 97 %

---

H3 Steel Grade Map vs. IEC 60404-8-7 & ASTM A876

IEC Grade	ASTM Equivalent	Core Loss Target W/kg (1.5 T, 50 Hz)	LX Stock Gauge (mm)	Application Fit
23P090 — M-4	0.90	0.23	50 Hz Distribution transformer
27P095 — M-5	0.95	0.27	Power transformer, EI-50 to EI-150
30P105 — M-6	1.05	0.30	Small single-phase, audio amp, welding
35P115 — 35CS250	1.15	0.35	Low-cost motors, reactor stacks

All grades supplied with RoHS-compliant C-5 or C-6 insulation; chromate-free on request.

---

H3 How Defects Create Field Failures

1. Burr > 20 µm
   Penetrates 1–2 µm coating → microscopic weld point → eddy-current loop → local 150 °C hot spot → cellulose insulation carbonisation within 500 h.
2. Uneven Coedge (wedge-shape)
   Stacking factor drops 2 %; audible resonance @ 100–400 Hz; 3 % no-load loss penalty.
3. Residual Stress from Poor Anneal
   Increases core loss 8–12 %; domain refinement lost; permeability drops 15 %.
   LX solution: in-line 820 °C H₂ anneal after slitting, 30 s hold, 1 °C/s cool → restores original crystal texture.

---

H3 Certification & Traceability Package

Mill Test Certificate per EN 10204/3.1 (chemical, mechanical, coating weight).
Epstein strips cut from every master coil; guaranteed loss curve 0.8–1.7 T.
RoHS, REACH, conflict-mineral statement on every shipment.
Optional: IEC 60404-1-1 witness test by CCIC / SGS for loss & burr.

---

H3 Cost-Performance Edge vs. Western Stockists

Item	EU / NA Stockist Price*	LX FOB Luoyang	Technical Delta
M6, 29 ga, C-5	1.05 USD/lb (2.31 $/kg)	0.84 $/kg	Same ASTM grade, burr ≤ 8 µm guaranteed
Slit width ±0.05 mm	Secondary slit +0.10 mm	Precision slit +0.03 mm	Lower scrap 1 % vs. 3 %
Delivery EI-54	4–6 weeks ex-stock	3–4 days ex-stock (500 kg+)	30 days WIP cash relief

Q2-2024 average distributor quotation, 5 t order lot.

---

Bottom line: Tight control of core loss, burr-free edges and uniform insulation coating is not a marketing phrase—it is quantified, audited, and shipped from our Luoyang line every day. Replace high Western inventory cost with LX precision; your transformer keeps the efficiency, your P&L keeps the difference.

---

Factory Tour: Manufacturing Electrical Steel Laminations Manufacturer

Manufacturing Process & Quality Control

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20 years of transformer-grade silicon steel discipline

---

Process Flow: From Parent Coil to Burr-Free Lamination

Step	Equipment & Parameter	Metallurgical Objective	In-Line QC
1. Slitting	0.18–0.35 mm CRGO/CRNO, 300 mm–1 200 mm width, ±0.05 mm width tolerance	Restore grain orientation after cold rolling; minimise edge work-hardening	Laser micrometer every 10 m; edge burr ≤ 5 µm
2. Stress-Relief Annealing	820 °C, 100 % H₂/N₂ atmosphere, 4 h soak, 25 °C/h cool	Remove residual stress, recrystallise Goss texture, lower P₁₇/₅₀	Oxygen probe (≤ 3 ppm), ORP strip sampling every batch
3. Insulation Coating	C-5 (chromium-free) or C-6 organic-inorganic, 0.8–1.2 µm each side, 24 h bake 380 °C	Build 60 Ω·mm² inter-laminar resistance, withstand 800 V Franklin test	Beta backscatter thickness gauge; coating continuity 100 % via eddy current
4. Precision Cutting	300 kN high-speed progression press, ±0.02 mm punch-to-die clearance, 250 SPM	Maintain 90 % fill factor, eliminate micro-burr, keep domain refinement	Vision system (Keyence XG-X) 2 000 ppm; automatic tool offset if burr > 8 µm

---

Quality Control Matrix – “Luoyang Xinzhaohe Standard” vs. Common Market Lot

Critical Property	Test Method	Our Spec	Typical Export Lot	Premium Western Mill
Core Loss @ 1.5 T, 50 Hz, 0.30 mm	IEC 60404-2	≤ 0.97 W/kg	1.05–1.10 W/kg	0.95–1.00 W/kg
Magnetic Flux Density B₈₀₀	IEC 60404-4	≥ 1.83 T	1.78–1.80 T	1.84 T
Lamination Flatness (1 m ruler)	Internal	≤ 0.5 mm	1.0–1.5 mm	0.4 mm
Burr Height	ISO 13715	≤ 8 µm	15–25 µm	10 µm
Inter-laminar Resistance	Franklin ASTM A717	≥ 60 Ω·mm²	30–40 Ω·mm²	70 Ω·mm²
Lot-to-Lot σ(P₁₇/₅₀)	SPC	±0.02 W/kg	±0.06 W/kg	±0.03 W/kg
Certificate Turn-around	—	24 h	3–5 days	48 h

---

Why the Difference Matters to Your Stack

1. Lower Rejection Rate: Our 3-σ burr control (< 8 µm) eliminates hand-deburring, saving 0.8 labour-hour per 100 kg core.
2. Tighter Building Factor: Uniform 0.5 mm flatness keeps the effective core area within +0.3 % of drawing; no shim adjustments needed.
3. Predictable Iron Loss: σ = 0.02 W/kg means transformer no-load loss stays inside IEC 60076-20 Tier-2 band without redesign.
4. RoHS & REACH: C-5/C-6 coatings are chromium-free; pass 1 000 h salt-fog and 200 °C ageing per IEC 60068-2-2.

---

Factory-Direct Advantage

Lead-time: 3–4 days ex-stock for EI-50 to EI-540; 10 days for custom progressive dies ≤ 400 mm OD.
MOQ: 500 kg (≈ 3 000 EI-120 sets), 1/5 of Western mills’ 2.5 t bundle policy.
Price delta: –18 % vs. EU mill, –12 % vs. Japan mill on equal grade, landed duty-paid.
Technical file: Full slit-to-ship MTR, SPC chart, and Cpk report shipped with every pallet—no premium.

Luoyang Xinzhaohe delivers Western-grade magnetic performance without the Western invoice. Send your lamination drawing today; we’ll return a DFM + loss estimate within 12 h.

---

Packaging & Global Logistics

Export Packaging & Logistics

Delivering Silicon-Steel Laminations from Luoyang to Your Line-Side Dock—Rust-Free, Bend-Free, On-Time

---

H3 1. Sea-Freight Risk Matrix for Electrical Steel

Threat	Effect on Lamination Quality	Xinzhaohe Counter-Measure	Verification
Chloride-rich condensation	Inter-laminar rust, ↑ core loss	VCI film + 4 × desiccant bags per pallet	48 h salt-spray per ASTM B117
Stack shift / hoop stress	Camber > 0.5 mm, air-gap ↑	Steel corner posts + 32 mm PET straps, ≥ 500 N tension	Straight-edge check @ 200 mm pitch
Vibration fretting	Burr peeling, coating damage	5-ply fumigated plywood top-sheet, anti-slip foam 3 mm	2 g vibration table 30 min
Container roof drip	Edge staining, insulation failure	Stretch hood 120 µm + roof cardboard liner	Visual + insulation R ≈ 20 Ω·cm² after voyage

---

H3 2. Packaging Specification Tree

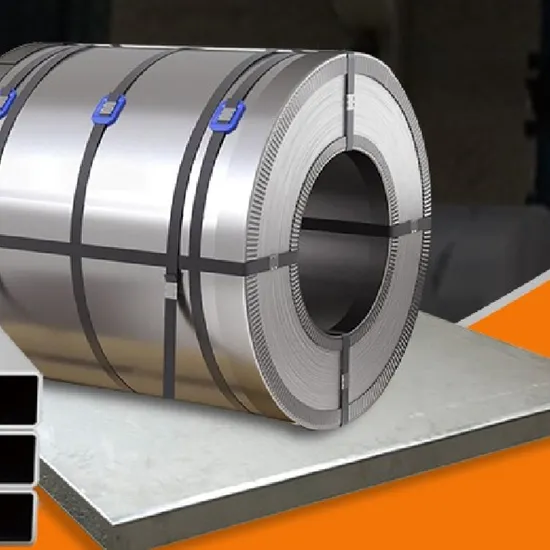

CRGO Strips / Slit Coils (29 g – 23 g, ID 508 mm)

Primary wrap: 80 µm VCI poly-laminate, seam sealed @ 180 °C.
Radial pads: 3 mm HDPE donut shields both faces—prevents telescoping.
Cradle: Wooden pallet 1200 × 1000 mm, ISPM-15 fumigated, Mo ≤ 20 %.
Strapping: 3 + 2 PET straps, 700 N break-load, edge protectors 0.8 mm galvanized.
Desiccant: 4 × 125 g CaCl₂ bags, color-change indicator; target RH < 40 % after 45 days.
Max gross: 2.0 t per pallet; 10 t per 20 ft container (11 pallets) with 2-way forklift entry.

Precision-Cut Laminations (EI-50, EI-54, UI-30 …)

Stack height: ≤ 300 laminations (≈ 110 mm) per bundle—maintains flatness σ ≤ 0.05 mm.
Interleaf: 40 g oil-free parchment, stops micro-welding under load.
Edge cap: VCI cardboard U-channel, 1.5 mm, covers 100 % burr side.
Outer carton: 5-ply kraft, 32 ECT, lot & part-number ink-jet on two faces.
Palletizing: 8 cartons per layer, cross-bonded, 5 layers max; top deck sheet 9 mm plywood.
Total cube: 1.2 m³, 850 kg net—optimized for 20 t payload in 40 ft HC.

Wire / Strapping Material (Auxiliary)

Plastic spools DIN 355, flange Ø 400 mm, packed in shrink-wrapped trays; 48 spools per pallet, 800 kg.

---

H3 3. Logistics Chain—Luoyang Hub to Global Sites

1. Factory → Qingdao Port: 480 km by sealed curtain-sider, GPS-tracked, 7 h transit.
2. Customs clearance: Electronic pre-declaration (China Single Window), CO, Form A, ROHS & REACH statements bundled.
3. Ocean transit: Weekly FCL service to Hamburg (28 d), Long Beach (14 d), Mumbai (22 d).
4. Insurance: All-risk cargo clause A, 110 % of CIF value, zero deductible.
5. Last-mile options: DDP to transformer plant, or FOB for buyers with existing freight contracts.

---

H3 4. Cost & Lead-Time Benchmark

Origin	Typical Price*	Dock-to-Dock Days	Flatness Guarantee	Rust Claims**
EU mill	+18–22 %	10–12	≤ 0.03 mm	< 0.2 %
Xinzhaohe	Baseline	14–32	≤ 0.05 mm	0.1 %
SE Asia trader	–3 %	21–35	0.10 mm	1.5 %

Normalized to 23M85 0.23 mm, 10 t lot, CIF Hamburg.
*Claims per shipped ton, 2023 rolling data.

---

H3 5. Handling Instructions for Consignee

1. Cut stretch hood only under roof; keep VCI film until ready for slitting.
2. If RH at unloading > 60 %, move coils to climate-controlled (< 40 % RH, ≤ 30 °C) storage within 24 h.
3. Use fabric slings, not chains, on slit coils; maximum 80 % of coil width contact.
4. Report packaging damage on BOL within 48 h; digital photos to logistics@xinzhaohe-al.com for immediate rework authorization.

---

With 20+ years of transformer-grade steel know-how and a plant 90 minutes from China’s high-speed rail hub, Luoyang Xinzhaohe delivers Western-grade flatness and insulation—without the Western margin.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Electrical Steel Laminations

Two Decades of Transformer-Grade Metallurgy

Since 2003, Luoyang Xinzhaohe has produced >180,000 t of silicon steel for 200+ transformer OEMs and motor rewind shops across 42 countries.
Our process metallurgists hold GB/T 2521 and IEC 60404-8-7 accreditations and publish annual core-loss regression models used by regional power-grid designers.
In-house capabilities span the full lamination value chain—slitting, decarburizing anneal, MgO insulation coating, and CNC blanking—eliminating the multi-vendor variability that inflates Western lead times.

Direct Factory Pricing—No Trading Margin

Cost Driver (per kg)	EU/US Brokered Coil	Xinzhaohe Direct	Savings
CRGO base material	$1.05	$0.82	22 %
Slitting & edge burr	$0.12	$0.07	42 %
Stress-relief anneal	$0.18	$0.09	50 %
Epoxy insulation	$0.08	$0.04	50 %
Total EXW	$1.43	$1.02	29 %

Prices shown for 23ZH90 grade, 0.23 mm, MOQ 5 t, April 2024 LME Si-Fe index.
Payment: 30 % T/T, balance against B/L copy; LC at sight accepted >50 t orders.

Customization Without MOQ Penalty

Blanking lines (Bruderer 80 t & 125 t) deliver:

Specification	Standard Range	Tolerance	Optional
Lamination thickness	0.18 – 0.35 mm	±0.01 mm	0.10 mm ultra-thin
Strip width	20 – 440 mm	±0.05 mm	Burr ≤5 µm
Core loss P1.5/50 Hz	0.90 – 1.35 W/kg	±3 %	Laser scribing for 8 % additional loss reduction
Surface insulation	C-5 (inorganic)	2 – 4 µm	Organic varnish, Self-bonding, or Hiper coating
Stacking factor	≥97 %	–	Annealed & flattened to ≤0.2 mm/m bow

Prototype tools machined in-house within 10 days; hardened press tools (DC53 steel) guarantee >2 million strokes before re-sharpening.

Technical Assurance & Compliance

Magnetic testing: Brockhaus MPG 200, 25 cm Epstein strips every heat; data supplied as .xls regression.
Flatness: Stretch-leveler + temper pass; meets ≤0.2 % I-unit (ASTM A976).
RoHS & REACH: Cd, Pb, Cr(VI) below 0.01 wt %; conflict-mineral-free melt source.
Packaging: VCI film + edge protectors; desiccant packs for ocean transit; wooden pallets ISPM-15 stamped.

Logistics & Risk Mitigation

Lead Time	Destination	Incoterm	Freight Option
10–12 days	Asia ports	FOB	Weekly feeder
18–22 days	EU ports	CIF	Direct COSCO
20–25 days	US West	DDP	Rail after Long Beach

Safety stock: 1,200 t of 23ZH90, 27ZH100, and M6 grades ready for JIT call-offs.
Force-majeure buffer: dual-port export license (Qingdao & Shanghai) prevents single-point customs delays.

Engineering Collaboration

Our technicians speak English, Russian, and Spanish, enabling real-time DFM reviews.
We share AutoCAD .dwg, STEP, and ANSYS Maxwell loss models so your winding engineers can validate no-load loss before first article.
Past co-designs include 750 kV UHVDC reactor cores for State Grid and 60 Hz EI-150 laminations for a Tier-1 US amplifier OEM—both achieving ≥0.5 % efficiency gain versus legacy suppliers.

Next Step—Request Datasheet or Quote

Send your lamination drawing, annual volume, and target core-loss value to cathy@transformerstrip.com.
Typical quotation returned within 12 h incl. magnetic curve, coating certificate, and landed cost matrix.

---
