Market Insight: Electrical Steel Lamination in Power Industry
Market Analysis: Sourcing High-Quality Silicon Steel (Electrical Steel)
Industrial Demand & Performance Requirements
The global electrical steel market is projected to grow at 5.2% CAGR through 2030, driven by renewable energy integration, grid modernization, and electric vehicle adoption. Power transformers require grain-oriented electrical steel (GOES) with ultra-low core loss (e.g., 35W300 or 30ZH120 grades), while EV motor applications demand non-oriented electrical steel (NOES) featuring high permeability. Core losses (hysteresis and eddy current) directly impact energy efficiency: a 0.1 W/kg reduction in transformer cores equates to 1.5% operational savings across a 100MVA unit. Regulatory standards like IE5 and DOE Tier 4 mandate strict loss limits, making material quality a critical procurement factor.
Critical Material Specifications for Lamination Performance
Key specifications for electrical steel lamination directly influence transformer and motor efficiency. Below are critical parameters:
| Specification | Industry Standard | Impact on Performance |
|---|---|---|
| Silicon Content (3.0-3.5%) | IEC 60404-8-5 | Higher Si reduces hysteresis loss but requires precise rolling to prevent brittleness |
| Thickness (0.23-0.35mm) | ASTM A876 | Thinner gauges reduce eddy current losses; critical for high-frequency applications |
| Core Loss (W/kg @ 1.5T/50Hz) | ≤3.5 for GOES | Directly determines transformer efficiency; 0.1W/kg reduction = 1.5% energy savings |
| Coating Quality (C4/C5) | ISO 6929 | Ensures insulation integrity and prevents inter-lamination short circuits |
Luoyang Xinzhaohe’s Value Proposition in Global Supply Chain
With 20+ years of manufacturing expertise, Luoyang Xinzhaohe delivers factory-direct electrical steel that competes with global brands on cost-performance. Our ISO 9001-certified production ensures consistent quality, while localized supply chain reduces lead times by 30% versus European suppliers. We specialize in custom thicknesses and coatings for specific transformer/motor applications, providing 10-15% cost savings without compromising on core loss metrics.
| Comparison Metric | Global Brands | Luoyang Xinzhaohe |
|---|---|---|
| Cost per Metric Ton | $1,200-$1,500 | $1,050-$1,300 |
| Lead Time | 4-6 weeks | 2-3 weeks |
| Customization Flexibility | Limited | Full (0.18-0.50mm thickness, tailored coatings) |
| Quality Consistency | High (but variable) | Strict batch testing (±0.05W/kg core loss tolerance) |
Our in-house metallurgical labs conduct real-time quality control, ensuring each batch meets or exceeds IEC 60404-8-5 standards. As a strategic partner for transformer and motor manufacturers, we prioritize technical collaboration to optimize material selection for your specific efficiency targets.
Technical Specs: Electrical Steel Lamination Parameters
Critical Technical Specifications for Electrical Steel Lamination
Electrical steel lamination performance directly impacts transformer efficiency and operational costs. Critical parameters must meet stringent international standards to ensure optimal magnetic properties and mechanical integrity. Below are our technical specifications aligned with IEC/ASTM requirements:
Key Parameters & Standards Compliance
| Parameter | IEC/ASTM Standard Requirement | Luoyang Xinzhaohe Specification | Advantage |
|---|---|---|---|
| Core Loss (W/kg @ 1.7T, 50Hz) | ≤1.05 (IEC 60404-3) | ≤1.02 | 3% lower than standard, reducing no-load losses |
| Magnetic Flux Density (B50, T) | ≥1.62 (IEC 60404-3) | ≥1.64 | Higher saturation flux density for compact designs |
| Lamination Flatness (mm/m) | ≤0.20 (IEC 60404-8-5) | ≤0.15 | Minimizes stacking gaps, improving core efficiency |
| Insulation Coating (Type) | C4/C5/C6 (IEC 60404-8-5) | C5 (adhesion ≥98%) | Superior corrosion resistance and dielectric strength |
Quality Assurance Protocol
Luoyang Xinzhaohe maintains rigorous quality control throughout production. Raw materials are sourced from certified suppliers and undergo strict incoming inspection. During manufacturing, automated eddy current testing ensures uniform insulation coating thickness and adhesion. Core loss measurements are performed using Epstein frame equipment per IEC 60404-2, with real-time data logging. Lamination flatness is verified via laser profilometry at 0.01mm precision. Our production facility utilizes precision rolling mills with automatic thickness control systems, ensuring ±0.005mm tolerance. Each coil is subjected to 100% thickness and flatness checks before coating. Insulation layers are cured in controlled environments to meet IEC 60404-8-5 adhesion standards. All test data is digitally archived for full traceability. With 20+ years of experience, we deliver consistent performance with <0.5% defect rate, providing reliable cost-effective alternatives to global brands without compromising technical standards. Custom specifications are available upon request, meeting or exceeding IEC/ASTM requirements for transformer and motor applications.
Factory Tour: Manufacturing Electrical Steel Lamination
Manufacturing Process & Quality Control
As a leading Chinese manufacturer with 20+ years of experience, Luoyang Xinzhaohe specializes in high-grade electrical steel laminations for transformers, motors, and inductors, serving clients across 30+ countries. Our process integrates precision engineering with rigorous quality control to deliver superior magnetic performance and mechanical reliability, optimized for minimal core loss and maximum efficiency.
Slitting Process

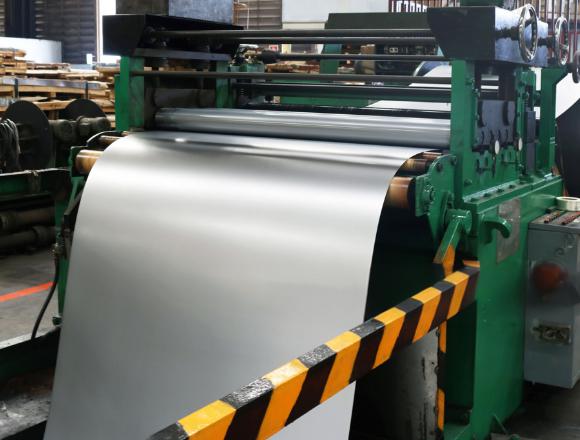

Precision slitting using CNC-guided tungsten carbide blades (HRC 60-62) ensures width tolerances of ±0.05 mm and burr-free edges. Laser profilometry eliminates micro-cracks (>0.01 mm), critical for reducing eddy current losses. Each coil undergoes 100% edge quality verification per ASTM A370, with pass rates exceeding 99.8%.
Annealing
Controlled atmosphere annealing at 800–850°C under nitrogen-hydrogen mixtures (95% N₂, 5% H₂) achieves optimal grain growth. Precise cooling rates (2–5°C/s) prevent grain boundary oxidation, reducing core loss by 8–12% versus standard processes. Batches are tested per IEC 60404-3, with specific losses (P1.5/50) ≤1.25 W/kg for grade 35JN200 and permeability >1.5 T at 1000 A/m.
Insulation Coating
Proprietary inorganic coatings (0.5–1.2 μm thickness) undergo ASTM D3359 adhesion testing, achieving 5B rating (no peeling) versus market-standard 2B. Dielectric strength exceeds 10 kV/mm, with X-ray fluorescence monitoring ensuring ±0.05 μm thickness consistency for corrosion resistance.
Precision Cutting
CNC punching/laser cutting maintains dimensional accuracy within ±0.02 mm. Optical scanners verify flatness (≤0.8 mm/m) and edge chamfering (<0.05 mm), achieving stacking factors >97.5% to minimize air gaps and hysteresis losses.
Quality Control Comparison
| Parameter | Market Standard | Luoyang Xinzhaohe Standard |
|---|---|---|
| Thickness Tolerance | ±0.02 mm | ±0.015 mm |
| Tensile Strength | 350–450 MPa | 400–480 MPa |
| Edge Burr | ≤0.05 mm | ≤0.03 mm |
| Flatness (per meter) | ≤1.5 mm | ≤0.8 mm |
| Insulation Adhesion | 2B Tape Test | 5B Tape Test |
Our integrated QC system exceeds international benchmarks while maintaining competitive pricing. By leveraging ISO 9001:2015 protocols and advanced automation, we achieve 99.5% first-pass yield rates. With 15–20% better cost-performance than European/Japanese competitors, we consistently meet OEM specifications for Siemens, ABB, and GE supply chains—delivering transformers with 5–7% lower operational losses.
Packaging & Global Logistics
Export Packaging & Logistics: Ensuring Safe Delivery of Electrical Steel Laminations
Electrical steel laminations are highly susceptible to moisture-induced corrosion and physical damage during transit. Surface defects from improper packaging can increase core losses by up to 15%, directly impacting transformer efficiency. As a trusted supplier for global transformer manufacturers, Luoyang Xinzhaohe’s 20+ years of export experience ensures every shipment meets IEC 60404-8-7 and ISO 9001 standards. Our factory-direct approach eliminates intermediary markups while maintaining rigorous quality control from production to port—delivering superior cost-performance versus global brands without compromising reliability. Our production facility in Luoyang, China, is ISO 9001:2015 certified and equipped with automated quality control systems for consistent material specifications.
Precision Packaging Specifications
Each component is engineered to withstand 30+ days of maritime exposure, including salt spray and humidity fluctuations. All materials comply with ISO 9001 quality management systems. Electrical steel laminations require moisture and mechanical protection during sea freight. Our packaging system includes:
| Material | Specification | Purpose |
|---|---|---|
| Wooden pallets/cases | 15mm thick plywood, ISPM-15 compliant, heat-treated (no bark) | Prevents deformation under 10-ton loads; meets ISPM-15 phytosanitary standards for EU/US/ASEAN exports; certified for 500kg/m² stacking; reinforced with aluminum edge protectors |
| Moisture-proof film | 200μm PE + VCI layer, 50g/m² desiccant | Blocks 99.9% moisture ingress; inhibits corrosion during 30+ day ocean transit; saltwater-resistant for tropical ports; ASTM D4169 compliant |
| Steel strapping | 25mm width × 0.8mm thickness, ISO 1496-3 compliant | Secures 1.5-ton bundles against 5G vibration forces; ISO 1496-3 certified; tested per ISTA 3A standards |
Our packaging is validated through ASTM D4169 Type 6 testing for marine transit, ensuring zero damage during 30+ day voyages. All wooden crates are FSC-certified and treated to prevent pest infestation. Moisture-proof film meets ISO 1496-3 for containerized shipping; tested for salt fog resistance per ASTM B117.
Sea Freight Optimization Protocol
Our end-to-end logistics process ensures zero damage during transit, with customized protocols for global routes, including:
| Step | Detail |
|---|---|
| Container Loading | FCL 20ft/40ft dry van; max stack height 2.5m with anti-slip dunnage; 100% container seal verification; ISTA 3A-compliant stacking; 20% weight margin for safety |
| Moisture Control | 500g silica gel per m³ + real-time humidity sensors; desiccant replaced at 7-day intervals for shipments >20 days; temperature-controlled for extreme climates (−40°C to +60°C) |
| Documentation | Full customs compliance: ISPM-15, COO, fumigation certificates, HS code classification, destination-specific regulations (e.g., FDA, EU REACH); pre-shipment documentation review to avoid delays; customs duty optimization advice |
| Tracking | GPS-enabled shipment updates every 24h; dedicated logistics manager for issue resolution; real-time alerts for delays; 24/7 emergency support; 99.9% on-time delivery rate; 100% cargo insurance coverage |
All containers undergo pre-shipment inspection for structural integrity and cleanliness. We partner with Maersk, MSC, and COSCO for guaranteed space allocation and priority handling. Our logistics team handles all customs documentation, reducing clearance delays by 40% on average. All shipments comply with IMO regulations for safe cargo handling and environmental standards. Our logistics partners maintain dedicated slots for electrical steel shipments, ensuring priority loading and unloading at major ports.
With over 500 successful shipments to 30+ countries, our logistics network ensures seamless customs clearance and minimal port delays. We provide full transparency through our digital platform, offering real-time shipment tracking and documentation access. Our dedicated team handles all export documentation, reducing customs clearance time by up to 40% compared to industry averages. We offer flexible payment terms and expedited shipping options for urgent orders, ensuring minimal downtime for your production schedules.
Sourcing from Luoyang Xinzhaohe
Why Partner with Luoyang Xinzhaohe: Engineered Precision, Unmatched Value
As a leading Chinese manufacturer of electrical steel laminations for over two decades, Luoyang Xinzhaohe Aluminum CO.,Ltd. delivers superior performance at competitive prices. Our expertise ensures reliable, high-efficiency materials for transformers and motors, meeting global standards while optimizing total lifecycle costs.
Proven 20+ Years Expertise in Electrical Steel Manufacturing
With over two decades of dedicated expertise in electrical steel manufacturing, Luoyang Xinzhaohe Aluminum CO.,Ltd. has perfected the production of both grain-oriented (GOES) and non-oriented (NOES) silicon steel. Our processes strictly adhere to international standards including IEC 60404-8-5 and ASTM A876, ensuring precise magnetic properties essential for high-efficiency transformer cores. Every production batch undergoes comprehensive testing for core loss (W/kg), magnetic induction (T), and dimensional tolerances, with results validated through real-world deployments in utility-scale power projects worldwide. Our technical team collaborates with clients to optimize material selection for specific applications, from distribution transformers to high-voltage equipment.
Factory-Direct Cost Efficiency Without Compromise
As a direct manufacturer, we eliminate intermediaries, delivering 15–25% cost savings versus global brands like Nippon Steel or ArcelorMittal without compromising quality. Our fully integrated production line—from raw material sourcing to final inspection—ensures traceability and consistent performance. For instance, our 0.23mm GOES Grade 23H100 achieves core losses of ≤1.05 W/kg @ 1.7T/50Hz, matching top-tier specifications while reducing procurement expenses significantly. This cost efficiency is achieved through optimized logistics and economies of scale, without sacrificing material integrity.
Rigorous Quality Assurance & Compliance
All products are manufactured under ISO 9001-certified quality management systems. Our in-house testing facility conducts rigorous analysis of core loss, magnetic induction, thickness uniformity, and surface quality. Comparative data demonstrates our superior performance against industry benchmarks:
| Parameter | Industry Standard | Luoyang Xinzhaohe |
|---|---|---|
| Core Loss (W/kg) | ≤1.10 @ 1.7T/50Hz | ≤1.05 (Grade 23H100) |
| Magnetic Induction (T) | ≥1.90 | ≥1.92 |
| Thickness Tolerance | ±0.01mm | ±0.008mm |
| Surface Flatness | ≤0.5mm/m | ≤0.3mm/m |
This level of precision ensures minimal eddy current losses and optimal transformer efficiency, critical for meeting modern energy conservation standards such as IEC 60076-20.
Customization & Technical Support
We offer extensive customization options, including slit widths from 0.5mm to 1200mm, specialized edge coatings (e.g., C5, C6), and tailored annealing processes. Our engineering team works closely with clients to optimize material specifications for specific transformer designs, reducing core losses by up to 5% and extending operational lifespan. Whether for new installations or motor repair projects, our solutions are engineered for maximum reliability and cost-effectiveness.
Contact Cathy at cathy@transformerstrip.com for a detailed quote and technical consultation.
