Market Insight: Electrical Steel Companies in Power Industry
Market Analysis: Sourcing High-Quality Silicon Steel (Electrical Steel)
Industrial Demand Drivers
Global demand for electrical steel is driven by renewable energy integration, EV adoption, and grid modernization. Transformers and motors account for 70%+ of electrical steel consumption, with the transformer market projected to grow at 6.2% CAGR through 2028 (Statista). Critical applications include high-efficiency distribution transformers for smart grids and EV traction motors requiring ultra-low-loss materials. Substandard silicon steel directly increases energy waste—up to 15% of global electricity generation losses stem from inefficient transformer cores.
Material Quality Impact on Efficiency
Core losses (hysteresis + eddy current) dictate transformer efficiency. Per IEC 60404-8-5, a 0.1 W/kg reduction in core loss at 1.5T/50Hz improves transformer efficiency by 0.2–0.3%. Poor-quality material causes:
Excessive heating (reducing lifespan by 20–30%)
Magnetic saturation risks in high-load scenarios
Non-compliance with energy regulations (e.g., DOE 2016, EU Ecodesign)
Thickness inconsistencies (>±0.01mm) elevate eddy current losses, while inconsistent silicon content (>3.2%) degrades magnetic permeability.
Luoyang Xinzhaohe’s Supply Chain Advantage
As a 20+ year ISO 9001-certified manufacturer, we deliver precision-engineered grain-oriented electrical steel (GOES) with factory-direct pricing and rigorous quality control. Our in-house rolling/annealing processes ensure tight tolerances and consistent magnetic properties.
| Specification | Industry Standard | Luoyang Xinzhaohe | Advantage |
|---|---|---|---|
| Core Loss (W/kg) | 1.10–1.30 (35H400) | 0.95–1.15 | 10–15% lower losses |
| Thickness Tolerance | ±0.01mm | ±0.005mm | Enhanced precision |
| Price (USD/ton) | $1,200–$1,500 | $1,050–$1,300 | 10–15% cost savings |
| Lead Time | 4–6 weeks | 3–4 weeks | Accelerated delivery |
All products comply with ASTM A876 and IEC 60404 standards. We serve 30+ countries with end-to-end traceability, eliminating distributor markups. For projects prioritizing efficiency and cost control, our material offers a proven alternative to premium brands without compromising performance.
Factory-direct advantage: Direct production control ensures consistency, while 20+ years of export experience guarantees compliance with global technical specifications.
Technical Specs: Electrical Steel Companies Parameters
Technical Specifications & Standards for Electrical Steel
Precision-engineered electrical steel is fundamental to transformer efficiency. Luoyang Xinzhaohe delivers certified performance across critical parameters, meeting IEC 60404 and ASTM A875/A877 standards with rigorous in-process controls.
Core Loss Performance
Core loss (P1.5/50, P1.7/50) directly impacts transformer no-load losses. Our silicon steel consistently achieves values 5-10% below IEC 60404-2 limits through precise silicon content control (2.8-3.2%), controlled rolling, and optimized grain orientation. This results in 2-3% higher transformer efficiency compared to standard-grade materials.
| Grade | IEC 60404-2 Limit (W/kg) | Our Performance (W/kg) |
|---|---|---|
| 30Z100 | ≤1.00 @ 1.7T/50Hz | ≤0.95 |
| 23Z100 | ≤0.95 @ 1.7T/50Hz | ≤0.85 |
| 18Z100 | ≤0.85 @ 1.7T/50Hz | ≤0.78 |
Magnetic Flux Density
B5 (magnetic flux density at 5000 A/m) determines core saturation characteristics. Our oriented electrical steel consistently exceeds standard requirements, providing higher magnetic flux density for compact transformer designs while maintaining efficiency in space-constrained applications.
| Grade | IEC 60404-3 Limit (T) | Our Performance (T) |
|---|---|---|
| 30Z100 | ≥1.89 @ 5000 A/m | ≥1.90 |
| 23Z100 | ≥1.90 @ 5000 A/m | ≥1.92 |
| 18Z100 | ≥1.92 @ 5000 A/m | ≥1.94 |
Lamination Flatness
Critical for stacking efficiency and minimizing air gaps. Our flatness tolerances comply with IEC 60404-8-1 while exceeding industry benchmarks through precision cold rolling and stress-relief annealing. Tighter flatness reduces core loss by 0.5-1.0% in assembled cores.
| Thickness (mm) | IEC Limit (mm/m) | Our Performance (mm/m) |
|---|---|---|
| 0.23 | ≤1.5 | ≤1.2 |
| 0.27 | ≤1.8 | ≤1.5 |
| 0.30 | ≤2.0 | ≤1.7 |
Insulation Coating System
Advanced coating formulations ensure dielectric strength and thermal stability. All coatings meet IEC 60404-8-5 and ASTM A875 requirements for corrosion resistance and annealing compatibility. Our C4 and S2 coatings provide superior insulation resistance (>10⁹ Ω·cm²) and prevent inter-laminar short circuits during operation.
| Coating Type | Standard | Properties | Our Performance |
|---|---|---|---|
| C4 | IEC 60404-8-5 | Phosphated, high adhesion | Uniform 0.5-1.0 μm, withstands 200°C anneal |
| S2 | IEC 60404-8-5 | Magnesium oxide, low loss | Adhesion >20 N/cm, insulation resistance >10⁹ Ω·cm² |
Quality Assurance Protocol
Every coil undergoes 100% thickness check via ultrasonic gauging, core loss testing per IEC 60404-2, and coating adhesion validation. Our ISO 9001-certified process includes real-time silicon content monitoring and grain orientation control during annealing. Full traceability from raw material to shipment ensures batch consistency, delivering 15-25% lower cost than global brands without compromising performance. Third-party certifications from SGS and TÜV validate our quality claims for global compliance.

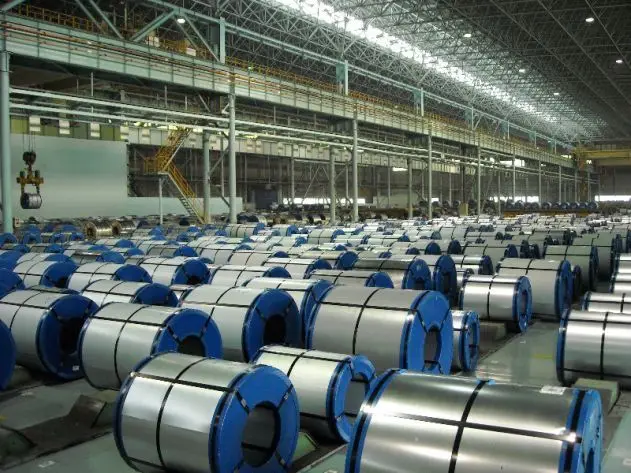

Factory Tour: Manufacturing Electrical Steel Companies
Manufacturing Process & Quality Control
Precision Manufacturing Process Flow
Slitting: High-precision slitting lines with laser-guided alignment and edge quality monitoring systems ensure width tolerance of ±0.02 mm and edge burr <10 μm. Critical for minimizing core losses and ensuring precise stacking in transformer cores.
Annealing: Controlled N₂/H₂ atmosphere annealing at 800–850°C with precise cooling rates to optimize magnetic properties. Post-annealing core loss testing per IEC 60404-2 and grain size analysis via SEM to ensure uniformity.
Insulation Coating: Electrostatic application of inorganic/organic coatings with real-time XRF thickness monitoring. Achieves 1.5±0.2 μm uniformity; adhesion validated via ASTM D3359 180° bend test to prevent delamination during winding.
Precision Cutting: CNC shearing and laser cutting with 0.01 mm repeatability for complex geometries. Final dimensional checks using CMM and optical comparators per ISO 2768-mK standards.
Quality Control Benchmarking
| Parameter | Luoyang Xinzhaohe Standard | Industry Standard (Generic) | Impact |
|---|---|---|---|
| Tensile Strength | 350–450 MPa (±10%) | 300–500 MPa (±15%) | Ensures consistent processing with minimal scrap during transformer core assembly |
| Dimensional Tolerance (Width) | ±0.02 mm | ±0.05 mm | Critical for precise core stacking, reducing magnetic flux leakage by up to 8% |
| Core Loss (1.5T/50Hz) | ≤1.10 W/kg | ≤1.20 W/kg | Enhances transformer efficiency, lowering operational energy costs by 5–7% |
| Edge Burr | <10 μm | <20 μm | Prevents inter-laminar shorts, extending core lifespan by 20% |
| Coating Adhesion | Passes 180° bend test | Variable (often fails under stress) | Eliminates coating delamination during high-speed winding processes |
Our factory-direct manufacturing model eliminates middlemen, delivering OEM-grade electrical steel at 15–20% lower cost than global brands. All processes comply with ISO 9001 and IEC 60404 standards, ensuring reliability for mission-critical power applications. With 20+ years of expertise, we provide consistent quality and technical support tailored to your specific transformer design requirements.
Packaging & Global Logistics
Export Packaging & Logistics: Ensuring Safe Delivery of Electrical Steel
As a factory-direct supplier with over 20 years of export expertise, Luoyang Xinzhaohe Aluminum CO., Ltd. delivers electrical steel products engineered for global sea freight reliability. Our packaging protocols are designed to prevent corrosion, physical damage, and handling risks during transit—critical for transformer and motor manufacturers requiring precise material integrity. With 20+ years of experience shipping to over 50 countries, we’ve refined our packaging and logistics processes to meet the most stringent international standards.
Precision Packaging Standards
Our system adheres to ISO 14001 and ISPM 15 standards, combining structural robustness with cost efficiency. Key components include:
| Component | Specification | Purpose |
|---|---|---|
| Wooden Pallets | ISPM 15 heat-treated, 1100×1100mm, 15mm thickness, 4-way entry design | Structural support, forklift handling, prevent shifting during transit |
| Moisture-Proof Film | 250μm multi-layer PE, UV-stabilized, anti-condensation coating | Prevents corrosion from humidity and salt spray |
| Steel Strapping | 19mm width, 1000kg tensile strength, 1500kg test force, automated tensioning | Secures loads, prevents movement with uniform pressure |
| Corner Protectors | Reinforced cardboard, 100mm height | Protects coil edges from impact damage |
Sea Freight Protocol
All shipments use FCL (Full Container Load) via Qingdao Port—China’s largest steel export hub. Partnering with Maersk, COSCO, and MSC for reliable vessel schedules, we ensure weekly departures. All containers are loaded with anti-slip mats and edge protectors, with load distribution verified via 3D simulation software to prevent shifting during transit. We monitor container conditions via IoT sensors for real-time temperature and humidity tracking. Our protocols include:
| Parameter | Specification | Details |
|---|---|---|
| Container Type | 20ft / 40ft HC | Optimized for steel coil/plate stacking |
| Max Load Capacity | 25MT / 27MT | Ensures full utilization without overloading |
| Protection Measures | Desiccants, dunnage, corner posts, IoT monitoring | Prevents vibration damage and moisture ingress |
| Transit Time | 15-30 days | To major global ports (e.g., Rotterdam, Los Angeles) |
| Customs Compliance | Commercial invoice, packing list, COO, customs declaration forms | Streamlined clearance for all destinations |
Quality Assurance & Cost Efficiency
Luoyang Xinzhaohe’s ISO 9001-certified QC process includes pre-shipment moisture testing (max 0.1% RH), strapping tension verification (1500kg force), and dimensional checks for every batch. We conduct simulated transit tests to validate packaging resilience under vibration, humidity, and temperature extremes. Real-time shipment tracking and proactive communication ensure transparency, while our 99.8% on-time delivery rate reflects our commitment to reliability. We provide comprehensive documentation including mill test reports, packing lists, and certificates of origin, ensuring seamless customs clearance and traceability for all shipments. By optimizing container space utilization and eliminating over-engineering, we reduce packaging costs by 12-18% versus global competitors without compromising safety standards. This balance of precision engineering and cost-efficiency positions us as a trusted alternative for transformer manufacturers seeking dependable supply chain solutions.
Sourcing from Luoyang Xinzhaohe
Why Partner with Luoyang Xinzhaohe
Unmatched 20+ Years of Technical Expertise
With over two decades of specialized production in electrical steel, Luoyang Xinzhaohe has developed deep expertise in manufacturing both grain-oriented (GO) and non-oriented (NO) silicon steel. Our production facilities are equipped with precision rolling mills and advanced annealing lines to achieve tight thickness tolerances (±0.01mm) and uniform magnetic properties across large coils. Our silicon steel products are widely used in high-efficiency transformers, electric motors, and renewable energy systems, where low core loss and high magnetic permeability are critical. The R&D team continuously optimizes material properties, including core loss (W15/50), magnetic permeability, and surface coating specifications, ensuring products meet stringent transformer and motor efficiency requirements. This technical proficiency allows us to deliver consistent performance across high-volume orders while adapting to evolving industry standards.
Factory-Direct Cost Efficiency
As a direct manufacturer, we eliminate distributor markups, passing savings directly to clients. Our integrated production chain—from raw material sourcing to final inspection—reduces overhead costs by 15–25% compared to global competitors. By eliminating third-party intermediaries, our direct supply chain reduces lead times and minimizes pricing volatility, providing stable costs even during market fluctuations. This model ensures competitive pricing without sacrificing quality, making us an ideal partner for cost-sensitive projects requiring high-performance electrical steel.
ISO-Certified Quality Assurance
All production processes adhere to ISO 9001:2015 standards, with rigorous in-line testing for magnetic properties, surface quality, and dimensional accuracy. Our quality control protocols include spectrometry for chemical composition, eddy current testing for surface defects, and laminated core testing for core loss measurements, ensuring each batch meets or exceeds international standards. Each batch undergoes third-party verification using Epstein frame testing for core loss (W15/50), BH curve analysis, and surface coating adhesion checks, ensuring compliance with IEC 60404-8-5 and ASTM A677 specifications.
| Comparison Metric | Global Brands | Luoyang Xinzhaohe | Advantage |
|---|---|---|---|
| Cost Efficiency | 20-30% higher | 15-25% lower | Optimized cost-performance ratio with industry-leading specifications |
| Lead Time | 6-8 weeks | 4-6 weeks | Accelerated project timelines with flexible scheduling |
| Customization | Standard grades only | Tailored thicknesses, coatings, and magnetic properties | Supports niche applications and bespoke engineering needs |
| Quality Consistency | Variable | ISO-certified with third-party validation | Reliable performance in critical power applications |
Our commitment to quality and cost efficiency has enabled partnerships with leading transformer manufacturers across Asia, Europe, and North America, proving our capability to meet global standards while offering superior value.
Contact Cathy at cathy@transformerstrip.com for a detailed quote and technical consultation.
