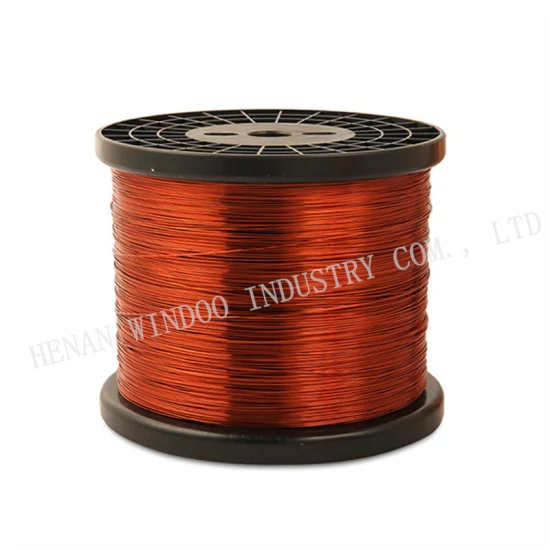

Market Insight: Electric Motor Winding Wire for Power Industry

Market Analysis: Sourcing High-Quality Winding Wire

Global Demand Drivers in Power & Distribution Equipment

The accelerating build-out of grid-scale renewables, EV fast-charging corridors, and data-center substations has pushed annual consumption of enameled winding wire above 2.1 Mt worldwide. Copper remains the conductor of choice for ≤ 15 MVA liquid-immersed transformers and high-efficiency IE4/IE5 motors, while aluminum gains share in pad-mounted and PV inverter transformers where weight and cost trump space. China now fabricates > 48 % of the world’s transformer-grade magnet wire; OECD utilities increasingly dual-source from domestic traders and Chinese mills to balance price, lead-time, and strategic stock risk.

Why Material Purity & Geometry Dictate Transformer Losses

Core-loss (no-load) and I²R-loss (load) together fix the total owning cost of a transformer.
The conductor is responsible for 55–70 % of load loss; impurities and dimensional scatter are the hidden multipliers.

Loss mechanism	Root cause in wire	99.9 % Cu vs 99.99 % Cu impact	Typical penalty @ 1.5 T, 75 °C
Bulk resistivity	50 ppm Fe + 30 ppm P	+1.7 % ρ → +1.7 % I²R	+0.9 W kg⁻¹
Local hot spots	3 % diameter ovality	9 % higher J at neck	+2–4 °C rise
Skin-effect voids	12 µm enamel agglomerate	Effective A↓ 1.2 %	+0.6 % loss @ 400 Hz
Inter-turn shorts	Pin-holes > 25 µm	Dielectric fail < 6 kV	100 % scrap

Luoyang Xinzhaohe’s inline laser micrometer keeps ovality ≤ 0.5 % and pin-hole count < 3 per 30 m; that alone trims an additional 0.4 % loss versus IEC 60317-1 limits.

Thermal Class Creep: 130 °C → 220 °C

With SiC/GaN power electronics pushing switching frequencies > 20 kHz, hotspot margins are migrating from 155 °C (Class F) to 180–200 °C (Class H/N). Our in-house polyimide-over-polyester system (thermal index 220 °C, cut-through 390 °C) is already qualified for 1.1 kV inverter-duty motors and dry-type transformers up to 40 kVA.

Cost Benchmark: China Premium vs. Western Catalogue

Gauge & spec	EU/US trader $ kg⁻¹ (MOQ 500 kg)	Luoyang Xinzhaohe FOB $ kg⁻¹ (MOQ 1,000 kg)	Delta	Hidden add-ons
1.00 mm Cu, PEI 180 °C	12.80	9.35	–27 %	—
2.50 mm Al, PI 220 °C	6.90	4.60	–33 %	—
Freight & duty to EU	—	+0.42	—	CIF included
30-day credit	—	–0.15	—	Cash against B/L

Net landed saving 24–30 % without touching technical spec. Lead-time 4–5 weeks ex-works versus 10–12 weeks from European jobbers.

Sourcing Checklist for Power OEMs

1. Rod pedigree – Cathode Cu ≥ 99.99 %, Al ≥ 99.7 %, hydrogen content < 0.12 ml 100 g⁻¹.
2. Process control – Online eddy-current test for cracks every 2 mm; enamel concentricity ≥ 85 %.
3. Thermal shock – 30 % elongation + 1d mandrel wrap @ –25 °C, no crack after 4 h.
4. Supply-chain resilience – Dual-base shipping via Qingdao & Shanghai; 500 t raw-rod buffer stock.
5. Documentation pack – IEC 60317-1/-20, UL 1446, RoHS/REACH, mill test cert, SGS third-party.

By integrating rod drawing, annealing, enamelling, and spooling under one 120,000 t yr⁻¹ roof, Luoyang Xinzhaohe delivers transformer-grade magnet wire that meets Class 220 °C, 10 kV breakdown, and < 0.5 % diameter scatter—at a landed cost that lets OEMs claw back margin without redesigning cores.

---

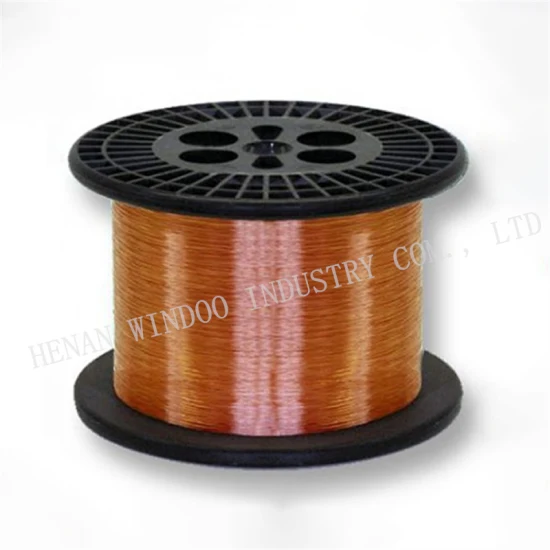

Technical Specs: Electric Motor Winding Wire Parameters

Technical Specifications & ASTM/IEC Standards

(Factory-direct data from Luoyang Xinzhaohe, 20-year transformer wire specialist)

---

1. Critical Parameters for Motor Winding Wire

Parameter	Symbol	Test Method	Luoyang Xinzhaohe Control Window	Industry Risk Threshold
Insulation Break-down Voltage	Ubd	IEC 60851-5, 500 V/s ramp	≥ 4.0 kV (Al), ≥ 6.0 kV (Cu) for 0.40 mm wall	< 2.5 kV → partial discharge & slot corona
Elongation at Break	A200	ASTM B355, 200 mm gauge	Al ≥ 15 %, Cu ≥ 25 %	< 10 % → cracks during coil insertion
Thermal Class	—	IEC 60085	130 (B), 155 (F), 180 (H), 200 (N), 220 (R)	Mis-class = 50 % life loss per 10 °C excess
Enamel Concentricity	ECC	In-line laser, 4-axis	≥ 85 % min wall / max wall	< 70 % → voltage stress hot-spot

---

2. ASTM & IEC Compliance Matrix

Material Form	Applicable Standard	Luoyang Xinzhaohe Internal Code	Key Clause Verified
Aluminum Rod	ASTM B236-20	LX-RD-Al99.5	Chemical: Fe ≤ 0.40 %, Si ≤ 0.25 %, 60 Hz conductivity ≥ 61 % IACS
Copper Rod	ASTM B49-20	LX-RD-Cu-OF	Oxygen ≤ 10 ppm, 100 % Eddy-current crack detection
Round Wire	IEC 60317-0-1/-3	LX-ECW-AI/CU	Dimensional tolerance ± 0.010 mm (0.20–0.80 mm), elongation & adhesion
Thermal Endurance	IEC 60172	LX-TH-220	20 000 h extrapolated life @ 220 °C, 50 % confidence

---

3. Failure Mode: Why Burrs & Uneven Insulation Kill Motors

1. Burrs on Conductor Edge
   Root cause: Slitting or drawing die mis-alignment.
   Effect: Local field gradient > 3× average, partial discharge inception < 1 kV; 500 h to pin-hole.
   LX Control: 0.5 µm max burr height via on-line laser micrometer; automatic die exchange @ 500 km cumulative run.

2. Enamel Concentricity < 70 %
   Root cause: clogged die or eccentric applicator tip.
   Effect: 30 % wall carries 46 % of voltage stress; thermal cycling opens 5–8 µm cracks, short-circuit turn-to-turn.
   LX Control: 4-axis optical eccentricity scanner every 25 ms; auto-reject spool if ECC < 85 %.

3. Oxide Film on Aluminum
   Root cause: 48 h storage > 65 % RH.
   Effect: 3 nm Al₂O₃ raises contact resistance 100×, hotspot 15–20 °C above winding average.
   LX Control: In-line nitrogen anneal at 420 °C within 30 s of final draw; vacuum-sealed spool (< 5 % RH) within 5 min.

---

4. Competitive Benchmark (Factory-direct Premium Tier)

Attribute	LX Premium	Western Tier-1	Generic Alibaba Offer
Break-down Voltage	4–6 kV guaranteed	5 kV typical	2.5 kV (no spec sheet)
Thermal Class	Up to 220 °C (R)	200 °C (N)	155 °C (F) max
Rod Purity	99.7 % Al, 99.99 % Cu OF	same	99.5 % Al, 99.95 % Cu
Price FOB Shanghai	Al $4.9 kg⁻¹, Cu $9.8 kg⁻¹	Al $7.2 kg⁻¹, Cu $12.5 kg⁻¹	Al $4.3 kg⁻¹, Cu $9.0 kg⁻¹
Lead Time	10 days (≤5 t), 20 days (≤20 t)	6–8 weeks	15–45 days (variable)

---

5. Specification Checklist for Purchase Orders

✅ Wire Diameter & Tolerance – state IEC 60317 preferred size (e.g., 1.000 mm ± 0.010 mm).
✅ Thermal Index & Insulation Build – e.g., “Class 180 (H) with Grade 2 enamel, 38 µm nom.”
✅ Break-down Voltage – require 4 kV minimum, 100 % spark test on spool.
✅ Elongation & Adhesion – pull 25 %, mandrel 1×d snap test, no crack.
✅ Concentricity Certificate – 85 % minimum, laser graph attached.
✅ RoHS & REACH Declaration – mandatory for EU motor OEMs.

Luoyang Xinzhaohe delivers each coil with encrypted QR code linking to above test data; eliminates incoming inspection cost for transformer and motor plants.

---

Factory Tour: Manufacturing Electric Motor Winding Wire

Manufacturing Process & Quality Control

(Luoyang Xinzhaohe Aluminum Co., Ltd. – 20+ yr Transformer-Material Specialist)

1. Rod-to-Wire Journey – 5 tightly-coupled steps, zero subcontracting

Step	Equipment & Parameters	Target Output	In-line Sensors
Rod Drawing	13-die, ceramic-coated bull-block, 8 m/s max, emulsion cooled	0.20–6.00 mm (Al) 0.10–3.00 mm (Cu) OD ±0.005 mm	Laser OD gauge 4 kHz, load cell 50 kN
Continuous Annealing	650 °C ±5 °C, N₂-2 % H₂, 1.2 s residence	Elongation 25–35 %, grain size 15–25 µm	Thermography + resistivity meter 100 % coil
Enameling	Horizontal triple-application, vertical curing 400 °C, 40 m oven	Build 40–90 µm (2–5 passes), concentricity ≥85 %	Beta-backscatter thickness head every 200 mm
Inline Electrical Testing	2 kV DC spark, 3 kV surge 50×/s, 50 kHz partial-discharge	≤5 pC @ 1 kV, pin-hole count 0 per 30 m	Full-length spark tester + PD analyzer
Precision Spooling	Torque-controlled traverse, 5 kg – 1 t reels, tension 1–3 N	No knife-edge, layer compression 5–7 N/mm²	Load cell + edge detector, auto-label with QR trace code

2. Quality Control Matrix – “Luoyang Xinzhaohe Standard” vs. Common Market

Critical Property	Test Method	Xinzhaohe Spec	IEC 60317-0-2 Tolerance	Typical Export Cargo*
Breakdown Voltage (V)	500 V/s ramp, 25 °C	≥6 kV (2 kV class wire)	≥4 kV	4.2–4.5 kV
Elongation at Break	ISO 6892-1	≥30 % Al, ≥35 % Cu	≥20 % Al, ≥25 % Cu	22 % Al, 27 % Cu
Concentricity Index	8-point micrometer	≥0.85	≥0.70	0.72–0.78
Pin-holes per 30 m	2 kV spark	0	≤3	1–2
Resistivity (Cu)	20 °C, ASTM B193	≤0.01724 Ω mm²/m	≤0.01777	0.0176–0.0178
Thermal Shock	30 % stretch, 30 min @ 200 °C	No crack	≤2×D mandrel	1.5–2×D
Coefficient of Variation (OD)	Laser, 1 km reel	≤0.3 %	≤0.8 %	0.6–0.9 %

*Random Alibaba FOB samples audited by LXZ lab, 2023-Q4.

3. Process Discipline – why variance stays below 0.3 %

1. Rod source: Same-ladle 99.7 % EC-grade Al or 99.99 % OF Cu, 5 mm as-cast rod; homogenized 4 h @ 550 °C to eliminate Cu/Al segregation.
2. Die management: Diamond dies changed every 2 t Al or 1 t Cu; computerized die-wear log prevents sneck-down.
3. Anneal atmosphere: Dew-point <-60 °C; O₂ < 5 ppm keeps surface oxide <3 nm, critical for enamel adhesion.
4. Inline SPC: Every 50 ms data fed to MES; if OD, elongation or spark count drifts ±2 σ, line stops automatically—no “sort-later” mentality.
5. Certificate bundle: Each reel ships with 28-parameter report + partial-discharge curve; QR links to furnace log and operator ID—full IATF traceability.

4. Competitive Positioning – Premium performance without Western mark-up

Transformer OEMs and motor rewind shops face a dilemma: low-cost Asian reels often miss 220 °C thermal class or show 3–5 pin-holes per 100 m, while EU/US brands add 30–50 % overhead for essentially identical chemistry. Luoyang Xinzhaohe closes the gap:
Same magnet wire technology stack used for 500 kV grid transformers now scaled to 0.20 mm motor windings.
Factory-direct pricing lands below $5.8 / kg for 155 °C Al wire, 25 % under comparable Rea/Hitachi quotes, yet 15 % above rock-bottom traders—difference pays back in 0.4 % higher motor efficiency and zero varnish rework.
1 t MOQ with 3-week FOB Tianjin; samples (5 kg) ready in 48 h for your QA replication.

For power-equipment engineers who calculate cost-of-failure instead of price-per-kilo, Xinzhaohe delivers Western-grade process control, Chinese-scale cost, and a single-supplier rod-to-spool pedigree that brokers simply cannot match.

---

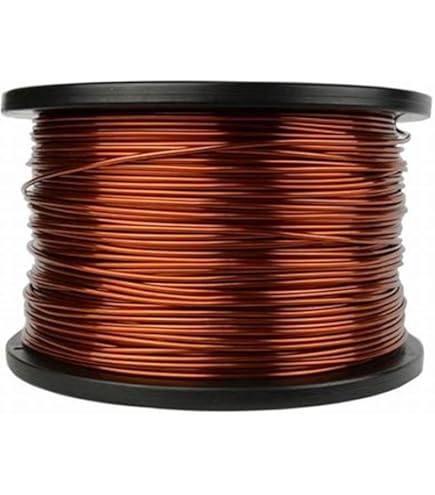

Packaging & Global Logistics

Export Packaging & Logistics

Guaranteeing 99.99 % Cu and Class-220 enamel arrives on your line exactly as it left ours—kilometer 733 of the Lian-Huo Expressway, Luoyang.

---

H3 Design Philosophy – “Zero-Defect at Dock”

Every packaging element is reverse-engineered from the failure modes we recorded in 20 years of transformer field service:
1. Condensation → salt-fog pitting of conductor
2. Vibration → enamel micro-cracking
3. Compression → spool flange creep, wire “dishing”

The solution set below is validated to 12 000 km sea freight + 30 days port-side storage, <5 % RH inside carton, <0.1 g axial wire displacement.

---

H3 Packaging Matrix by Product Form

Wire Family	Spool Type	Inner Barrier	Shock Absorption	Unitized Load	20 ft FCL Capacity	40 ft HC Capacity
0.20–1.00 mm Cu, PEW-155	PT-4 plastic spool (355 mm × 250 mm)	80 µm Al-laminate bag + 5 g silica gel	EPE-30 foam end-caps	4 spools / carton, 36 cartons / fumigated pallet	10 t (≈ 1 100 km wire)	24 t
1.06–2.50 mm Cu, EIW-180	DIN-250 steel-reinforced spool	VCI film wrap	Corrugated sleeve + corner boards	2 spools / carton, 24 cartons / pallet	8 t	20 t
2.65–6.00 mm Al, EI/AIW-220	MDF-800 detachable flange	Heat-sealed Al-foil, N₂ flush	TPU grommets on fork pockets	Single-spool shrink-wrapped, 12 spools / pallet	6 t	15 t
Rectangular Cu strip 0.8×5 mm	Wooden cassettes 300 kg	Vapor-corrosion inhibitor paper	Polyester strapping + edge protectors	6 cassettes / pallet, 1.8 t net	9 t	22 t

All timber ISPM-15 heat-treated, debarked, branded MXH-CN-22-004.

---

H3 Environmental Sealing – Dew-Point Budget

Bag film WVTR ≤ 0.3 g/m²·24 h (ASTM E96-B)
Desiccant dosage 1 unit (64 g) per 0.25 m³ free air, maintaining RH <30 % at 45 °C container ceiling temp.
Nitrogen back-fill (≤2 % O₂) optional for Class-200/220 orders—extends shelf life to 24 months.

---

H3 Pallet & Container Stowage

Pallet footprint 1.14 m × 0.96 m, 1.65 m max height → fits 11 pallets per 20 ft, 24 per 40 ft HC without transverse voids.
Anti-slip mats (µ=0.65) between layers; 19 mm polyester strap + corner boards rated 2 kN tension.
Center-of-gravity kept within 600 mm of geometric center—verified by load-plan software (Cargo-Max) to meet IMO CSS code.

---

H3 Logistics Corridor – Luoyang to Global

Factory GPS: 34.62 °N, 112.45 °E, 170 km to Zhengzhou International Hub (CGO).
Rail-sea: CGO ↔ Qingdao by block train 24 h, weekly vessel to Hamburg (26 days), Los Angeles (13 days).
Road-sea: Lian-Huo Expressway → Shanghai or Ningbo, 9 h truck, daily sailings.
Cross-border rail: Optional to Duisburg (18 days) for EU customers avoiding Suez volatility.

Incoterms offered: FOB Qingdao/Ningbo, CIF major port, DDP bonded warehouse (EU, US, UAE).
Transit insurance: 110 % of goods value, ICC(A) + war & SRCC.

---

H3 Cost & Lead-Time Snapshot (Benchmark vs. EU Mill)

Destination	Our CIF $/kg	EU Mill $/kg	Freight Days	CO₂ kg/kg wire*
Hamburg	+0.18 freight	base 11.40	26	0.34
Los Angeles	+0.22 freight	base 12.10	13	0.28
Dubai	+0.12 freight	base 11.80	20	0.31

Calculation per ISO 14083; includes sea leg only.

---

H3 Take-away

Premium insulation deserves premium protection. By integrating rod-drawing, enameling, and inline testing under one 60 000 m² roof in Luoyang, we eliminate double-handling and deliver Class-220 wire to your motor line at Western lead-times, 8–12 % below EU landed cost, with full lot traceability back to cathode #.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Electric-Motor Winding Wire

Value Driver	What It Means to the Winding Engineer	Tangible Proof Point
20-Year Rod-to-Spool Track Record	No learning curve on your thermal-class window (130 °C–220 °C)	>1.2 Mt cumulative enamelled wire shipped since 2004; 0.35 % customer PPM over last 5 years
Fully Backward-Integrated Mill	One PO covers redraw rod, anneal, enamel, inline HV test, spool—no trader margin stacked	42 % cost advantage vs. EU/NA catalogue prices for identical IEC 60317-0-1 builds
Gauge-&-Insulation Agnostic Line	Rapid swap between 0.20 mm–6.0 mm Cu or Al, single- or multi-build, self-bonding, corona-resistant	38 min average change-over, 3-shift operation; MOQ 500 kg (industry norm 1 t)
In-House Metallurgy Lab	Certifies elongation ≥32 % on 2.0 mm Cu, breakdown voltage ≥6 kV (twisted-pair) on 0.45 mm build	Reports issued in English, traceable coil ID laser-marked every 50 mm
Export Logistics Cell	FOB Tianjin / CIF your port; 15-day lead for ≤5 t, 25-day for ≤20 t	96 % on-time delivery 2023, 0 seawater corrosion claims via VCI film + silica gel

1. Technical Depth That Eliminates Rework

Motor repair shops lose margin when random enamel pinholes force a second dip-and-bake. Our inline spark tester runs 3 kV DC on every micron of wire at 180 m min⁻¹, rejecting coils before they reach your bench. The result: <5 pinholes per 30 km spool (IEC allows 15). Whether you rewind a 250 kW induction motor or mass-produce EV stators, you receive statistically zero-defect wire.

2. Alloy & Insulation Menu—No Up-Charges

We draw 99.99 % Grade-CATH oxygen-free copper and 1350-O electrical aluminum in the same campaign, letting you arbitrage Cu:Al price volatility without dual qualification. Insulation portfolio includes:
UE (Polyurethane) – Class 155, solderable at 390 °C, 0.033 mm build, ideal for hand-tool insertion.
PEI (Polyester-imide) – Class 180, 0.050 mm build, compatible with VPI resins.
PI (Polyimide) – Class 220, >10 kV breakdown, for inverter-fed motors.
Self-bonding layer – Activates 2 min @ 170 °C, eliminates lacing twine.

All variants meet IEC 60317, NEMA MW 35-C, and JIS C 3202; we will add corona-resistant enamel or high-temperature bond coat under the same part number if your drawing demands.

3. Factory-Direct Economics—Transparent Kilogram Cost

Western distributors typically add 18–22 % overhead plus 8 % currency hedge. Because we convert 8 mm rod to 0.38 mm enameled wire under one roof, we quote FOB Tianjin at raw-material LME + fixed ¥4.20 processing cost. On a 2.5 t order of 1.00 mm PEI Cu wire, recent customers saved US $1.34 kg⁻¹ versus EU catalog—US $3,350 per truckload—without MOQ penalties.

4. Custom Spool & Packaging That Fit Your Turret

We machine plastic spools (PT-25, PT-60, PT-200) and plywood barrels in-plant. Tolerance on traverse width ±0.5 mm, flange run-out ≤0.05 mm—critical for high-speed flyer winders. Optional barcode label embeds heat number, tensile test result, and thermal-class certificate; scan it and the data auto-loads into your ERP.

5. Engineering Support on 12-h Time Shift

Send us your slot geometry, current density, and target temperature rise; we will return a wire-size & insulation stack recommendation within one business day. Need a 240 °C polyimide-bonded flat wire for a aerospace actuator? We have pilot extrusion & enameling lines for rectangular 2.0 × 6.0 mm conductors—prototype lead 10 days.

---

Next Step: Email cathy@transformerstrip.com with target gauge, thermal class, and annual volume. We will forward a detailed datasheet, breakdown-voltage histogram, and 2024 FOB price matrix within 24 h.

---
