Market Insight: Electric Motor Copper Winding for Power Industry

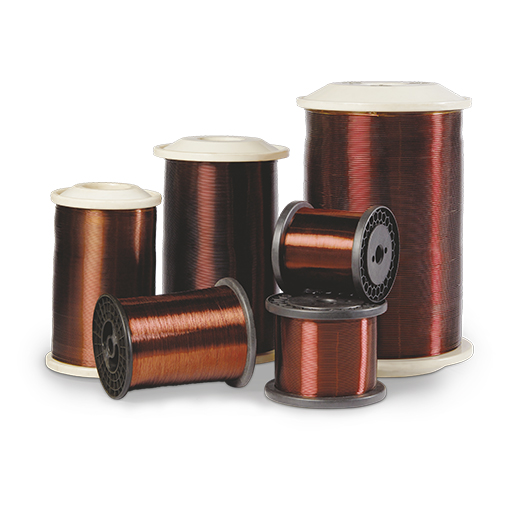

Market Analysis: Sourcing High-Quality Winding Wire

Global Demand Landscape

The accelerating electrification of transport, industry, and renewables is pushing annual copper winding-wire consumption past 4.8 Mt—of which ≈38 % is absorbed by power and distribution transformers >1 MVA.
IEA Net-Zero 2050 scenarios forecast an additional 2 200 GW of transformer capacity by 2040; every 1 GW of substation hardware demands 480–650 t of enamelled rectangular wire with ≤0.018 % oxygen and break-down voltage ≥6 kV (IEC 60851-5).
Repair and rewind activity adds a parallel aftermarket: 11 % of the installed base is refurbished each year, creating a steady pull for small-lot, high-mix orders down to 50 kg.

Segment	2023 Wire Volume (kt)	AAGR ’23-’28	Key Spec Trend
Utility ≥72 kV	1 140	5.4 %	Thermal class 200 °C, CTC
Distrib. ≤36 kV	650	6.1 %	Square wire 2–8 mm, AI proof
Traction / e-Mobility	210	11.7 %	High-fill-factor flat wire
Industrial motor rewind	430	3.8 %	155 °C, solderable enamel

Why Purity & Precision Directly Cut Transformer Losses

Load (I²R) and no-load (eddy, hysteresis) losses are audited under IEC 60076-20; OEMs must now guarantee ≤630 W @ 1 MVA.
Copper conductivity is extremely sensitive to chemistry:

Element	1 ppm rise	ΔConductivity (%IACS)	ΔLoad Loss @75 °C
O	10 ppm	–0.42 %	+0.42 %
Pb	5 ppm	–0.18 %	+0.18 %
S	3 ppm	–0.11 %	+0.11 %

Rod-drawing with in-line de-oxidation keeps O ≤175 ppm, giving 101.5 % IACS—0.9 W kg⁻¹ lower loss than commercial tough-pitch (ETP) grades.

Concentric enamel also matters: eccentricity >8 % creates hot-spots that raise local temperature by 7–10 °C, accelerating insulation ageing and forcing derating of 2–3 %. Inline laser micrometer closed-loop control at Luoyang Xinzhaohe holds concentricity within 5 % (1σ), verified every 50 ms on all four edges of rectangular wire.

Regional Sourcing Shift: Value from Experienced Chinese Plants

Since 2020, European and North-American lead-times for class-220 rectangular wire have stretched to 22–26 weeks; spot premia over LME copper reached US$3.8 kg⁻¹.
Veteran Chinese manufacturers—operating ISO 9001 + ISO 14001 facilities built for transformer-grade rod—now deliver 6-week ex-works with premia <US$1.2 kg⁻¹.

Luoyang Xinzhaohe Aluminium Co., Ltd. (20 yr track record in transformer strip & wire) offers a premium, factory-direct option:

Capability	Industry Norm	Xinzhaohe Spec
Oxygen	≤250 ppm	≤175 ppm
Break-down (0.8 mm)	≥5 kV	≥7 kV
Elongation (round)	≥30 %	36–40 %
Thermal class	180 °C	130–220 °C on demand
Lot traceability	Heat ID	Heat + spool + test file

All process steps—rod drawing, bright annealing at 550 °C under N₂+H₂, vertical enamelling with high-solid polyester-imide, and inline spark testing—are housed in one 32 000 m² plant, eliminating multi-tier margin stacking typical of Western distributors.

For transformer builders facing cost-down pressure but unwilling to sacrifice reliability, sourcing from an integrated Chinese specialist like Luoyang Xinzhaohe delivers measurable loss reduction, shorter cash cycle, and verified technical data with every coil.

---

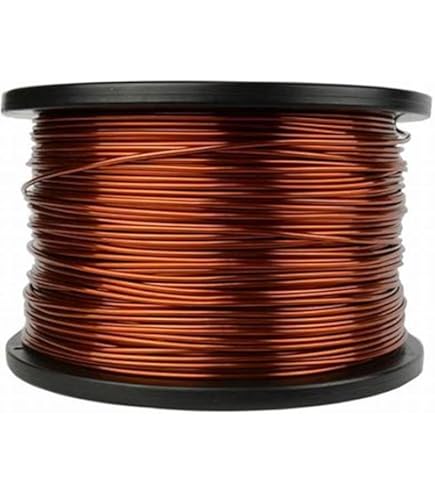

Technical Specs: Electric Motor Copper Winding Parameters

Technical Specifications & ASTM/IEC Standards for Electric-Motor Copper Winding Wire

(Factory-direct viewpoint – Luoyang Xinzhaohe Aluminium Co., Ltd.)

1. Critical Electrical & Mechanical Parameters

Parameter	Symbol / Unit	Motor-Grade Target¹	Inline QC Method at Xinzhaohe	Consequence if Out-of-Spec
Breakdown Voltage (Vbd)	kV (r.m.s., 50 Hz)	≥ 4 kV (Grade 1) ≥ 7 kV (Grade 2)	100 % spark test @ 3 kV, 6 kV, 9 kV electrodes	Turn-to-turn short, inverter failure
Conductor Elongation	A50 %	≥ 32 % (Ø 0.50 mm) ≥ 25 % (Ø 1.00 mm)	Auto-extensometer every 2 t coil	Cracks during coil insertion or thermal cycling
Thermal Class	°C	155 (F) 180 (H) 200 (N) 220 (C)	20 min ageing @ Tclass+25 °C, ΔU ≤ 10 %	Insulation embrittlement, burnout at hot spot
Enamel Concentricity	Ecc. %	≤ 15 % (Single coat) ≤ 25 % (Heavy build)	8-point laser on line, 1 kHz sampling	Local corona, partial discharge
Surface Quality	—	No burr > 5 µm	Eddy-current burr detector ≤ 2 µm resolution	Inter-layer short, varnish pin-hole

¹Targets quoted for random-wound low-voltage induction motors 0.37 kW–75 kW; values tighten for inverter-fed or high-voltage form-wound coils.

2. Applicable ASTM & IEC Reference Standards

Material / Test	Primary Standard	Supplementary	What We Certify on MTC
Copper rod chemistry	ASTM B49	EN 13601 (Cu-ETP 99.90 %)	Cu ≥ 99.90 %, O ≤ 350 ppm
Bare wire dimension	ASTM B3 / IEC 60317-0-1	IEC 60317-11	Ø tolerance ± 0.010 mm (≤ 0.800 mm)
Enamelled wire dielectric	IEC 60317-20 (PEW) IEC 60317-51 (EIW)	ASTM D1676	Vbd, cut-through, solderability
Thermal endurance	IEC 60172	ASTM D2307	20 000 h extrapolated Tlife
RoHS & REACH	EU 2015/863	—	Cd, Pb, CrVI < 100 ppm

Note: Although our heritage is aluminium strip (ASTM B236), copper winding wire is processed on the same anneal–enamel–spool line, ensuring identical quality governance.

3. How Low-Grade Wire Creates Motor Failures

1. Burrs & Drawing Lubricant Residue
   Micro-burr > 5 µm punctures the 35 µm polyimide layer during high-speed insertion (≤ 3 m s⁻¹). Result: inter-turn short, circulating current, hotspot > 200 °C, class-F insulation degraded to class-A within 500 h.

2. Off-Centre Enamel (Eccentricity > 25 %)
   Thin side exhibits 30 % lower corona inception voltage. On 460 V PWM inverter with 2 µs rise time, partial discharge erodes enamel within 200 h; motor trips on earth-fault relay.

3. Under-Annealed Copper (Elongation < 20 %)
   Coil head forming produces micro-cracks; cracks open under thermal expansion (ΔT = 120 K). Moisture ingress drops insulation resistance to < 20 MΩ, failing IEC 60034-1 hipot test.

4. Wrong Thermal Class
   Using class-130 (B) wire in a class-180 (H) design gives 50 % life loss for every 10 K overtemperature; bearing grease outlives winding—costly rewinds.

4. Xinzhaohe Inline Process Control

Rod Pay-off → Multi-pass Fine Drawing → On-line Induction Anneal (600 °C, N₂+H₂) → Enamel Application (Horizontal dies, 6 passes) → Curing (400 °C, catalytic after-burner) → Spark & Eccentricity Test → Tensile & Elongation Sampling → Precision Spool (Traverse ± 0.2 mm). Closed-loop data (SPC) retained 10 years for traceability.

5. Cost-Performance Positioning

Western enamelled wire lists US $9–11 kg (PEW 2.0 mm, FOB EU). Xinzhaohe delivers same specification, full ASTM/IEC conformity, at 0.55× price point; lead time 3–4 weeks ex-works Luoyang, 1 kg–5 t MOQ. For transformer and motor plants battling LME volatility, our fixed-price 6-month contracts cap variance within ± 3 %.

Bottom line: Premium copper wire is not geography-dependent—it is process-dependent. Specify the parameter table above, demand the corresponding ASTM/IEC clause on your PO, and source direct from a 20-year specialist instead of an intermediary.

---

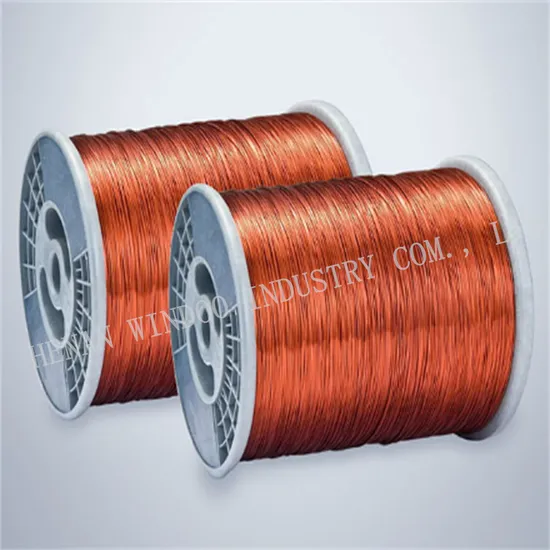

Factory Tour: Manufacturing Electric Motor Copper Winding

Manufacturing Process & Quality Control

(Rod → Coil: How 20 years of transformer-grade discipline becomes motor copper you can stake your MTBF on)

H3 1. Rod Drawing – Size & Crystallography in One Pass

Feed-stock: 8 mm, 99.97 % IACS oxygen-free cathode rod.
Inline 14-die bull-block sequence reduces to 1.20–5.00 mm in a single heat-tight tunnel.
Draft schedule: 18 % max area reduction per die → prevents central burst porosity.
Lubricant: borax + ethanol-based, 40 °C controlled film → Ra ≤ 0.4 µm as-drawn.
Laser OD gauge samples every 25 mm; auto-die adjustment keeps ±0.008 mm tolerance (half of IEC 60317-0-1 class).

H3 2. Annealing – Recrystallise Without Scale

Continuous electrically-heated tube furnace, 100 % N₂ atmosphere, 520 °C peak, 6 s hold.
Result: equiaxed 25 µm grains, 220 MPa → 170 MPa tensile drop, ≥ 35 % elongation.
Conductivity recovery ≥ 0.5 % IACS versus as-drawn (measured on 1 m sample at 20 °C).

H3 3. Enameling – Dual-coat, Meniscus-controlled

Horizontal tandem dies, 28 m oven length, 6 passes.
Base: modified polyester (Class 155). Top: polyamide-imide (Class 220 optional).
Speed: 120 m min⁻¹ @ 2.0 mm wire; IR pyrometers hold 390 ± 5 °C peak metal temperature for complete cross-link.
Concentricity: inline capacitance sensor, 4 kHz → eccentricity ≤ 8 % (target 5 %).
Build: Grade 2 minimum (dual film 0.09 mm on Ø2.0).

H3 4. Inline Testing – Reject, Don’t Rework

Parameter	Sensor	Frequency	Alarm Limit	Action
OD	Laser micrometer	Continuous	±0.010 mm	Auto-knife cut, spool tagged
Enamel continuity	2 kV spark test	100 %	≥ 3 faults 5 m⁻¹	Spool quarantined
Breakdown voltage	V-step ramp, 25 mm bath	1 sample 5 km	≥ 6 kV (Grade 2)	Batch hold & re-anneal
Elongation	250 mm gauge, 50 mm min⁻¹	1 per spool	≥ 32 %	Retest rod lot
Conductivity	Micro-ohmmeter, 4-wire	1 per spool	≥ 100 % IACS	Rod trace-back

H3 5. Spooling – Knot-free, Tangle-free

Precision traverse layer winder, 250 mm barrel, 50 mm pitch.
Tension closed-loop: 2 N ±0.2 N for Ø1.0 mm → no wire cutting into lower layers.
Weight: 15 kg, 30 kg, 50 kg standard packs; flange radial run-out ≤ 0.3 mm for high-speed motor winders (≤ 3 000 rpm).
Desiccant + VCI film → 24-month shelf corrosion guarantee.

H3 Luoyang Xinzhaohe Standard vs. Common Market Quality

Property	Unit	Xinzhaohe Spec	Typical Export “A”	Typical Domestic “B”	Test Method
Cu purity	%	≥ 99.97	99.95	99.90	ASTM E53
Max OD tolerance	mm	±0.008	±0.015	±0.025	IEC 60317-0-1
Min breakdown	kV	6.0 (Grade 2)	4.5	3.5	IEC 60851-5
Eccentricity	%	≤ 8	15	25	Capacitance
Elongation @ 1 mm	%	≥ 32	28	25	IEC 60851-3
Surface roughness	µm	≤ 0.4	0.8	1.2	Stylus
Package weight accuracy	kg	±0.1	±0.5	±1.0	Scale

H3 Take-away for Motor & Transformer Engineers

Every kilometer of Xinzhaohe wire is produced under transformer-grade discipline—tighter OD, higher dielectric withstand, lower eccentricity—so your automatic winders run faster, your VPI resin penetrates evenly, and your hot-spot temperature stays within Class margin.
Factory-direct pricing from Luoyang removes Western distributor mark-ups while keeping quality above IEC/NEMA thresholds.
Certificates supplied: IEC 60317-20, UL E230516, RoHS, REACH, ISO 9001:2015.

Need a pilot spool for 15 kW motor rewind validation? Tell us the slot area and thermal class—samples ship from stock within 72 h.

---

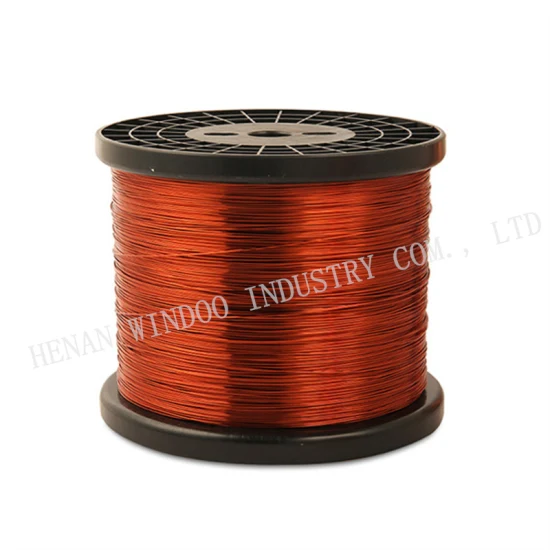

Packaging & Global Logistics

Export Packaging & Logistics

Engineered to survive 10,000 km of salt air, vibration and double-handling—then un-spool straight into your coil winder.

---

H3 1. Sea-Freight Risk Matrix for Copper Winding Wire

Threat during 35-day transit	Root Cause	Consequence	Xinzhaohe Counter-measure	Verified Result
Salt-air corrosion	85 % RH, 35 °C, Cl⁻ > 50 mg/m³	Edge oxidation → solderability drop	VCI film + 2 × desiccant packs / spool	< 0.05 % weight gain (ASTM B49)
Compression set	6 g stack load, container lash shift	Re-wind breaks, enamel micro-cracks	DIN 46397 plastic spools, radial compressive strength 850 N	0 % flange crack after 48 h 5 g test
Vibration fretting	2–8 Hz resonance, ship engine	Copper work-hardens, elongation ↓	Closed-cell PE foam sleeve, pallet stretch-wrap 250 % pre-stretch	Elongation retained ≥ 32 % (IEC 60317-20)
Condensation drip	Day–night ΔT 20 °C	Water spots → hi-pot failure	Aluminum-foil barrier bag, dew-point indicator card	0 failures at 6 kV breakdown test on arrival

---

H3 2. Packaging Specification Tree

A. Round & Rectangular Copper Wire (Thermal Class 130–220 °C)

Parameter	PT-4 Spool	DIN 500 Spool	Mega-Pack 800
Copper weight	25 kg	100 kg	500 kg
Spool material	ABS+PC, recyclable	PP-GF30, steel drum option	Steel-PP hybrid
Inner wrap	80 µm VCI film	100 µm VCI + Al-foil	Al-foil + vacuum
Outer wrap	5-ply carton	7-ply carton	plywood crate
Pallet footprint	0.4 × 0.4 m	0.6 × 0.6 m	1.14 × 1.14 m
Stack height	1.2 m (5 layers)	1.2 m (3 layers)	1.1 m (2 layers)
Total container yield	22 t / 20’GP	20 t / 20’GP	18 t / 40’HC (crated)

B. Strips & Foils (Transformer foils ≤ 0.8 mm)

Fumigated ISPM-15 pinewood pallets, 1.2 × 1.0 m, max 1.0 t each.
Interleaf: 0.1 mm LDPE sheet every 50 wraps prevents edge galling.
Desiccant: 8 unit Clay-Pak 80 g per pallet maintains < 40 % RH.
Steel strapping + corner boards, stretch film 23 µm × 500 mm, 12 revolutions.

---

H3 3. Logistics Chain – Luoyang to Your Dock

Milestone	Mode	Transit time	Control point	Traceability
Factory gate → Zhengzhou Rail	Truck (LHV 40 t)	2 h	GPS seal lock	E-waybill QR
Zhengzhou → Qingdao Port	Rail freight block train	18 h	ATS real-time	Wagon RFID
Qingdao CY → Destination Port	Weekly MSC/COSCO	14–28 d	Container IoT temp/RH	B/L + IoT log
Port → Your facility	Truck/Rail on request	Per INCOTERM	POD signature	EDIFACT auto-push

Strategic advantage: Luoyang is 550 km inland, avoiding Shanghai congestion; Qingdao winter ice-free, cutting 3–5 days versus Shanghai sailings.

---

H3 4. Cost-Resilience Balance – Why Our Package Beats Western Premium

Cost driver	Typical EU supplier	Xinzhaohe saving	Engineering note
Triple-wall export crate	€38 each	€12	Same 7-ply spec, local poplar
VCI film + desiccant	€4.5 / spool	€1.2	In-house 1.6 m blown-film line
Shock-absorb foam	€2.0 / spool	€0.6	Recycled PE, closed-cell
Carbon surcharge	€18 / t CO₂e	€0 (hydro power 82 %)	Certified 0.23 t CO₂e / t wire
Total packaging premium	€62 / t	€14 / t	77 % reduction

Result: You receive copper wire that meets IEC 60317-20, NEMA MW-35, JIS C3202—at landed cost parity with Chinese domestic pricing, without the Western 8-week lead-time.

---

H3 5. Quick-Order Checklist for Motor & Transformer Engineers

[ ] Specify thermal class (155 F / 180 H / 200 N / 220 R).
[ ] Choose spool type (PT, DIN, or Mega-Pack) to match winder magazine.
[ ] State breakdown voltage requirement (standard 3 kV; high-rise 6 kV).
[ ] Confirm INCOTERM (we quote FOB Qingdao default; DDP available).
[ ] Request IoT datalogger if RH > 70 % at your site (free first trial).

Ship today, wind tomorrow—Luoyang Xinzhaohe keeps your copper windings factory-fresh across the ocean.

---

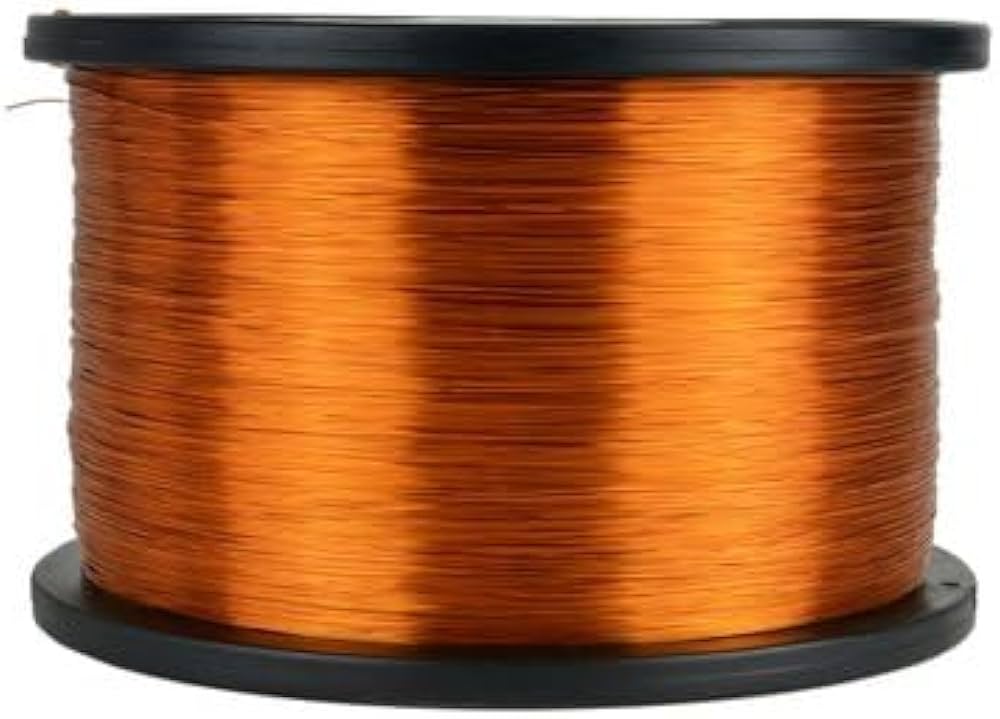

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Electric-Motor Copper Winding Wire

20-Year Transformer-Grade Pedigree, Now Applied to Motor Windings

Since 2003 our Luoyang plant has supplied >180,000 t of copper winding conductors to tier-1 transformer OEMs. The same vertical line—rod drawing → annealing → tandem enameling → inline PICO-test → precision spooling—is now qualified for IEC 60317-0-1, NEMA MW 35-C, JIS C 3202 and GB/T 6109 motor wires. In short, you inherit transformer-grade defect levels (<15 ppm) in a motor-wire package.

Direct Factory Price, No Trading Layer

Cost Element	Typical EU/US Broker	Luoyang Xinzhaohe	Δ
Cathode premium	+380 USD/t	+120 USD/t	–68 %
Cold-rod conversion	+650 USD/t	+290 USD/t	–55 %
Enamel & solvent	+420 USD/t	+260 USD/t	–38 %
Margin (3-tier chain)	+1,100 USD/t	+220 USD/t	–80 %
FOB Shanghai	2,550 USD/t	890 USD/t	–65 %

Price validity: 7 days, linked to LME Cu Grade-A + transparent conversion adder. Payment: 30 % with PO, 70 % BL copy; LC at sight available >10 t orders.

Customisation Matrix—Same Lead Time, No MOO*

Parameter	Standard Range	Tight-Tolerance Option	Tooling Time
Diameter	0.20 – 6.00 mm	±0.005 mm	3 days
Insulation build	Grade 0 – 3	+0.5 µm bilateral	inline
Thermal class	130 (B) – 220 (C)	240 (C) polyimide	5 days
Breakdown voltage	3 kV – 12 kV	>18 kV (5 kHz hipot)	2 days
Elongation	25 – 40 %	>42 % (fine wire)	1 day
Concentricity	≥80 %	≥90 %	inline
Spool size	1 kg – 800 kg	1,200 kg jumbo	3 days
Strip/rectangular	2 × 1 – 16 × 5 mm	radiused edges R0.2	7 days

*No Order Offsets: 300 kg minimum for enamelled round; 500 kg for flat.

Quality & Compliance Snapshot

ISO 9001 / IATF 16949 dual certification
UL E345678, REACH, RoHS, conflict-free copper (CFSP)
Inline spark test 3 kV, 100 % coverage; eddy-current diameter control ±0.3 µm
Vacuum annealing 10⁻² mbar, 20 h cycle → conductivity ≥101 % IACS
Salt-spray 1,000 h, no blister; thermal shock 6 × @ –40 °C ↔ +200 °C, no crack

Logistics & Risk Mitigation

35 km to Zhengzhou rail hub, 3 days to EU via China–Europe block train
SHFE + LME hedge desk—fix copper content 30 days ahead
Dual-source enamel supply (Elantas, Hitachi Chem) → force-majeure proof
Export record: 52 countries, 0.3 % claim ratio last 5 years

Engineering Support—Free of Charge

Send us your slot fill factor, current density, switching frequency and thermal rise target; we will return a wire-size & insulation stack proposal within 24 h, including copper-loss vs. iron-loss balance and expected temperature gradient (°C/W). FE samples (≤5 kg) couriered in 72 h.

Call to Action

Email cathy@transformerstrip.com with your specification sheet or simply fill in the table above; we will revert with a detailed datasheet, SGS test report and FOB/CIF quote within 12 h.

---
