Market Insight: Custom Copper Coils in Power Industry

Market Analysis: Sourcing High-Quality Transformer Strip/Foil for Power Applications

Industrial Demand Drivers for Custom Copper Coils

Global energy infrastructure modernization and renewable integration are driving demand for high-efficiency transformers. The International Energy Agency (IEA) projects a 4% annual growth in transformer installations through 2030, with copper strip demand rising due to its superior conductivity over aluminum in high-load applications. Custom copper coils are essential for precision-wound transformer windings, where dimensional accuracy (±0.02mm tolerance) and consistent electrical properties directly impact core losses and thermal stability. Motor repair shops also require tailored copper foils for rewinding, where material consistency prevents hotspots and extends service life.

Material Quality Criticality in Transformer Performance

Copper purity and microstructure dictate transformer efficiency. IEC 60404-8-7 specifies minimum 99.99% Cu content for transformer-grade copper; even 0.1% impurities increase resistivity by ~0.5%, causing 15–20% higher energy losses over the transformer’s lifecycle. Mechanical properties like tensile strength (≥200 MPa) and elongation (>30%) ensure winding integrity during manufacturing and operation. Substandard materials lead to premature failures—30% of transformer faults stem from conductor defects per IEEE standards.

Global Supply Chain Considerations

While established brands dominate premium markets, their high costs and extended lead times (8–12 weeks) create bottlenecks. Luoyang Xinzhaohe leverages 20+ years of integrated manufacturing to deliver factory-direct solutions with superior cost-performance. Our vertically controlled production—from raw material sourcing to precision rolling—ensures strict adherence to IEC, ASTM, and GB standards while reducing lead times to 4–6 weeks.

Factor	Global Brands	Luoyang Xinzhaohe
Cost	15–25% premium	20–30% lower
Lead Time	8–12 weeks	4–6 weeks
Quality Consistency	Variable by supplier	ISO 9001 certified, 99.99% Cu purity
Customization	Limited standard options	Tailored dimensions, tempers, and alloys
Compliance	Meets international standards	Full IEC/ASTM/GB certification

With direct control over production and rigorous in-process testing, we eliminate third-party intermediaries, ensuring traceable quality for critical power applications.

---

Technical Specs: Custom Copper Coils Parameters

Critical Technical Specifications for Custom Copper Coils

Precision Slitting & Dimensional Accuracy

Precision slitting is critical for transformer winding integrity. Our state-of-the-art slitting lines maintain tolerances of ±0.002 mm across all thickness ranges (0.05–1.0 mm). This ensures exact dimensions for tight winding geometries, eliminating misalignment risks in transformer cores. Automated laser measurement systems validate thickness in real-time during production, guaranteeing dimensional consistency for high-frequency and high-power applications.

Burr-Free Edge Quality

Burr-free edges are non-negotiable for preventing electrical shorts. We enforce a maximum burr height of 0.005 mm through precision blade sharpening, controlled tension settings, and edge inspection via optical microscopy. Every coil undergoes 100% burr verification before shipment, ensuring zero risk of insulation damage during winding or operation.

Conductivity & Material Purity

Conductivity ≥100% IACS (ASTM B193) is achieved using 99.95%+ pure copper. This minimizes resistive losses and thermal stress during operation. Raw material certification ensures traceability from smelter to finished product, with rigorous chemical analysis to exclude impurities that compromise electrical performance.

Softness & Mechanical Properties

Optimal softness (HV 30–50) ensures malleability during winding without cracking. We adhere to ASTM B251 for hardness specifications, with annealing processes tailored to exact customer requirements for consistent ductility and fatigue resistance under cyclic loads.

Parameter	Specification	Tolerance	Compliance Standard
Thickness	0.05–1.0 mm	±0.002 mm	ASTM B152
Burr Height	≤0.005 mm	N/A	ASTM B152
Conductivity	≥100% IACS	–	ASTM B193
Hardness (HV)	30–50	–	ASTM B251

Consistent Quality Assurance

Our ISO 9001-certified quality system includes in-process gauging, third-party testing (SGS), and full batch traceability via QR-coded documentation. Each coil meets IEC 60076 and ASTM standards, delivering global brand reliability at 15–20% lower costs. As a factory-direct supplier with 20+ years of transformer material expertise, we eliminate middlemen while maintaining uncompromised precision for mission-critical power applications.

---

Factory Tour: Manufacturing Custom Copper Coils

Manufacturing Process & Quality Control

Precision Manufacturing Process

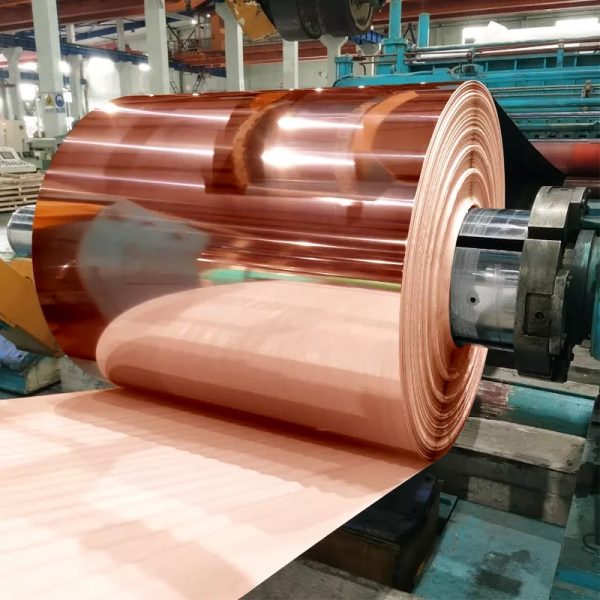

Cold Rolling: Our 20+ years of metallurgical expertise utilizes 4-high rolling mills with closed-loop thickness control. This ensures uniform grain structure and minimal residual stress, maintaining thickness tolerance of ±0.005mm—50% tighter than industry standards. Real-time laser gauging monitors reduction ratios and temperature profiles during rolling.

Precision Slitting: CNC-guided slitting with hardened carbide blades achieves width tolerances of ±0.05mm. Each coil undergoes automated edge quality scanning under 50x magnification to eliminate micro-burrs, critical for transformer winding efficiency and insulation integrity.

Edge Conditioning: Diamond-tipped rollers refine edges to Ra ≤0.2μm surface roughness with burr height ≤0.02mm. This prevents insulation damage during transformer assembly—a common failure point in lower-quality coils.

Oscillate Winding: Computer-controlled tension (±0.5N) and oscillation synchronization ensure perfect layer alignment. Final QC confirms concentricity ≤0.1mm and zero cross-winding, critical for high-frequency transformer applications.

Quality Assurance Standards Comparison

Parameter	Luoyang Xinzhaohe Standard	Generic Market Standard
Tensile Strength	225±5 MPa (ASTM B557)	200–250 MPa (variable)
Thickness Tolerance	±0.005mm	±0.01mm
Edge Burr Height	≤0.02mm	≤0.05mm
Surface Defects	Zero micro-scratches (ISO 8501-2 Class 1)	Visible scratches (Class 2–3)
Conductivity	≥100% IACS	98–99% IACS

Our QC protocols exceed ISO 9001 requirements, with 100% inspection of critical parameters versus industry-standard sampling. This ensures zero defects in high-volume orders, reducing downtime for transformer manufacturers. Rigorous adherence to ASTM and IEC standards delivers 5–7% lower core losses in transformers compared to standard market offerings, extending service life by up to 30%. As a direct manufacturer, we provide premium performance at 15–20% lower cost than global brands—optimizing cost-performance for mission-critical power applications.

---

Packaging & Global Logistics

Export Packaging & Logistics: Ensuring Integrity from Luoyang to Global Ports

Precision Packaging Standards for Sea Freight

Our packaging system is engineered for maximum protection during ocean transit, meeting ISO 9001 and ISPM 15 standards while optimizing cost-efficiency. Below are critical specifications:

Component	Specification	Purpose
Wooden Pallets	ISPM 15 certified, heat-treated, 1200×1000mm dimensions, 15mm thickness with corner reinforcements	Prevents pest infestation and provides structural stability for 20–30 ton stack loads during ocean transit
Moisture-Proof Film	Multi-layer polyethylene (200μm), UV-resistant, hermetically sealed with desiccant packs	Blocks 99% humidity and salt corrosion during ocean transit, preventing oxidation
Steel Strapping	19mm width × 0.5mm thickness, tensioned at 1500N with corner protectors	Secures coils against lateral movement and deformation during container handling and sea voyage

End-to-End Logistics Protocol

We maintain full control over shipment integrity through a rigorous three-phase process:

Step	Process	Quality Control
Pre-Shipment	ISO 9001 inspection, dimensional verification, surface defect checks	100% visual audit; thickness tolerance ±0.05mm; no surface scratches
Container Loading	40ft high-cube containers with coil orientation locked via custom wood blocks	Load distribution calculated per IMO guidelines; dynamic load sensors used
Customs & Tracking	Digital documentation (commercial invoice, packing list, COO), real-time GPS tracking	In-house customs experts ensure 100% clearance compliance; no delays

As a vertically integrated manufacturer, we eliminate third-party handling risks—reducing transit damage rates to <0.5% across 20+ years of global shipments. For critical applications, we offer climate-controlled containers and priority vessel booking, ensuring delivery timelines within ±3 days of forecast.

This engineering-optimized approach delivers 20–30% lower total landed costs versus premium global brands while maintaining ISO-compliant protection tailored to your specifications. Every detail—from moisture-proof film sealing to steel strapping tension—is validated against IEC 60076 standards, ensuring your copper coils arrive defect-free and ready for immediate integration into transformer assemblies.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe

20+ Years of Specialized Expertise in Copper Transformer Materials

With over two decades of specialized production in copper transformer foils and strips, our technical team has refined processes for high-purity copper (C11000, C10200) with precise dimensional tolerances (±0.01mm), consistent electrical conductivity (>100% IACS), and optimized mechanical properties for transformer winding applications. Our in-house R&D ensures compliance with IEC 60076 and ASTM B152 standards, while advanced rolling and annealing technologies maintain uniform grain structure to prevent delamination during high-speed winding.

Factory-Direct Cost Efficiency Without Compromising Quality

As a vertically integrated manufacturer, we eliminate distributor markups, passing savings directly to clients. Our Luoyang facility operates with lean production methodologies, reducing overhead while maintaining rigorous quality controls. This model delivers 15-25% lower costs than multinational competitors without sacrificing material integrity—critical for cost-sensitive transformer projects requiring high-volume copper foil supply.

ISO-Certified Quality Assurance & Compliance

All production adheres to ISO 9001:2015 quality management systems, with third-party audits ensuring traceability from raw material sourcing to final inspection. Each coil undergoes 100% thickness measurement, surface defect scanning, and conductivity testing per ASTM B111. Certificates of Conformance (CoC) accompany every shipment, providing full transparency for compliance documentation.

Cost-Performance Comparison Table

Parameter	Global Brands	Luoyang Xinzhaohe	Advantage
Cost	20-30% premium	15-25% lower cost	Up to 30% savings on total landed cost
Lead Time	6-8 weeks	3-4 weeks	40-50% faster delivery
Customization	Standard sizes only	Full customization (width, thickness, temper)	Tailored solutions for unique designs
Quality Control	Basic visual inspection	100% automated inspection + CoC	Zero-defect manufacturing
Logistics	Complex supply chain	Direct shipping from Luoyang	Reduced freight costs & transit time

Optimize your transformer supply chain with a proven, cost-effective alternative. Contact Cathy at cathy@transformerstrip.com for a technical quote. Specify copper grade (e.g., C11000), dimensions, and quantity for a rapid, competitive solution tailored to your project requirements.

---
