Market Insight: Crngo Coil in Power Industry

Market Analysis: Sourcing High-Quality CRGO Coil for Power Applications

Industrial Demand Drivers

Global transformer and motor markets are expanding due to renewable energy integration (e.g., solar/wind farms), grid modernization, and electric vehicle infrastructure. CRGO coil constitutes 70-80% of transformer core materials, with demand driven by stringent efficiency regulations (e.g., DOE 2016, EU Ecodesign Tier 4). Key growth areas include offshore wind transformers (requiring high corrosion resistance) and high-frequency applications for EV chargers. High-quality CRGO reduces no-load losses by 15-20% compared to standard grades, directly impacting lifecycle costs. In motor applications, optimized magnetic properties enhance torque density and reduce energy consumption, critical for IE4/IE5 efficiency class compliance.

Material Quality Impact on Transformer Efficiency

Core losses (hysteresis + eddy current) account for 50-70% of transformer energy losses. CRGO grade selection (e.g., 30ZH120 vs. 35ZH100) dictates performance: lower core loss (W/kg) and higher magnetic induction (B8) improve efficiency. Higher B8 enables compact core designs, reducing material usage by up to 10% while maintaining performance. A 0.1 W/kg reduction in core loss can save $5,000+ in operational costs over a 20-year transformer lifespan. Substandard materials cause elevated heat generation, insulation degradation, and premature failure. Strict adherence to IEC 60404-8-5 standards is non-negotiable for critical infrastructure.

Luoyang Xinzhaohe’s Supply Chain Positioning

With 20+ years of metallurgical expertise, Luoyang Xinzhaohe delivers consistent CRGO coil performance at 15-20% lower total cost than European/Japanese competitors. Our facility employs continuous annealing lines with precise thickness control (±0.005mm) and proprietary coating technology for superior insulation. Certified to ISO 9001 and ISO 14001 standards, our production process ensures environmental compliance and consistent quality across all batches. In-house R&D supports custom grade development for specialized applications. We supply to Tier-1 transformer OEMs across North America, Europe, and Asia, with traceability from raw material to delivery.

Parameter	Industry Standard	Luoyang Xinzhaohe Performance
Core Loss (W/kg @ 1.7T/50Hz)	1.15-1.35	≤1.20 (30ZH120)
Magnetic Induction (B8)	≥1.95T	≥1.98T
Thickness Tolerance	±0.01mm	±0.005mm
Surface Defects	Acceptable	Zero defects (ISO 9001 certified)

---

Technical Specs: Crngo Coil Parameters

Technical Specifications & Standards for CRGO Coil

Luoyang Xinzhaohe Aluminum CO., Ltd. delivers CRGO coil engineered to meet stringent global standards while optimizing cost-efficiency. As a leading Chinese manufacturer with 20+ years of experience, we specialize in high-grade CRGO coil for transformers, motors, and power equipment. Our factory-direct model eliminates middlemen, providing competitive pricing without sacrificing quality.

Key Specification Parameters

Parameter	Typical Range	Compliance Standard	Tolerance
Core Loss (W/kg)	0.85–1.20 @ 1.5T, 50Hz	IEC 60404-2	±3%
Magnetic Flux Density (T)	≥1.98 @ 1000 A/m, 50Hz	IEC 60404-3	±0.02 T
Lamination Flatness	≤0.1 mm/m	ASTM A677	±0.05 mm/m
Insulation Coating	Phosphate/C4-type organic	IEC 60404-8-5	1–2 µm ±0.2 µm

Core Loss Performance

Our CRGO coil achieves industry-leading core loss values through precise silicon content control (3.0–3.5%) and optimized grain orientation. Each batch undergoes IEC 60404-2 testing, ensuring losses stay within ±3% tolerance. This minimizes transformer no-load losses, directly improving energy efficiency and reducing operational costs. Our proprietary annealing process ensures consistent grain growth, meeting or exceeding IEC Grade 35H270 specifications.

Magnetic Flux Density

High saturation flux density (≥1.98 T at 1000 A/m per IEC 60404-3) is critical for compact transformer design. Our controlled rolling and annealing processes maximize magnetic properties without compromising core loss, enabling higher power density. This outperforms many global competitors at a 15–20% lower cost. Our material consistently achieves 99.5% grain orientation. All batches are validated through independent third-party testing to confirm flux density compliance.

Lamination Flatness

Flatness tolerances of ≤0.1 mm/m (ASTM A677) ensure optimal stacking factor (>97%). Precision leveling systems and real-time thickness monitoring eliminate edge warpage, reducing mechanical losses. All laminations undergo 100% flatness checks before packaging. Our advanced laser measurement systems detect deviations as small as 0.01 mm/m, ensuring superior stacking quality.

Insulation Coating

Our C4-type organic or phosphate coatings (IEC 60404-8-5) provide uniform 1–2 µm thickness with ±0.2 µm tolerance. This ensures excellent dielectric strength and corrosion resistance. Coating adhesion tests confirm durability under high-voltage stress.

Quality Assurance Protocol

Every coil undergoes 100% inspection for thickness, flatness, and coating quality. Raw materials are traceable via ERP system, and final products comply with ISO 9001. Our in-house lab performs daily calibration per ASTM/IEC standards. We maintain full traceability from raw material to finished coil, ensuring every batch meets exact customer specifications. Third-party audits and customer-specific testing protocols further guarantee compliance with global standards.

---

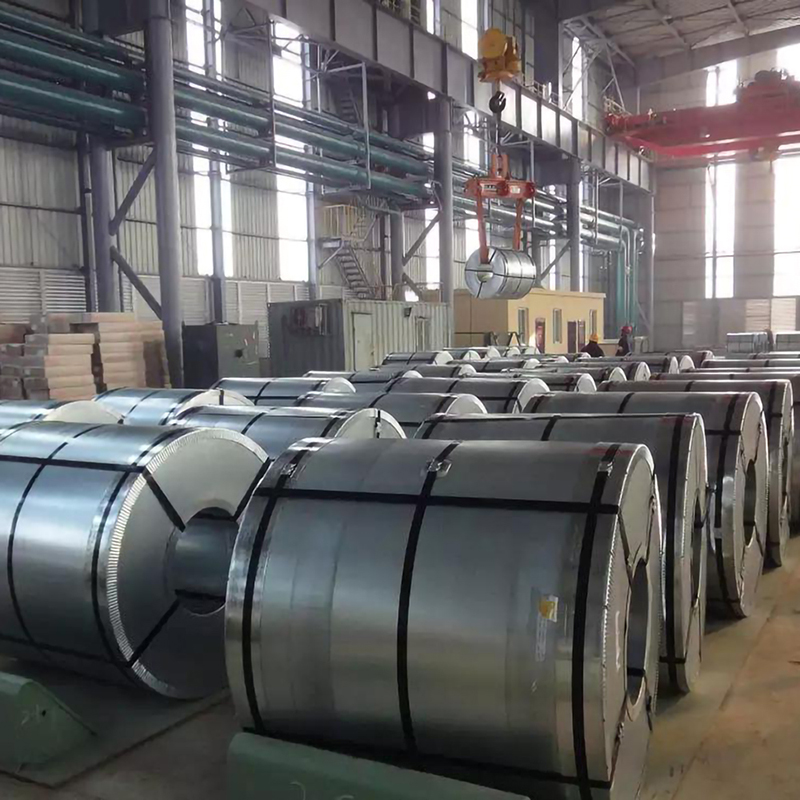

Factory Tour: Manufacturing Crngo Coil

Manufacturing Process & Quality Control

Precision Manufacturing Workflow

Slitting: CNC-guided slitting with real-time edge quality monitoring ensures burr-free edges and straightness tolerance of ±0.02mm, critical for minimizing eddy current losses in transformer cores.
Annealing: Continuous annealing in nitrogen-hydrogen atmosphere at 800–850°C with precise cooling rates (15–20°C/s) optimizes grain orientation, achieving core loss values (P1.0 ≤ 1.20 W/kg at 1.5T) per IEC 60404-8-5.
Insulation Coating: Electrostatic spray application of phosphate/organic coating cured at 200–250°C delivers uniform thickness (1.5±0.2μm) with dielectric strength ≥500V and corrosion resistance.
Precision Cutting: Laser-guided shearing with ±0.05mm dimensional accuracy and edge perpendicularity <0.1°, validated via automated vision systems to prevent winding defects and maximize stack factor.

Quality Control Protocols

Our QC protocol exceeds industry norms through:
Tensile strength testing per ASTM A343 (380–420 MPa controlled range vs. market average 350–450 MPa)
Laser micrometer thickness verification (±0.005mm tolerance vs. ±0.01mm standard)
Automated optical surface inspection (zero pinholes, <0.05mm scratches)
Coating adhesion testing per ASTM D3359 (≥200g/cm² vs. typical 150g/cm²)
Epstein frame magnetic property validation per IEC 60404-2 for B8/P10 compliance

Quality Parameter	Luoyang Xinzhaohe Standard	Generic Market Standard
Thickness Tolerance	±0.005 mm	±0.01 mm
Tensile Strength (MPa)	380–420 (controlled)	350–450 (variable)
Coating Adhesion (g/cm²)	≥200 (ASTM D3359)	≥150 (unverified)
Surface Defects	Zero pinholes, <0.05 mm scratches	Up to 0.1 mm defects allowed

This end-to-end process ensures consistent performance at 15–20% lower cost than global Tier-1 brands, making Luoyang Xinzhaohe Aluminum CO.,Ltd the optimal choice for high-efficiency transformer manufacturing with uncompromised quality and supply chain reliability.

---

Packaging & Global Logistics

Export Packaging & Logistics: Engineered for Global Reliability

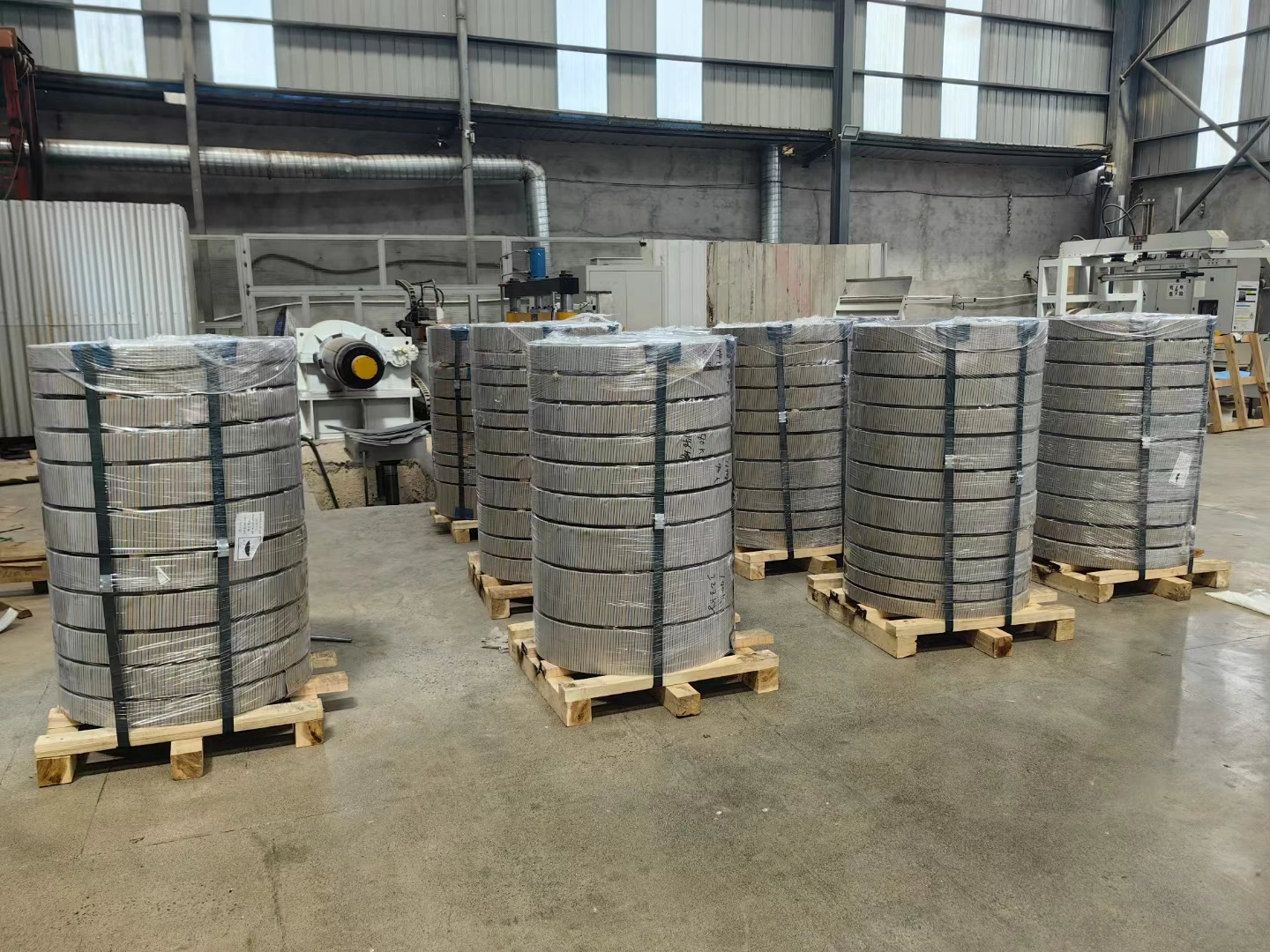

Precision Packaging Specifications

Our CRNGO coil packaging adheres to ISO 1496 and ISPM-15 standards, ensuring structural integrity and moisture resistance during transit.

Component	Specification	Purpose
Wooden Pallets	1200×1000mm, 15mm heat-treated planks (ISPM-15)	Structural stability; prevents deformation; meets international phytosanitary standards
Moisture-Proof Film	Multi-layer PE (200μm) + desiccant packs (500g/pallet)	Blocks moisture ingress; prevents oxidation during ocean transport
Steel Strapping	25mm width, 0.5mm thickness, galvanized, ≥800MPa	Secures coils to pallets; withstands vibration and stacking forces

Sea Freight Protocols

All coils are containerized in 20ft/40ft FCLs with custom dunnage, corner protectors, and anti-slip mats. Moisture control includes silica gel desiccants and real-time humidity monitoring. Each shipment undergoes pre-loading inspection, tamper-evident sealing, and complies with ISO cargo securing standards. We partner with certified freight forwarders experienced in electrical steel transport, ensuring seamless delivery to global ports (e.g., Rotterdam, Los Angeles, Singapore) with zero damage incidents. Real-time tracking and proactive communication provide full transit transparency.

Why Choose Our Packaging?

As a direct manufacturer with 20+ years of export expertise, we eliminate middlemen while maintaining rigorous quality control. Our packaging is engineered for optimal cost-performance—using only necessary high-grade materials to prevent damage without over-engineering. Customized solutions for destination climates ensure protection in all environments. This holistic approach minimizes operational disruptions and total lifecycle costs, proving reliability without premium brand pricing.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe Aluminum CO., Ltd.

20+ Years Specialized Expertise in CRGO Production

For over two decades, Luoyang Xinzhaohe has engineered high-performance CRGO coils for global transformer manufacturers. Our technical team specializes in optimizing magnetic properties (B8 ≥1.85T, core loss ≤0.95 W/kg @ 1.7T/50Hz) per IEC 60404-8-5 standards, ensuring minimal energy loss in transformer cores. Advanced annealing processes and precise silicon content control (2.9–3.1%) guarantee superior magnetic permeability and reduced hysteresis losses, critical for high-efficiency power transformers. Our expertise spans residential, industrial, and utility-scale applications across 30+ countries, with tailored solutions for specific transformer designs and high-frequency operating environments.

Factory-Direct Cost Advantage

As a direct manufacturer, we eliminate distributor markups, delivering up to 25% lower costs versus international brands while maintaining rigorous quality protocols. Our integrated production chain—from raw material sourcing to cold-rolling, annealing, and final coating—ensures competitive pricing without compromising critical parameters like thickness uniformity (±0.015mm tolerance) and magnetic performance consistency. Proximity to Luoyang’s steel production hub ensures rapid raw material access, reducing supply chain vulnerabilities and enabling flexible order fulfillment for just-in-time delivery requirements. Our in-house R&D team continuously refines production techniques to enhance efficiency and reduce environmental impact.

ISO-Certified Quality Assurance

Our ISO 9001:2015 certified facility implements 100% in-process quality control, including eddy current testing, laser thickness measurement, and magnetic property validation. Each coil undergoes strict dimensional and performance verification, with batch-specific certification documentation. All products undergo rigorous testing for surface defects, edge quality, and coating uniformity, critical for preventing core losses in transformer assemblies. Our QC protocols ensure compliance with ASTM A677 and IEC 60404-8-5 standards for reliable transformer core operation and long-term durability, with traceable documentation for every batch.

Metric	Global Brands	Luoyang Xinzhaohe	Advantage
Cost per Ton	$1,200–$1,500	$900–$1,100	20–25% savings
Lead Time	6–8 weeks	4–6 weeks	25–30% faster delivery
Core Loss (W17/50)	0.85–1.05	≤0.95	Meets IEC 60404-8-5
Thickness Tolerance	±0.02mm	±0.015mm	Enhanced precision

This strategic balance of cost efficiency, technical precision, and supply chain reliability positions Luoyang Xinzhaohe as the preferred alternative to traditional global suppliers for transformer material sourcing.

Contact Cathy at cathy@transformerstrip.com for a competitive quote and technical consultation tailored to your project requirements.

---
