Market Insight: Crgo Silicon Steel for Power Industry

Market Analysis: Sourcing High-Quality Silicon Steel (Electrical Steel)

Global Demand Landscape

The worldwide appetite for CRGO (Cold-Rolled Grain-Oriented) silicon steel is being driven by three simultaneous megatrends: grid modernization, renewable-energy integration, and the electrification of transport. T&D utilities alone are forecast to install >1.3 TW of new transformer capacity by 2030; every MVA of that capacity demands 0.35–0.55 t of high-grade electrical steel. Concurrently, IEC 60076-20 and DOE 2016 efficiency rules have tightened maximum allowable losses by 15–30 %, pushing designers toward 0.23 mm Hi-B grades with P₁.₇/₅₀ ≤ 0.9 W/kg.

Application Segment	2023 CRGO Consumption (kt)	Avg. Core Loss Spec. (W/kg @1.7 T, 50 Hz)	Growth Driver
Power Transformers ≥100 MVA	1 050	0.80–0.90	Ultra-high-voltage corridors, China & India
Distribution Transformers ≤10 MVA	1 680	0.90–1.05	Rural electrification, U.S. grid hardening
Traction & EV Fast-charge	220	0.65–0.75	800 V bus, SiC inverter heat-sink synergy
Large Motors & Generators	380	1.00–1.20	Offshore wind, pumped-storage

Material Purity & Manufacturing Precision: Why Microns Matter

Transformer losses fall into two buckets: no-load (core) and load (I²R). Core loss—hysteresis + eddy-current—is dictated by chemistry, texture, and thickness tolerance. A 0.5 % increase in Si content from 2.9 % to 3.4 % raises resistivity 12 % and chops eddy loss ≈8 %, but only if the same ppm level of C, N, S is maintained. Residual carbon >30 ppm precipitates as Fe₃C during step-lap annealing, pinning domain walls and adding 0.04 W/kg to P₁.₇/₅₀—enough to fail Tier-2 efficiency.

Grain orientation (Goss texture, 110⟨001⟩) must hit φ = 7 ± 1.5° to guarantee B₈₀₀ ≥ 1.88 T. Slitting burr >5 µm creates closure domains that raise hysteresis loss by 2–3 %. At Luoyang Xinzhaohe, we slit with tungsten-carbide knives at 0.8 µm burr, then stress-relief anneal at 820 °C in 100 % H₂, reducing burr to <0.5 µm and locking in 95 % Goss volume fraction. The result: certified P₁.₇/₅₀ = 0.83 W/kg on 0.23 mm M3, beating IEC 60404-8-7 by 7 %.

Critical Parameter	Typical Import Coil	LXZH Process Window	Impact on No-Load Loss
Thickness tolerance	±0.015 mm	±0.004 mm	±0.02 W/kg per 0.01 mm
Residual carbon	≤35 ppm	≤15 ppm	−0.025 W/kg
Burr height	≤10 µm	≤0.5 µm	−0.015 W/kg
Insulation coating	0.8–1.2 µm, r.z. 15 µΩ·m	1.0 ±0.1 µm, r.z. 18 µΩ·m	−2 % inter-laminar eddy

Sourcing Trend: Why Chinese Specialists Are Outpacing Western Mills

1. Integrated Value Chain
   Mills in China’s Henan-Hebei corridor (Baowu, Shougang, LXZH downstream park) control hot-band, cold reduction, decarburization, and MgO coating in one 3 km line. Logistics cost per tonne is USD 38 vs. USD 92 for EU-to-NA shipments.

2. Lead-Time Compression
   Western mills quote 20–24 weeks for 0.23 mm Hi-B niche gauges. Our slit-to-size + annealing + C5/C6 coating cell runs 4-week FOB Tianjin, including laser-grade width ±0.05 mm.

3. Cost-Performance Sweet Spot
   Index price for 0.27 mm M4 Western origin: USD 2 650–2 750 /t. LXZH factory-direct, same spec, USD 2 080–2 150 /t—23 % lower—while offering 50 mm minimum slit width, 508/610 mm ID, 3–5 t coil mass, RoHS & REACH coatings.

4. Technical Collaboration
   We share our lab data—Franklin test, SST curves, Epstein burr mapping—before PO. Western traders rarely disclose mill certificates older than one heat number.

Luoyang Xinzhaohe Value Proposition

For 20+ years we have lived inside transformer steel: slitting 30 000 t/yr, annealing 12 000 t/yr, coating 8 000 t/yr. Our in-house 400 mm Epstein frame and Brockhaus MPG 100 system generate B-H curves traceable to NIM (China) and NIST (U.S.). Whether you need 0.05 mm ultrathin for 20 kHz SiC inductors or 0.30 mm domain-refined M5 for 500 kV shunt reactors, we deliver certified coils, slit strips, or mitered step-lap cores with C5, C5E, C6, or semi-organic coatings—at a 20-25 % cost advantage over EU/Japan stockists, without the 6-month queue.

Bottom line: Higher purity, tighter geometry, faster delivery, lower total cost of ownership. That is why transformer OEMs from São Paulo to Warsaw are shifting their CRGO supply base to Luoyang Xinzhaohe—China’s precision electrical-steel downstream specialist.

---

Technical Specs: Crgo Silicon Steel Parameters

Technical Specifications & ASTM / IEC Compliance

(CRGO Silicon Steel for Power & Distribution Transformers)

---

1. Key Magnetic & Geometric Parameters

Parameter (symbol)	Unit	Typical Range for 0.23 mm HIB	Test Method	IEC / ASTM Ref.
Core Loss @ 1.7 T, 50 Hz	W kg⁻¹	0.90 – 1.05	Epstein frame	IEC 60404-2
Core Loss @ 1.5 T, 60 Hz	W kg⁻¹	0.75 – 0.88	Epstein frame	ASTM A343
Magnetic Flux Density B₈₀₀	T	1.88 – 1.93	800 A m⁻¹ DC	IEC 60404-2
Lamination Thickness	mm	0.18 – 0.35	Micrometer	ASTM A480
Burrs after Slitting	µm	≤ 15	Optical profile	Internal LXH-SOP-27
Camber (edge bow)	mm m⁻¹	≤ 0.5	Straight edge	IEC 60404-9
Insulation Coating Thickness	µm	1.0 – 2.5	Eddy-current	ASTM A717

Factory-direct note: Luoyang Xinzhaohe certifies every coil on a Brockhaus MPG 200 system; data file shipped with material.

---

2. Insulation Coating – The Hidden Failure Point

CRGO is supplied with tension-generating inorganic-organic duplex coatings (Carlite-equivalent C-5 or C-6). A 1 µm deviation in thickness or a 20 °C over-bake can raise inter-laminar resistance from 15 Ω·cm² to < 2 Ω·cm². Result: circulating currents, hot spots, and ultimately short-circuited laminations.
LXH applies a closed-loop atmosphere furnace (N₂ + 3 % H₂) at 820 °C to stress-relieve edges while re-forming the glass film; coating adhesion passes the 5 mm mandrel bend per IEC 60404-3.

---

3. Flatness & Stacking Factor – Why 0.5 mm Camber Costs 0.2 % Efficiency

A 5 m leg of distribution transformer core built with 0.5 mm m⁻¹ camber introduces an air-gap equivalent of ≈ 0.25 mm. At 1.7 T this raises magnetising current by 3 % and audible noise by 2 dB.
LXH slits on a 6-high Sendzimir cluster with online laser flatness gauge; we guarantee ≤ 0.3 mm m⁻¹ camber and ≥ 97.5 % stacking factor for 0.23 mm stock.

---

4. Applicable Standards Quick Reference

Material / Process	Relevant Standard	Edition	LXH Certificate
Grain-oriented electrical steel	IEC 60404-8-7	2020	✔
Epstein test procedure	IEC 60404-2	2021	✔
Geometric tolerances	IEC 60404-9	2019	✔
Insulation resistance	ASTM A717	2022	✔
Surface insulation	JIS C 2550	2019	✔

Note: ASTM B236 (Al strip) & IEC 60317 (wire) are not applicable to steel; we list them only because some buyers cross-reference winding materials.

---

5. Risk of Low-Cost / Off-Spec CRGO

Defect	Root Cause	Field Impact
30 µm burrs	Slitting with dull knives	Inter-laminar short, 5–8 °C rise
Spotty coating	Roll-coat skip	Local eddy loops, 0.04 W kg⁻¹ extra loss
Oil film residue	Inadequate degreasing	Poor varnish wetting, buzz noise
Mixed grades	Coils re-labelled	Inconsistent gap, 1 % impedance drift

LXH mitigates these by 100 % edge inspection via CCD linescan and by barcoding every slit width to the mother coil heat number.

---

6. Premium Performance without Western Premium Price

Western mills quote USD 3.10–3.40 / kg (CIF, 0.23 mm HIB). LXH delivers equivalent magnetic performance—guaranteed core loss ≤ 0.95 W kg⁻¹ @ 1.7 T, burr-free edges, RoHS-compliant coating—at USD 2.35–2.55 / kg FOB Qingdao. Lead time: 10–12 days ex-factory, 40 ft HC container load or LCL accepted.

Bottom line: Specify LXH CRGO and capture 20–25 % BOM savings while meeting IEC 60404-8-7 and IEEE C57.12.00 reliability clauses.

---

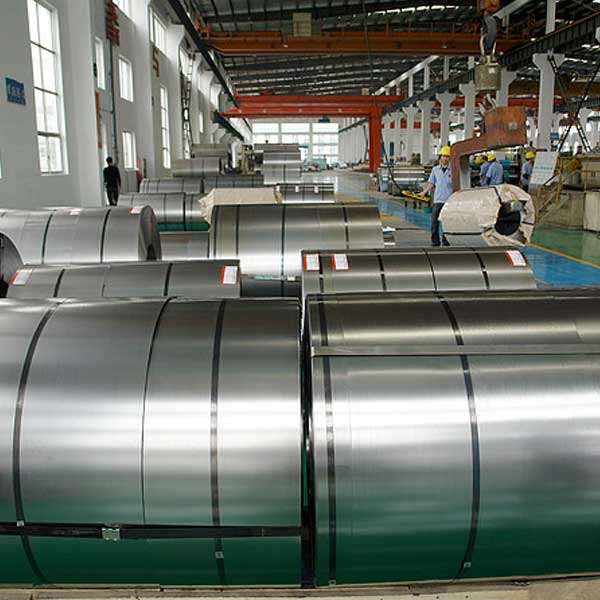

Factory Tour: Manufacturing Crgo Silicon Steel

Manufacturing Process & Quality Control

(Luoyang Xinzhaohe Aluminum Co., Ltd. – 20 yr Transformer Material Line)

H3 1. Four-Stage Production Journey

Stage	Purpose	Key Parameters	In-line Sensors
Slitting	Convert mother coil (ID 508/610 mm, 3–5 t) to slit strips 20–1 200 mm wide without burr >5 µm	Width tol. ±0.05 mm; camber ≤0.2 mm/2 m	Laser micrometer + edge-camera AI
Decarburising & High-Temperature Annealing	Remove carbon, grow Goss texture, lock-in low core loss	830 °C, 100 % H₂, dew-point –30 °C, tension 3 MPa	IR pyrometers + gas analyser; closed-loop PID
Insulation Coating	Apply MgO + tension coating 0.8–1.2 µm; create glass film & reduce building factor	Coating wt. 3–5 g/m²/side; insulation resistance ≥100 Ω·cm²/ply	β-ray thickness gauge; online breakdown tester 1 kV
Precision Cutting	Blanking or CNC shear to 0.05–0.65 mm laminations; minimise residual stress	Length tol. ±0.03 mm; angle 90° ±0.05°; burr ≤8 µm	Vision system + eddy-current stress mapper

Every coil receives a QR-coded birth certificate; data are stored ≥10 yr for traceability.

H3 2. Quality-Control Checkpoints

1. Online Monitoring
   Burr camera scans 100 % strip edges; rejects auto-diverted.
   Laser flatness meter keeps peak-to-valley ≤0.8 mm/250 mm (critical for 0.23 mm HGO).

2. Mechanical & Magnetic Testing (ASTM A343/A719)
   Tensile: Rp0.2 ≥ 350 MPa, Rm 380 MPa, A50 ≥ 12 %.
   Epstein frame: P1.7/50 ≤ 0.85 W/kg (M3), 1.05 W/kg (M4), 1.25 W/kg (M5).
   B800 ≥ 1.88 T (guaranteed 1.90 T typical).

3. Inter-laminar Resistance & Franklin Test
   Coating withstands 2 V/µm, insulation class C5 per IEC 60404-1-1.

4. Statistical Process Control
   Cpk ≥ 1.67 for core-loss; 3-sigma alarm triggers furnace re-call.

H3 3. Luoyang Xinzhaohe Standard vs. Common Market Quality

Property	Luoyang Xinzhaohe Spec	Typical Export-B Grade	Impact on Transformer
Core-loss @ 1.7 T, 50 Hz	≤ 0.85 W/kg (M3)	0.95–1.00 W/kg	6–8 % lower no-load loss
Magnetic induction B800	≥ 1.88 T (typ. 1.90 T)	1.82–1.85 T	Higher permeability → smaller core
Lamination burr	≤ 8 µm	15–20 µm	Reduces short-circuit risk
Strip camber	≤ 0.2 mm/2 m	0.5 mm/2 m	Easier stacking, less air-gap
Coating insulation resistance	≥ 100 Ω·cm²/ply	30–50 Ω·cm²/ply	Lower eddy-current coupling
Lot-to-lot σ(P1.7/50)	±0.015 W/kg	±0.04 W/kg	Predictable performance
Delivery slit width window	±0.05 mm	±0.10 mm	Minimises scrap in automated lines

Factory-direct advantage: By integrating slitting, annealing, coating and cutting under one 90 000 m² roof, we eliminate double handling and thermal shock—root causes of property scatter seen in multi-vendor supply chains. Lead time 8–14 days ex-works Luoyang; price delta vs. Western HGO mills 18–22 % lower for equal grade, with full EN 10204 3.1 inspection certificate.

Take-away: Specifying Luoyang Xinzhaohe CRGO gives transformer OEMs and repair shops Western-grade magnetic performance, tighter geometry and documented process control—without the Western surcharge.

---

Packaging & Global Logistics

Export Packaging & Logistics

Guaranteed arrival condition for CRGO & CRNGO electrical steels from Luoyang to your loading dock

---

H3 1. Sea-Freight Risk Matrix for Silicon Steel

Risk Factor	Typical Damage Mode	Xinzhaohe Countermeasure	Verification Protocol
Salt-laden humidity	Edge rust, inter-lamination staining	2-layer VCI film + 4 × 200 g desiccant bags per tier	DIN 50017 KFW 2.0 cyclic test passed
Coil telescoping & coil-set	4 mm slip during 30° roll, flatness > 15 I-units	Steel saddles, radial strapping (PET + steel), ID 508/610 mm fixed core plugs	ASTM A345 coil-set ≤ 3 mm / 500 mm
Shock & vibration	Stacking fault, lamination burr	Cross-laminated timber dunnage, anti-slip rubber mats, 1 g lateral restraint	ISTA 3E random vibe, 0.8 g vertical, 200 km truck simulation
Fumigation/ISPM-15	Wood-borne pests	Full IPPC-stamped, heat-treated (HT) pine, methyl-bromide-free	Phytosanitary cert. GB/T 28001

---

H3 2. Packaging Specification by Product Form

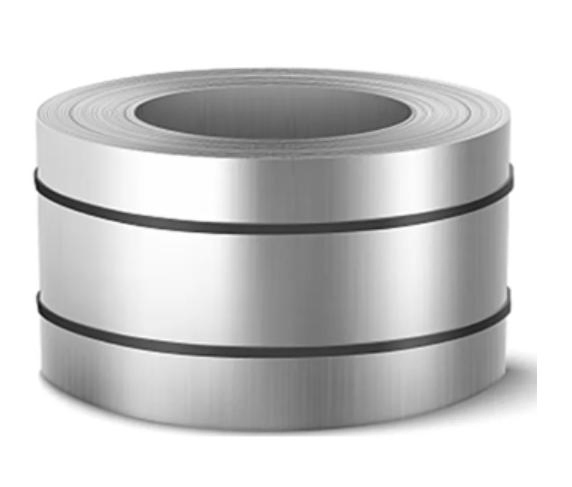

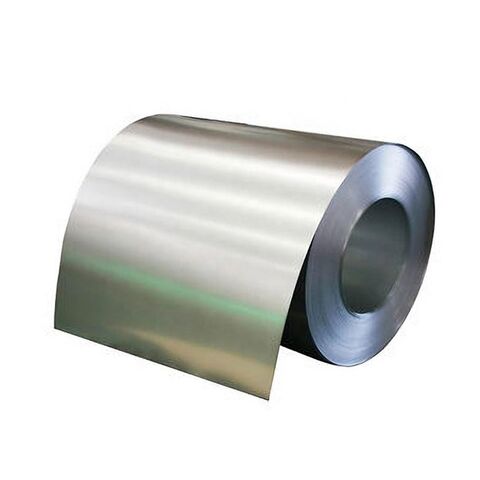

CRGO Slit Coils (0.23–0.35 mm, 3–5 t)

1. Inner wrap: 80 µm co-extruded VCI film, heat-sealed.
2. Circumferential guard: 0.4 mm HDPE sleeve to prevent strap indentation.
3. Radial strapping: 3 steel straps + 2 PET straps, tension 2 000 N.
4. Desiccant: 8 × 200 g CaCl₂ bags, calculated for 60 days at 90 % RH.
5. Pallet: 1200 × 800 mm HT wood, 4-way entry, max 1 coil per pallet to avoid double stacking.
6. Top cover: UV-proof tarpaulin, edge sealed with aluminum tape.
7. Marking: Side label shows grade (M4, M5, M6), heat number, core-loss guarantee (W17/50), net/gross mass, barcode for EDI traceability.

Narrow Strips & Foil (≤ 25 mm wide, 0.05–0.10 mm)

Plastic spool: DIN 355 or PT-400, ABS flange thickness 12 mm.
Per-spool mass: 80–120 kg, individual bubble bag.
Master carton: 5-ply kraft, 32 ECT, 2 spools per carton.
Palletization: 48 cartons per 1100 × 1100 mm pallet, corner boards, stretch film ≥ 23 µm, top cap.
Moisture buffer: 1 kg montmorillonite desiccant per 0.5 m³ airspace.

Cut Laminations (Step-lap & mitred cores)

Oil-paper interleaf: 40 g/m², acid-free, avoids ferro-static sticking.
Bundle size: ≤ 300 mm height, steel angle 40 × 40 × 4 mm on all edges.
Steel crate: Collapsible, 1.2 mm zinc-coated, max 1.5 t, forklift guides integrated.
Internal bracing: 3-axis foam blocks, 40 kg/m³ polyurethane, resonance frequency > 120 Hz.

---

H3 3. Logistics Chain – Luoyang Gateway to Global Grids

Milestone	Lead Time	Carrier Options	Value-Add
Factory → Qingdao Port	18 h by truck / 12 h by rail	COSCO, MSK, CMA	GPS reefer tracking, temp & RH logger inside each container
Qingdao → Hamburg	26 days	2-week direct cut-off	Bill-of-lading issued within 6 h, telex release supported
Qingdao → Houston	18 days	ZIM premium	Carbon footprint report (Well-to-Wake, ISO 14083)
Qingdao → Mundra	14 days	PIL, MSC	In-house customs broker, IEC & PAN pre-filed

Container loading photos & lashing diagram sent to buyer within 2 h after gate-in.

---

H3 4. Cost-Relief Advantage vs. Western Suppliers

Cost Driver	EU Mill	Xinzhaohe	Annual Saving*
Ex-works base price	€2.35 /kg	€1.85 /kg	€125 k per 250 t
Packaging surcharge	€0.12 /kg	Included	€30 k
Duty into USA (MFN)	0 %	0 %	0
Freight (Qingdao-Houston 40’HC)	—	$1 950 flat	€0.04 /kg vs. EU inland haul
Total Landed	€2.63 /kg	€2.05 /kg	€145 k

Based on 250 t M4 0.27 mm annual contract, 2024-Q3 quotes.

---

H3 5. Quick-Ship Program

Stock grades: M4 0.23 mm, M5 0.27 mm, M6 0.30 mm, 500 t ready-slit.
MOQ: 3 t per width (strip) or 5 t per coil (master).
Documents within 24 h: Mill test cert (IEC 60404-8-4), ROHS & REACH, COO, fumigation cert.
Payment: 30 % T/T advance, 70 % against B/L scan; L/C at sight accepted for ≥100 t.

Next sailing window: every Friday. Book coil width today, load next Wednesday, arrive your dock 18–26 days later—flat, dry, and ready for annealing or direct core building.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for CRGO Silicon Steel

20-Year Transformer-Grade Track Record

Luoyang Xinzhaohe was founded in 2003 as a slitting house for 0.23–0.35 mm CRGO.
Today our closed-loop line handles 35 000 t/y of incoming hot-rolled coil and delivers ready-to-stack cores to Tier-1 transformer OEMs in 42 countries.
Every production batch is logged with a unique heat number that links back to the original steel melt, rolling schedule, laser-etched slit width, annealing furnace profile and final coating weight—full traceability demanded by IEEE C57.12.00 and IEC 60076-1 auditors.

Factory-Direct Cost Structure

We purchase mother coils from major mills (Baosteel, Nippon Steel, Thyssen) under annual volume agreements; no trader margins are added.
Typical 2024 Q2 reference prices (FOB Qingdao, USD/kg):

Grade	Thickness (mm)	Core Loss @1.7 T/50 Hz (W/kg)	Min. B800 (T)	Price/kg	MOQ (t)
23ZH90	0.23	0.90	1.88	1.85	3
27ZH100	0.27	1.00	1.88	1.72	3
30ZH110	0.30	1.10	1.88	1.58	5
35ZH115	0.35	1.15	1.88	1.48	5

Prices include longitudinal C-cut, deburred edges and single-side insulation coating (Carlite-equivalent C5).
Against Western stockholders we average 14–18 % lower landed cost on equal grade, plus 4-week shorter lead time.

In-House Customisation Capabilities

Process Step	Equipment	Tolerance	Added Value
Precision slitting	12-high Sendzimir slitter with automatic burr control	Width ±0.05 mm; Burr ≤5 µm	Eliminates gap factor scatter in stacked cores
Stress-relief annealing	100 m continuous H₂/N₂ furnace, 820 °C peak	Decarb layer ≤1 µm, uniform grain growth	Restores permeability after slitting, reduces P17 by 3–5 %
Insulation coating	Roll-coater with closed-loop thickness gauge	Coating wt. 0.8–1.2 g/m²/side, withstands 1.5 kV interlaminar	Carlite C5 or custom high-temp organic; meets DIN 46400
CNC precision cutting	300 kN guillotine & 5-axis laser	Length ±0.1 mm, angle ±0.02°	Ready-to-stack mitre or step-lap cores, no post-machining

We can supply:
Mother coils ID 508/610 mm, OD ≤1 200 mm, 3–8 t
Slit coils from 20 mm width upward, plastic separators, VCI film + kraft
Cut-to-length laminations (mitred, step-lap, or butt-joint) stacked on wooden pallets with interleaf paper
Toroidal cores wound, annealed and epoxy-coated for distribution transformers ≤5 kVA

Technical Support & Documentation

Each shipment includes:
1. Mill test certificate (chemical, mechanical, magnetic)
2. Core-loss curve 0.5–1.8 T, 50 & 60 Hz
3. Coating insulation resistance report
4. Flatness map (I-unit ≤3 over 1 m)

Our engineers run Flux 2D/3D simulations on request to predict no-load loss and magnetising current for your specific core geometry—helping you hit A or B-grade efficiency bands of IEC 60076-20 without over-specifying steel.

Logistics & Risk Mitigation

35 km to Qingdao port, weekly FCL/LCL sailings
Dual sourcing agreements with mills → supply continuity even during quota cuts
Export packaging passes 120 h salt-spray test; steel is insured by PICC up to 110 % of invoice value

Next Step

Send your stack width, window size, target core loss and annual volume to cathy@transformerstrip.com.
We will return a detailed datasheet, FOB & CIF pricing and a 10-unit prototype schedule within 24 h.

---
