Market Insight: Crgo Electrical Steel

Market Analysis: Silicon Steel (Electrical Steel)

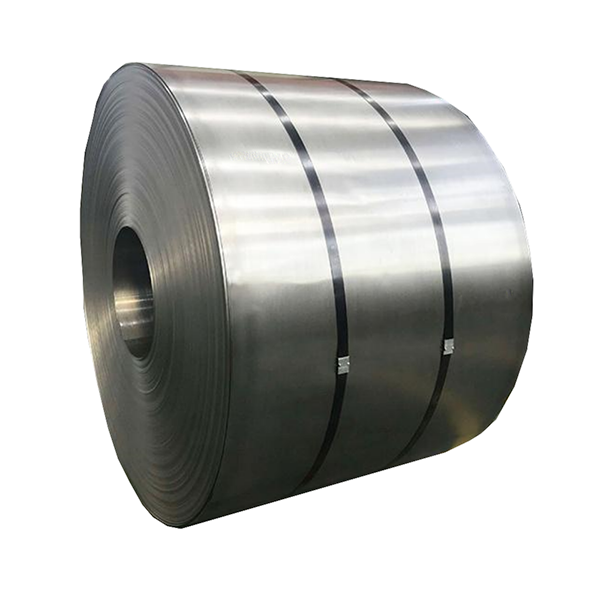

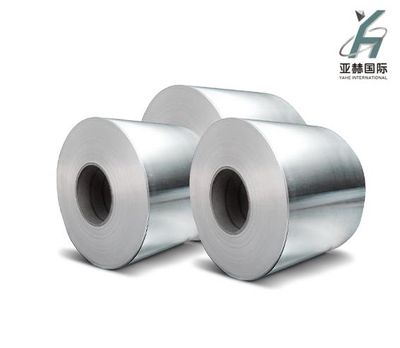

Cold-rolled grain-oriented electrical steel (CRGO) is a critical magnetic material in the design and manufacturing of high-efficiency power transformers. Its unique crystallographic orientation, achieved through specialized processing, enables superior magnetic permeability and reduced core losses when magnetized along the rolling direction. This makes CRGO the material of choice for large power and distribution transformers used in utility, industrial, and renewable energy applications.

Global demand for CRGO electrical steel continues to grow, driven by increasing electricity consumption, grid modernization initiatives, and the expansion of renewable energy infrastructure. As nations invest in smarter, more resilient power networks, the efficiency of transformers becomes a focal point. Regulatory standards such as the IEC 60076 and DOE efficiency mandates in North America place stringent requirements on transformer no-load losses, directly influencing the selection of core materials. High-quality CRGO steel is essential to meet these standards, as it can reduce core losses by up to 30% compared to conventional non-oriented grades or lower-tier CRGO.

The primary industrial consumers of CRGO are transformer manufacturers serving utility-scale transmission projects, renewable integration (particularly solar and wind substations), and industrial power systems. In emerging markets, urbanization and electrification programs are accelerating demand for distribution transformers, while developed regions focus on replacing aging infrastructure with high-efficiency units. Additionally, the rise of high-voltage direct current (HVDC) transmission systems and traction transformers for rail networks further expands CRGO applications.

Quality in CRGO steel is not a marginal consideration—it directly impacts transformer performance, lifecycle costs, and environmental footprint. Key quality parameters include specific core loss (W/kg at 1.7 T and 50 Hz), magnetic flux density (typically measured at 800 A/m), lamination factor, and interlaminar resistance. Variability in grain alignment, coating uniformity, and thickness tolerance can lead to localized eddy currents, increased hysteresis losses, and thermal instability. Inferior CRGO may initially reduce procurement costs but results in higher total cost of ownership due to elevated energy losses over the transformer’s 30+ year service life.

At Luoyang Xinzhaohe Aluminum Co., Ltd, with over two decades of experience in advanced metal processing and supply chain management, we recognize that consistent material quality is foundational to transformer reliability. Our technical partnerships with leading steel producers ensure access to fully processed (FP) and domain-refined CRGO grades that meet international performance benchmarks. We provide comprehensive material certification, batch traceability, and technical support to assist transformer manufacturers in optimizing core design and meeting evolving efficiency standards.

In a market where energy efficiency and sustainability are paramount, sourcing high-grade CRGO is a strategic decision. It ensures compliance, enhances product competitiveness, and supports global decarbonization goals through reduced grid losses.

---

Technical Specs: Crgo Electrical Steel

Technical Specifications for CRGO Electrical Steel

Luoyang Xinzhaohe Aluminum Co., Ltd clarifies that while our corporate name references aluminum, our metallurgical division specializes in high-grade silicon steel (electrical steel) with 20+ years of industrial production expertise. This section details critical technical parameters for Cold-Rolled Grain-Oriented (CRGO) electrical steel, essential for transformer core efficiency and performance. CRGO specifications must align with IEC 60404-2 and JIS C 2550 standards, with three parameters being non-negotiable for B2B sourcing: Core Loss, Magnetic Flux Density, and Flatness.

Core Loss (Iron Loss) directly impacts transformer energy efficiency and operational costs. It comprises hysteresis and eddy current losses, measured in watts per kilogram (W/kg) at 1.5 Tesla (T) flux density and 50 Hz frequency. Lower values indicate superior material quality, reducing heat generation and electricity waste. Premium CRGO grades achieve core losses below 0.90 W/kg, critical for meeting Tier 1 energy efficiency standards (e.g., DOE 2016, IE5). Variability in core loss across the coil width must not exceed ±3% to ensure uniform core performance.

Magnetic Flux Density (B₈) at 800 A/m field strength determines the material’s saturation limit and core compactness. Higher B₈ values (typically 1.88–1.92 T) enable smaller, lighter transformer designs without sacrificing magnetic capacity. B₈ is measured per IEC 60404-2 using single-sheet testers, with deviations beyond ±0.01 T risking core saturation under load. Consistency across the coil is paramount, as localized flux density drops cause hotspots and premature aging.

Flatness tolerance governs lamination stacking integrity. Excessive camber or edge wave (measured in I-Units) increases air gaps between laminations, elevating core loss by up to 15% and causing audible noise. CRGO must maintain flatness ≤ 5 I-Units across the full coil width. This requires precise tension control during slitting and annealing; deviations >8 I-Units necessitate costly corrective leveling.

The table below summarizes key CRGO grade specifications for industrial sourcing:

Grade Designation	Core Loss (W/kg) @1.5T/50Hz	Magnetic Flux Density (T) @5000A/m	Flatness Tolerance (I-Units)	Typical Application
M090-35A	≤0.90	≥1.90	≤5	High-efficiency distribution transformers
M080-30A	≤0.80	≥1.91	≤4	Power transformers (69–138 kV)
M070-27A	≤0.70	≥1.92	≤3	Ultra-high-efficiency EHV transformers
M060-23A	≤0.60	≥1.93	≤3	Specialty reactors, traction transformers

Sourcing CRGO requires rigorous validation of mill test certificates against these parameters. At Luoyang Xinzhaohe, we enforce 100% batch testing via Epstein frame and single-sheet methods, with flatness verified using laser profilometry. Material failing any specification threshold is rejected, ensuring your cores achieve design efficiency targets and 30+ year service life. Partner with us for CRGO that eliminates derating risks and meets global energy regulations.

---

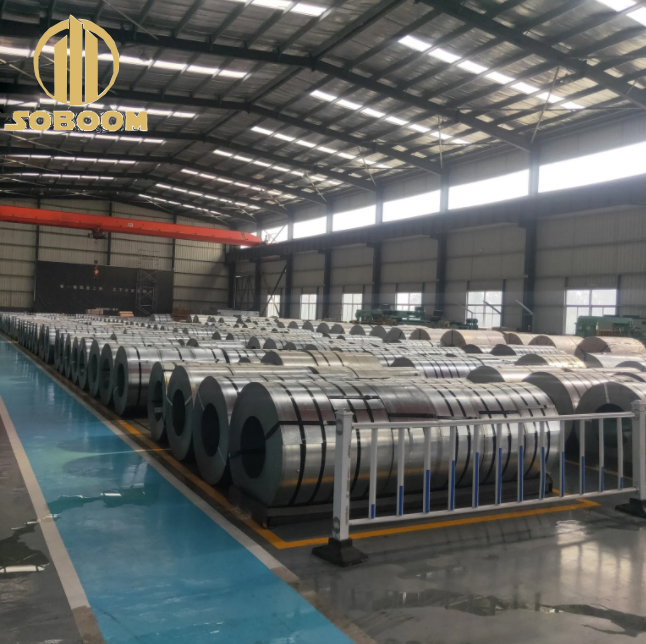

Factory Tour: Manufacturing

Manufacturing Process of CRGO Electrical Steel at Luoyang Xinzhaohe Aluminum Co., Ltd

The production of Cold-Rolled Grain-Oriented (CRGO) electrical steel at Luoyang Xinzhaohe Aluminum Co., Ltd follows a tightly controlled sequence of metallurgical and mechanical processes designed to optimize magnetic performance, dimensional accuracy, and surface integrity. With over two decades of experience in advanced metal processing, our facility ensures compliance with international standards such as IEC 60404-8 and GB/T 2521, delivering material suitable for high-efficiency transformers and power distribution equipment.

The manufacturing process begins with slitting, where master coils of incoming CRGO steel are longitudinally cut into narrower strips according to customer-specified widths. This operation is performed on precision slitting lines equipped with high-tolerance rotary knives and tension control systems to minimize edge burrs and maintain consistent strip geometry. The slit coils are then subjected to a continuous annealing cycle in a controlled atmosphere furnace. Annealing serves multiple critical functions: it relieves residual stresses induced during prior cold rolling, promotes secondary recrystallization to enhance grain orientation, and develops the desired Goss texture (110)[001], which is essential for superior magnetic directional properties. The annealing profile is precisely regulated in terms of temperature ramp rates, peak temperature (typically between 1050°C and 1200°C), dwell time, and cooling rate, with atmosphere composition (primarily nitrogen-hydrogen mix) monitored to prevent oxidation and ensure surface cleanliness.

Following annealing, the coils proceed to the insulation coating stage. A thin, uniform layer of inorganic or semi-organic insulating coating is applied via roll-coating or spray techniques. This coating provides interlaminar electrical resistance, reduces eddy current losses, and enhances mechanical durability during core fabrication. The coating weight is tightly controlled within the range of 0.8 to 1.5 g/m² per side, depending on the grade and application. After application, the coating is cured in a secondary heating zone to achieve full adhesion and dielectric stability.

The final stage involves precision cutting, where the coated coils are transversely cut into laminations or segments using high-speed turret presses or laser-cutting systems. Tooling is maintained to micron-level tolerances to ensure edge straightness and dimensional repeatability. All cut parts are stacked and bundled under controlled conditions to prevent deformation and contamination.

Quality control is integrated at every phase. In-process inspections include continuous monitoring of strip thickness (via laser micrometers), coating weight (using XRF or gravimetric analysis), and surface defects (via automated optical inspection). Magnetic properties are validated through Epstein frame testing, measuring core loss (W/kg) and magnetic polarization (B₈) at standard induction levels. Final product certification includes comprehensive test reports traceable to individual heat numbers.

---

Packaging & Logistics

Export Packaging Standards for CRGO Electrical Steel

Luoyang Xinzhaohe Aluminum Co., Ltd. implements rigorously engineered export packaging protocols specifically designed for Cold Rolled Grain-Oriented (CRGO) electrical steel. With over two decades of metallurgical and supply chain expertise, we prioritize the preservation of magnetic properties and dimensional integrity during global maritime transit. CRGO steel’s hygroscopic nature and susceptibility to surface damage necessitate a multi-barrier approach, validated through decades of shipments to demanding industrial markets.

All CRGO coils are secured on custom-engineered wooden pallets compliant with ISPM-15 international phytosanitary standards. These pallets utilize kiln-dried, knot-free hardwood with a minimum load-bearing capacity of 15 metric tons per stack. Structural integrity is reinforced through triple-layer cross-banding using steel strapping (minimum 19 mm width, 1,500 kg tensile strength) anchored at eight critical points. Pallet dimensions adhere to ISO container standards (1,200 × 1,000 mm or 1,100 × 1,100 mm) to optimize cubic utilization while preventing coil movement during vessel acceleration or rough seas. Edge protectors fabricated from high-density polyethylene shield coil edges from strapping-induced deformation.

Moisture protection constitutes the most critical layer in our packaging system. Coils undergo vacuum desiccation prior to wrapping with a triple-layer barrier:
1. An inner layer of vapor corrosion inhibitor (VCI) film (25 μm thickness) neutralizes ambient humidity and prevents oxidation.
2. A middle layer of metallized polyester film (50 μm) provides absolute moisture阻隔 (WVTR < 0.1 g/m²/day).
3. An outer layer of UV-stabilized polyethylene (100 μm) resists punctures and container rain condensation.

This assembly is hermetically sealed using heat-welded seams and moisture-indicating desiccant packs (minimum 500 g per ton of steel). All film materials meet ASTM D4279 standards for salt spray resistance, ensuring functionality in high-humidity marine environments exceeding 95% RH.

Packaging System Performance Specifications
| Parameter | Standard Configuration | Premium Configuration |
|————————–|————————|————————|
| Moisture Barrier (WVTR) | < 0.5 g/m²/day | < 0.1 g/m²/day |
| Pallet Load Capacity | 12,000 kg | 15,000 kg |
| Desiccant Density | 300 g/ton | 500 g/ton |
| Salt Spray Resistance | 500 hours | 1,000 hours |

Handling protocols are equally critical. Palletized loads undergo tilt testing (22° angle) and drop testing (30 cm height) per ISTA 3A standards prior to shipment. Documentation includes humidity logs from desiccant indicators and third-party certification of pallet fumigation. Our logistics partners utilize climate-monitored containers with humidity alarms, and we mandate top-loading only in vessel holds to minimize stack pressure.

This integrated packaging methodology eliminates moisture ingress and mechanical stress—the two primary causes of CRGO degradation during transit. By exceeding ISO 9001:2015 and IEC 60404-11 requirements, we ensure coils arrive with unaltered core loss (W17/50) and magnetic induction (B800) values. For mission-critical applications in transformer manufacturing, our packaging is not merely transportation—it is the final stage of metallurgical quality control. Partnering with Xinzhaohe guarantees that your CRGO steel maintains its engineered performance from our mill to your production line.

---

Sourcing from Luoyang Xinzhaohe

Partner with Luoyang Xinzhaohe – Your Trusted Source for High-Performance CRGO Electrical Steel

Luoyang Xinzhaohe Aluminum Co., Ltd brings over two decades of specialized expertise in the production and supply of high-quality silicon steel, with a focused capability in Cold-Rolled Grain-Oriented (CRGO) electrical steel. As a vertically integrated manufacturer, we maintain full control over the production lifecycle—from raw material sourcing and precision rolling to final inspection and packaging. This ensures consistent material properties, tight tolerances, and compliance with international standards including IEC 60404-8, ASTM A876, and GB/T 2521.

Our manufacturing facility is equipped with advanced rolling mills, continuous annealing lines, and in-line surface inspection systems that enable the production of CRGO steel with superior magnetic properties. We specialize in delivering grades ranging from M470-50A to M300-35A, tailored for high-efficiency transformer and reactor applications. Our process controls ensure low core loss (W17/50), high magnetic induction (B800 ≥ 1.88 T), and excellent lamination factor, directly contributing to reduced no-load losses and improved energy efficiency in end-use equipment.

Precision is at the core of our operations. We maintain a certified metrology lab with capabilities in magnetic property testing using Epstein frame and Single Sheet Tester (SST) methods, dimensional inspection via laser micrometers, and surface quality analysis using automated optical systems. This technical infrastructure allows us to meet tight customer specifications and support quality audits from OEMs and tier-1 suppliers globally.

Sustainability and supply chain reliability are integral to our operational philosophy. Our production lines are ISO 9001 and ISO 14001 certified, and we utilize energy-efficient processing technologies to minimize environmental impact. We maintain strategic inventory buffers of key CRGO grades to support just-in-time delivery models without compromising lead times. Our logistics network enables reliable FOB or CIF shipments to markets across Southeast Asia, the Middle East, Africa, and South America.

As global demand for energy-efficient electrical infrastructure grows, Luoyang Xinzhaohe remains committed to delivering CRGO electrical steel that meets the evolving performance and sustainability requirements of modern power systems. Our engineering team works closely with clients to provide technical data packages, sample testing support, and customized slit-width solutions to match specific core-building processes.

For sourcing managers and procurement engineers seeking a stable, technically capable partner in silicon steel, we invite direct engagement to discuss your volume requirements, quality benchmarks, and delivery expectations.

Contact us at cathy@transformerstrip.com to initiate a technical review and receive our latest product specifications and pricing structure.

---
