Market Insight: Corona Resistant Magnet Wire

Market Analysis: Industrial Demand for Corona Resistant Magnet Wire in Transformers

The global electrical infrastructure sector drives sustained demand for high-performance magnet wire, particularly corona resistant (CR) variants essential for modern power and distribution transformers. Escalating investments in grid modernization, renewable energy integration (especially solar and wind farm step-up transformers), and industrial automation necessitate transformers operating reliably at higher voltages (HV) and extra-high voltages (EHV). These conditions intensify electrical stress on winding insulation systems, making corona resistance a non-negotiable specification. Partial discharge (PD), initiated by ionization in voids or at conductor-insulation interfaces under high electrical stress, progressively degrades standard enamel insulation. This degradation mechanism is the primary failure mode in HV transformer windings, leading to catastrophic insulation breakdown, unplanned outages, and significant financial losses. Consequently, transformer manufacturers increasingly mandate CR magnet wire meeting stringent standards such as IEEE 430 or IEC 60317-53 to ensure operational longevity exceeding 30-40 years under demanding service conditions.

Quality in corona resistant magnet wire is fundamentally linked to transformer reliability and lifecycle cost. Inferior CR wire exhibits premature PD inception at lower voltages, accelerating insulation erosion through chemical decomposition (nitric acid formation) and physical pitting. This compromises the dielectric integrity of the entire winding structure. High-quality CR wire utilizes advanced polymer formulations, often multi-layer systems incorporating polyamide-imide (PAI) or polyester-imide (PEI) base coats with specialized topcoats containing inorganic fillers or cross-linking agents. These enhance PD resistance by increasing the Partial Discharge Inception Voltage (PDIV) and reducing discharge magnitude. Precise manufacturing control over enamel thickness, curing profiles, and surface smoothness is critical; microscopic defects or inconsistent coating application create localized stress points that trigger corona activity. The consequences of substandard wire are severe: field failures necessitate costly repairs or replacements, incur extended downtime penalties, and damage manufacturer reputations. In critical applications like utility substations or offshore wind platforms, failure is not an operational inconvenience but a systemic risk.

The technical and economic imperative for premium CR magnet wire is quantifiable. Industry data indicates transformers utilizing wire failing to meet PDIV specifications experience insulation degradation rates up to 50% faster under equivalent operating stresses. This directly impacts the transformer’s mean time between failures (MTBF). The table below summarizes key performance differentiators:

Luoyang Xinzhaohe Aluminum Co., Ltd leverages two decades of metallurgical and winding wire process expertise to deliver CR magnet wire meeting the most rigorous global specifications. Our focus on polymer chemistry optimization, precision coating application, and comprehensive electrical testing ensures transformers achieve design life expectancy under the most electrically stressful operating environments. In the high-stakes transformer market, the initial cost premium for certified corona resistant wire is decisively outweighed by the avoidance of premature failure costs and the assurance of grid stability.

Technical Specs: Corona Resistant Magnet Wire

Technical Specifications for Corona Resistant Magnet Wire

Corona resistant magnet wire is a specialized winding wire engineered for high-voltage applications where partial discharge and electrical treeing can compromise insulation integrity over time. At Luoyang Xinzhaohe Aluminum Co., Ltd, with over two decades of metallurgical and wire manufacturing expertise, we produce corona resistant magnet wire designed to meet stringent industrial performance benchmarks. These wires are critical in high-efficiency motors, traction systems, wind power generators, and other applications operating under elevated electrical stress and thermal loads. The key technical parameters governing performance include insulation breakdown voltage, elongation at break, and thermal class rating.

Insulation breakdown voltage is a primary indicator of corona resistance. Our magnet wire insulation systems are formulated to withstand high dielectric stress, minimizing the risk of partial discharge inception under operating voltages. The insulation is constructed using multi-layer polymer coatings, typically incorporating modified polyimide, polyesterimide, or polyamide-imide resins, which are cross-linked to enhance dielectric strength and mechanical durability. This construction ensures a minimum breakdown voltage of 12 kV to 20 kV depending on wire diameter and insulation thickness, significantly exceeding standard magnet wire performance. The insulation is further treated to suppress ionization within voids, a key mechanism in corona degradation.

Elongation at break is another critical mechanical property, reflecting the wire’s ability to endure winding stresses without cracking the insulation or fracturing the conductor. For aluminum-based corona resistant magnet wire, elongation values typically range from 12% to 25%, depending on the temper condition and conductor alloy. This ductility ensures reliable performance during coil winding, especially in tight-radius applications. Excessive brittleness can lead to micro-cracks in insulation, which act as initiation sites for corona discharge. Our manufacturing process includes precise annealing control to balance tensile strength and ductility, ensuring optimal formability without sacrificing mechanical robustness.

Thermal class defines the maximum continuous operating temperature the insulation system can endure while maintaining electrical and mechanical integrity. Our corona resistant magnet wires are rated from Class 130°C up to Class 220°C, aligning with IEC 60317 and NEMA MW standards. Higher thermal classes utilize advanced polymer systems with enhanced thermal oxidative stability, allowing prolonged service in high-temperature environments without degradation of dielectric properties. Each thermal class is validated through thermal endurance testing, including thermal aging and life-cycle assessments under combined thermal and electrical stress.

The following table summarizes the key technical parameters for our corona resistant aluminum magnet wire:

These specifications reflect our commitment to delivering magnet wire solutions that ensure long-term reliability in demanding electrical environments.

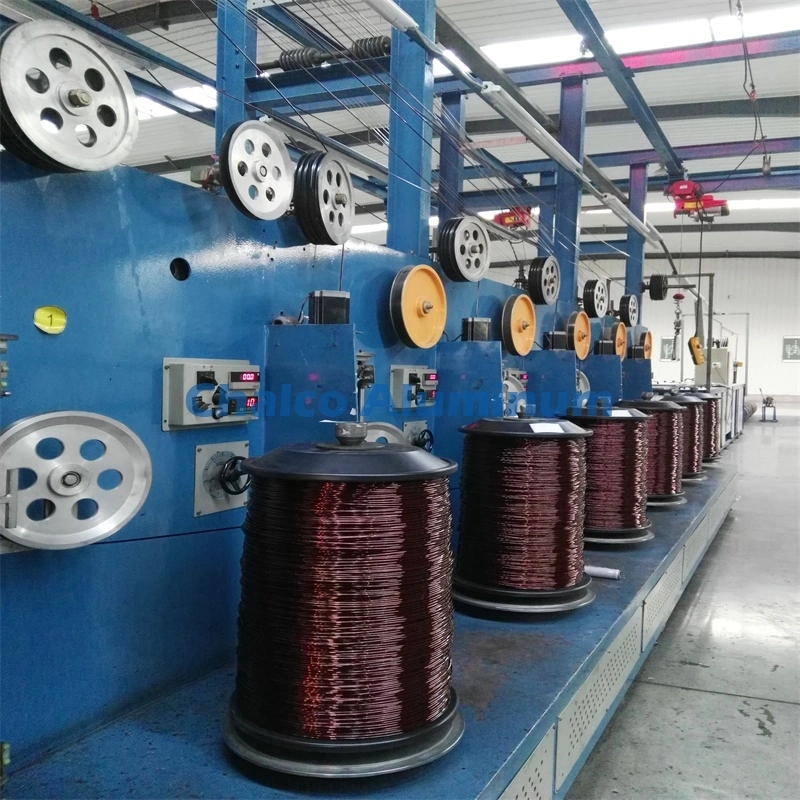

Factory Tour: Manufacturing

Manufacturing Process for Corona Resistant Aluminum Magnet Wire

Luoyang Xinzhaohe Aluminum Co., Ltd leverages two decades of specialized expertise in producing high-reliability corona resistant aluminum magnet wire. Our integrated manufacturing process ensures stringent control over material properties and electrical performance, critical for demanding applications like EV traction motors and high-frequency inverters. The sequence begins with high-purity aluminum rod (minimum 99.99% Al), subjected to precision rod drawing under controlled tension and lubrication. This stage reduces diameter from 9.5mm to the final conductor size range of 0.3mm to 5.0mm. Dimensional accuracy is maintained within ±0.002mm tolerance through laser micrometer feedback loops, ensuring optimal fill factor in winding applications. Surface integrity is paramount; any micro-defects introduced here compromise subsequent enamel adhesion and corona resistance.

The drawn conductor undergoes continuous inert atmosphere annealing immediately after drawing. This critical step occurs within a sealed furnace using high-purity nitrogen (O₂ < 50 ppm) at precisely controlled temperatures between 300°C and 400°C. The process eliminates work hardening from drawing, refines the grain structure for enhanced flexibility, and crucially prevents surface oxidation that would degrade electrical performance. Real-time microhardness monitoring (target 30-45 HV) and conductivity verification (≥61.0% IACS) occur at this stage, ensuring the aluminum achieves the required ductility without sacrificing electrical properties.

Corona resistance is primarily engineered during the multi-layer enameling process. We apply a proprietary dual-coat system: a base layer of modified polyesterimide for adhesion and thermal stability, followed by a topcoat of high-performance polyamide-imide. This topcoat provides the essential partial discharge resistance. Enamel viscosity, solids content, and application temperature are continuously monitored and adjusted via automated systems. The total dry film thickness is maintained within a tight 15μm to 25μm range depending on wire gauge and customer specification, achieved through multiple passes with precise oven profiling (280°C – 420°C). Curing kinetics are optimized to maximize cross-link density, directly influencing the enamel’s ability to withstand corona erosion.

Inline electrical testing provides 100% verification of corona performance before spooling. Every meter of wire undergoes rigorous assessment as detailed below:

Final quality control includes destructive sampling for thermal class validation (200°C per UL 1446), thermal shock resistance, and solderability. Our integrated process control system archives all critical parameters per batch, enabling full traceability from rod to finished coil. This systematic approach, refined over 20 years, guarantees magnet wire capable of withstanding the intense electrical stresses in modern power electronics, minimizing premature insulation failure due to partial discharges.

Packaging & Logistics

Export Packaging for Corona Resistant Magnet Wire: Ensuring Integrity During Sea Freight

At Luoyang Xinzhaohe Aluminum Co., Ltd, with over two decades of specialized manufacturing experience in high-performance winding wire, we recognize that reliable packaging is as critical as material quality in delivering corona resistant magnet wire to international markets. Our export packaging system is engineered to preserve the electrical and mechanical integrity of the product throughout extended sea freight logistics, where exposure to humidity, temperature fluctuations, and mechanical stress is unavoidable.

All corona resistant magnet wire shipments destined for overseas customers are secured on robust, ISPM-15 compliant wooden pallets. These pallets are constructed from kiln-dried hardwood, offering high load-bearing capacity and resistance to deformation under stacked storage conditions. The use of nailed laminated timber ensures structural rigidity, minimizing coil displacement during vessel loading, unloading, and overland transit. Each coil is axially aligned and firmly strapped to the pallet base using galvanized steel or polypropylene tensioned straps, preventing rotational or lateral movement that could compromise wire layer alignment.

Immediately following palletization, the entire assembly is wrapped in multi-layer moisture-proof packaging film. This film consists of a composite structure with an aluminum foil interlayer, providing a vapor transmission rate of less than 0.1 g/m²·24h at 38°C and 90% relative humidity. The wrapping process employs automated stretch wrapping equipment to ensure uniform tension and complete coverage, with a minimum of six overlapping layers applied circumferentially. All seams and edges are heat-sealed or taped with butyl-based waterproof tape to maintain a hermetic barrier against salt-laden maritime atmospheres.

Additionally, desiccant packs are strategically placed within the sealed film envelope, typically at a ratio of 500 grams per cubic meter of enclosed volume, to actively absorb any residual or infiltrating moisture. A humidity indicator card is affixed inside the wrap, visible through a transparent window, allowing end-users to verify the internal environment upon receipt.

This packaging configuration has been validated through accelerated climate testing per ASTM D4169 and ISO 12048 standards, simulating up to 45 days of tropical sea transit. Results confirm sustained dielectric performance and zero incidence of surface oxidation or insulation degradation in corona resistant enamel coatings.

For containerized shipping, pallets are arranged in interlocking patterns within 20-foot or 40-foot dry freight containers, maximizing space utilization while minimizing intra-container movement. Floor linings of corrugated plastic sheeting provide additional moisture isolation from the container base, which is prone to condensation during diurnal temperature cycles.

Luoyang Xinzhaohe Aluminum Co., Ltd adheres to IEC 60172 and GB/T 3953 standards in all packaging protocols, ensuring global compatibility and compliance. Our integrated approach to export packaging reflects our commitment to delivering corona resistant magnet wire with uncompromised performance, regardless of destination or transport duration.

Sourcing from Luoyang Xinzhaohe

Partner with Luoyang Xinzhaohe for Engineered Corona Resistant Magnet Wire Solutions

Luoyang Xinzhaohe Aluminum Co., Ltd leverages over two decades of specialized metallurgical and manufacturing expertise to deliver mission-critical corona resistant magnet wire. Our vertically integrated facility in Luoyang, China, is purpose-built for the stringent demands of high-voltage electrical applications where partial discharge elimination is non-negotiable. We transcend standard wire production through deep material science understanding and precision process control, ensuring every reel meets the exacting performance thresholds required in transformers, generators, and traction motors operating above 600V.

Our core strength resides in proprietary enamel formulation and application technology. Utilizing advanced polyamide-imide (PAI) and modified polyesterimide (PEI) chemistries, we engineer multi-layer insulation systems specifically designed to suppress corona inception voltage (CIV) and withstand prolonged electrical stress. This is achieved through rigorous in-house polymer synthesis control and a patented multi-pass coating process operating under strict atmospheric regulation. Each layer is applied with micron-level precision, validated by real-time在线 monitoring systems ensuring uniform thickness and defect elimination. Our standard corona resistant grades consistently achieve CIV exceeding 1800V at 1.0mm diameter under IEC 60851-5 test conditions, with custom formulations available for extreme environments.

Metallurgical integrity forms the foundation of our product reliability. We source only 99.95% minimum purity aluminum rod, subjected to our proprietary vacuum degassing and grain refinement protocols. This eliminates hydrogen embrittlement risks and ensures optimal electrical conductivity (≥61.0% IACS) alongside superior mechanical formability. Precision drawing is executed on CNC-controlled block machines with laser micrometers maintaining dimensional tolerances to ±0.002mm. Every production lot undergoes comprehensive validation per IEC 60317 standards, including thermal class 200/220 endurance testing, dielectric strength verification, and mandrel bend flexibility assessments. Our ISO 9001:2015 and IATF 16949 certified quality management system integrates statistical process control (SPC) at every critical control point, guaranteeing batch-to-batch consistency essential for high-volume OEMs.

Supply chain resilience is engineered into our operational model. We maintain strategic raw material buffer stocks and operate dual production lines with redundant coating systems, ensuring 99.2% on-time delivery performance even during market volatility. Our dedicated technical service team provides full lifecycle support, from initial application engineering and DFM consultation to post-shipment performance analysis. This integrated approach minimizes customer risk while optimizing total cost of ownership through reduced scrap rates and extended component lifespan.

Partnering with Luoyang Xinzhaohe means securing a supply chain anchor for your most demanding electromagnetic applications. We transform metallurgical precision into electrical reliability, backed by 20 years of solving complex winding challenges. Contact our Chief Technical Officer, Cathy Zhang, directly to discuss your corona resistant magnet wire specifications and qualify for our application-specific performance validation program. Initiate the engineering dialogue at cathy@transformerstrip.com to receive a detailed capability dossier and sample protocol.
