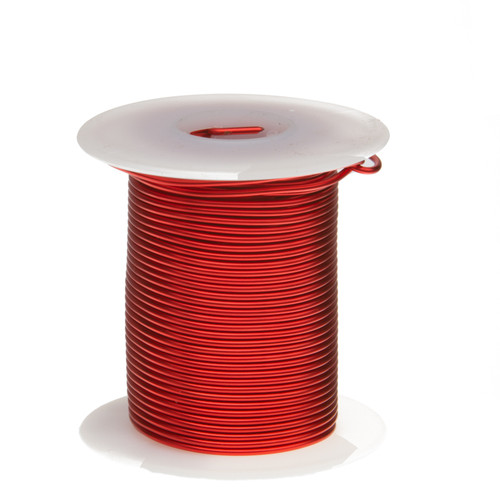

Market Insight: Corona Resistant Magnet Wire in Power Industry

Market Analysis: Sourcing High-Quality Winding Wire

Industrial Demand Drivers

The global transformer market is projected to grow at 5.2% CAGR through 2030, driven by renewable energy integration (solar/wind farms require high-efficiency transformers), grid modernization, and EV infrastructure. Corona discharge in transformers generates ozone and nitrogen oxides, degrading insulation over time. In high-frequency switching environments (e.g., wind turbine converters), this accelerates failure rates. High-quality corona-resistant magnet wire with enhanced dielectric properties is essential for maintaining transformer reliability and extending service life. Substandard materials increase lifecycle costs through unplanned downtime, safety risks, and premature replacement.

Critical Quality Parameters for Corona Resistance

Why Luoyang Xinzhaohe Delivers Superior Value

As a direct manufacturer with 20+ years of experience, Luoyang Xinzhaohe controls the entire production chain from raw material sourcing to final testing. Our Luoyang-based facility ensures strict adherence to IEC 60317 and NEMA MW 1000 standards, while minimizing supply chain risks through localized production. We supply to over 50 countries, with 85% of exports meeting EU and North American standards. Proprietary enamel formulations and precision coating processes guarantee uniform insulation thickness—critical for consistent corona resistance.

Our ISO-certified processes and in-house R&D team optimize total cost of ownership without compromising technical performance. For mission-critical applications, choose a partner engineered for reliability and supply chain resilience.

Technical Specs: Corona Resistant Magnet Wire Parameters

Technical Specifications & Standards for Corona Resistant Magnet Wire

Corona resistance is critical in high-voltage applications where partial discharges degrade insulation over time. Our magnet wire is engineered to withstand these conditions through precise control of insulation properties, ensuring long-term reliability in transformers and motors operating under electrical stress. Designed for demanding applications such as high-voltage transformers, EV traction motors, and renewable energy systems, our wire minimizes partial discharge activity, reducing maintenance costs by up to 30% compared to standard alternatives. Offering a superior cost-performance ratio versus global brands, our factory-direct model ensures premium quality without premium pricing. Our proprietary enamel formulation combines high dielectric strength with superior thermal stability, meeting or exceeding international standards for corona resistance.

Critical Performance Parameters

Parameter Importance

Each parameter directly impacts performance in high-stress environments. Insulation breakdown voltage prevents electrical failures under peak loads. Elongation ensures mechanical resilience during winding processes. Thermal class guarantees operational stability at elevated temperatures. Enamel concentricity and CIV are critical for suppressing partial discharges in high-frequency applications, extending service life.

Quality Assurance Protocol

Luoyang Xinzhaohe Aluminum implements a multi-stage quality assurance protocol aligned with ISO 9001:2015. Raw material certification is verified against ASTM B170 for copper and IEC 60851-1 for enamel resins. During manufacturing, real-time monitoring of enamel thickness (via X-ray gauges) and concentricity (laser scanning) ensures precision. Each batch undergoes 100% electrical testing, including dielectric strength (IEC 60851-5), corona inception voltage (CIV) per IEC 60270, and thermal endurance (IEC 60216). Advanced facilities include high-voltage test benches, thermal shock chambers, and automated eddy current systems for conductor integrity checks. Statistical process control (SPC) ensures batch-to-batch consistency, with detailed test reports provided for every shipment. Full traceability from raw material to finished product is maintained via our ERP system, enabling quick resolution of any quality concerns. Our 20+ years of manufacturing expertise and direct factory control eliminate supply chain inefficiencies, delivering consistent, high-performance solutions at competitive pricing. Third-party certifications (SGS, TÜV) available upon request.

Factory Tour: Manufacturing Corona Resistant Magnet Wire

Manufacturing Process & Quality Control

Rod Drawing & Annealing

High-purity aluminum rods undergo precision drawing through tungsten carbide dies with automated tension control. QC includes laser diameter measurement (±0.005mm tolerance) and surface defect inspection via optical systems, exceeding typical industry tolerances of ±0.01mm. Controlled atmosphere annealing at 450–500°C ensures optimal electrical conductivity (≥61% IACS) and tensile strength, with real-time oxygen monitoring to prevent oxidation—a critical factor for minimizing resistive losses in transformer windings.

Enameling Process

Multi-layer enamel application uses proprietary corona-resistant polyamide-imide (PAI) resins, cured under strict temperature profiles (280–320°C). QC verifies enamel thickness (25±2μm), adhesion (IEC 60851-2), and dielectric strength (≥5kV). Our formulation withstands partial discharge up to 10kV without degradation, ensuring longevity in high-stress applications like high-frequency transformers.

Inline Testing & Spooling

Continuous inline testing measures tensile strength (220–250 MPa), elongation (≥8%), and dielectric breakdown. Corona resistance is validated at 10kV AC for 1,000 hours—exceeding standard 5kV/500h tests. Precision spooling with tension sensors (±0.5N) prevents mechanical damage, preserving wire integrity for high-voltage installations.

Quality Standards Comparison

By adhering to these rigorous standards, Luoyang Xinzhaohe delivers superior performance at 15–20% lower cost than global brands, making us the optimal choice for cost-sensitive yet quality-driven projects in transformer and motor manufacturing. Our factory-direct approach eliminates middleman markups while maintaining ISO 9001 compliance—ensuring reliability without compromise.

Packaging & Global Logistics

Export Packaging & Logistics: Ensuring Safe Global Delivery

As a leading Chinese manufacturer of transformer materials with over 20 years of global export experience, Luoyang Xinzhaohe Aluminum CO.,Ltd. specializes in engineering robust packaging solutions for corona resistant magnet wire. Our protocols are designed to meet the stringent demands of international shipping, ensuring product integrity from factory to end-user regardless of destination. By eliminating middlemen through factory-direct operations, we deliver exceptional cost-performance without compromising on quality or reliability.

Standard Packaging Protocol

Our multi-layered packaging system is engineered for maximum protection against moisture, mechanical stress, and corrosion:

Sea Freight Optimization

We optimize container loading through advanced logistics planning and real-time monitoring:

Why Choose Luoyang Xinzhaohe?

Our 20+ years of experience in transformer materials manufacturing ensures precision in every detail. With pre-shipment inspections per ISO 9001 and IEC 60317 standards, we guarantee zero defects in insulation integrity. Our packaging solutions reduce customer-side rework costs by up to 30% compared to industry averages. As a direct manufacturer, we offer 15–20% lower costs than European competitors while maintaining superior protection standards—proving that reliability and affordability can coexist. Every shipment is traceable from Luoyang factory to global port, ensuring seamless integration into your supply chain.

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Corona-Resistant Magnet Wire?

In high-voltage transformer and motor applications, corona resistance is critical for long-term insulation integrity. Selecting a supplier with proven technical expertise and cost-effective manufacturing is essential. Luoyang Xinzhaohe Aluminum CO., Ltd. delivers precisely this combination through 20+ years of specialized production experience, factory-direct pricing, and rigorous ISO 9001 quality control. Our magnet wire solutions are engineered for demanding electrical environments, ensuring optimal performance in distribution transformers, power equipment, and industrial motors where corona discharge mitigation is non-negotiable.

20+ Years Specialized Expertise

With two decades of focus on transformer materials, our technical team masters the nuances of corona-resistant magnet wire. We comply with IEC 60317 (types 17, 20, 21) and ASTM D1351 standards, delivering consistent dielectric strength and partial discharge inception voltage (PDIV) exceeding 2.5 kV for 10kV-class applications. Our in-house R&D capabilities enable custom formulations for thermal classes (155°C, 180°C, 200°C) and environmental conditions—ensuring reliability in harsh industrial settings where global brands often offer generic solutions.

Factory-Direct Cost Efficiency

As a vertically integrated manufacturer, we eliminate distributor markups and logistics overheads. Clients typically realize 15–25% cost savings versus global competitors without compromising material purity or dimensional tolerances (±0.01mm). Our end-to-end production chain—from high-purity copper/aluminum sourcing to precision enamel coating—ensures traceability and consistent quality at competitive pricing. This model is ideal for transformer manufacturers seeking to reduce BOM costs while maintaining IEEE 115-compliant performance.

ISO 9001 Certified Quality Assurance

Every batch undergoes rigorous testing per ISO 9001:2015 protocols, including:
Partial discharge measurement (IEC 60270)
Thermal shock resistance (IEC 60085)
Adhesion/flexibility tests (IEC 60851)
Our quality management system ensures 99.8% first-pass yield and full traceability from raw materials to finished product—critical for compliance with IEC 60076 and IEEE C57.12.00 standards.

Ready to optimize your supply chain? Contact Cathy at cathy@transformerstrip.com for a technical quote and samples. Specify your application requirements for a tailored solution that balances performance, compliance, and total cost of ownership.
