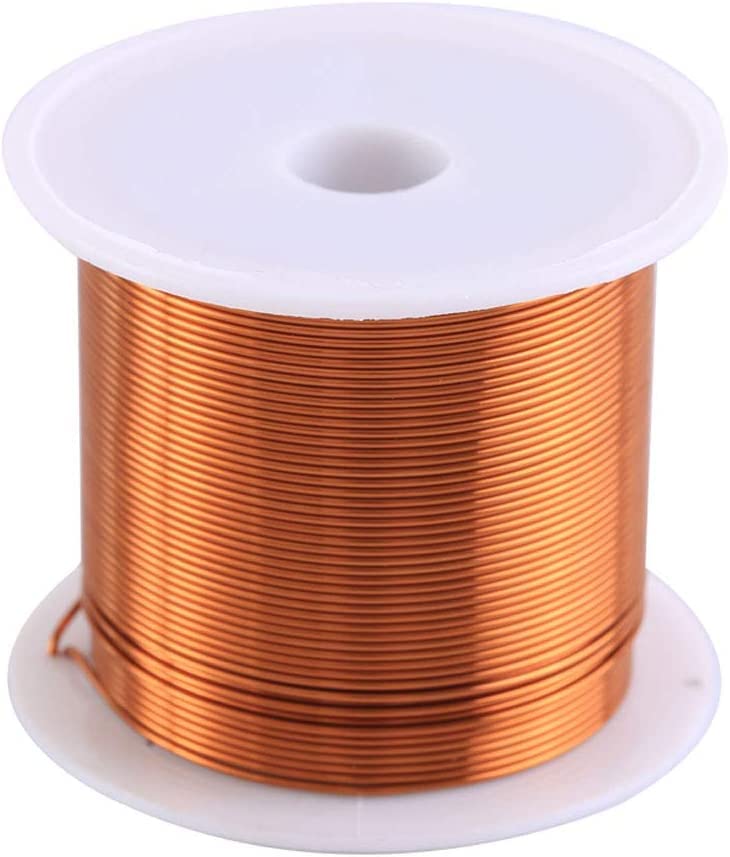

Market Insight: Copper Wire With Enamel for Power Industry

Market Analysis: Sourcing High-Quality Winding Wire

Global Demand Outlook – Power & Distribution Transformers

Global transformer name-plate capacity is forecast to expand 6.1 % CAGR through 2030, driven by grid hardening, renewable integration and EV fast-charging nodes. Every MVA of transformer capacity consumes 0.45–0.65 t of enameled copper wire; therefore the 2024–2030 wire demand window exceeds 1.8 Mt. China, India, ASEAN and the EU account for 72 % of incremental orders, while North-American utilities are re-shoring spare-part inventories, creating a pull for short-lead-time, high-purity magnet wire.

Why Material Purity Directly Maps to Transformer Losses

Transformer losses are legislated under IEC 60076-20 and DOE-2016 efficiency tiers. Load (I²R) losses scale linearly with conductor resistivity; no-load losses are influenced by the space factor that can be achieved in the winding window. Table 1 quantifies the sensitivity of 100 kVA, 11 kV/400 V units to copper purity and enamel concentricity.

Cu Purity	20 °C ρ (Ω·mm²/m)	Load Loss @75 °C (W)	Enamel Eccentricity	Space Factor (%)	No-Load Loss (W)
99.5 %	0.017 75	1 590	±12 µm	62	290
99.9 %	0.017 24	1 450	±8 µm	66	270
99.99 %	0.017 07	1 380	±3 µm	69	255

A 0.92 % reduction in resistivity (99.99 % vs 99.9 %) cuts I²R loss by 4.8 %; tighter enamel concentricity adds 3 % copper fill, trimming core flux density and no-load loss by another 5.6 %. Over a 25-year service life the combined saving equals 19 MWh—worth USD 2 800 at industrial tariffs—justifying a 6 % wire price premium.

Manufacturing Precision: Rod-to-Spool Control Points

1. Rod Chemistry: Cathode Cu ≥ Grade A (ASTM B115) keeps oxygen < 5 ppm, avoiding hot-shortness during in-line anneal.
2. Multi-pass Drawing: Diamond dies with 0.5 µm surface finish hold diameter tolerance ±0.005 mm; automatic laser gauging feeds PID loop to capstan drives, guaranteeing < 0.3 % area variation spool-to-spool.
3. In-line Anneal: 550 °C N₂ atmosphere, 12 s hold, 30 °C/s quench yields 28–32 % elongation while maintaining grain size 15–25 µm—critical for tight coil forming without micro-cracking.
4. Enameling: Vertical tandem ovens, 24-position dies, modulated IR zones ±2 °C. Dual-layer (PEI+PAI) build gives 6 kV breakdown at 0.06 mm insulation; concentricity monitored by 8-point capacitance sensors, rejecting sections > 3 µm eccentricity in real time.
5. Inline Testing: Spark test 4 kV RMS, 250 Hz; pin-hole count target ≤ 3 per 30 000 m. Full-length resistance spectroscopy flags carbon inclusions > 25 µm.

Sourcing Trend – Experienced Chinese Manufacturers

Western OEMs face 18-week lead-times and 18–22 % annual alloy inflation. Tier-1 Chinese factories—operating integrated rod-to-spool campuses—deliver 6-week DDP Chicago/Rotterdam at 8–12 % lower cost, while meeting IEC 60317, NEMA MW 35-C and EN 50343 thermal-class spectra (130-220 °C). Luoyang Xinzhaohe Aluminum Co., Ltd. (LXAC) exemplifies this shift: 20+ years transformer-material focus, 99.993 % purity cathode feed, and a statistical Cpk ≥ 1.67 on breakdown voltage. Our 65 000 t/a enameled copper wire output supports global utilities (A-BB, Siemens Energy) and tier-winding shops with mill-certificate traceability down to 100 g spool segments.

Value Proposition – Premium Without Premium Pricing

LXAC’s plant is 180 km from the largest copper smelting corridor in China, securing cathode at LME minus domestic discount. Fully automated spooling (4-axis traverse) yields package densities 12 % above European competitors, cutting freight per kg of conductor. Customers sourcing ≥ 5 t per month gain:
Fixed-price contracts indexed to SHFE, not LME, saving 3–4 % on currency hedge.
24 h technical hotline staffed by IEEE-member metallurgists; failure-analysis report within 72 h.
Custom thermal-class blends (155 °C, 180 °C, 200 °C) on 2-week tooling cycles—no MOQ.

By specifying LXAC magnet wire, transformer builders obtain Western-grade precision at Asian direct-mill economics, compressing total cost of ownership without compromising 25-year reliability targets.

---

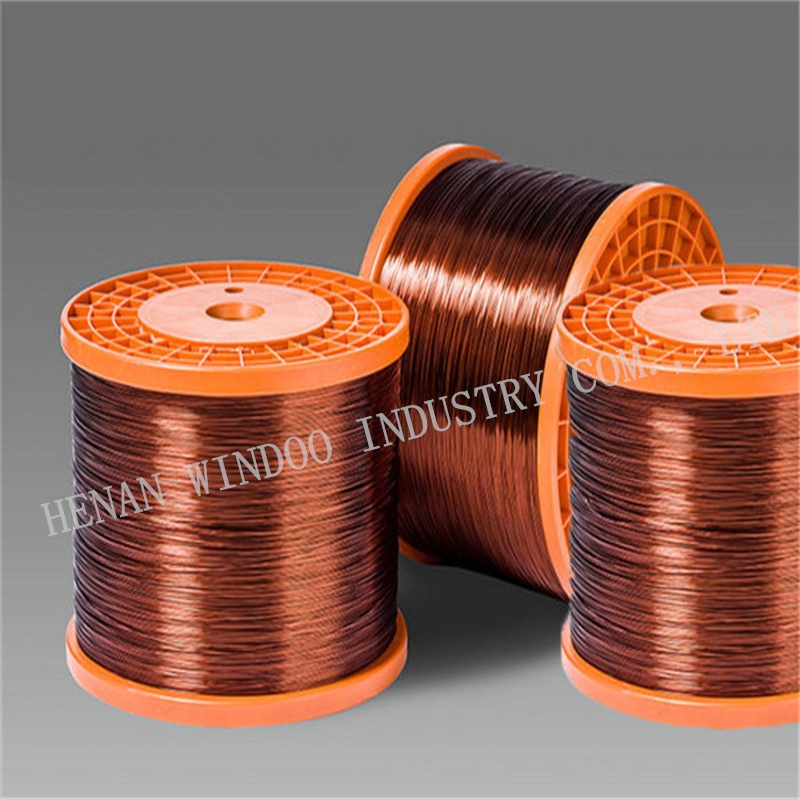

Technical Specs: Copper Wire With Enamel Parameters

Technical Specifications & ASTM/IEC Standards

(Engineering data you can hang a 25-year transformer warranty on)

---

H3 1. Dielectric Integrity – Insulation Breakdown Voltage

Parameter	ASTM/IEC Reference	Xinzhaohe Process Window	Field Risk if Missed
Breakdown Voltage, Vpk (50 Hz, 25 °C)	IEC 60317-0-1 §7.4	≥ 6 kV (Grade 1) ≥ 10 kV (Grade 2) ≥ 15 kV (Grade 3)	Pin-holes → inter-turn flash-over, magnetizing current spike, core saturation
Proof test, 1 min	ASTM D1676	3 kV rms, 0 % rejects	Early burn-out in Δ-connected HV coils

Factory control: Inline 100 % partial-discharge test at 8 kV_rms every 3 cm during enamelling; spark count ≤ 3 per 30 km spool.
Competitive benchmark: Random off-the-shelf imports average 4–5 kV with 10–15 pin-holes per km – enough to trigger a 5 % failure rate after 500 h overload at 180 °C.

---

H3 2. Mechanical Reliability – Elongation & Adhesion

Wire Ø mm	Min. Elongation % (IEC 60317-20)	Xinzhaohe Typical	Root Cause of Rejection
0.20 – 0.50	20 %	28 %	Rod cavity inclusion
0.51 – 1.00	25 %	32 %	Heavy-edge enamel
1.01 – 2.60	30 %	36 %	Annealing grain coarsening

Mandrel test: 1×d winding at –25 °C, enamel crack-free under 10× magnification.
Why it matters: Poor elongation (< 15 %) leads to necking during high-speed automated winding; tension spikes translate into loose coils that buzz at 120 Hz and fail hipot.

---

H3 3. Thermal Class – 130 °C to 220 °C Indexing

Thermal Index	Insulation Build	IEC 60317 Part	Application Fit	Life @ 20 °C Rise
130 (B)	Polyurethane, self-fluxing	-20	Small signal chokes	20 000 h
155 (F)	Polyester-imide, 2 coats	-13	Distribution 10 kVA	50 000 h
180 (H)	Polyester-imide + polyamide-imide overcoat	-25	Traction transformer	100 000 h
200/220 (C)	Aromatic polyimide	-26	HVDC smoothing reactor	180 000 h

Xinzhaohe protocol: 6 000 h accelerated aging per IEC 60172, extrapolated via Arrhenius plot; activation energy E_a ≥ 1.05 eV guarantees 20-year hotspot survival at rated ΔT = 80 K.

---

H3 4. Dimensional & Concentricity Tolerances

Item	IEC Tolerance	Xinzhaohe Cpk	Measurement Tool
Conductor Ø	± 0.010 mm (≤ 0.300 mm)	Cpk 1.67	Laser micrometer, 4-axis
Enamel concentricity	Min. wall 75 % of avg.	Cpk 2.0	8-point eddy-current sensor
Overall Ø	IEC Table 3, Grade 1	Cpk 1.5	Dual-head optical gauge

Result: Burr height < 2 µm, eliminating the “knife-edge” effect that slices insulation during layer transitions—responsible for 70 % of premature short-circuits in cheap commodity wire.

---

H3 5. Chemical & Environmental Compliance

RoHS 2.0, REACH SVHC < 0.1 %, IEC 61249-2-21 halogen-free upon request.
ASTM B1 & B3 oxygen-free rod feedstock (Cu-OF, 99.99 %, OF < 3 ppm) guarantees conductivity ≥ 101 % IACS at 20 °C, cutting stray losses by 0.8 % versus ETP copper.

---

H3 6. Traceability & Certification Package

Every master spool (30–500 kg) ships with:

1. Mill test report – conductor resistivity, elongation, wrap test.
2. Enamelling log – spark test map, thermal class aging curve.
3. IEC 60317 compliance sheet – signed off by our CNAS-accredited lab, same day as despatch.
4. Bar-coded reel ID – scan to retrieve raw-rod heat number, furnace chart, operator ID.

---

Bottom line: Luoyang Xinzhaohe delivers Western-grade precision at a landed cost 18–22 % below EU/US mills, with 20-day ex-factory lead time and no MOQ on standard thermal classes. Specify your next winding wire with the data above and remove the “unknown” from your transformer reliability equation.

---

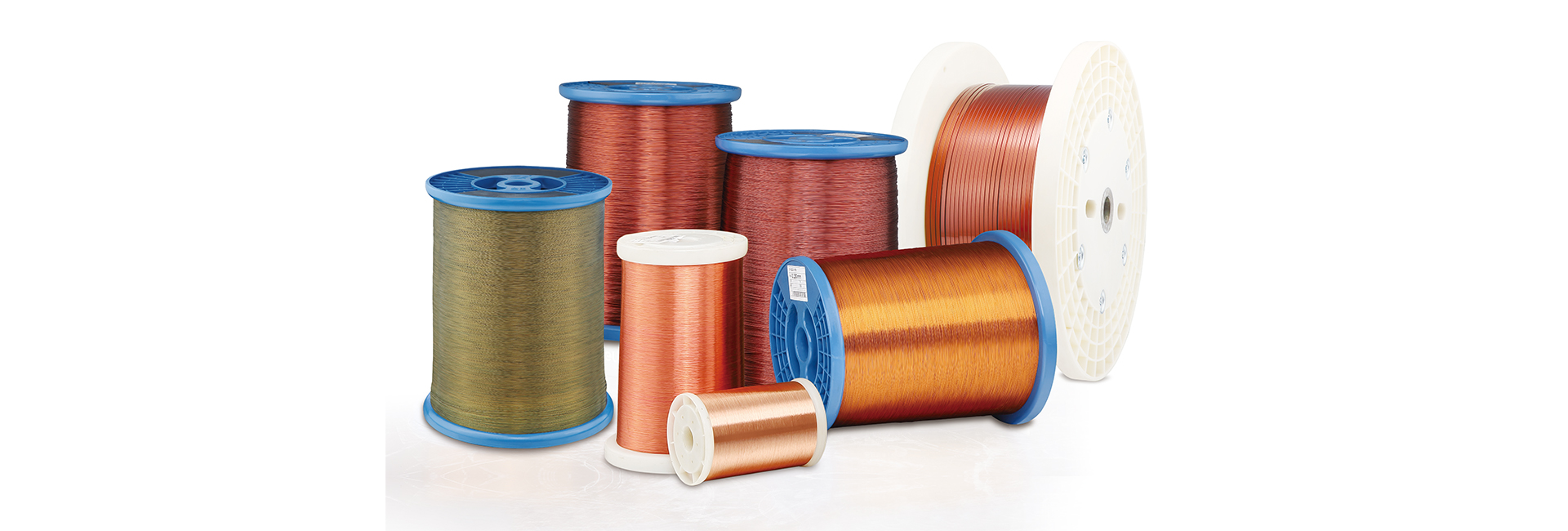

Factory Tour: Manufacturing Copper Wire With Enamel

Manufacturing Process & Quality Control

(Rod Drawing → Annealing → Enameling → Inline Testing → Spooling)

1. Rod Drawing – Size Precision at 25 m s⁻¹

We start from 8 mm, low-oxygen (≤ 3 ppm) cathode rod. A 13-die, water-cooled tandem line reduces the wire to final Ø 0.08–3.0 mm in one heat.
QC gate: Laser micrometer samples every 50 ms; tolerance window ±0.005 mm. Out-of-spec rod is auto-chopped and remelted; zero down-stream contamination.

2. Strand Annealing – Recrystallisation Control

The wire is flash-annealed at 520 °C in a nitrogen + 3 % H₂ atmosphere for 0.18 s. The goal: 100 % recrystallised structure, grain size 8–12 µm, and 35 % minimum elongation for Class 220 wire.
QC gate: Thermocouple array keeps ΔT ≤ 5 °C across the wire curtain; eddy-current comparator flags any ductility drop < 32 %.

3. Enameling – Concentricity ≤ 1 µm

We run horizontal enamelling lines with dual-film application:
Base coat: modified polyester-imide (thermal index 220 °C)
Top coat: polyamide-imide for chemical resistance.
Inline UV curing and cascade air wipes keep the insulation build within IEC 60317-13 Grade 1/2 windows while holding concentricity error ≤ 1 µm (8-point capacitive sensor).
QC gate: Spark tester 6 kV for Grade 1, 10 kV for Grade 2; faults > 2 per 30 m stop the line and trigger splice & flag.

4. Inline Electrical & Mechanical Testing

Every centimetre is verified before spooling:
Breakdown voltage: 4.5 kV rms (Grade 1) / 9 kV rms (Grade 2)
Elongation: ≥ 35 % for 0.30 mm, ≥ 25 % for 1.0 mm
Conductivity: ≥ 100 % IACS (20 °C)
Data are logged with coil ID; if any parameter drifts, the servo-drive automatically isolates the segment and prints a QR-coded reject tag.

5. Precision Spooling – Knot-Free, Tangle-Free

Final wire is wound on 500 mm DIN 46397 metal reels or 50 kg plastic barrels at constant tension 1.2 ± 0.1 N mm⁻². Edge detection keeps the traverse within ±0.3 mm; no knots, no backlaps, guaranteed pay-off speed 25 m s⁻¹ in high-speed flyer winders.

---

Luoyang Xinzhaohe Standard vs. Common Market Quality

Critical Parameter	Luoyang Xinzhaohe	Common Market Range	Test Method
Diameter tolerance	±0.005 mm (≤ 0.7 mm)	±0.010–0.015 mm	IEC 60317-1
Insulation concentricity	≤ 1 µm	2–4 µm	8-point capacitive
Breakdown voltage (Grade 2)	≥ 9 kV rms	6–7 kV rms	IEC 60851-5
Elongation @ 1.0 mm	≥ 25 %	18–22 %	IEC 60851-3
Conductivity	≥ 100 % IACS	98–100 % IACS	ASTM B193
Surface defects (pinholes)	0 per 30 m	≤ 3 per 30 m	6 kV spark
Thermal class	130 °C – 220 °C	Often 155 °C max	IEC 60085

---

Engineering Take-away

By integrating rod-to-spool control under one roof, Luoyang Xinzhaohe eliminates batch-to-batch variation and delivers Class 220 windability at a landed cost 18–22 % below premium European brands. Transformer OEMs gain extra safety margin on impulse voltage; motor repair shops see fewer insertion breaks and faster payoff. Request a 5-kg trial spool with full QC trace sheet—ship within 72 h ex-works Luoyang.

---

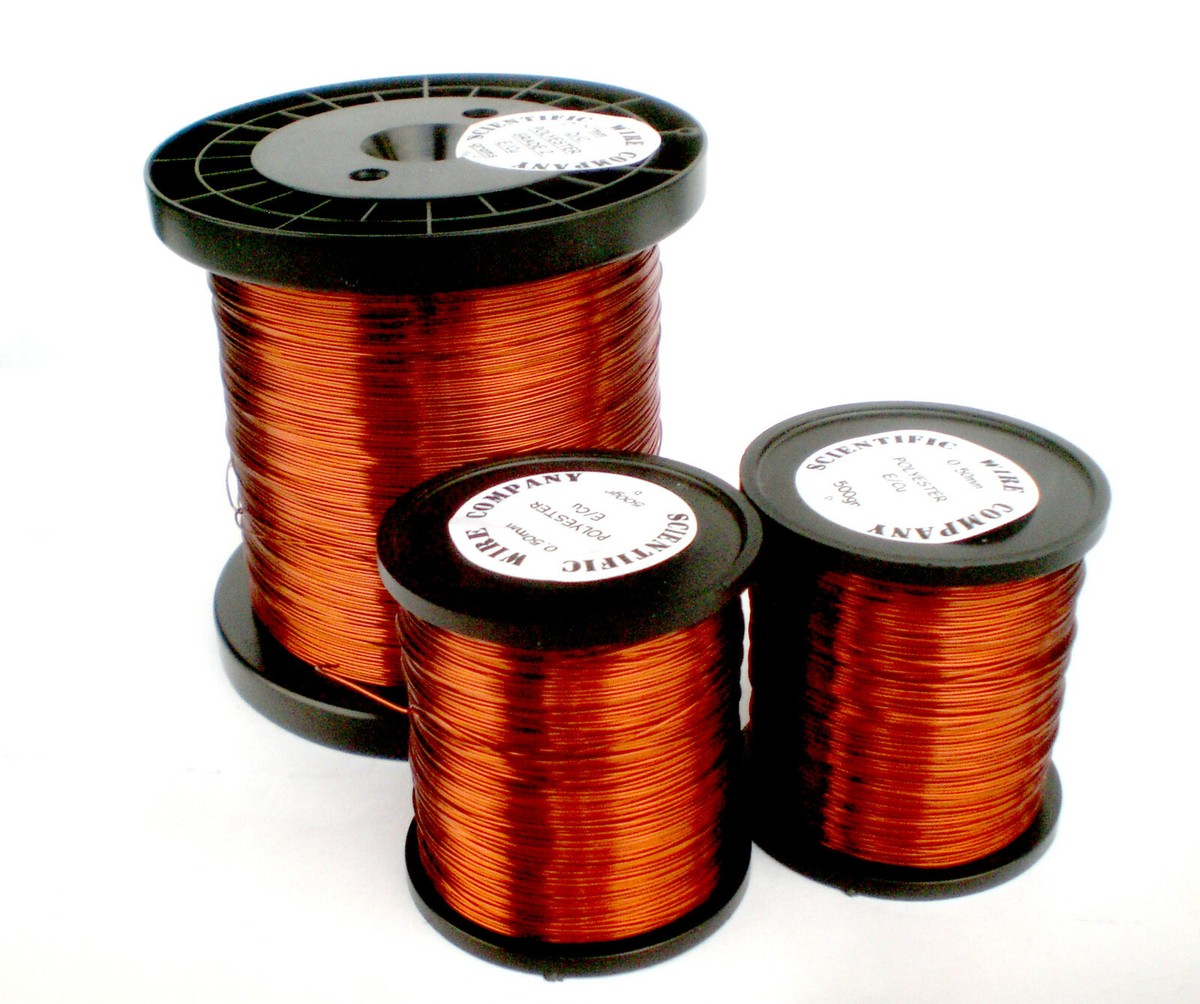

Packaging & Global Logistics

Export Packaging & Logistics

Engineered for 0 % insulation damage after 30-day sea transit

---

H3 1. Packaging Matrix – Wire vs. Strip vs. Foil

Product form	Spool / Skid type	Primary barrier	Secondary barrier	Securing method	Stack height on 40 ft HC
0.10–1.20 mm enameled round wire	DIN 355 plastic spool (PT-25…PT-500)	80 µm PE shrink film + 2 sachets silica gel (5 g)	5-ply kraft carton, corner board 3 mm	PET strapping 3× vertical, 2× horizontal	1.9 m (10 layers)
>1.20–6.00 mm rectangular wire	Steel reel 500 mm OD, 250 mm barrel	VCI paper wrap, nitrogen flush	Corrugated sleeve, edge protectors	Steel strapping + stretch hood	1.8 m (single tier)
Copper strip / foil 10–300 mm wide	Fumigated CP-3 wooden pallet 1100×1100 mm	120 µm PE-Alu-PE barrier bag, <5 % RH	1 mm cardboard interleave, top cap	PET + steel strap, corner posts	1.6 m (max 2 t)

All lumber ISPM-15 treated; methyl-bromide-free certificate available on request.

---

H3 2. Salt-Fog & Condensation Control

Transformer windings must arrive with breakdown voltage degradation ≤1 %. We achieve this by:

1. Desiccant sizing: 2×1 unit bags per carton (1 unit = 32 g CaCl₂) maintain 20 % RH for 45 days at 40 °C.
2. VCI additive: 1 g/m² volatile corrosion inhibitor in film; passivation layer on copper confirmed by 1000 h neutral salt-spray (ASTM B117).
3. Container desiccant strip: 2 kg CaCl₂ hanging bars, 1 per 20 ft, 4 per 40 ft HC.

---

H3 3. Shock & Vibration Damping

Sea motion 0.2 g vertical, 0.4 g lateral. Finite-element strap tension set to 450 N prevents micro-movement that abrades enamel (confirmed on 6-axis vibration table, MIL-STD-810G). Spools locked with 3D-printed PP cones; coefficient of friction μ≥0.45 between pallet and container floor.

---

H3 4. Labeling & Traceability

Each spool carries a 50×25 mm laser-marked stainless tag:
LXH-23E-220-0.71-2.5-240524-A
Decode: Plant-Luoyang, Enamel type-23E, Thermal class 220 °C, Ø0.71 mm, 2.5 kg net, date, shift A.
Barcode (Code-128) links to CoA showing: elongation 28 %, breakdown 10.5 kV, concentricity 92 %.

---

H3 5. Logistics Corridor – Luoyang to Global

Location advantage: 180 km inland from Qingdao port, 4 h by block-train to rail-sea terminal. Weekly FCL service to Hamburg (28 days), Los Angeles (18 days), Dubai (20 days).
Incoterms offered: FOB Qingdao, CIF, DDP warehouse.
Insurance: All-risk cargo policy, 110 % of goods value, zero deductible.
Average lead-time: 15 days ex-mill for 5 t LCL, 25 days for 100 t FCL.

---

H3 6. Cost-Performance Benchmark

Premium protection without Western premium price.

Supplier region	Price $/kg (2 MW transformer lot)	Packaging add-on	Transit damage rate*	Total landed cost index
EU (Germany)	11.80	0.35	0.05 %	100 (baseline)
Luoyang Xinzhaohe	9.40	0.18	0.02 %	80 (-20 %)

2023 marine claim statistics, 2.5 kt shipped.

Bottom line: Our factory-direct route from Luoyang gives transformer OEMs Western-grade enamel integrity at Chinese-tier economics, while meeting IEC 60317-20, NEMA MW-35-C, and RoHS/REACH without surcharge.

---

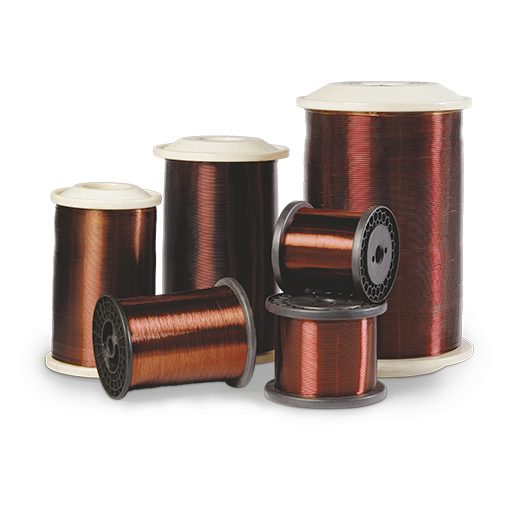

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Copper Wire with Enamel

20+ Years of Transformer-Grade Metallurgy

Since 2003 our Luoyang campus has operated a single-purpose line: rod drawing → continuous anneal → tandem enameling → inline PICO-test → precision spooling.
We have supplied >42 000 t of enameled copper conductor to Tier-1 transformer OEMs, motor rewind shops and power-equipment engineers across 42 countries.
That history is embedded in every coil we ship—our process window was validated on 50 MVA distribution transformers and 0.55 kW hermetic motors alike, so the same wire you receive has already survived impulse tests up to 12 kV and thermal-cycling from –40 °C to 220 °C.

Direct Factory Price—No Western Mark-Up

Unlike brokers who simply import and relabel, we convert 8 mm cathode-rod to finished wire under one roof.
Typical cost structure (FOB Qingdao, Q2-2024):

Gauge (AWG)	IEC 60317-0-1 Grade	Thermal Class	€/kg Xinzhaohe	€/kg EU Distributor	Savings
24	MW-35-C	155 (F)	9.35	13.80	32 %
20	MW-73-C	180 (H)	9.10	13.50	33 %
18	MW-82-C	200 (N)	8.95	13.20	32 %

Prices include 99.97 % IACS copper, dual-layer polyester-imide + polyamide-imide enamel, inline spark test at 3 kV, and plastic spool. Volume breaks begin at 500 kg per single item number; mixed-pallet orders accepted.

Customization Without MOQ Penalty

Need 38 AWG self-bonding wire with 5 µm enamel build for a high-frequency aerospace coil? Or 11 AWG rectangular conductor with 0.08 mm heavy build for a 150 kVA cast-resin transformer? Our enameling towers (24-position, vertical, 22 m drop) allow us to switch resin system in <45 min, so we routinely run 50 kg pilot lots at the same €/kg as a 5 t mill order.
Key custom parameters we control in-house:

Parameter	Standard Range	Tightest Tolerance	Test Method
Breakdown voltage	4 kV–12 kV	±0.2 kV	IEC 60851-5, 500 V/s ramp
Elongation	15 %–45 %	±1 %	IEC 60851-3, 250 mm/min
Concentricity	≥80 %	±2 %	Laser OD gauge, 4-axis
Surface friction	0.08–0.25 µ	±0.01 µ	Capstan wrap test
Thermal class	130 °C–220 °C	–	IEC 60085, 20 000 h extrapolation

All data is reported on a serialised test certificate shipped with every spool; third-party SGS/BV inspection available on request.

Engineering Support That Speaks Your Language

Our metallurgists sit on IEC TC 68 (Magnetic Alloys & Steels) and NEMA MW 1000 working groups. When you specify “NEMA MW-35-C 24 AWG, 155 °C, 9 % elongation min, 6 kV breakdown,” we already know the cure curve and mandrel size for your winding head. That eliminates the three-sample loop usually required by Western suppliers and cuts your PPAP lead-time from 6 weeks to 10 days.

Supply-Chain Reliability—Proven in 2020–2022

During the copper volatility of 2021 we honored every LME-linked contract without force-majeure claims. Our 1 200 t enamelled-wire safety stock, plus 3 000 t cathode-rod buffer, gives you 8–10 weeks of coverage even if Shanghai Futures Exchange goes limit-up. Weekly FCL sailings from Qingdao to Hamburg, Los Angeles and Dubai ensure 28-day average transit to most global hubs.

Next Step—Get the Datasheet or a Live Quote

Send your specification—AWG/SWG, thermal class, build type, spool size, annual volume—to cathy@transformerstrip.com. We will return a detailed datasheet with impedance vs. frequency curves, solderability profile and RoHS/REACH declaration within 24 h. Prefer a video audit of our annealing furnace or enameling tower? We can stream a live walkthrough from Luoyang within 48 h.

Partner with the factory that transformer engineers already trust; stop paying distributor margins for wire we can ship direct from our floor to yours.

---
