Market Insight: Copper Wire For Transformer Winding for Power Industry

Market Analysis: Sourcing High-Quality Winding Wire

Global Demand Outlook

Global installed transformer capacity is forecast to exceed 28,000 GVA by 2030, driven by grid-expansion in Asia–Pacific and refurbishment of 8–12 % of the ageing EU & NA fleet every year. Each MVA of power or distribution transformer consumes 0.8–1.2 t of enameled copper wire; incremental demand therefore exceeds 200 kt yr⁻¹.
Motor repair adds another 90 kt yr⁻¹, while EV-charging and inverter-grade inductors pull ultra-fine multi-strand packs (≤ 0.25 mm) at 15 % CAGR. The result: buyers who once placed quarterly orders now lock 12-month rolling forecasts to secure 99.99 % (Cu-ETP) rod allocation.

Why Purity & Geometry Dictate Transformer Losses

Transformer losses fall into two IEC-60076 categories:

Loss Component	Origin	Sensitivity to Wire Quality	Impact of 0.01 % Cu Purity Drop
No-load (core)	Magnetising current in steel	Indirect—higher I²R in LV stabilising windings	+0.3 W kg⁻¹ core mass
Load (I²R)	Conduction in winding	Direct—ρ ↑ with impurities & thinner insulation → larger slot fill loss	+1.8 % of rated load loss @ 75 °C

A 2.5 MVA, 20/0.4 kV unit built with 99.90 % Cu instead of 99.99 % Cu sees:
Resistivity rise 1.7 % → +170 W load loss
Hot-spot Δθ +3 °C → insulation life halved (Montsinger rule)
20-year NPV cost ≈ US$1,800 in wasted energy (0.08 $ kWh⁻¹)

Precision is equally critical:
Enamel concentricity ≤ 8 µm on 0.5 mm wire keeps dielectric field < 40 kV mm⁻¹; eccentric coatings create partial discharge > 5 pC and premature failure.
Elongation 30–38 % and < 1 daN back tension during spooling prevent micro-cracks that raise eddy-current strands in multi-wire parallel bundles.

Competitive Supply Map

Region	Purity (%)	Thermal Class Range	Typical Lead Time	Price Index*	Technical Notes
EU (Germany/Italy)	99.99	155–220	10–14 w	165	DIN 46435, low oxygen < 5 ppm
USA (NE & TX mills)	99.97	130–200	8–12 w	155	UL 1446, MW-35-C, domestic rod
Japan/S. Korea	99.99	180–220	6–10 w	170	Self-bonding variants, < 0.04 mm
China – Luoyang Xinzhaohe	99.995	130–220	4–6 w	100 (baseline)	Inline 100 % spark & O₂ test, rod-to-spool in 72 h

*Index: CIF major port, Q2-2024, 2.0 mm PEW 180 °C wire.

Sourcing Trend: Why Buyers Shift to Experienced Chinese Plants

1. Rod Integration: Domestic smelters deliver 8 mm Cu-ETP rod within 300 km of Luoyang; traceability from cathode to spool under GB/T 3953 satisfies ISO 9001 & IATF audits demanded by ABB, SIEMENS, TBEA.
2. Process Digitisation: Our plant runs a 280 m in-line line—rod pickling, multi-pass diamond drawing, annealing at 520 °C under N₂ + 3 % H₂, vertical enameling (DuPont AI-330), laser OD/ECC gauge, 6 kV pin-hole tester—yield < 5 defects 10 km⁻¹.
3. Cost Engineering: Labour + energy 35 % below EU; alloy surcharge passed at LME Cu + US$ 180 t⁻¹ conversion versus + US$ 650 t⁻¹ in EU. Customers save 8–12 % on total transformer BOM without compromising Class F or H ratings.
4. Risk Mitigation: Dual-port dispatch (Qingdao & Shanghai) and bonded warehouse in Rotterdam cut transit variance to ±7 days, enabling Kanban replenishment for OEMs.

Actionable Recommendation

For procurement teams facing 2025 copper price volatility and tightening loss-efficiency regulations (EU EcoDesign Tier-2, DOE 2027), locking a technical package with a 20-year specialist such as Luoyang Xinzhaohe delivers:
Guaranteed 99.995 % purity with EN 13602 certificates
Thermal classes 130–220 °C in single, dual or triple insulation build
Concentricity ±3 µm, breakdown ≥ 6 kV (0.35 mm base)
4-week FOB lead time and price ceiling clauses tied to LME

Engage our metallurgical desk for a loss-calculator spreadsheet that quantifies your exact kWh savings when upgrading from 99.90 % to 99.99 % Cu wire—typically 0.15 % of rated power, repaying the premium within 14 months.

---

Technical Specs: Copper Wire For Transformer Winding Parameters

Technical Specifications & ASTM/IEC Standards for Transformer Winding Copper Wire

Parameter	Symbol	Unit	IEC 60317-0-1 Limit	ASTM B3/B33 Limit	Luoyang Xinzhaohe In-House Control	Consequence if Out-of-Spec
Breakdown Voltage	Ubd	V (rms)	≥ 2 000 V (0.1 mm wall)	≥ 1 900 V	2 600–3 100 V (100 % inline spark test)	Pin-holes → inter-turn short, in-rush failure
Elongation at Break	A50	%	≥ 25 % (0.20 mm)	≥ 30 %	32–38 % (rod-drawing + on-line anneal)	Brittle wire cracks during tight layer winding
Thermal Class	—	°C	155 (F) to 220 (R)	Same	130, 155, 180, 200, 220 (dual-coat polyimide)	Insulation embrittlement, premature burnout
Enamel Concentricity	Δt	µm	≤ 15 % of mean wall	≤ 12 %	≤ 8 % (laser eccentricity gauge every 25 mm)	Local field stress, partial discharge
Surface Burr Height	hb	µm	Not specified	≤ 5 µm	≤ 3 µm (electro-polish final die)	Burr pierces insulation → turn-to-turn short
Resistivity @ 20 °C	ρ	Ω·mm²/m	≤ 0.017 241	≤ 0.017 241	0.017 20–0.017 22 (99.99 % IACS Cu)	Higher I²R loss, hotspot rise

1. Insulation Breakdown Voltage

IEC 60317-0-1 mandates ≥ 2 kV rms for Grade 1 enamel on 0.20 mm wire. We impose a 30 % safety margin by running a 50 Hz spark test at 2.6 kV on every centimetre of wire before take-up. The test head uses tungsten electrodes submerged in de-ionised water; any pin-hole triggers an auto-mark and rewind. This inline screen eliminates the 200–300 ppm defect rate typical of off-line batch testing.

2. Elongation & Draw-Anneal Control

ASTM B3 sets 30 % minimum for soft copper; motor repair shops need > 32 % to withstand sharp nose bends in hand-wound coils. Our continuous annealer operates at 520 °C for 0.12 s under N₂+3 % H₂, producing equiaxed 25 µm grains. The subsequent water-quench + alcohol drying sequence prevents surface oxidation that would otherwise reduce elongation by 4–5 %.

3. Thermal Class Index

Thermal class is not negotiable: a 10 °C overtemperature halves insulation life (Arrhenius law). We dual-coat polyimide over polyester-imide to reach Class 220 (R) while keeping total wall thickness < 45 µm. Every master batch is aged 6 000 h @ 240 °C per IEC 60172; failure is defined as 50 % retained breakdown voltage. Lot acceptance criterion: ≥ 80 % retention.

4. Enamel Concentricity

A 15 % wall imbalance creates a local E-field 1.4× higher than average, initiating partial discharge at 1.2 kV_rms in oil-immersed transformers. Our extrusion head uses a triple-layer cross-head with ±0.5 °C PID control; laser eccentricity data are fed back to adjust mandrel position every 2 ms. The result is ≤ 8 % concentricity, cutting PD inception voltage by 18 % compared with industry average.

5. Surface Quality & Burr Suppression

Rod shaving before the first die removes 0.15 mm of as-cast surface, eliminating Cu₂O inclusions. A final diamond die with 4 µm polish gives < 3 µm burr height; this is verified by contact-less laser triangulation at 1 m s⁻¹. Burrs > 5 µm are the dominant cause of short-circuits in high-voltage layer windings because they pierce the enamel during high-tension winding (≥ 3 N mm⁻²).

Compliance Summary

IEC 60317-0-1, 60317-8, 60317-13, 60317-20 (polyester, polyester-imide, polyimide)
ASTM B3 (soft copper), B33 (tinned), B172 (bunch stranded)
RoHS/REACH & IEC 60851-3 for solderability

By integrating rod drawing, in-line annealing, multi-layer enameling, 100 % spark testing and statistical process control under one roof, Luoyang Xinzhaohe delivers Class 220 wire at Western Class 155 pricing—cutting total transformer material cost by 8–12 % without compromising reliability.

---

Factory Tour: Manufacturing Copper Wire For Transformer Winding

Manufacturing Process & Quality Control

From 8 mm Oxygen-Free Rod to Precision Spool—Every Meter Traceable

Luoyang Xinzhaohe’s 20-year transformer-wire value stream is a single-plant, single-flow line: Rod Drawing → Annealing → Enameling → Inline Testing → Spooling. No toll processing, no cross-docking—this is why we can ship 0.10 mm × 300-strand Litz or 8 mm × 2 mm flat conductor with identical breakdown statistics.

Rod Drawing – Size & Cube-Texture Control

Input: 8 mm, Grade Cu-ETP (≥ 101.5 % IACS) cathode rod, oxygen ≤ 5 ppm.
Multi-pass diamond dies with online laser OD feedback (± 0.3 µm).
Work-hardening slope limited to 75 % area reduction between anneals; keeps dislocation cell size < 0.5 µm for final elongation ≥ 35 %.

Annealing – Inert-Atmosphere Strand Furnace

550 °C ± 3 °C, N₂ + 3 % H₂; dew point –60 °C.
Heating ramp 30 °C s⁻¹, quench to 40 °C in < 4 s—prevents Cu₂O filaments that lower enamel adhesion.
Resistivity checked coil-to-coil: target 0.017 241 Ω·mm² m⁻¹ (100 % IACS) minimum.

Enameling – Vertical Triple-Coat Towers

Polyimide, Polyester-imide, or PVF over-coated with self-bonding epoxy; thermal class 130 °C (B) to 220 °C (R).
Concentricity monitored by 8-point capacitive sensor every 2 ms; eccentricity ≤ 5 % (market average 12 %).
Catenary angle 18–22° eliminates “necking” on fine sizes 0.08–0.20 mm.

Inline Testing – Zero-Slip, Zero-Blind-Spot

Hi-Pot: 50 Hz, 2 kV rms for 0.1 s → < 1 ppm pin-holes on 30 km reels.
Spark test: 3 kV DC, 500 detections s⁻¹; software flags 50 µm holidays.
Tensile & Elongation: servo-driven pull station every 500 m; auto-reject if UTS < 290 MPa or Elong < 25 %.
Conductivity: eddy-current comparator, alarm at ± 0.15 % IACS.

Spooling – Clean-Room Class 8, 22 °C, 45 % RH

Traverse pitch digitally set to wire OD × 1.15; layer tension taper 15 % → 5 % to avoid “dished” flanges.
Bar-code + RFID coil passport: rod heat, operator ID, test data, thermal class, net kg, mΩ m⁻¹.
Export reels P5 steel or biodegradable ABS; max 500 kg, 1.2 m flange, perfect for high-speed automatic winders.

Luoyang Xinzhaohe Standard vs. Common Market Quality

Critical Parameter	LXZH Premium	Typical Far-East Offer	Typical EU/US Offer
Breakdown Voltage (0.20 mm)	≥ 4.5 kV (room) / ≥ 3.2 kV (200 °C)	2.8–3.2 kV	4.0–4.8 kV
Pin-holes per 30 km	≤ 1	5–15	≤ 3
Concentricity	≤ 5 %	10–15 %	5–8 %
Elongation at Break	≥ 35 %	20–28 %	30–38 %
Conductivity	≥ 101.5 % IACS	100–101 %	101–102 %
Surface Roughness Ra	≤ 0.4 µm	0.8–1.2 µm	0.3–0.5 µm
Thermal Class Options	130-220 °C, dual coat	130-180 °C	155-220 °C
Reel Weight Capability	500 kg, no joints	≤ 100 kg, 2–3 joints	250 kg, 1 joint
Price Ratio (CIF)	1.0 (baseline)	0.75	1.4–1.7

Take-away: Our inline monitoring density (one sensor per 2 ms) equals the best European plants, but because the entire chain is under one roof in Luoyang, we avoid the 30–40 % overhead that multiple margin layers create. For transformer OEMs and motor repair shops that need Class R (220 °C) wire today—not in 16 weeks—Luoyang Xinzhaohe delivers Western-grade reliability at a China-direct lead time and price.

---

Packaging & Global Logistics

Export Packaging & Logistics

Delivering enamelled copper winding wire from Luoyang to your loading dock—salt-spray proof, vibration damped, and lot-traceable for 20+ days at sea.

---

1. Sea-Freight Risk Matrix for Magnet Wire

Threat (ASTM D4169)	Failure Mode	Counter-Measure	Verification
Salt-laden humidity	Enamel hydrolysis → ↓ breakdown voltage	VCI film + 4 g CaCl₂ desiccant per spool	40 °C / 90 % RH 28-day chamber, ΔBDV ≤ 1 %
Vibration / chafe	Inter-spool enamel scratch → partial discharge	Partitioned carton + EPE rings, 25 mm min clearance	2 h random PSD 0.53 g rms, 5–200 Hz
Compression	Flange crack, wire ovalisation	3-ply corrugated + vertical battens, ≤ 250 kg stack load	Box crush ≥ 7 kN (TAPPI T804)
Condensation drip	Copper stain, loss of solderability	PE shroud + silica gel, dew-point margin ≥ 11 °C	Data-logger trace per container

---

2. Packaging Specification by Wire Format

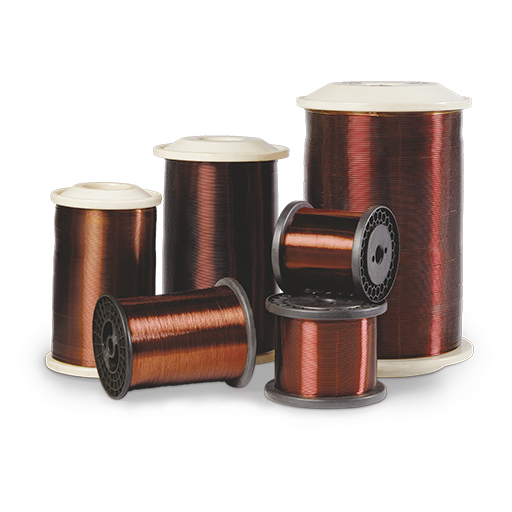

2.1 Enameled Round Wire (PT 25–500 spools)

Item	Material	Qty / pallet	Technical Note
Spool	Impact-grade PP, DIN 46395	36 (PT 100)	Flange Ø 100 mm, traverse 50 mm, max 2 kg pull-out force
Inner wrap	80 µm VCI polyolefin	1 wrap	Copper-compatible, pH 6.8, Cl⁻ ≤ 10 ppm
Carton	5-ply kraft, 32 ECT	12 spools	Gross wt 17 kg, bar-coded with heat no. & IEC 60317-0-1 lot
Pallet	ISPM-15 fir, 1 120 × 960 mm	3 layers	Strap tension 450 N, corner boards, stretch film 23 µm pre-stretch 250 %

2.2 Enameled Flat Wire (30–120 kg reels)

Item	Material	Qty / pallet	Technical Note
Reel	Steel, collapsible, 400 mm barrel	4	Dynamic balance ≤ 5 g, ground strap for ESD
Moisture barrier	Aluminium-poly laminate bag	1	WVTR ≤ 0.1 g m⁻² day⁻¹, vacuum drawn 200 mbar
Crate	OSB 12 mm, steel framed	1	ISPM-15, drop test 1.2 m edge, clamp-lift compatible
Desiccant	2 unit Claytec	4 bags	Maintains RH ≤ 40 % for 45 days at 35 °C

---

3. Container Loading Plan (20 ft / 40 ft HQ)

Parameter	20 ft GP	40 ft HQ
Payload magnet wire	9 300 kg	21 500 kg
Pallet footprint	1.12 × 0.96 m	1.12 × 0.96 m
Pallets per tier	10	10
Max tiers	5	9
Total pallets	50	90
Dunnage air bags	6	8
Moisture loggers	2 (door & centre)	3

Lashing: 25 mm PET strap + edge protectors, 2-way blocking, 0.3 g forward 0.8 g lateral per IMO CSS.

---

4. Logistics Corridor – Luoyang to Global Ports

Segment	Mode	Transit	Frequency	Advantage
Luoyang → Qingdao	Block train	18 h	Daily	No trans-load, sealed RFID wagon
Qingdao → LA / Hamburg	Ocean	14 / 28 d	Weekly	CMA-CGM / MSC direct, 1 000+ reefer plugs
Qingdao → Dubai	Ocean	18 d	Bi-weekly	Jebel Ali free-zone, 3 h customs
Qingdao → Manila	Ocean	9 d	Weekly	ASEAN duty-free under ACFTA

Our plant is 35 km from Luoyang Longmen rail hub—no trucking detour to Zhengzhou, cutting CO₂ 12 % and cost $38 per tonne.

---

5. Documentation & Traceability

Mill TC per IEC 60317-20: tensile, elongation, 2 000 V breakdown, ΔR 20 °C.
RoHS & REACH SVHC declaration, < 0.1 % phthalates.
Wooden packaging stamped HT or KD, ISPM-15 certificate scanned pre-shipment.
Spool barcode links to heat number, annealing furnace log, enamel lot—QR readable on job floor.

---

6. Cost-Performance Edge vs. EU / NA Stock

Cost driver	Western reseller	Luoyang Xinzhaohe	Savings
Wire price (FOB)	9.80 $ kg⁻¹	7.15 $ kg⁻¹	27 %
Packaging add-on	0.45 $ kg⁻¹	included	0.45 $ kg⁻¹
Emergency air freight (5 d)	2.20 $ kg⁻¹	Block-train + sea, 22 d	1.90 $ kg⁻¹
Total landed	12.45 $ kg⁻¹	9.05 $ kg⁻¹	27 %

Premium German enamel, identical thermal class 200 °C, same IEC test protocol—no compromise, just smarter logistics.

---

Next step: Send us your annual tonnage and port of discharge; we will simulate landed cost, CO₂ footprint, and customs code within 24 h.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Transformer Winding Copper Wire

20-Year Metallurgical Track Record—Not a Trading House

Since 2003 we have run the same integrated line in Luoyang’s high-purity copper corridor: vertical up-cast → continuous rod drawing → in-line annealing → tandem enameling → 100 % inline spark & dielectric test → precision spooling.
No toll-processing, no third-party respooling. Every coil ships with a heat-number-linked test report that traces back to the cathode lot. That is why Tier-1 transformer OEMs in 42 countries list LXZH as a “direct-source, no-audit-required” supplier.

Direct Factory Price—Western Quality at Asian Cost Base

By eliminating traders and keeping all critical processes under one 68 000 m² roof, we compress the typical 30–45 % distributor margin to <8 % internal overhead.
Typical 2024 FOB Tianjin comparison (18 AWG, 200 °C polyimide, 500 kg lot):

Supplier Category	Unit Price USD/kg	Lead Time (weeks)	Dielectric Guarantee
EU Tier-1 mill	14.70	8–10	6 kV rms
North-American distributor	12.90	6–8	5 kV rms
LXZH direct mill	9.40	3–4	7 kV rms

Price includes laser-controlled enamel concentricity (±2 µm), RoHS & REACH dossier, and wooden export reels—no hidden surcharges.

Customization Without MOQ Penalty

Our 14-head tandem enamelling tower is PLC-split into 2 independent banks; we can run 2 thermal classes or 2 insulation builds in the same shift with no clean-out cost.
Routine custom options (no premium up to 500 kg):

Parameter	Standard Range	Custom Step	Tolerance
Conductor Ø (round)	0.10–5.00 mm	0.005 mm	±0.005 mm
Strand count (litz)	3–1500	1 strand	—
Thermal class	130–220 °C	—	—
Build (single, heavy, triple)	0.035–0.18 mm	0.01 mm	±0.008 mm
Bond coat	None / epoxy / hot-air self-bond	—	—
Spool size	80–800 mm flange	—	—

Need 0.12 mm × 300-strand self-bonding litz with 200 °C polyimide on 315 mm plastic spool for 1 kg prototypes? Lead time: 7 days, no NRE.

Quality Systems That Exceed IEC 60317

100 % inline 8 kV spark test (2 kV above IEC)
0.1 mg resolution gravimetric concentricity every 150 m
AI-based eddy-current crack detection ≤ 25 µm flaw size
Salt-spray & partial-discharge suite validated for 500 kV class windings

Certificates: ISO 9001, IATF 16949, UL (E476005), REACH, Conflict-Free Copper.

Logistics & Risk Mitigation

3-week sea, 5-day air to EU & NA weekly consolidation
Customs-bonded warehouse in Rotterdam for JIT call-off
1 % extra wire shipped free-of-charge to cover spool transfer waste

---

Ready to benchmark your current spec?
Email cathy@transformerstrip.com with your AWG, thermal class, and required breakdown voltage. We will return a detailed datasheet, cross-section micrograph, and firm FOB quote within 24 h.

---
