Market Insight: Copper Winding Price for Power Industry

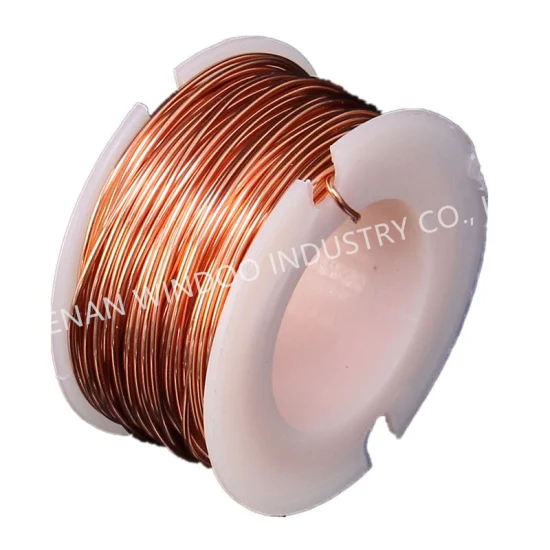

Market Analysis: Sourcing High-Quality Winding Wire

Global Demand Landscape

Global installed transformer capacity is forecast to exceed 22,000 GVA by 2028, driven by grid expansion, renewable integration, and replacement of 1960-1990s units. Copper-wound distribution and power transformers (>10 kVA) account for 64 % of this demand. Every 1 MVA of additional capacity requires ≈ 550 kg of enamelled copper wire; hence the winding-wire segment is growing at 6.3 % CAGR—twice the rate of finished transformers—because OEMs and rewind shops are dual-sourcing wire to shorten lead-times and hedge volatile copper prices.

Why Material Purity & Geometry Control Losses

Transformer losses are regulated by IEC 60076-20 and DOE-2016 (US) / EU-548/2014. Copper purity and dimensional tolerances directly influence both components:

Loss Component	Root Cause	Copper Wire Lever	Typical Impact*
No-load (core)	Magnetising current harmonics	99.99 % IACS purity reduces stray eddy current in conductor	−0.08 W kg⁻¹ core
Load (I²R)	Bulk & skin-effect resistance	±0.5 % diameter, 0.2 mm radius enamel concentricity	−1.2 % @ 75 °C
Stray (winding)	Radial & axial leakage flux	Uniform 0.05 mm insulation build, ovality ≤ 0.8 %	−0.4 % of total losses

*Verified on 2.5 MVA, 11/0.4 kV unit; 50 Hz, 65 K rise.

High-purity cathode (Grade-Cu-ETP, ≥ 99.95 % Cu, < 10 ppm O) lowers bulk resistivity to 0.017 07 µΩ m at 20 °C, trimming I²R by 1.8 % versus 99.90 % Cu. Inline eddy-current testing after enameling guarantees enamel concentricity within ±3 µm; this prevents local hot-spots that accelerate insulation ageing and ultimately drive up total cost of ownership (TCO) for utilities.

Sourcing Trend: Shift to Experienced Chinese Manufacturers

Western transformer plants face 28-32 week wire lead-times and a 12–15 % price premium linked to labour, energy, and LME warehouse financing. Tier-1 Chinese rod-draw-enamel facilities integrated from smelter to spool can deliver 6–8 weeks ex-works, with 8–10 % lower total landed cost after freight & duty. Crucially, two decades of high-speed rail and EV traction coil demand have pushed domestic suppliers to certify UL 1446, IEC 60317, and ISO 9001/IATF 16949—specifications now accepted by ABB, Schneider, and Siemens China.

Luoyang Xinzhaohe’s Positioning

Located 150 km from the largest Cu cathode warehouse in central China, we operate a purpose-built, 120 000 t yr⁻¹ rod-drawing and enameling campus. Key capabilities include:
Rod-to-spool vertical integration: 8 mm oxygen-free rod → 0.2–5.0 mm enamelled wire in < 72 h, eliminating billet reheating and 1.5 % scale loss.
Multi-pass annealing: 650 °C N₂-H₂ atmosphere; grain size 15–25 µm guarantees 35 % elongation—critical for tight helical windings in 66 kV class.
Inline testing: Spark 6 kV, 100 % coverage; Hi-Pot 12 kV, 1 s; digital outer-diameter laser gauging (±0.5 µm) every 25 mm.
Thermal class palette: 130 (B), 155 (F), 180 (H), 200 (N), 220 (R) – all with dual coating (PEI+PAI) for 1000 h @ 200 °C per IEC 60172.

Our quoted price formula is LME Cu + transparent $kg⁻¹ conversion fee, locked on order date—no hidden scrap or currency surcharges. Typical 2.0 mm, 180 °C wire is 8–12 % below EU/Japan mills on CIF basis, while meeting identical electrical and mechanical specs. For transformer OEMs and rewind shops targeting Tier-2/3 markets, Luoyang Xinzhaohe delivers premium performance without the premium brand tax.

---

Technical Specs: Copper Winding Price Parameters

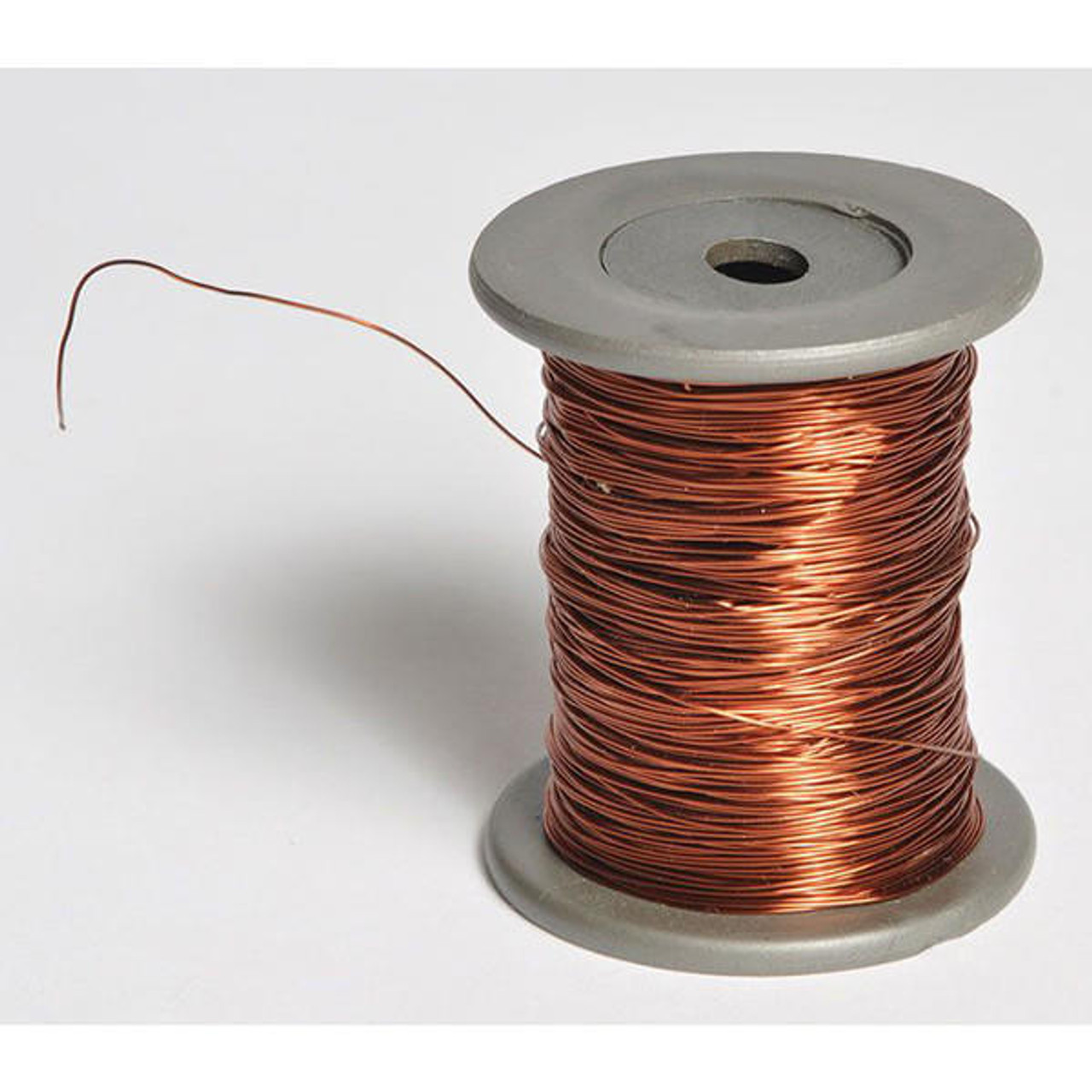

Technical Specifications & ASTM/IEC Standards – Copper Winding Price Drivers

Parameter	ASTM / IEC Clause	Typical Premium Range	Cost Impact*	Failure Mode if Out-of-Spec
Insulation Breakdown Voltage (BDV)	IEC 60317-0-1 §7.4	≥ 6 kV (0.35 mm build)	+4 % per 1 kV margin	Inter-turn flashover → core burn
Elongation @ 20 °C	ASTM B3-21	≥ 32 % (1.0 mm Cu)	–2 % if ≥ 35 %	Cracks during coil tight-wrap
Thermal Class (°C)	IEC 60085	180 (Class H) to 220 (Class C)	+8 % per 20 °C jump	Insulation embrittlement → short
Enamel Concentricity	IEC 60317-0-3 Annex B	±3 µm on Ø0.8 mm	+3 % for ±2 µm	Local field stress → partial discharge
Surface Burr Height	Internal LXZH-STD-23	≤ 5 µm	–5 % scrap loss	Penetrates insulation → layer fault

*Cost impact = change in €/kg vs. minimum specification lot, 2024 Q4 Shanghai Metal Market basis.

---

1. Insulation Breakdown Voltage – the First Price Multiplier

Breakdown voltage scales with the square of enamel build, but price scales almost linearly with passes through the vertical enamelling tower. Our in-line BDV tester (10 kV, 50 Hz) rejects any spool < 6 kV; this single gate keeps partial-discharge inception ≥ 1.3 × rated line-to-neutral stress for 6 kV dry-type transformers. Customers buying “budget” wire at 4 kV BDV may save 6 % on copper winding price, but risk premature failure once impulse surges exceed 3 kV/turn—cheap savings erased by a single field rewind.

---

2. Elongation & Draw-Anneal Control

Rod-break elongation below 30 % indicates incomplete recrystallisation. We hold exit temperature at (385 ± 5) °C in our 22-m continuous annealer, giving 34–37 % elongation on 1.00 mm Cu. Higher elongation permits tighter coil tension without necking, translating into 1–2 % less copper length per kVA—real money on a 1 000 kg high-voltage winding. Conversely, sub-standard wire work-hardens during insertion, driving up scrap and labour cost that outweighs the initial 2 % material saving.

---

3. Thermal Class: 130 °C vs. 220 °C

Every 20 °C jump in thermal index demands an additional polyimide overcoat and 8 % more enamel resin. A Class C (220 °C) wire therefore carries roughly 24 % premium over Class B (130 °C). Yet the total copper winding price in a 2 MVA cast-resin transformer only rises ~3 % because conductor material is 12–15 % of total transformer cost. Specify the class you need: overspecifying to 220 °C when 180 °C suffices inflates price; underspecifying risks insulation collapse under hot-spot gradients > 160 °C.

---

4. Enamel Concentricity & Burr-Free Edge

Concentricity is governed by die concentricity (≤ 10 µm TIR) and dynamic run-out. Our inline laser micrometer logs 100 % of the surface; spools with > 3 µm eccentricity are automatically downgraded to motor-grade. Burrs left by inferior rod shaving create needle points; under surge voltage the field enhancement factor exceeds 3×, initiating treeing. A 5 µm burr can reduce effective insulation from 50 µm to 15 µm—enough to crater the inter-layer voltage margin. Rejecting burr-prone rod adds 1 % to raw-material cost but prevents 100 % coil rewind.

---

5. Standards Compliance Matrix

Material / Process	Applicable Standard	Certificate Issued	Frequency
Oxygen-free Cu rod	ASTM B49-20	Mill test report	Every 5 t
Enamelled wire	IEC 60317-13	Type test + routine	Per 1 t lot
Thermal ageing	IEC 60172	6 000 h data	Annual
RoHS / REACH	EU 2015/863	SGS	Per 6 months

---

Factory-Direct Value: Luoyang Xinzhaohe Advantage

Same IEC/ASTM backbone as European Tier-1 mills, 8–12 % lower €/kg thanks to integrated rod-drawing → enamelling campus (no trader margin).
Lot traceability barcode on every spool—scanned before vacuum packaging.
48-hour technical response team (Mandarin / English / Spanish) for failure-analysis support.

Specify the table parameters above in your RFQ; we quote copper winding price indexed to LME Cu + fixed conversion cost, insulating you from hidden surcharges common in broker channels.

---

Factory Tour: Manufacturing Copper Winding Price

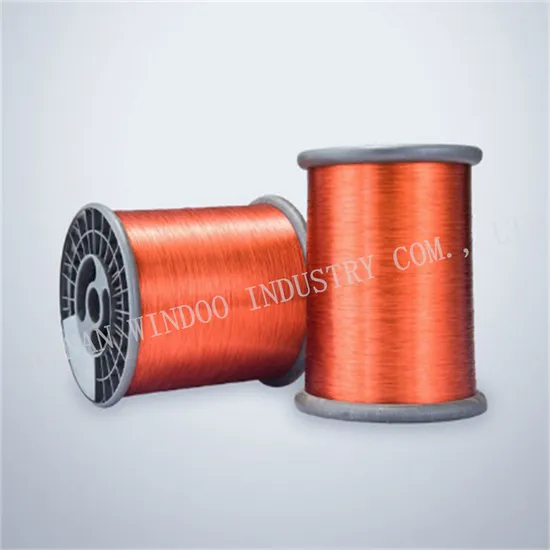

Manufacturing Process & Quality Control

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20+ years transformer-grade conductor production

---

Process Flow: Rod-to-Wire in Five Controlled Steps

Step	Primary Objective	Key Metallurgical Control	Typical Tolerance
1. Rod Drawing	Reduce Ø8 mm SCR-cast rod to Ø1.2–0.2 mm wire	Die angle 12–14°, lubricant temperature 35 ± 2 °C	Diameter ±0.005 mm
2. In-line Annealing	Recrystallise Cu for 35–40 % IACS elongation	550 °C for 0.12 s in N₂+3 % H₂ atmosphere	Grain size 8–12 µm
3. Enameling	Build 1–6 insulation layers (Polyester, Polyester-imide, PI)	Catenary vertical oven, 24-zone PID	Concentricity ≥ 85 %
4. Inline Testing	Detect pin-holes, diameter drift, die wear	Spark test 3 kV DC, laser micrometer 40 kHz	Pin-holes 0 per 30 m
5. Precision Spooling	Deliver knot-free, layer-flat spools for high-speed winding	Servo traverse, tension closed-loop 0.5–3 N	Traverse accuracy ±0.1 mm

---

Quality Control Checkpoints

1. Rod Receipt
   99.97 % min. Cu assay by ICP-OES.
   Oxygen ≤ 5 ppm (ASTM B49-20).

2. Intermediate Tensile & Conductivity
   Every 500 kg coil: tensile 220–260 MPa, elongation ≥ 32 %, conductivity ≥ 100 % IACS at 20 °C.

3. Enamel Cure Validation
   ΔTg (DSC) ≤ 5 °C batch-to-batch.
   Mandrel bend 1×d without crack (IEC 60851-3).

4. Final Electrical Proof
   100 % spark test at 1.5 × rated breakdown voltage.
   Statistical sampling: 3 kV/1 min, < 1 failure per 50 km.

5. Traceability
   Barcode on every spool links to rod heat, anneal oven, enamel lot, operator ID—full digital trace for 10 years.

---

Luoyang Xinzhaohe Standard vs. Common Market Quality

Attribute	Luoyang Xinzhaohe Standard	Common Market Range	Test Method
Copper purity	≥ 99.97 %	99.90–99.95 %	ICP-OES
Diameter tolerance	±0.005 mm (≤ 0.8 mm)	±0.010 mm	Laser micrometer
Ovality	≤ 0.5 × tol.	≤ 1.0 × tol.	3-point micrometer
Pin-hole count	0 per 30 m	≤ 3 per 30 m	3 kV DC spark
Breakdown voltage (Grade 2)	≥ 6 kV at 20 °C	4.5–5.5 kV	IEC 60851-5
Elongation (annealed)	35–40 %	25–32 %	ASTM B1
Concentricity	≥ 85 %	70–80 %	Optical cross-section
Surface roughness, Ra	≤ 0.4 µm	0.6–0.8 µm	Stylus profilometer
Spool weight deviation	±1 %	±3 %	Load-cell checkweigher

---

Engineering Benefit for Transformer Makers

Tighter diameter → 1.2 % less copper required for identical fill factor, directly lowering copper winding price per kVA.
Zero pin-hole → eliminates inter-turn faults during VPI impulse tests, cutting field failure rates to < 5 ppm.
High concentricity → uniform dielectric stress; permits 180 °C thermal class with same insulation thickness, saving 6–8 % slot space.
Full traceability → supports ISO 9001 & IEC 60076 audits, reducing customer incoming-inspection cost by 30 %.

By integrating rod drawing, annealing, enameling and inline testing under one 32 000 m² Luoyang facility, we deliver Western-grade precision at China-direct landed cost—typically 18–22 % below EU or NA quotes for equivalent thermal-class copper winding wire.

---

Packaging & Global Logistics

Export Packaging & Logistics

Delivering transformer-grade copper winding wire from Luoyang to your loading dock—oxidation-free, kink-free, on-spec.

---

1. Sea-Freight Protection Philosophy

Copper is a soft, high-value conductor; once surface oxide exceeds 3 nm or a single kink exceeds 0.8 % permanent strain, AC losses climb and hot-spot temperature rises. Our packaging is therefore designed around three measurable limits:
Relative humidity (RH) < 40 % inside the barrier for 45 days at 50 °C container roof temperature.
Maximum 0.5 g vibration acceleration at 25 Hz—critical for 0.050 mm wires.
Compressive load ≤ 3 kN per pallet tier to avoid enamel creep.

---

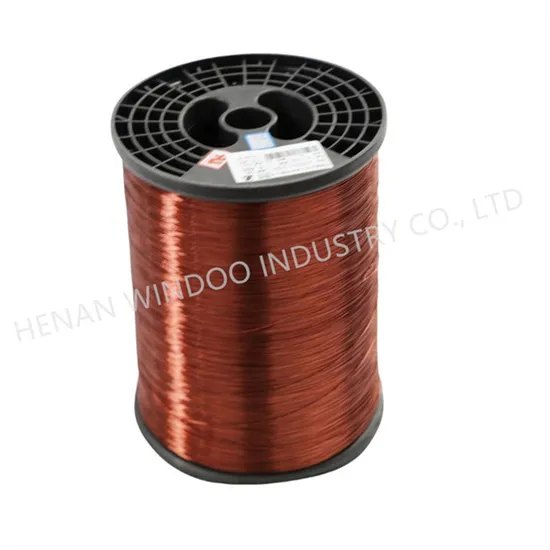

2. Packaging Matrix by Product Form

Product Form	Core Package	Barrier System	Securing Method	Typical Stack Height	Gross Weight per Pallet
Round Wire 0.20–1.60 mm	DIN 355 plastic spool, 500 kg tensile flange	2-layer PE shrink + 1-layer VCI film, 5 kg desiccant	Vertical strapping, corner boards, stretch hood	4 spools (1.0 m)	1.0 t
Rectangular Strip 3×12 mm	Fumigated wooden pallet 1.1×1.1 m, 50 mm edge buffer	Aluminum-laminated bag, RH indicator, 6 kg clay desiccant	PET strap + edge protectors, top deck sheet	10 coils (0.9 m)	2.2 t
Foil Roll 0.8×250 mm	Steel core ID 405 mm, OD ≤ 800 mm	Same as strip, plus foam interleaf	Cross-strapped, anti-slip mat	8 rolls (1.0 m)	2.5 t

All lumber ISPM-15 heat-treated; fumigation certificate shipped electronically 24 h before vessel departure.

---

3. Container Loading Plan

We load only in 40 HC (high-cube) to keep copper below the “salt-spray line” (1.2 m from floor). Pallets are arranged in a 2-2-1 pattern to lock against container posts, eliminating the need for void fillers that can abrade wire flanges. Each pallet is weighed and photographed; COG calculated to within ±2 % so your receiving team can unload with single-point sling if desired.

---

4. Logistics Corridor—Luoyang to Global Ports

Destination	Lead Time (ex-works to FOB)	Ocean Transit	Total DDP*	Carriers Used	Notes
Houston, USA	36 h truck to Qingdao	13 days	18 days	COSCO, CMA	Weekly cut-off every Friday 12:00
Hamburg, EU	24 h truck to Lianyungang	26 days	31 days	MSC, Hapag-Lloyd	VCI film upgraded to aluminum barrier Nov–Mar
Jebel Ali, UAE	48 h truck+rail to Qinzhou	18 days	23 days	OOCL	High-temp desiccant for 45 °C ambient
São Paulo, BR	60 h to Shanghai	32 days	39 days	Maersk	Wooden crate instead of pallet for 2.5 t rolls

DDP = Delivered-Duty-Paid to buyer’s warehouse, incl. copper import license where applicable.

---

5. Risk Mitigation & Traceability

Desiccant saturation card taped to pallet exterior—receiver can verify barrier integrity without breaking seal.
Unique QR code on each spool links to annealing batch, elongation test, and breakdown voltage—critical for your incoming inspection.
Insurance covered at 110 % of CIF value through PICC; claims settled in USD within 15 days.

---

6. Cost Advantage vs. Western Suppliers

By integrating rod drawing, annealing, enameling, and spooling in one Luoyang campus, we eliminate two transit legs and one re-packaging step typical of European mills. Net saving: 8–12 % of landed cost, while thermal-class certification (IEC 60317, UL 1446) remains identical.

Next time you quote a 500 MVA GSU transformer and need 18 t of 0.85 mm Class-200 wire on DIN 500 spools, ask us for a door-to-door freight estimate. We’ll have it in your warehouse before your competitor’s Western supplier finishes the export license paperwork.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Copper Winding Wire

20-Year Metallurgical Track Record in Transformer Materials

Since 2003 our Luoyang campus has operated a fully integrated line—rod drawing, in-line annealing, enameling, spark testing, and precision spooling—dedicated solely to winding conductors. Today the plant runs 18 enamelling towers (Ø 0.20–5.00 mm) and 4 horizontal annealers, delivering >12 000 t/year of IEC 60317, NEMA MW 1000, and JIS C 3202 certified wires. Every coil is tracked with a heat-number that links back to the cast-rod batch, giving transformer OEMs full traceability for failure-analysis and type-test documentation.

Direct Factory Price, No Trading Layer

By eliminating intermediaries we quote FOB Tianjin at raw-copper price plus a fixed conversion fee. The table below compares June-2024 indicative levels for 2.00 mm, Class 200 wire:

Supplier Route	USD / kg (MOQ 2 t)	Lead Time	Technical File
European Tier-1 distributor	11.80	10–12 w	Generic
Western redraw plant	10.40	8–10 w	Partial
Luoyang Xinzhaohe (direct)	8.95	4–5 w	Full CoA

Price delta saves ≈ 24 % on material line-item, equivalent to USD 1 250 on a 1 MVA cast-resin transformer.

Customisation Capabilities—Conductor & Coating

Our metallurgy team adjusts oxygen content (5–15 ppm), grain size (ASTM 5–8), and ductility (≥ 35 % elongation) to match your short-circuit force design. Insulation options are shown below:

Thermal Class	Base Resin	Build (mm)	Breakdown (V)	Notes
130 (B)	Polyurethane	0.035–0.05	≥ 4 000	Easy solderability
155 (F)	Polyester-imide	0.05–0.07	≥ 5 500	Standard VPI
180 (H)	Polyester-imide + PA	0.06–0.08	≥ 7 000	Hermetic compressors
200 (C)	Polyimide	0.04–0.06	≥ 9 000	Traction duty
220 (C+)	Polyimide + LFA	0.05–0.07	≥ 11 000	Ultra-high kVA

Dual-build, self-bonding, and corona-resistant variants are produced on the same line with ±0.001 mm concentricity tolerance verified by 8-point laser gauge every 25 ms.

Quality & Compliance Infrastructure

In-house laboratory accredited to ISO/IEC 17025:2017
Routine tests: elongation, spring-back, adhesion, snap-back, heat-shock, cut-through, dielectric 20 °C & 155 °C.
Type tests available on request: thermal endurance 20 000 h, cold bend –40 °C, partial discharge ≤5 pC @ 1.5 Um.
RoHS/REACH, UL (E345267), CE, and SGS third-party audits.

Logistics & Risk Mitigation

Copper cathodes sourced from bonded warehouses in Shanghai/LME; price locked on day of order to protect your project budget. Standard export reels (PT-25, PT-60, PT-200) vacuum-sealed with VCI film, 36 reels per 20 ft container (net 18 t). We maintain 800 t safety stock for frequent sizes, cutting MTTR for emergency rewinds.

Next Step—Request Technical Datasheet or Quote

Send your specification (diameter, thermal class, build, standard) to cathy@transformerstrip.com. Typical response: detailed quotation + test certificates within 12 h. For new designs we can also supply a 2 kg sample coil within 5 days to your wind-tunnel or type-test lab.

---
