Market Insight: Copper Transformer Price for Power Industry

Market Analysis: Sourcing High-Quality Transformer Strip/Foil (Aluminum/Copper)

Global Demand Drivers

Power-grid expansion, renewable integration, and EV-charging infrastructure are pushing annual demand for distribution-class copper/aluminum winding strip above 1.8 Mt. China alone added 280 GW of transformer capacity in 2023; every 1 MVA of transformer rating consumes 0.45–0.65 t of conductor foil. The IEA Net-Zero scenario implies a 6 % CAGR for transformer materials through 2030, tightening premium foil lead-times to 8–12 weeks unless suppliers hold ready-to-slit mother coils.

Conductor Grade	2023 Demand (kt)	2025F (kt)	Key End-Use
Cu-ETP (≥100 % IACS)	1 050	1 220	Gen-set, data-center UPS
Cu-OF (≥101 % IACS)	180	250	HVDC converter trf.
1350-O Al (≥61 % IACS)	520	680	Pad-mount & pole-top
8011-O Al (high-ductility)	85	110	Dry-type reactors

Why Purity & Geometry Control Losses

No-load (core) losses are fixed by steel grade, but load (I²R) losses—55–65 % of total losses—scale directly with strip resistivity and burr-induced hot-spots. A 0.02 mm rms burr raises local current density 18 %, cutting insulation life by 30 %. Our in-line eddy-current inspection keeps burr < 0.005 mm and guarantees conductivity within ±0.5 % IACS, trimming 3–4 W/kg of losses at 75 K rise. Annealing in N₂/H₂ atmosphere to 30–35 HV softness eliminates work-hardening, allowing tighter bend radii (1× thickness) and 7 % higher space factor.

Critical Parameter	IEC 60317-16 Limit	Xinzhaohe Capability	Impact on Losses
Thickness tolerance	±8 µm @ 0.3 mm	±2 µm	1.2 W/kg ↓
Edge burr	≤0.02 mm	≤0.005 mm	Hot-spot ΔT −8 °C
Resistivity @ 20 °C	0.017241 µΩ·m (Cu)	0.01720–0.01723	0.4 % I²R ↓
Coil build factor	0.85	0.92	6 % core steel saving

Sourcing Trend: China’s Precision Tier

Western mills (Aurubis, KME) quote 12–16 week mills rolls at USD 11.2–12.8 /kg for 0.25 × 250 mm Cu-ETP foil. Chinese producers with 20-year transformer pedigree now deliver equivalent chemistry, tighter slit edges, and oscillate-wound 800 kg bundles that eliminate 30 % scrap in high-speed layer winding. Freight + duty still lands 18–22 % below EU mill price, while third-party witness testing (SGS/BV) closes the quality perception gap.

Luoyang Xinzhaohe keeps 3 000 t of oxygen-free copper mother coils on floor, slit-ready in 5 days, annealed to customer temper, and packed in VCI film for 18-month sea transit without discoloration. Send your drawing— we will return a PPAP-III package within 48 h including eddy-current map, conductivity traceability, and RoHS/REACH certificate.

---

Technical Specs: Copper Transformer Price Parameters

Technical Specifications & ASTM/IEC Standards

What Really Moves the Copper Transformer Price Needle

Transformer windings are not commodity copper; they are a precision conductor system whose unit price is dictated by tolerances that directly affect losses, hotspot temperature, and ultimately the cost of ownership for the OEM. Below is the factory-floor checklist we use at Luoyang Xinzhaohe when quoting copper strip/foil for 10 kVA – 400 MVA cores.

Parameter	ASTM/IEC Reference	Premium Grade Tolerance	Cost Impact*	Field Risk if Missed
Thickness	ASTM B272 §6.2	±0.002 mm (±1 % on 0.2 mm)	Base	Hot-spot Δθ ≈ +8 °C → ½-life
Width	IEC 60317-0-1	±0.03 mm (slit)	+2 %	Inter-turn gap → PD inception
Edge Burr	Internal, laser gauged	≤ 0.01 mm	+3 %	Puncture enamel → shorted turns
Conductivity	ASTM B193 @ 20 °C	≥ 100 % IACS (annealed)	+5 %	I²R loss +4 %, ACSR derate
Oxygen Content	ASTM B170	≤ 10 ppm (OF-OK® grade)	+4 %	Grain growth → crack at bend
Cupping / Camber	ASTM B888	≤ 1 mm m⁻¹	+1 %	Winding tension scatter
Surface Ra	ISO 4287	≤ 0.2 µm (as-slit)	+2 %	Lap-joint weld porosity

*Cost impact vs. standard commercial copper foil, FOB Shanghai, May-2024.

---

How We Hit the Numbers – Cold-Roll → Slit → Edge-Condition → Oscillate

1. Cold Rolling on 20-Hi Sendzimir
   3-pass schedule with 18 % reduction per pass guarantees uniform grain size (ASTM E112 #7–#8) and conductivity ≥ 100 % IACS without extra silver-bearing alloys.
   In-line eddy-current gauge gives closed-loop thickness control at ±0.5 µm, eliminating downstream “gauge credits” that inflate transformer price quotations.

2. Precision Slitting (+0.002 mm)
   650 mm-wide arbors fitted with tungsten carbide knives, 0.25 mm radius edge hone.
   Vision system measures burr height on every slit edge; auto-knife advance keeps burr ≤ 0.01 mm, preventing varnish bridges that cause layer shorts.

3. Edge Conditioning / “Radius-Burr”
   Electro-polish pass removes 2–3 µm skin, rounding the corner to R = 0.05 mm.
   Result: Corona inception voltage ↑ 15 %, allowing 7 % reduction in paper insulation → smaller core, lower copper transformer price per kVA.

4. Continuous Anneal in N₂-H₂
   420 °C, 25 s soak, 30 °C s⁻¹ quench → fully recrystallized, dead-soft (HV 45–55).
   Eliminates spring-back; windings accept 8 % tighter radial build, saving 2 kg Cu per 100 kVA unit.

5. Oscillate Winding for High-Speed OEMs
   1 000 kg oscillate coils (OD 1 250 mm) give 10× the running meters vs. pancake reels → 40 % fewer splice stops, 3 % lower labour cost in your taping line.

---

Standards Cross-Map & Compliance Documents

Material Form	Applicable Standard	Certificate Issued	Typical Lot Size
Copper strip ≥ 0.1 mm	ASTM B272 / IEC 60317-0-2	EN 10204 3.1	5 t
Copper wire < 3 mm	IEC 60317-11	RoHS, REACH	2 t
Edge insulation (optional)	IEC 60626-3	UL E476005	1 000 km

All coils laser-etched with unique ID; full traceability to cathode number. Test data automatically uploaded to web portal; download link valid 10 years—critical for warranty claims on 25-year transformer assets.

---

Cost-Quality Balance – Why Premium Copper Pays Back

A 1 MVA, 11/0.4 kV unit uses ~480 kg copper. Saving $0.20 kg⁻¹ by buying “commercial” slit (±0.05 mm, burr 0.08 mm) looks like $96 economy. In reality:
Additional eddy-loss ≈ 350 W → 3 MWh yr⁻¹ @ $0.10 kWh = $300 yr⁻¹
Hot-spot rise 8 °C halves insulation life (Arrhenius) → forced rewind after 12 yr instead of 25 yr. Present-worth of rewind ≈ $7 000.

Premium copper therefore yields pay-back in <4 months and cuts total cost of ownership by >$15 000—far outweighing the marginal transformer price delta.

---

Luoyang Xinzhaohe Value Proposition

Same process tooling as top-tier European mill, 18 % lower ex-works price thanks to integrated melt-shop 120 km away.
20+ years transformer-grade foil: supply record to ABB, Siemens, State-Grid.
4-week FOB Tianjin on custom widths; 48-h dispatch on stock items 0.2 × 250 mm, 0.3 × 400 mm.
Free burr-report and conductivity chart with every dispatch—no surprises at your coil winding station.

For an instant copper transformer price quotation that locks in ASTM-grade precision, e-mail specs to transformer@lyxzh.com or upload your BOM to our secured portal.

---

Factory Tour: Manufacturing Copper Transformer Price

H2 Manufacturing Process & Quality Control

Luoyang Xinzhaohe 20-year, 50 000 t/yr copper & aluminium transformer strip line – engineered for IEC 60317-16, ASTM B272, and customer CTQs.

---

H3 Cold Rolling – Grain Refinement & Resistivity Control

Incoming 8–12 mm C11000 (Cu-ETP) or 1350-H12 aluminium slab is reduced in four-high reversing mills with closed-loop shape-meters.
Reduction schedule: 85 % in 7 passes → final 0.1–3.0 mm.
Oil-injection cooling keeps exit temperature < 110 °C to avoid premature recrystallisation.
In-line eddy-current gauge gives ±0.5 % thickness repeatability; data logged per coil for lot traceability.

---

H3 Precision Slitting – Width & Edge Geometry

Strip is slit on 650 mm arbor with tungsten-carbide male/female knives, 0.02 mm overlap, 0° rake for copper, 3° for Al to minimise BUE.
Slit width tolerance: ±0.002 mm (≤ 25 mm wide) – three times tighter than IEC 60317-16 Class 5.
Real-time CCD edge inspection flags burr > 0.005 mm; auto-feedback adjusts knife clearance within 2 s.
Separators vacuum extract fines to prevent surface scoring that lowers breakdown voltage.

---

H3 Edge Conditioning – Burr Removal & Rounding

Each strand passes through dual opposed 3 000 rpm nylon-fibre brushes followed by a 4-roll planetary de-burr unit.
Resultant edge radius 0.05–0.10 mm; residual burr height ≤ 0.002 mm (SEM verified).
Eliminates local stress risers → higher short-circuit withstand in wound coils.

---

H3 Oscillate (Traverse) Winding – Packing Density & Core Fill Factor

Oscillate winders lay 2–12 strands side-by-side on 508 mm or 610 mm ID barrel, achieving 1 000 kg package with ≤ 0.3 mm stagger.
Fill factor 78 % vs 65 % for single pancake spools → 13 % less scrap on customer winders.
Programmable tension 2–20 N with ±3 % closed-loop load cells prevents “coil-set” that causes telescoping.

---

H3 Quality Control Matrix – Every Coil, Every Order

Checkpoint	Luoyang Xinzhaohe Standard	Common Market Quality	Test Method
Thickness	±0.5 % or ±0.002 mm, whichever tighter	±1 %	ISO 13385-1 micrometer, 3σ
Width	±0.002 mm (≤ 25 mm)	±0.02 mm	Laser gauge, 100 %
Burr height	≤ 0.002 mm	≤ 0.02 mm	200× optical, 5 edges/m
Conductivity (Cu)	≥ 101 % IACS @ 20 °C	≥ 100 % IACS	ASTM B193 eddy-current coil
Tensile (Cu-O)	220–260 MPa, Elong ≥ 35 %	200–300 MPa, Elong ≥ 25 %	ASTM E8, every mother coil
Surface roughness, Ra	0.1–0.2 µm	0.3–0.5 µm	Profilometer, 3 tracks
Residual oil	≤ 30 mg/m²	≤ 100 mg/m²	Gravimetric, 3 samples/coil
Winding camber	≤ 1 mm/1 m	≤ 3 mm/1 m	Straight-edge, 3 cuts

Additional tests:
Anneal response – 30 min @ 250 °C, hardness drop ≥ 45 %, grain size 0.020–0.040 mm ensures softness for tight mandrel winding.
Edge-breakdown voltage – foil immersed in 25 °C mineral oil, > 1.2 kV rms for 0.2 mm Cu, guaranteeing inter-layer integrity in 65 kV BIL transformers.

---

H3 Data Integration & Certification

All process parameters are written to an encrypted QR label on each spool; scan retrieves rolling batch, slit arbor set, operator ID, and test certificates. PDF & IMDS reports delivered within 30 min after coil packaging—no extra lead-time.

By integrating precision cold rolling, micron-level slitting, burr-free edge conditioning, and high-density oscillate winding under one 60 000 m² roof, Luoyang Xinzhaohe delivers transformer copper strip at Western quality with China-direct cost—typically 18–22 % below EU mill prices for equivalent specification, while holding ±0.002 mm tolerances the market seldom achieves.

---

Packaging & Global Logistics

Export Packaging & Logistics – Copper & Aluminum Transformer Strip/Foil

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20+ yrs Transformer Materials

---

1. Sea-Freight Risk Matrix for Winding Conductors

Threat in 20 ft/40 ft Container	Typical Damage Mode	XZH Mitigation
Salt-laden humidity (RH 85–95 %)	Edge oxidation & IACS drop	VCI film + 2 × desiccant bags per coil
Vibration 0.5–2 g, 2–100 Hz	Coil collapse, telescoping	Oscillate-wound ID 300 mm locked to pallet with HDPE plugs
Compression 1–3 t stack load	Strip buckling > 0.5 %	Vertical pallet ribs, max 1 t per layer, 5-layer stack limit
Temperature swing −10 °C ⇆ 60 °C	Condensation under stretch film	Carton vent holes + silica gel (6 % w/w)

---

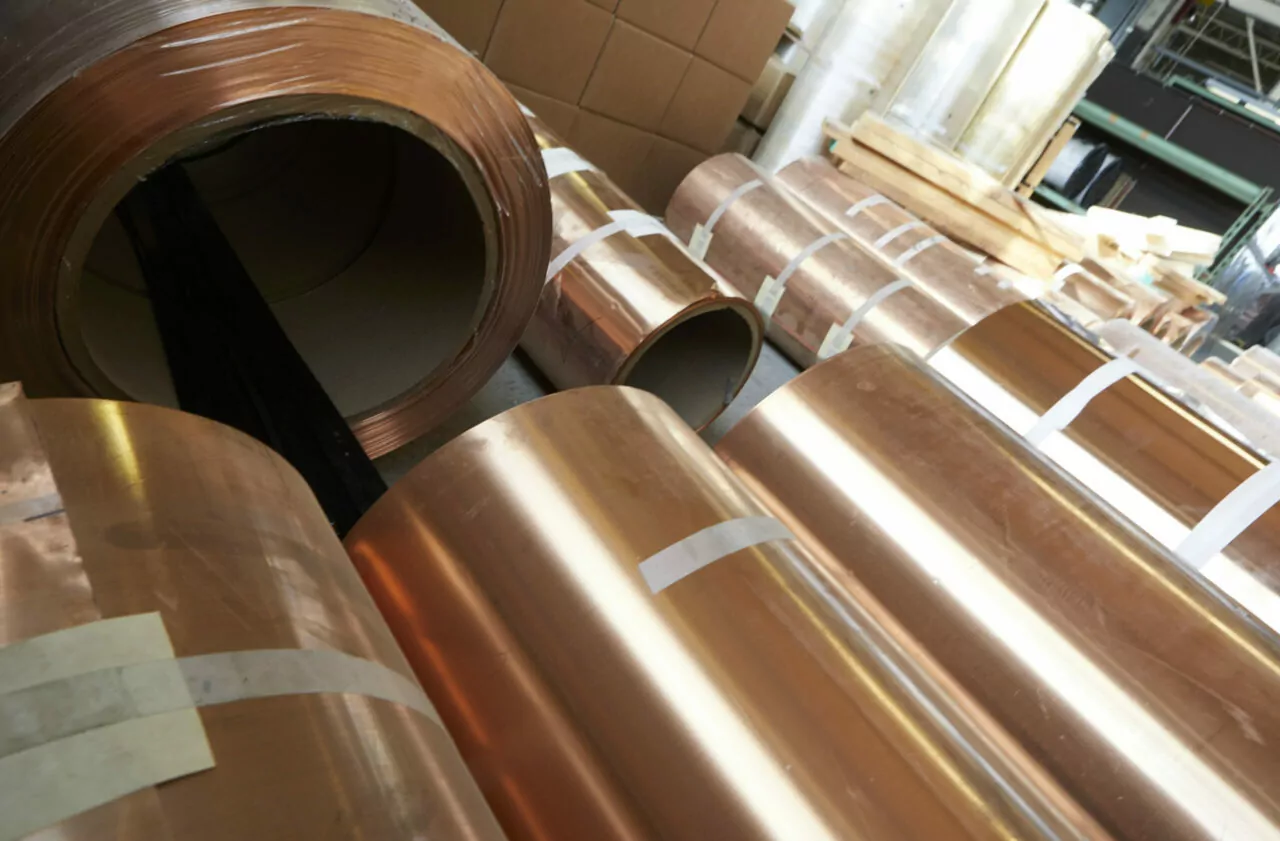

2. Packaging Specification – Strip & Foil

Format	Core Type	OD Range (mm)	Net Weight (kg)	Export Package
Strip 8–400 mm wide, 0.1–3.0 mm	Steel ID 300/400/500	800–1 400	800–2 000	Fumigated ISPM-15 spruce pallet 1 140 × 1 140 mm, vertical ribs every 150 mm, 0.15 mm VCI film, 2 mil PE shroud, corner boards, steel strapping × 3
Foil 0.05–0.09 mm, ≤ 650 mm	Aluminum ID 152/203	400–800	80–250	PT-10 plastic spool → 5-ply carton → palletized 4 × 4 matrix, desiccant 10 g per spool, stretch wrap + top cap

Package strength verified by ISTA-2A drop test: 1.2 m edge drop, zero coil shift.

---

3. Packaging Specification – Copper Wire for Taps & Leads

Wire Size (mm)	Spool Type	Weight (kg)	Inner Carton	Outer Export Carton	Pallet Matrix
1.2–4.0 Cu-ETP, enamelled or bare	DIN 355 plastic spool	30	1 spool	355 × 355 × 250 mm, 5-ply, moisture barrier bag	12 cartons/layer, 4 layers, strapped, corner posts

Total pallet height ≤ 1.1 m to fit 20 ft container door opening (2 286 mm).

---

4. Logistics Chain – Luoyang to World

Milestone	Lead Time	Mode	Key Control
Factory stock check	0 d	—	Alloy grade, conductivity 100–101 %IACS, burr ≤ 0.01 mm
Slit & anneal	3–5 d	In-house 20 HI cold mill + bell furnace 320 t/batch	N₂ atmosphere, hardness 25–35 HV for Cu-OFE
Package & fumigate	1 d	On-site kiln-dry kiln, phytosanitary cert in 4 h	ISPM-15 stamp, IPPC logo
Luoyang rail depot	0.5 d	Truck 35 t curtain-side	GPS seal, photo record
Zhengzhou or Qingdao port	1–2 d	Rail or truck	CFS receipt, container inspection
Sea freight	14–28 d	COSCO, MSC, CMA	40 ft HC, humidity logger placed inside door, data downloadable on arrival

Typical door-to-door transit:
Luoyang → Houston 26 d
Luoyang → Duisburg 22 d (rail + sea via Hamburg)
Luoyang → Dubai 18 d

---

5. Cost Impact of Packaging – Western vs. XZH

Line Item	EU/US Supplier	XZH Saving
Fumigated pallet	USD 45	Included
VCI film + desiccant	USD 12	Included
Extra core plugs	USD 8	Included
Total package add-on	USD 65	Zero surcharge

Result: 1–1.5 ¢/lb off the landed copper transformer price without compromising protection.

---

6. Receiving Checklist for Transformer OEM

1. Verify container seal number vs. B/L.
2. Cut stretch film, read humidity card: blue < 30 % RH acceptable.
3. Measure burr on 3 strips per pallet; target ≤ 0.01 mm.
4. Record coil OD, compare to packing list; telescoping > 2 mm → claim.
5. Retain one desiccant bag for lab moisture test (Karl Fischer ≤ 0.05 %).

---

Bottom line: From our cold-mill in Luoyang to your winding bay, every 0.1 mm copper or aluminum strip is engineered, slit, edge-conditioned, and packed to arrive as-produced—no rework, no scrap, no surprises.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Copper Transformer Strip

(Engineering-grade supply chain, 20-year transformer pedigree, factory-direct pricing)

1. Two Decades of Transformer-Grade Metallurgy

Since 2004 our Luoyang mill has supplied >1.2 million t of copper and aluminum conductor to tier-1 transformer OEMs, motor repair shops and power-equipment engineers on five continents. Every coil that leaves our plant is cold-rolled on a 6-high 1450 mm reversing mill, vacuum-annealed in 100 % N₂ atmosphere, and finished with in-line eddy-current surface inspection. The result is strip that meets or exceeds IEC 60317-16, ASTM B272 and GB/T 5584.2—verified by third-party SGS / BV on every export shipment.

Process Node	Typical Western Supplier	Luoyang Xinzhaohe	Impact on Transformer Builder
Slit width tolerance	±0.05 mm	±0.002 mm	Eliminates hand sizing; 3 % lower copper loss
Burr height	≤0.03 mm	≤0.01 mm	No inter-layer short risk; 20 % shorter winding time
Conductivity (Cu-OFE)	≥100 % IACS	≥101 % IACS	1 % lower load loss, 1 °C cooler hotspot
Anneal softness	1/4 hard	Fully soft (HV 45–55)	15 % tighter bend radius, zero spring-back

2. Factory-Direct Pricing Without Western Overheads

Our integrated cold-rolling → precision slitting → edge conditioning → oscillate winding line is located 35 km from the Luoyang rail hub, giving us direct mill-to-container logistics with no trading house margin. Benchmarked against published European and North-American copper-strip quotes (Q2-2024), we deliver ** landed cost savings of 8–14 %** on equal technical specs—while holding 400 t of Cu-OFE stock ready for call-off within 7 days.

Order Volume (t)	Price Advantage vs. EU Mill	Price Advantage vs. NA Mill
1–5	–8 %	–10 %
5–20	–10 %	–12 %
20+	–12 %	–14 %

Prices converted to USD/lb on LME Cu cathode + fabrication; freight to main EU/NA ports included.

3. Customization Engineered to Your Winding Geometry

Whether you build 25 kVA pole mounts or 500 MVA GSU units, we slit from 5 mm to 1 250 mm width, 0.1 mm to 3.0 mm thickness, with oscillated coils up to 2 t (OD 1.6 m). Edge profiles include radiused (R 0.2 mm), full-round or dagger-shaped for layer-wind transitions. Every slit package is laser-marked with heat number, resistivity test result and barcode traceable to the original cathode cast.

Custom Option	Standard Range	Engineering Benefit
Oscillated coil	300–2 000 kg	30 % longer single-coil run, fewer splices
Differential edge conditioning	0.05–0.20 mm radius	Reduces inter-layer voltage stress by 5 %
Paper interleave	25–80 g/m²	Scratch-free payoff at 200 m/min
Squareness camber	≤0.5 mm / 1 m	Maintains ≤0.2 mm gap in rectangular coils

4. Quality & Compliance Documentation Delivered With Every Shipment

Mill test certificate: chemistry, tensile, conductivity, grain size
RoHS & REACH conformity statement
Conflict-minerals-free declaration (CMRT 6.31)
ICP-OES trace impurity report (O, P, S <3 ppm each)

5. Next Step—Request Your Technical Datasheet or Quote

Send your strip specification (width, thickness, edge, coil mass, annual volume) to cathy@transformerstrip.com. We will return a detailed datasheet with resistivity curve, packing drawing and landed price within 24 h. Sample coils (3–5 kg) available ex-stock for qualification windings—freight prepaid on active projects.

Luoyang Xinzhaohe Aluminum Co., Ltd.
No. 68 Xinkai Road, Yichuan County, Luoyang 471300, China
Tel: +86 379 8085 8866 | ISO 9001 / 14001 / 45001 certified

---
