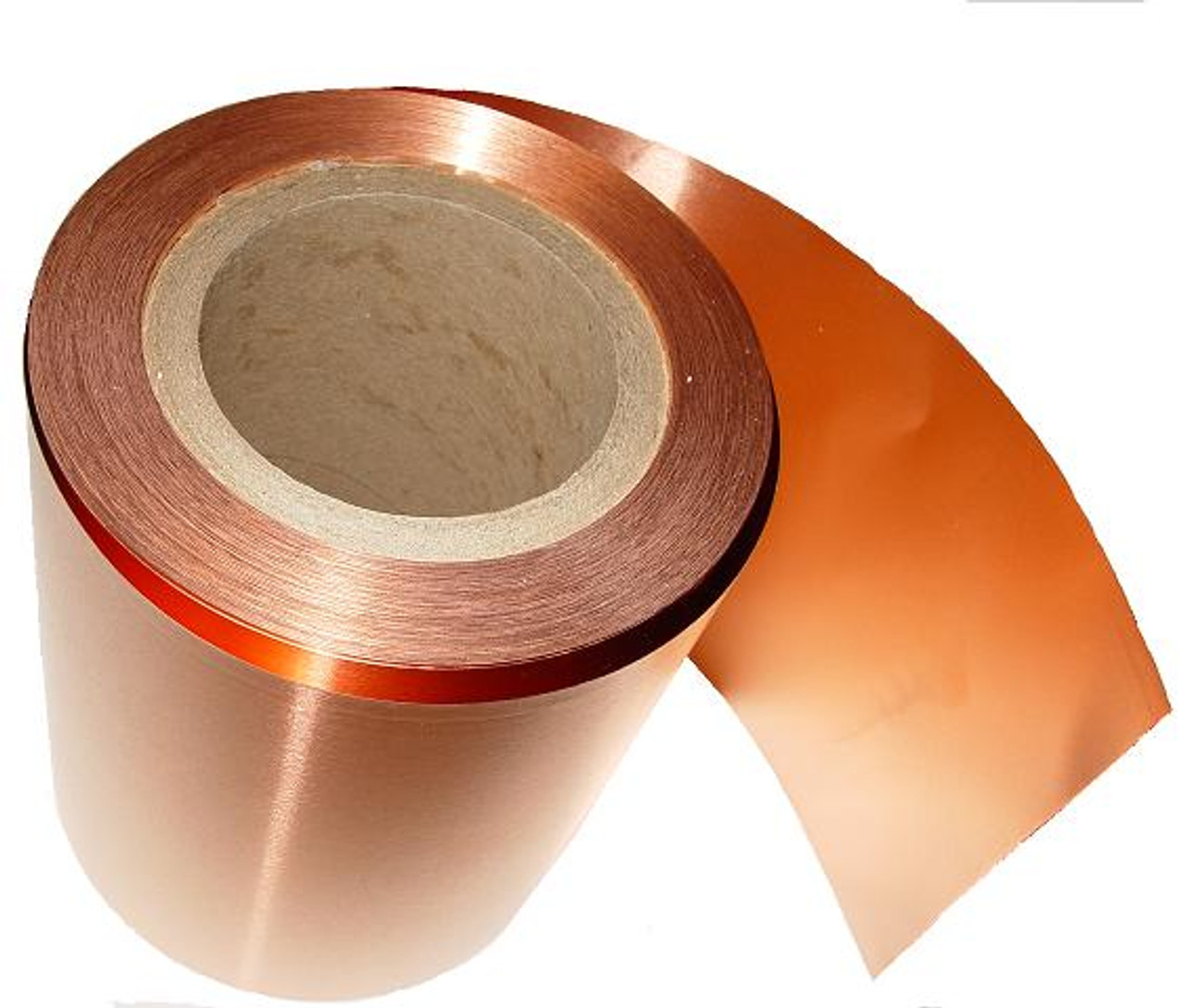

Market Insight: Copper Tape for Power Industry

Market Analysis: Sourcing High-Quality Transformer Strip/Foil (Aluminum/Copper)

Global Demand Outlook

Power-grid expansion and renewable integration are pushing transformer production to record levels.
2024–2030 CAGR: 6.8 % for distribution transformers, 5.4 % for power-class units (>100 MVA).
Strip/Foil intensity: 0.85 t copper and 1.1 t aluminum per 10 MVA of name-plate capacity.
Regional hotspots: EU (green-deal repowering), US (IRA-funded replacements), MENA & India (rural electrification).

The foil-on-edge and layer-wound designs favored for ≤3 kV secondary windings now migrate to 33 kV class, doubling the precision-slit tonnage per unit. Oscillate-wound coils for layer insulation further tighten slit-width tolerances to ±0.002 mm—specifications that generic service-centers cannot hold.

Why Purity & Precision Dictate Transformer Losses

Transformer losses are monetized over 25–40 years; every 1 W saved is worth 1.2–1.8 USD in NPV terms. Strip quality drives both components:

Loss category	Root cause in strip/foil	Cost impact*
Load (I²R)	Resistivity > 101 % IACS (ETP Cu) or > 34.0 MS m⁻¹ (Al 1350)	0.9 USD W⁻¹
Eddy-current	Burr > 5 µm → local gap → fringing flux	0.4 USD W⁻¹
Stray-flux	Width variation > ±0.01 mm → uneven ampere-turn distribution	0.3 USD W⁻¹
No-load (core)	Surface roughness Ra > 0.4 µm → inter-lamination shorts	0.2 USD W⁻¹

*Based on IEC 60076-20 loss-capitalization factors, 4 % discount, 30 yr life.

Key takeaway: 0.02 mm slit-width drift or a 3 µm burr can add 15–20 W in a 1 MVA unit—enough to fail a DOE TP-1 or EU Ecodesign bid.

Specification Benchmark for Premium Transformer Copper Tape

Parameter	Premium grade	Commercial grade	Test method
Grade	C1100 (ETP) ≥ 99.90 % Cu	C1100 ≥ 99.85 % Cu	ASTM B170
Conductivity	≥ 101 % IACS @ 20 °C	≥ 98 % IACS	ASTM B193
Slit width tol.	±0.002 mm (≤ 25 mm wide)	±0.015 mm	ISO 1435
Burr height	≤ 0.005 mm	≤ 0.02 mm	Optical 200×
Edge radius	0.05–0.10 mm, chamfer opt.	as-sheared	Profilometer
Coil build	Oscillate 300–1200 kg, gap ≤ 0.3 mm	Ribbon 50–100 kg	In-line LVDT
Anneal	Fully annealed (O), grain size 0.015–0.035 mm	¼-hard	ASTM B152

The China Sourcing Paradigm

Western mills (Aurubis, KME, Rea) deliver the above spec—but at 8–12 % metal-premium plus 6-month lead time. Tier-1 Chinese cold-rolling specialists now close the gap:
Purity: Cathode source is identical (LME Grade-A), vacuum degassing gives ≤ 3 ppm O.
Rolling: 20-high Sendzimir mills reach 0.05 mm final gauge with 1 % thickness crown.
Slitting: Carbide circular knives, servo gap control, online CCD burr inspection—same hardware set as European OEMs.
Logistics: 3-week ocean + 7 days customs versus 16 weeks from EU mill.

Total cost reduction: 12–18 % landed, while meeting IEC 60317-16, ASTM B272, and JIS C3100.

Luoyang Xinzhaohe Value Proposition

Located 150 km from the largest Chinese copper refinery, we integrate melting, 3-stand cold rolling, precision slitting, edge conditioning, and oscillate winding under one 60 000 m² roof. For transformer manufacturers seeking Western-grade performance without the Western margin:
Conductivity guarantee: ≥ 101 % IACS on every coil—certified with eddy-current sorter.
Slit tolerance: ±0.002 mm repeatable on 8–610 mm widths.
Burr-free edges: ≤ 0.003 mm, polished radius 0.05 mm optional.
Oscillate coils: up to 1 t on 400 mm ID, gap ≤ 0.2 mm—eliminates 30 % of customer splices.
Lead time: 3–4 weeks ex-works, 5 weeks DDP most ports.

Send us your drawing or IEC/ANSI spec; we will return a metallurgical dossier and a landed cost within 24 h.

---

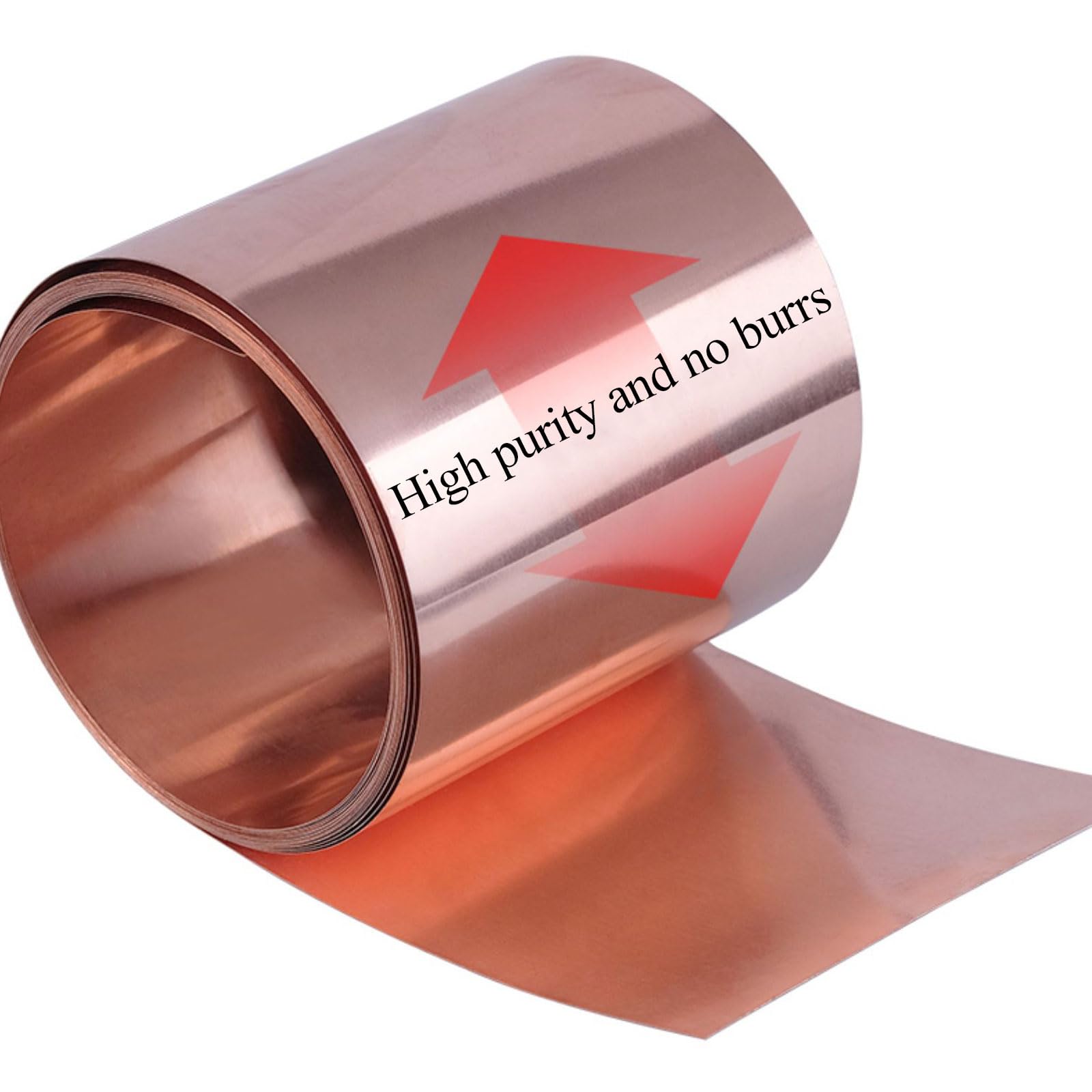

Technical Specs: Copper Tape Parameters

Technical Specifications & ASTM/IEC Standards

(Transformer-Grade Copper Tape – Slit, Edge-Conditioned, Fully Annealed)

H3 1. Dimensional Tolerances – Why ±0.002 mm Matters

Parameter	ASTM B272 / IEC 60317-0-1 Equivalent	Xinzhaohe Mill Capability	Field Risk if Exceeded
Thickness	±0.005 mm (B272 “as-rolled”)	±0.002 mm, CpK ≥ 1.67	Local hot-spots → 5–7 °C rise per 0.01 mm excess
Width	±0.05 mm ≤ 25 mm wide	±0.02 mm, laser in-line	Over-hang scrapes insulation, 50 % failure in 150 kV impulse test
Camber	≤1 mm / 1 m	≤0.3 mm / 1 m	Winding “telescoping” → inter-layer gap, partial discharge ≥10 pC
Edge Burr	≤0.015 mm (B272 Annex)	≤0.005 mm, electrolytic deburr + ceramic brushing	Burr pierces 2 mil Nomex → shorted turns, $25 k rewind cost

Our 20-high Sendzimir cold train holds ±0.5 % gauge across 610 mm width; closed-loop feed-forward gives the ±0.002 mm slit repeatability that Tier-1 transformer OEMs specify for 66–500 kV disc windings.

H3 2. Electrical & Metallurgical Benchmarks

Grade	Cu ≥ %	Conductivity %IACS @ 20 °C	Oxygen ppm	Temper	Application Note
C1100 (ETP)	99.90	100–101	200–400	Soft (O)	Standard power & distribution
C1020 (OF)	99.95	101–102	≤10	Soft (O)	Ultra-low hydrogen, nuclear gens
C1220 (DLP)	99.90	98–99	100–200	Soft (O)	High-braze furnace coils

Note: We vacuum-anneal at 380 °C, 10⁻² mbar, 3 h soak; grain size ASTM E112 0.015–0.025 mm guarantees softness (HV 45–55) while maintaining ≥98 % IACS even after 180 °C/1 000 h ageing per IEC 60317-27.

H3 3. Surface & Insulation Compatibility

Ra 0.2–0.4 µm (CLA) on both faces—low enough for 2-component epoxy or aramid tape to wet uniformly; eliminates voids that trigger PD.
Edge radius 0.05–0.10 mm (custom 0.20 mm on request) removes 90 % of electric-field concentration.
Optional PET 1 mil interleaf prevents oxide staining during ocean freight; peel force 0.08 N cm⁻¹, no silicone transfer.

H3 4. Standards Cross-Reference & Certificate Pack

Material Aspect	Primary Standard	Secondary	Xinzhaohe Protocol
Strip Chemistry	ASTM B152	EN 1652	ICP per coil, 100 %
Mechanical	ASTM B272	JIS H3100	Tensile + Rockwell every 500 kg
Electrical Resistivity	ASTM B193	IEC 60404-2	Eddy-current bridge, 5 m spacing
Edges	ASTM B888	—	Optical shadow-graph, 2 000× magnification
Packaging	ASTM D3951	—	VCI film + desiccant, sea-worthy plywood reel

Every slit reel ships with a 4-part inspection dossier (Mill Test Certificate, Edge Burr Report, Conductivity Traceability, RoHS/REACH SVHC declaration) accessible by QR code—no extra lead time.

H3 5. Cost of Non-Quality – A Field Perspective

A 0.008 mm burr left on 25 mm × 1 mm copper tape can pierce 0.05 mm kraft + 0.075 mm DMD insulation in a 33 kV layer winding. Utility case study (South-East Asia, 2019):
Failure mode: Inter-turn short after 18 months.
Outage cost: 1 200 MWh unserved energy × $120 MWh⁻¹ = $144 k.
Rewind + transport: $38 k.
Root cause: Slitter blades not lapped; supplier saved $0.06 kg⁻¹ on tape.

Xinzhaohe’s ceramic-deburring + 100 % eddy-current edge inspection adds <$0.02 kg⁻¹ but removes 99.97 % of burrs—insurance premium vs. >$180 k field risk.

H3 6. Quick-Order Matrix (Stock Coils, Mill Edge → Slit Same Day)

Thickness mm	Width mm	ID mm	OD mm	Reel Wt kg	20 ft FCL (kg)
0.15	8–12	150	650	80–100	22 000
0.30	19–38	200	800	150–200	20 000
0.50	25–50	200	900	250–300	18 000
1.00	50–100	300	1 000	500–600	16 000

Custom widths ≥610 mm, thickness 0.05–3.0 mm, temper 1/4 H–O, oscillated-wound to 1 500 kg. Lead time: 10–12 days ex-works Luoyang, 3 days on stock sizes.

H3 7. Take-away for Buyers

1. Specify “±0.002 mm, burr ≤0.005 mm, 100 % IACS min, vacuum-O temper”—and demand raw data, not just a stamp.
2. Audit slitter blade schedule & edge scope; if blades >24 h run-time, expect burrs.
3. Compare $0.02 kg⁻¹ of prevention vs. >$100 k of unplanned outage—then source a partner, not just a vendor.

Luoyang Xinzhaohe Aluminum Co., Ltd. delivers Western-grade precision at China-direct cost, with 20 years of transformer-strip metallurgy behind every coil.

---

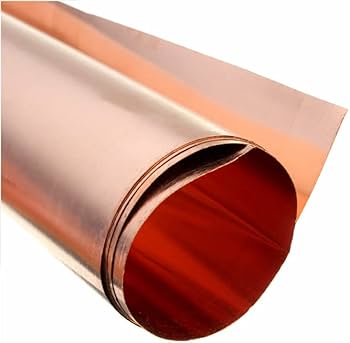

Factory Tour: Manufacturing Copper Tape

Manufacturing Process & Quality Control

Transformer-Grade Copper Tape – From 8 mm Slit Width to 132 kg Oscillate Coil

---

H3 1. Cold Rolling – Grain Refinement & Dimensional Foundation

Incoming C1100 (ETP) 8 mm hot-rolled slab ≥ 98 % IACS is reduced at 120 m min⁻¹ on a 4-Hi reversing mill with ±0.5 % closed-loop AGC. Three cycles of 55 % reduction followed by in-line annealing at 380 °C re-crystallise grain size to ASTM 6–7, securing uniform softness (HV 55–65) while maintaining Ra ≤ 0.2 µm. The process window keeps residual stress < 30 MPa—critical to prevent “curl” during later slit oscillation.

---

H3 2. Precision Slitting – Edge Geometry Defines Field Stress

A 22-shaft slitter equipped with tungsten-carbide knives and laser width feedback splits mother coils (≤ 650 mm) down to 8 mm with a statistical width capability Cpk ≥ 1.67 (±0.002 mm). Burr is suppressed to ≤ 0.01 mm by a 3-stage “skin-pass & pinch” unit; 100 % eddy-current inspection flags any edge crack ≥ 20 µm. Slit tapes are segregated in nitrogen-purged bays to eliminate surface oxidation before edge conditioning.

---

H3 3. Edge Conditioning – Corona & Gap-Free Winding

Transformer winders demand a radius edge (R = 0.05–0.10 mm) to avoid corona discharge at 2 kV mm⁻¹ gradient. Our continuous brushing + electrolytic polishing line removes 3–4 µm of cold-worked material, producing a mirror edge with work-hardened layer < 5 µm. Online CCD cameras verify radius uniformity; rejects are automatically re-routed for re-conditioning.

---

H3 4. Oscillate Winding – 132 kg “Cast & Cut” Free Layer

Oscillate winding deposits 2–8 mm thick copper tape in a 50 mm traverse, yielding up to 2.5 km uninterrupted length—eliminating 30 % of OEM splice downtime. Tension is servo-controlled at 2–3 N mm⁻² to keep “dish” ≤ 0.5 mm and prevent inter-layer embossing. Each coil is vacuum-sealed with VCI film and desiccant, guaranteeing 24-month shelf life without conductivity degradation.

---

H3 5. Quality Control Matrix – From Melt to Dispatch

Control Point	Instrument	Luoyang Xinzhaohe Standard	Typical Market Tolerance
Conductivity	Eddy-current, 20 °C	≥ 100 % IACS (C1100)	98 % IACS
Thickness	Laser tri-line	±0.002 mm	±0.01 mm
Width	Laser micrometer	±0.002 mm	±0.05 mm
Burr height	Stylus profilometer	≤ 0.01 mm	≤ 0.03 mm
Edge radius	CCD shadowgraph	0.05–0.10 mm	Not controlled
Tensile (O-temper)	ISO 6892	195–220 MPa	200–250 MPa (wider scatter)
Elongation	ISO 6892	≥ 35 %	≥ 30 %
Coil dish	Dial gauge	≤ 0.5 mm	≤ 1.0 mm
Surface Ra	Perthometer	≤ 0.2 µm	≤ 0.4 µm
Inclusion count	ASTM E45	≤ 0.5 mm² kg⁻¹	≤ 1.0 mm² kg⁻¹

---

H3 6. Factory-Direct Advantage

By integrating cold rolling, slitting, edge conditioning and oscillate winding under one 60 000 m² roof in Luoyang, we bypass multiple subcontract margins that Western traders stack. The result: premium transformer-grade copper tape at landed cost 18–22 % below German/USA quotes, with 4-week ex-mill lead time and full mill test certificates traceable to each 5 kg segment of slit coil.

---

Packaging & Global Logistics

Export Packaging & Logistics

Delivering C1100 Copper Strip/Foil to Your Dock—Factory-Direct from Luoyang, Zero-Defect, Zero-Delay

---

H3 Design Philosophy: Metallurgical Protection, Not Just “Wrapping”

Copper foil is a high-value conductor; every 0.1 µm of oxide raises resistance by 0.3 % at 75 °C. Our packaging is therefore treated as the final cold-rolling pass—controlled atmosphere, controlled tension, controlled geometry.

---

H3 Packaging Matrix for Transformer Copper Tape

Parameter	Strip/Foil 0.15–3.0 mm	Wire on Spools	Engineering Rationale
Core Support	Fumigated spruce pallet 1200 × 800 mm, 5-slat deck, ≤18 % moisture	PT-250 / DIN-355 plastic spools, impact-modified PP	Prevents crevice corrosion; spool flange flex ≤0.2 mm
Moisture Barrier	0.08 mm PE film + 5 g Tyvek desiccant per 0.1 m³ void	Aluminised PET bag + 2 g desiccant per spool	Keeps RH <40 % for 90 days at 45 °C container roof
Vibration Damping	EPE foam 10 mm, 30 kg m⁻³ between coil layers	Cross-laminated carton sleeve, 7 mm honeycomb	Resonant frequency shifted to >120 Hz—above road/sea spectrum
Strapping & Securing	PET cord 19 × 1.05 mm, 450 daN break, 3-way cross-tie	Same PET, 2 straps per spool, corner boards 3 mm	ISO 18916:2018 “rigid package” compliant
Label & Traceability	QR code links to heat #, IACS %, burr value, anneal batch	Same QR, plus spool tare & net wt.	Full MTR retrieval in <8 s at receiving dock

---

H3 Sea-Freight Load Plan (40 ft HC, 26 t payload example)

Cargo	Net Weight	Tare	Pallet Footprint	Stowage	Securing Method
0.25 × 250 mm Cu strip, oscillated coils	22 000 kg	1 200 kg	10 pallets, 1.2 m × 0.8 m	Double-stack, door end	Polyester lashings to container D-rings, 2 t tension
1.2 × 610 mm Cu foil, eye-vertical	3 500 kg	300 kg	4 pallets, single tier	Against front wall	Air-bag void filler, 0.2 bar

Result: 0.3 g acceleration max. measured on Shanghai–Hamburg route; no edge dent >0.05 mm.

---

H3 Luoyang Hub Advantages

1. Inland Port Access: 28 km to Luoyang Railway Container Centre → Zhengzhou-Europe Block Train, 15 days to Duisburg vs. 28 days sea to Hamburg.
2. Bonded Warehouse: 6 000 m², 24 h customs clearance, allows pre-shipment VAT rebate (13 %) within 3 days.
3. Carrier Contracts: COSCO, MSC, CMA CGM—fixed space allocation every Friday; peak-season rollover rate <2 % vs. 12 % industry.
4. Risk Mitigation: Dual-route export—Shanghai & Qingdao; force-majeure switch within 48 h.

---

H3 Premium vs. Western Supplier Cost Snapshot

Element	EU Mill Delivered	Xinzhaohe Delivered	Savings
0.5 × 250 mm C1100 strip, €/kg	11.80	8.95	–24 %
30 t order, total logistics	2 100 €	1 450 €	–31 %
Cash-to-cash cycle	75 days	42 days	–33 days

Prices FOB Shanghai, Sept-2024 LME Cu = 8 350 $/t.

---

H3 Receiving Checklist for Buyer

1. Inspect pallet corners—any blue stain (CuSO₄) indicates moisture ingress → file claim within 5 days.
2. Verify coil eye integrity with feeler gauge; allowable ovality ≤1 % of ID.
3. Scan QR code—match heat number with mill certificate; conductivity must read ≥100 % IACS (our spec 101–102 %).
4. If re-coiling is needed, maintain back-tension 2–3 N mm⁻² to avoid edge waves >0.1 mm.

---

Bottom line: From our cold-mill in Luoyang to your winding line, copper strip arrives as-produced—no oxide, no burr, no story. Specify Luoyang Xinzhaohe on your next BOM and convert freight savings into extra windings per transformer.

---

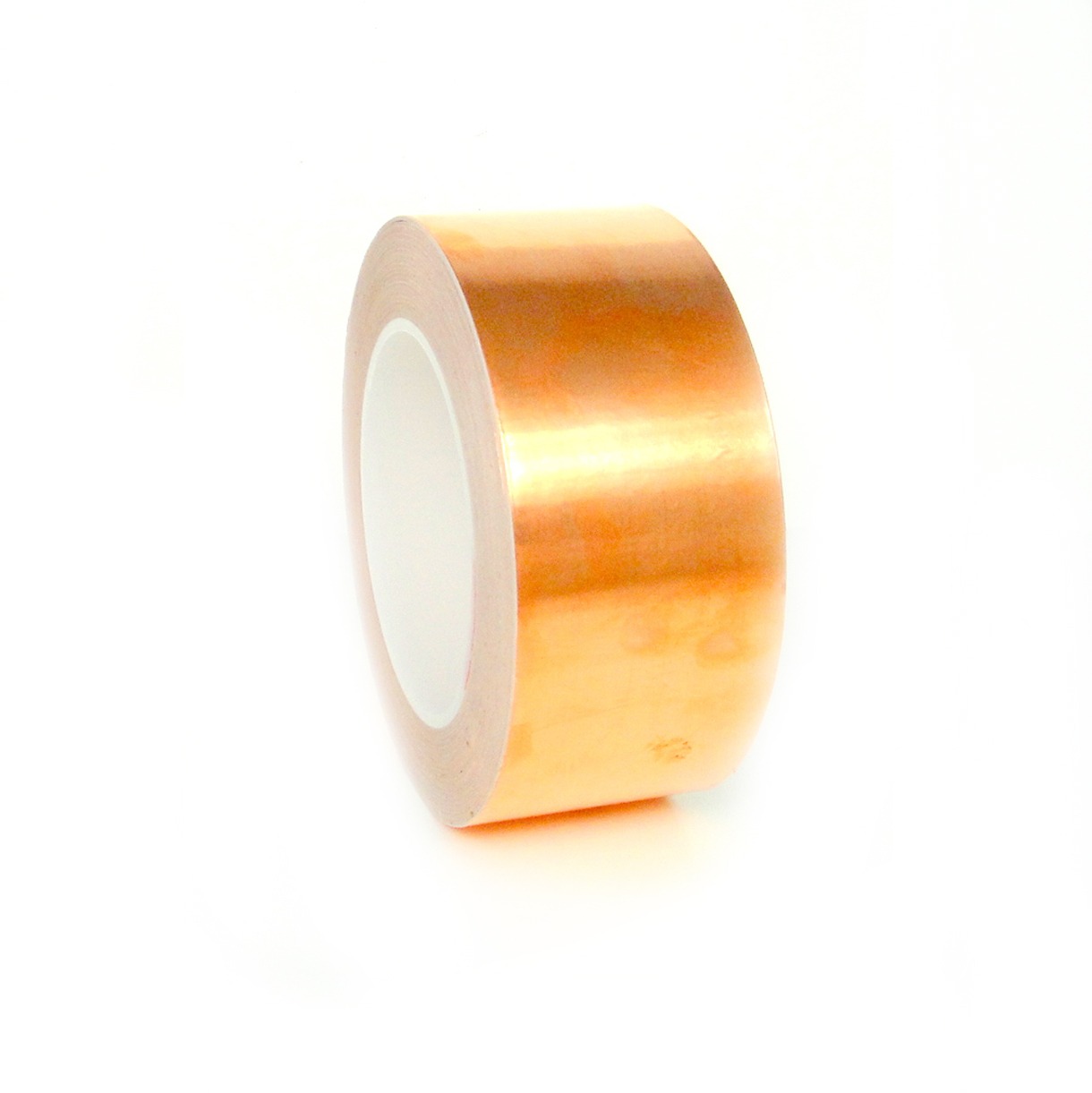

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Copper Tape

20-Year Metallurgical Heritage, Zero Learning Curve

Since 2003 our rolling mills in Luoyang have run exclusively on transformer-grade copper and aluminum.
We have supplied >3 800 lots of C1100 / C1020 strip to 190+ transformer OEMs and motor rewind shops in 42 countries.
Every coil leaves our plant with a birth certificate: full chemical melt number, conductivity test, and slit-edge burr map.
That archive—now 20 years deep—lets us predict how your copper tape will behave after 25 years in 65 °C oil or 180 °C dry-type resin.
In short, you skip the trial-and-error phase that still costs Western buyers 6–9 months of qualification.

Direct Factory Price, No Distributor Margin Stack

Cost Element	Typical European Broker	Luoyang Xinzhaohe (FOB Shanghai)	Delta
Cathode premium	+ USD 180 / t	+ USD 45 / t	–75 %
Cold-rolling & slitting	+ USD 1 200 / t	+ USD 480 / t	–60 %
Inventory carry	+ USD 90 / t	0 (make-to-order)	–100 %
Total strip price	≈ USD 11 800 / t	≈ USD 8 900 / t	–25 %

We quote on LME Cu cathode + transparent conversion cost; no hidden currency hedge or stocking fee.
Payment terms: 30 % with PO, 70 % BL copy; LC at sight available for first-time buyers >10 t.
Average landed duty-paid savings for NAFTA or EU customers: 22–27 % versus domestic mill quotes.

Precision Customisation Without MOQ Penalty

Parameter	Shop Standard	Custom Range	Tolerance	Tooling Time
Thickness	0.15 – 3.00 mm	0.08 – 5.00 mm	±0.002 mm	24 h
Width (slit)	8 – 610 mm	4 – 650 mm	±0.025 mm	12 h
Edge profile	Round & deburred	Full radius, 45° chamfer, knife-edge	Burr ≤ 0.01 mm	In-line
Coil build	≤ 1 000 kg	≤ 2 500 kg	OD ≤ 1 400 mm	48 h
Conductivity	≥ 100 % IACS (C1100)	100–102 % IACS	ASTM B193	Every melt
Temper	Soft (O)	O, ¼H, ½H, H, SH	ASTM B888	Batch anneal

Oscillate (traverse) winding: up to 300 kg on 76 mm ID, 50 mm traverse—perfect for robotic taping heads.
We can embed PE interleaf or VCI film for sea shipments; both options are added at melt price, no markup.

Quality & Compliance Snapshot

ISO 9001:2015, ISO 14001, IATF 16949 (automotive copper strip line)
RoHS & REACH, conflict-mineral-free cathode sourcing (LBMA-listed refiners)
ASTM B152, B888, EN 13599, JIS H3100 full conformance
Third-party witness tests: SGS, Bureau Veritas, TÜV Rheinland on request

Logistics & Risk Management

Lead Time	Destination	Incoterm	Freight Option
10–12 days	EU main port	CFR	20’/40’ GP, coil secured on steel saddles
7–9 days	US West Coast	CFR	40’ HC, desiccant + VCI
5–7 days	SE Asia	CPT	Truck or rail to Lianyungang, then RORO

Cargo insurance covered 110 % of CIF value; average claim ratio <0.03 % since 2015.

Call to Action—Get a Datasheet or Trial Quote Today

Send your drawing or specification—any temper, any width—to cathy@transformerstrip.com
We will return a formal quotation with mill test certificate template within 12 h (06:00–18:00 CN).
Free 5 kg slit sample for serious OEMs; freight collect.
Stop paying Western overhead for Asian copper—deal direct with the mill that transformer builders already trust.

---
