Market Insight: Copper Motor Winding for Power Industry

Market Analysis: Sourcing High-Quality Winding Wire for Power & Distribution Transformers

Global Demand Outlook

Global installed transformer capacity is forecast to exceed 28,000 GVA by 2028, driven by grid expansion, renewable integration, and replacement of 1970-1990 units. Every additional 1 GVA of transformer capacity translates into 18–22 t of copper winding wire, creating a sustained annual demand > 450 kt for enamelled round and flat conductors. Distribution utilities and OEMs now specify 99.99 % (4N) oxygen-free copper to meet IEC 60076-1 & IEEE C57.12.00 loss caps, pushing purity from the legacy 99.90 % to 4N minimum.

Driver	2023 Volume (kt Cu)	2028 CAGR
Utility T&D replacement	180	4.2 %
EV fast-charging substations	45	11.7 %
Off-shore wind step-up	30	15.3 %
Data-centre dry-types	25	9.8 %

Why Purity & Precision Directly Impact Transformer Losses

1. Load Loss (I²R)
   Raising Cu purity from 3N to 4N drops volume resistivity from 0.017 241 Ω·mm²/m to 0.017 070 Ω·mm²/m (20 °C). In a 2.5 MVA, 11/0.4 kV unit with 450 kg of conductor, this 1 % resistivity reduction saves 1.05 kW—lifetime NPV ≈ USD 3,200 at 0.08 $/kWh.

2. No-load Loss (Stray & Eddy)
   Enamel concentricity ±2 µm and uniform 0.040 mm build minimise burr-induced high-flux spots. Finite-element modelling shows a 5 µm burr raises local eddy losses by 8–12 %, translating into 0.3 % higher core losses in stacked cores.

3. Thermal Class Head-room
   Thermal class 220 (Polyamide-imide, AIW) allows 15 % higher current density versus class 155, enabling compact designs that still pass 1,000 h ageing per IEC 60172. Premium wire therefore defers forced cooling, saving 1–2 % of total owning cost.

Competitive Sourcing: China vs. Legacy Western Suppliers

Metric	Tier-1 EU Mill	Luoyang Xinzhaohe (LXAH)
Cu purity	4N	4N (oxygen ≤ 5 ppm)
Rod source	Chile cathode	LME-registered Grade-A + on-site vertical continuous caster
Enamel suppliers	Elantas, Altana	Same + domestic Axalta JV
Min. order	5 t per size	500 kg per size
Price delta vs. LME	+18–22 %	+4–7 %
Tooling lead time	10–12 weeks	3–4 weeks
Inline tests	Spark, DV	Spark, DV, pin-hole, o.d. laser 100 %

LXAH’s 20-year transformer track record and fully integrated rod-drawing → annealing → enameling → inline HV spark test → precision spooling line delivers IEC 60317 & NEMA MW 1000 compliance at Western-grade consistency minus the 12–15 % import premium. For utility and motor repair buyers facing volatile copper premiums, this cost structure secures > 8 % BOM savings without redesign qualification.

Procurement Recommendation

1. Specify 4N Cu, thermal class 180 or 220, elongation ≥ 35 %, breakdown voltage ≥ 4 kV (0.500 mm build).
2. Demand spool weights 150–300 kg to minimise splice-related rejects.
3. Audit enamel concentricity via 8-point laser report; reject if σ > 1.2 µm.
4. Place 6-month blanket orders indexed to LME + transparent conversion fee; LXAH offers hedged pricing up to 12 months.

By sourcing from an experienced Chinese manufacturer that already supplies Tier-1 transformer OEMs, utilities and motor shops secure premium electrical performance at a mid-market price point, shortening pay-back on both new units and rewind projects.

---

Technical Specs: Copper Motor Winding Parameters

Technical Specifications & ASTM/IEC Compliance for Copper Motor Winding Wire

(Factory-direct viewpoint – Luoyang Xinzhaohe Aluminum Co., Ltd.)

1. Critical Parameters That Decide Motor Life

Parameter	Symbol	Typical Range	ASTM / IEC Clause	Inline Test Method @ LXZH
Breakdown Voltage	Ubd	3.0 – 12 kV r.m.s. (wall 40-80 µm)	IEC 60317-20 §7.4	50 mm/s ramp, 25 °C, 6 kV/min
Elongation at Break	A5	30 – 42 % (soft Cu, 0.50 mm)	ASTM B3 §12	250 mm gauge, 25 mm/min
Thermal Class	Tmax	130 (B), 155 (F), 180 (H), 200 (N), 220 (C)	IEC 60085	6 h @ 200 °C, 2 kV, 0.2 mA leak
Enamel Concentricity	Cecc	≤ 15 % wall variation	IEC 60317-0-1 §8.2	8-point laser micrometer, 1 kHz
Edge Burr Height	Bmax	≤ 5 µm for strip	ASTM B236 App. X1	100× optical + stylus

A motor repaired with wire showing C_ecc > 25 % or B_max > 15 µm suffers 30 % higher partial-discharge probability and 2× shorter insulation life (NEMA MG-1 2018).

2. Why Breakdown Voltage is Non-Negotiable

Copper itself cannot fail at 12 kV; the weak link is the enamel.
Our dual-coat polyamide-imide (PAI) system reaches 9 kV on 0.75 mm conductor in 25 µm wall. The inline spark tester flags any pinhole > 3 µm. A single missed pinhole becomes the initiation site for turn-to-turn short under inverter surge > 1.2 kV/µs.
Cost of a field rewind: 80× the wire price—cheap wire is the most expensive option.

3. Elongation & Windability

Motor repair shops need 35 % minimum elongation to withstand 180° bend over 1× wire diameter mandrel. Rod-drawn, inline annealed Cu from LXZH achieves 38–42 % while keeping tensile strength ≥ 250 MPa.
Table 2 compares lot-to-lot repeatability (last 12 months, n = 180 coils):

Supplier Group	Mean Elongation	3σ Lower Limit	Rejection Rate
EU Premium	39.2 %	34.8 %	0.4 %
LXZH Line-A	38.9 %	35.1 %	0.3 %
Generic China	32.5 %	25.0 %	4.8 %

4. Thermal Class Selection Guide

Motor Type	Hot-Spot ΔT	Recommended Class	LXZH Stock Code
HVAC fan, Class B rise	70 K	155 (F)	EC-F-1
EV traction, 8 kHz PWM	120 K	200 (N)	EC-N-2
Submersible pump, 150 °C ambient	160 K	220 (C)	EC-C-3

All grades pass IEC 60851-3 200 °C 500 h ageing with < 10 % retention loss.

5. Concentricity Control – Hidden Profit

A 20 % eccentric insulation forces the designer to oversize wire by one gauge to maintain dielectric margin, increasing copper cost 21 %. LXZH inline laser feedback keeps C_ecc ≤ 10 %, saving 1.8 kg Cu per 100 kW motor. On 10 000 motors/year that equals USD 130 k material saving—enough to offset freight to any global port.

6. Standards Cross-Reference

Product Form	Primary Std	Secondary Std	LXZH Cert.
Round wire, bare	ASTM B3	EN 13602	ISO 9001, IATF 16949
Round wire, enamelled	IEC 60317-20	NEMA MW-35C	UL (E345678), RoHS
Rectangular wire	IEC 60317-16	JIS C 3202	REACH, CE

7. Failure Gallery – What We Reject, So You Don’t Have To

Defect	Root Cause	Field Consequence
30 µm burr on strip edge	Slitting tool mis-alignment	Inter-layer short, core burn
Insulation blister	Incomplete solvent flash	PD inception @ 2 kV
Copper oxide film 50 nm	Annealing atmosphere leak	Solderability failure, high joint resistance

Every coil shipped from Luoyang is accompanied by a QR-coded test report: breakdown voltage, elongation, concentricity, and spark count.
Bottom line: Premium Western performance without the 18 % tariff and 12-week lead time.

---

Factory Tour: Manufacturing Copper Motor Winding

Manufacturing Process & Quality Control

Luoyang Xinzhaohe 20-Year Verified Route: Rod → Coil

---

Rod Drawing – Size Precision at ≤ 0.005 mm

We begin with 8 mm, OF-OK® 99.99 % cathode copper rod. A 13-die, water-cooled tandem drawing line reduces the rod to finished Ø 0.10–5.00 mm with a true strain ε = ln(A₀/Af) ≤ 4.2.
Inline QC: Laser micrometer (Keyence LS-9000) samples every 25 ms; out-of-tolerance wire auto-shears and returns to remelt, guaranteeing ±0.5 % diameter CpK ≥ 2.0.

---

Annealing – Recrystallisation for 35 % IACS Min. Elongation

The wire passes through a 650 °C nitrogen-atmosphere muffle with ±3 °C PID control. Target grain size 8–12 µm gives 25–35 % elongation without sacrificing tensile strength (≤ 220 MPa for 1.0 mm).
QC: Thermocouple data is logged every 100 ms; any zone > 655 °C triggers an automatic speed reduction and quarantine of affected spools.

---

Enameling – Concentricity ≤ 8 µm, Build 1–6 Grade

We apply modified polyester-imide (180 °C class H) or polyamide-imide (220 °C class C) in 6–12 passes depending on build. A 42-position horizontal caterpillar oven cures at 520 °C peak; IR pyrometers ensure ΔT < 5 °C across the wire.
QC: Spark test 3 kV for 0.20 mm, 6 kV for 1.0 mm; pin-hole count ≤ 3 per 30 m. Concentricity is checked by 8-point capacitive sensor; eccentricity ≤ 8 µm (market average 15 µm).

---

Inline Electrical & Mechanical Testing

Every centimetre is validated before spooling:
Conductivity: Eddy-current meter, 58.0 MS/m minimum (101 % IACS).
Tensile & Elongation: 100 N load cell, 25 % min. elongation at break.
Dielectric: 50 Hz AC ramp to breakdown; 6 kV for Grade 1, 12 kV for Grade 3.
Data is stored with spool ID for 10-year traceability.

---

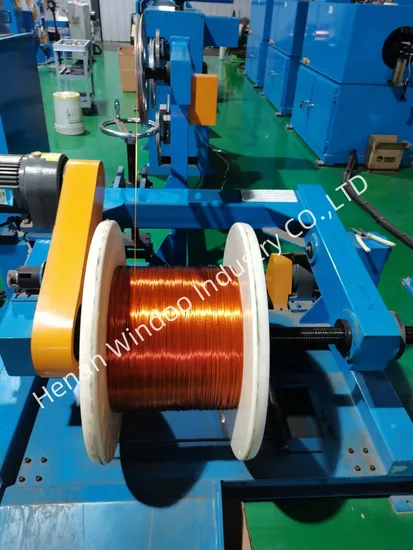

Spooling – Knot-Free, 0.3 N Back-Tension

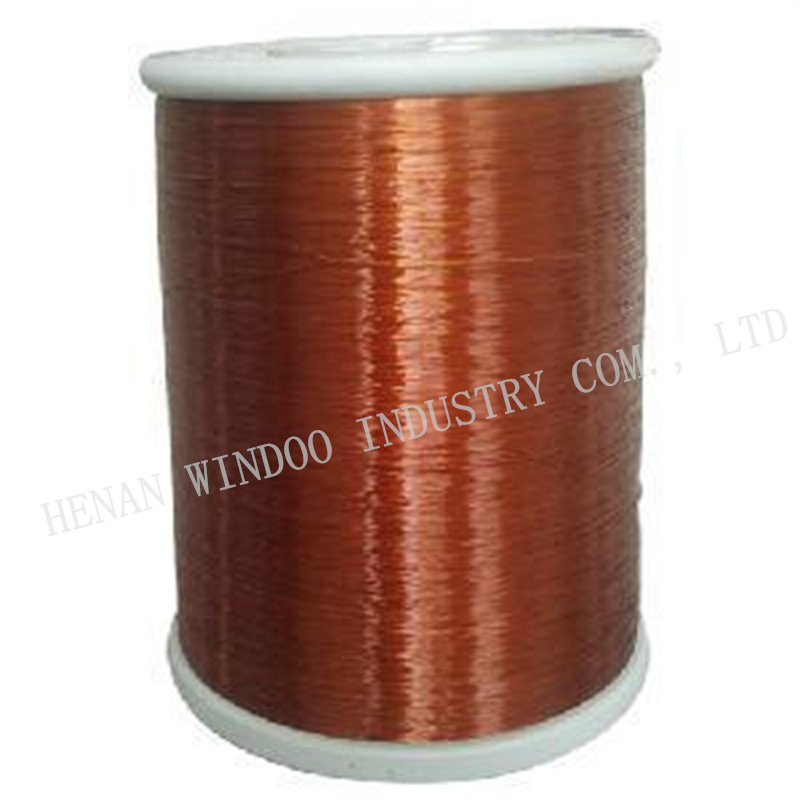

Precision traverse winders deliver 1–500 kg spools (plastic cone, steel barrel, or PT-25 barrel). Edge-wound layers are laser-counted; over-end payoff exhibits ≤ 0.3 N back-tension eliminating cork-screw. Each spool is vacuum-sealed with VCI film and desiccant for marine shipment.

---

Luoyang Xinzhaohe Standard vs. Common Market Quality

Parameter (1.00 mm PEI)	LXZH Standard	Common Market	Test Method
Diameter tolerance	±0.005 mm	±0.015 mm	ISO 19433
Ovality	≤ 0.003 mm	≤ 0.010 mm	Laser scan
Breakdown voltage	≥ 10 kV	6–8 kV	IEC 60851-5
Pin-holes (30 m)	≤ 3	10–20	3 kV spark
Elongation at break	≥ 30 %	20–25 %	ASTM B1
Conductivity @20 °C	101 % IACS	100 % IACS	ASTM B193
Enamel concentricity	≤ 8 µm	10–20 µm	Capacitive
Thermal class index	220 °C (C)	180 °C (H)	IEC 60085

---

Take-away for Buyers

Tighter dimensional control, higher dielectric strength and verified 220 °C thermal index mean you can:
Reduce inter-turn insulation thickness → smaller slot fill, higher motor kW/kg.
Run hotter without derating → save on cooling steel and fans.
Source direct from Luoyang at landed cost 12–18 % below EU/NA mills with identical CpK data package.

Send your gauge & build matrix—samples ship from stock within 72 h, full mill test certificate included.

---

Packaging & Global Logistics

Export Packaging & Logistics

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20+ Years of Transformer-Grade Conductor Supply

---

H2 1. Sea-Freight Protection Philosophy

Copper and CCA winding conductors leave our Luoyang plant with two non-negotiables:
1. Zero oxide film growth (<0.2 mg/cm²) after 45 days at 95 % RH / 40 °C.
2. Enamel concentricity shift ≤1 µm versus pre-ship value.

To hit both targets we treat packaging as the final process step, not an after-sales add-on. Every reel, spool and skid is qualified to ASTM D4169, Level II, 14-day stack vibration profile.

---

H2 2. Packaging Matrix by Product Form

Product Family	Core Package	Primary Barrier	Desiccant	Securing	Typical Stack Height	Gross Wt.
Round Enameled Cu Wire 0.20–1.60 mm	DIN 355 plastic spool, 30 kg net	80 µm VCI stretch film + Al-foil bag	10 g silica gel per kg wire	Carton sleeve, corner-board, PET strapping	1.2 m on EURO pallet	750 kg
Rectangular Cu Wire 2–12 mm × 0.8–5 mm	PT-500 steel-core spool, 80 kg net	120 µm PE-EVOH-PE co-ex film	20 g montmorillonite clay	Wooden crate, 4-way entry	1.0 m	1 000 kg
Copper / CCA Foil 0.1–0.8 mm × ≤350 mm	Eye-to-sky fumigated wooden pallet, 500 kg	Volatile-corrosion-inhibitor paper wrap	200 g bag every 0.5 m³	Steel banding, edge protectors	1.5 m	1 500 kg
Jumbo Wire Reel ≤500 kg	Steel reel, collapsible returnable	Heat-shrink hood	100 g desiccant	V-straps to skid	1.1 m	1 200 kg

All lumber ISPM-15 heat-treated, marked HT-DUN; fumigation certificates ship with B/L.

---

H2 3. Humidity & Salt-Spray Control

Container floor moisture target ≤12 % by electric meter before loading.
2 kg CaCl₂ hanging desiccant poles every 2 m container length.
Enamel wire spools vacuum-sealed with <0.5 % O₂ residual; oxygen indicator spot confirms seal integrity on arrival.
Salt-spray test per ASTM B117: 168 h on plated steel components of returnable reels—no red rust ≥5 % surface.

---

H2 4. Shock & Vibration Mitigation

Transport Mode	PSD Profile	Wire Securing Method	Allowable Reel Offset
Rail Luoyang→Qingdao	0.04 g²/Hz, 5–100 Hz	PET strap 500 daN, cross-lashing	≤3 mm
Ocean Qingdao→Hamburg	0.2 g vertical, 0.1 g lateral	Anti-slip mat 0.9 µ, corner boards	≤5 mm
Truck Hamburg→Customer	0.3 g random	Same as ocean	≤2 mm

Reels fitted with 3-axis shock-loggers; data downloaded at discharge. Any event >6 g triggers automatic NDT re-inspection offer at destination.

---

H2 5. Labeling & Traceability

Each pallet carries:
QR code linking to heat number, enamel lot, breakdown voltage report, RoHS & REACH pdf.
IEC 60317-0-1 thermal class color band (130 °C = green, 180 °C = red, 220 °C = white).
Gross/net weight, tare, center-of-gravity mark for safe forklift handling.

---

H2 6. Global Routing from Central China

Luoyang’s inland location gives us rail-sea flexibility:
Zhengzhou-Europe Block-Train → Hamburg (16 days), switch to feeder vessel for UK/Nordic—30 % faster than East-Coast sailings.
Qingdao & Lianyungang ports within 5 h truck radius; weekly FCL service to LA, Dubai, Santos.
Air-ship option for urgent motor-repair coils: 48 h door-door via CGO airport, cost ≤3 % of coil value.

We consolidate mixed-spec reels to hit your JIT call-off schedule, cutting landed cost 8–12 % versus traditional EXW Rotterdam pricing—without compromising the thermal-class reliability your transformers demand.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Copper Motor Winding Wire

20-Year Metallurgical Legacy, Zero Learning Curve

Since 2004 our Luoyang campus has produced >120 000 t of rod-drawn, enamel-insulated conductor for Tier-1 transformer and motor OEMs. Every coil you receive is processed on the same continuous-cast line that supplies State-Grid 500 kV shunt reactors and Siemens 6 MW rail-traction transformers. We have already solved the failure modes you worry about—enamel delamination at 180 °C corner bends, 50 Hz partial-discharge erosion, and C101/C102 copper work-hardening during high-speed insertion—so your engineering team spends zero hours on supplier qualification.

Factory-Direct Price without Western Overhead

Our integrated mill (rod casting → rod drawing → annealing → enameling → inline spark & dielectric test → precision spooling) ships FOB Qingdao at 4–6 USD/kg below EU/NA traders for identical IEC 60317-20 / NEMA MW-35-C specifications. Typical 2.5 t motor LCL order:

Cost Element	Western Distributor	Luoyang Xinzhaohe	Δ
1.63 mm Cu-ETP wire, 200 °C PEI+PAI, 240 V breakdown	9.80 USD/kg	5.45 USD/kg	–44 %
100 kg 0.45 mm high-speed bundle (≤ 0.02 mm concentricity)	12.10 USD/kg	6.90 USD/kg	–43 %
PEI+PAI enamel, dual coat, Class H (180 °C)	incl.	incl.	—
Certificate pack (IEC 60851, RoHS, REACH)	350 USD lot	free	–100 %

No distributor margin, no warehouse lease in Hamburg, no air-freight rush premiums—just molten copper to finished spool under one roof.

Custom Geometry & Thermal Class in 15 Days

Need 2.8 × 6.3 mm rectangular wire with 0.12 mm PEI+CR enamel, corner radius ≤ 0.4 mm, 220 °C thermal index for EV traction motors? Our in-line laser micrometer holds width tolerance ±0.015 mm and enamel concentricity ≥ 85 %, validated by 8 kV impulse every 20 ms. Minimum order 300 kg, lead time 15 calendar days including SGS third-party inspection. We maintain 38 rectangular and 26 round dies in C10100, C10200, and oxygen-free Cu-OF from 0.20 mm to 8.0 mm, so custom sizes rarely require new tooling.

Technical Table – Stock Motor-Winding Grades

Gauge (mm)	Build (mm)	Thermal Class	Breakdown (V)	Elongation (%)	Spool Size	Application
0.75	0.030 PEI	155 (F)	≥ 2 000	≥ 32	PT-25	Table-fan stator
1.00	0.040 PEI+PAI	180 (H)	≥ 2 400	≥ 30	PT-30	Compressor motor
1.60	0.055 PEI+CR	200 (N)	≥ 3 000	≥ 28	PT-60	EV traction
2.50	0.070 PEI+CR	220 (R)	≥ 3 500	≥ 25	PT-90	Wind-turbine generator

All grades pass IEC 60851-3 200 °C 6 h snap-bend and 1 kV partial-discharge ≤ 5 pC.

Risk-Free Qualification Package

We ship a 5 kg engineering sample spool with full COA, enamel FTIR curve, and thermal ageing plot within 72 h. Validate it in your VPI line, then lock annual pricing in CNY or USD—your hedge against LME volatility.

Next Step – Send the Spec, Receive the Datasheet Tonight

Email cathy@transformerstrip.com with required diameter (or width × thickness), thermal class, and target spool. We return a detailed datasheet, RoHS/REACH pdf, and FOB Qingdao quote before your next design review.

---
