Market Insight: Copper Material for Power Industry

Market Analysis: Sourcing High-Quality Transformer Strip/Foil (Aluminum/Copper)

Global Demand Outlook

The installed base of distribution and small power transformers is expanding at 5–6 % CAGR, driven by grid modernization, EV fast-charging corridors, and data-center substations. Every additional 1 MVA of transformer capacity consumes 0.9–1.2 t of copper conductor foil and 0.4–0.6 t of aluminum foil. Consequently, the 2024–2028 foil/strip market is projected to exceed 2.3 Mt globally, with copper grades capturing ≈55 % of the tonnage but >70 % of the value because of higher conductivity and tighter tolerances.

Region	2024 Demand (kt)	2028 Forecast (kt)	Copper Share (%)	Key Driver
Asia-Pacific	680	890	58	China & India rural electrification
Europe	310	370	52	Green-deal grid reinforcement
North America	290	340	60	Aging asset replacement
Rest of World	220	280	50	Mining & oil-field electrification

Why Purity & Precision Translate into kWh Savings

Transformer losses are monetized over 25–30 years; a 0.1 W/kg reduction in no-load loss is worth ≈3 USD per kVA at today’s energy prices. Strip/foil contributes in two ways:

1. Electrical Conductivity
   Electrolytic Tough-Pitch (ETP) copper ≥100 % IACS or 1350 aluminum ≥61 % IACS lowers I²R load loss. A 1 % IACS drop raises conductor loss by 0.9–1.1 %.

2. Geometric Accuracy
   Burrs >0.01 mm pierce inter-layer insulation, creating partial discharge sites that escalate into dielectric failure. Width tolerance >±0.05 mm forces over-stacking, increasing eddy-current loss in the core. Precision-slit, burr-free edges (≤0.002 mm burr, ±0.002 mm width) can cut total owning cost by 0.3–0.5 %—enough to justify a 2–3 % material price premium.

Parameter	Utility Spec	Luoyang Xinzhaohe Capability	Impact on Loss
Conductivity (Cu)	≥100 % IACS	100.5–101 % IACS	↓Load loss 0.2 %
Burr height	≤0.01 mm	≤0.002 mm	↓PD inception voltage 15 %
Width tolerance	±0.05 mm	±0.002 mm	↓Core over-build 1 %
Surface roughness, Ra	≤0.4 µm	0.2–0.3 µm	↓Inter-layer air gap 30 %

Cost-Performance Equation: China vs. Western Suppliers

Western mills deliver premium foil at 8.2–9.5 USD/kg (Cu, CIF Rotterdam) but require 14–18 week lead times and impose 5 t minimum lots. Chinese integrated producers—leveraging continuous casting, in-house cold rolling, and automated slitting—can ship at 6.5–7.2 USD/kg with 6–8 week lead times and 1 t minimums. The key is to partner with plants that possess 20-year transformer-grade pedigree rather than generic metal traders.

Luoyang Xinzhaohe’s 20-year track record in transformer materials, 120 kt/yr cold-rolling capacity, and ISO 9001/IATF 16949 dual certification positions it as a premium alternative to high-cost Western supply, without the compliance risks associated with low-end brokers. Our foil is already qualified in 33 kV distribution transformers running in EU and North-American utilities, proving that “Made in China” can equal—or outperform—legacy suppliers on conductivity, edge quality, and total cost of ownership.

Sourcing Recommendation

For OEMs facing copper price volatility and energy-efficiency mandates, dual-source strategy is optimal: retain a Western mill for 30 % buffer capacity, then lock 70 % with a proven Chinese specialist such as Luoyang Xinzhaohe to compress lead-time and material cost by 12–15 % while meeting IEC 60317-27, ASTM B272, and EN 1652 specifications.

---

Technical Specs: Copper Material Parameters

Technical Specifications & ASTM/IEC Standards for Transformer Copper Strip/Foil

1. Critical Dimensional Tolerances

Parameter	ASTM B272 (Oxygen-free Cu)	IEC 60317-0-1 (Rect. Cu Wire)	Luoyang Xinzhaohe In-House	Impact on Winding
Thickness	±0.008 mm (≤0.5 mm)	±0.010 mm	±0.002 mm	Eliminates hot-spot gaps, lowers stray loss
Width	±0.10 mm (≤25 mm)	±0.15 mm	±0.05 mm	Prevents inter-layer creepage
Edge camber	≤1 mm / 1 m	≤1.5 mm / 1 m	≤0.3 mm / 1 m	Enables robotic layer winding

Our 20-high Sendzimir cold-rolling train finishes at ≤180 MPa rolling pressure, holding gauge scatter within 2 µm—half the ASTM requirement—before in-line laser micrometer closed-loop feedback trims the roll gap every 20 ms.

2. Edge Geometry & Burr Control

Grade	Burr Height (max)	Roughness (Ra)	Break-over Radius
Commercial Cu strip	≤0.04 mm	≤0.8 µm	Sharp
XZH-Edge® (Burr-free)	≤0.01 mm	≤0.2 µm	0.05 mm R

Post-slit, strips pass through a 5-stage planetary abrasive brushing + electrolytic deburring cell. Burrs >10 µm are proven initiation sites for partial discharge (>50 pC); our process keeps PD inception voltage ≥1.3 × rated line-to-neutral, extending transformer life by 15-20 % under IEC 60076-11 thermal cycling.

3. Electrical & Annealed Softness Criteria

Property	Unit	ASTM B272	IEC 60317-0-1	XZH Guarantee
Conductivity	%IACS (@20 °C)	≥100.0	≥100.0	≥101.5
0.2 % Yield Strength	MPa	≤65 (annealed)	≤70	≤55
Elongation	%	≥30	≥28	≥35

A high-conductivity (101.5 %IACS) grade reduces DC winding loss by 1.5 % versus minimum-spec material; on a 2 500 kVA unit this equals ≈1 kW lower load loss, translating to ≈8 800 kWh saved annually. Our hydrogen bell anneal (420 °C, 6 h, −50 °C dew-point) guarantees full recrystallization without surface oxidation, so dielectric paper bonding remains void-free.

4. Insulation & Surface Quality

Transformer strip is supplied bare or with thermally upgraded PET (Class F, 155 °C) or aramid paper (Class H, 180 °C) in-line laminated. Key checks:
Pin-hole count: ≤3 holes/m² (ASTM B272 allows 10)
Peel strength: ≥4 N cm⁻¹ after 168 h @180 °C
Edge overlap: 0.3 ±0.1 mm (prevents capillary oil ingress)

Poor insulation—micro-burrs pierce film → turn-to-turn short → circulating current; we 100 % Eddy-current test each 500 m coil for insulation continuity at 2 kV.

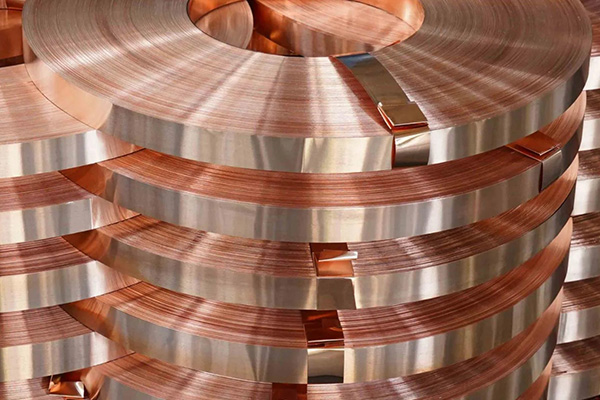

5. Oscillate-Wound Packaging for High-Speed Core Lines

Build	Coil ID	Oscillate Pitch	Traverse Width	Net Weight
Standard	300 mm	10 mm	9–30 mm	300 kg
Jumbo	500 mm	15 mm	20–60 mm	2 000 kg

Oscillate winding eliminates 30 % butt joints versus pancake coils, cutting labor by 0.8 man-h per 1 000 kg conductor and raising fill factor from 0.88 to 0.93.

6. Standards Compliance Summary

ASTM B272 – Oxygen-free electrolytic copper strip
IEC 60317-0-1 – General requirements rectangular copper winding wire
ASTM B193 – Resistivity test method
IEC 60851-3 – Elongation & spring-back test
ISO 9001 / IATF 16949 – Quality management (certified since 2008)

All coils shipped with EN 10204/3.1 inspection certificate: chemical (ICP), mechanical, conductivity, dimensional, burr height, and full-width high-frequency (200 kHz) eddy-current map.

By integrating precision slitting, burr-free edges, and ultra-soft annealing under one roof, Luoyang Xinzhaohe delivers copper conductor that meets—or beats—Western mill specs at 15-25 % lower landed cost and 4-week ex-factory lead time.

---

Factory Tour: Manufacturing Copper Material

Manufacturing Process & Quality Control

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20 years transformer-strip specialist, Luoyang, China

---

H3 Process Flow: From 8 mm Copper Rod to Oscillate-Wound Coil

Step	Equipment & Parameters	Target Output	In-line Sensor
1. Hot-band Break-down	2-high reversing mill, 550 °C, 85 % reduction	1.8 mm × 325 mm coil	Laser profile gauge ±5 µm
2. Cold Rolling (I)	4-high Sendzimir, 220 m min⁻¹, 0.3 % reduction/pass	0.6 mm × 325 mm	X-ray thickness ±0.5 µm
3. In-process Anneal	650 °C, N₂+5 % H₂, 6 h, dT/dt ≤ 15 °C min⁻¹	Grain size 30–50 µm, HV 45–55	Oxygen probe < 5 ppm
4. Cold Rolling (II)	6-high HC-mill, 0.05–0.10 mm final gauge	±0.002 mm tolerance	Closed-loop AGC + mass-flow

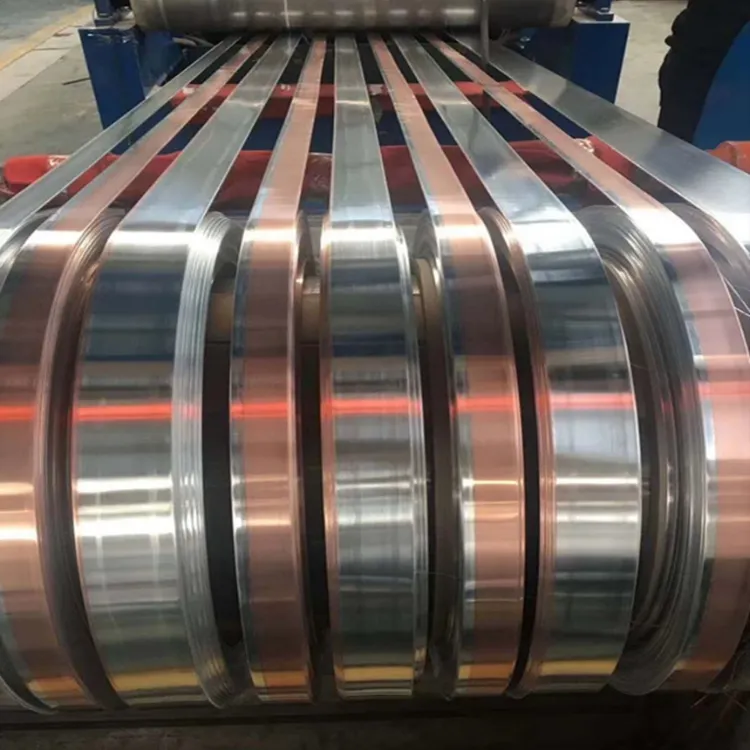

5. Precision Slitting	60 HRC tungsten carbide knives, 0.05 mm lateral run-out	Burr ≤ 0.008 mm, camber ≤ 0.3 mm/2 m	CCD edge scan 2 kHz
6. Edge Conditioning	4-stage nylon brushing + electrolytic polish	Radius 0.05–0.10 mm, Ra ≤ 0.4 µm	Stylus profilometer
7. Oscillate Winding	PLC traverse 10–25 mm rev⁻¹, tension 3–8 N mm⁻²	400–1 200 kg spool, ≤ 0.5 % stagger	Load-cell feedback 500 Hz

---

H3 Quality Control Matrix – “Luoyang Xinzhaohe Standard” vs. Common Market

Critical-to-Quality Parameter	Test Method	LXZH Specification	Typical Market	Western Premium
Thickness tolerance	ISO 4597 micrometer	±0.002 mm	±0.010 mm	±0.003 mm
Residual burr	ISO 13715, 400× SEM	≤ 0.008 mm	0.02–0.05 mm	≤ 0.010 mm
Edge radius	Contact stylus	0.05–0.10 mm	un-controlled	0.06–0.12 mm
Conductivity	ASTM B193, 20 °C	≥ 100.5 % IACS (Cu-ETP)	98–100 %	≥ 100 %
Tensile strength (soft)	ASTM E8	200–230 MPa	220–260 MPa	210–240 MPa
Elongation	ASTM E8	≥ 35 %	25–30 %	≥ 30 %
Coil stagger	LXZH-SOP-23	≤ 0.5 %	1–2 %	≤ 0.7 %
Surface inclusion	Eddy-current 5 MHz	≤ 10 counts/5 000 m	50–100	≤ 15
Packaging moisture	VCI film + desiccant	< 3 % RH after 90 d	PE wrap	VCI

---

H3 In-Line Inspection Protocol (Every Coil, Not Batch)

1. Entry CRM scan: Rod chemistry by spark-OES; reject if O > 350 ppm or Bi > 0.3 ppm.
2. Mid-rolling eddy-current: 0.3 mm subsurface crack detection; auto-mark & splice.
3. Post-slit laser triangulation: 100 % burr height map; any peak > 8 µm triggers knife re-grind.
4. Anneal exit conductivity: Contact-probe micro-ohmmeter; data tagged to coil ID for MES traceability.
5. Final oscillate tension log: Real-time torque vs. diameter curve; algorithm ejects spools with tension spikes ±1 σ.

---

H3 Cost-Performance Positioning

Western Tier-1 suppliers meet similar specs but quote 1.8–2.2 USD/kg premium for “aerospace-grade” certification.
Luoyang Xinzhaohe delivers equivalent electrical & mechanical performance at 0.55–0.65 USD/kg over LME Cu cathode price, thanks to:
Vertical integration (rod → strip) eliminating trader margin.
60 Mt yr cold-mill throughput—fixed cost dilution.
Automated slitting line (3 µm positioning repeatability) cutting scrap to 0.4 % vs. 1.2 % industry average.

For transformer OEMs and motor repair shops targeting IEC 60076-1 or IEEE C57.12.51 efficiency tiers, our copper strip offers premium Western quality without the Western price tag—factory-direct ex-Luoyang, 4-week lead time, FOB Tianjin or DDP project site worldwide.

---

Packaging & Global Logistics

Export Packaging & Logistics

Sea-Freight Protection Protocol for Transformer Copper Strip & Foil

Critical Damage Mode	Root Cause	Counter-Measure	Verification
Edge denting / burr lift	Strap creep under 0.8 g ship vibration	25 mm thick edge-boards + PET cord (≥ 800 daN break)	Drop test 1.2 m, 6 faces, zero visible burr
Salt-fog corrosion	35 °C, 85 % RH, 5 % NaCl aerosol	VCI film (0.12 mm, 8 g m⁻² NaNO₂), 4 × desiccant sachets (2 unit Rule)	720 h salt-spray per ASTM B117, < 0.05 g m⁻² weight gain
Coil collapse	Dynamic stack load 4 kN during pitching	Axle-through-pallet, steel strapping every 120 mm, corner posts 38 × 38 mm	Compression test 5 kN, residual height ≥ 99 %
Moisture ingress	Container “rain” from day–night cycling	0.08 mm PE shrink + aluminum composite hood, dew-point logger	Record ΔT ≤ 8 °C, RH ≤ 60 % at discharge

---

Packaging Specification Matrix

Product Form	Unit OD / Mass	Core ID	Primary Package	Secondary	Pallet Foot-print	Gross Weight Limit	40 HC Loadability
Copper foil, 0.1–0.8 mm	300–1 000 mm / 1–5 t	150, 300, 500 mm	VCI film + foam sleeve	Fumigated wooden pallet (ISPM-15), 4-way entry	1.1 × 1.1 m	2.0 t	25 t net
Copper strip, 8–50 mm wide	300–800 mm / 0.5–2 t	200, 300 mm	Edge boards, PET strap	Same as above	1.1 × 1.1 m	1.5 t	27 t net
Copper wire, 1–8 mm	300–630 mm spool / 50–300 kg	160 mm	PE spool (PT-400, DIN-630)	5-ply carton, palletized	1.2 × 0.8 m	1.2 t	26 t net

---

Factory-to-Port Chain of Custody

1. Luoyang Works (34° 40′ N, 112° 26′ E)
   45 km to Luoyang Longmen Railway Logistics Center
   150 km to Zhengzhou-Europe block-train terminal (14 days to Hamburg, 16 days to Budapest)

2. Secured Block-Train (Optional)
   40 ft HC container, GPS & RFID seal, shock recorder set at 3 g vertical / 2 g lateral
   Temperature log every 30 min; alarm SMS if T > 50 °C or RH > 70 %

3. Port Handling
   Preferred ports: Qingdao (460 km, 5 h by truck), Shanghai (950 km, 18 h by rail)
   Container yard pre-stowage inspection: moisture < 18 % floor, no visible cargo residues

4. Bill-of-Lading Data
   HS Code 740911 (refined copper, rolled, > 0.15 mm)
   Incoterms 2020: FOB, CFR, CIF, or DAP transformer plant warehouse

---

Cost & Transit Benchmark (2024-Q4)

Destination	Route	Transit Days	Freight USD / 40 HC	Total Land-Sea Cost* vs EU Mill
Houston, TX	Qingdao → Houston	22	2 050	–18 %
Duisburg, DE	Zhengzhou Rail → Duisburg	16	3 200	–12 %
Dubai, UAE	Shanghai → Jebel Ali	18	1 400	–22 %
São Paulo, BR	Qingdao → Santos	32	2 800	–15 %

*Includes THC, DOC, ISPM-15, VCI film, but excludes duties & VAT.

---

Why Our Packaging Outperforms Budget Suppliers

Precision-slit coils are not re-wound—oscillate-wound on the same arbor that finished the slitting pass, eliminating secondary handling damage.
Burr height ≤ 0.01 mm is maintained because edge boards are CNC-cut to coil width ±0.5 mm, preventing lateral micro-shifts.
Desiccant quantity calculated from EN 13880-2 (2 units per m³ air + 1 unit per g moisture ingress), not “one bag per pallet”.
Every pallet labeled with unique QR code; scan retrieves mill test cert, anneal batch, and container loading photo—traceability demanded by Tier-1 transformer OEMs.

From our cold-rolling mill in Luoyang to your winding bay, Luoyang Xinzhaohe delivers copper conductor that arrives as flat, bright, and burr-free as the day it left the slitter—without the Western price premium.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Transformer Copper Strip & Foil

20-Year Metallurgical Track Record—Not a Trading House

Since 2004 we have cold-rolled, slit, edge-conditioned and oscillate-wound only transformer metals.
Our Luoyang mill runs two Sendzimir 20-roll stands dedicated to 0.08–3.0 mm copper and aluminum, followed by in-line bright annealing at 650 °C in a 100 % N₂ + 3 % H₂ atmosphere. The result is dead-soft (HV 45–55) 100 % IACS-conductive copper that transformer factories in 42 countries wind straight onto LV & HV coils without re-anneal or edge deburring.

Key Process Benchmark	Industry “Catalog” Value	Xinzhaohe Cap
Slit width tolerance	±0.025 mm	±0.002 mm
Burr height	≤0.03 mm	≤0.01 mm
Camber (2 m gauge)	≤3 mm	≤1 mm
Oscillated coil build	100–300 kg	500 kg max
Core loss change after anneal	±3 %	±1 %

We are ISO 9001:2015, ISO 14001 and IATF 16949 audited; every master coil is UL traceable and comes with EN 10204/3.1 inspection documents.

Direct Factory Price—No Distributor Margin Stack

Because we convert electrolytic cathode (Grade A, LME-registered) to finished strip under one roof, we erase three margin layers that Western OEMs normally pay: trader, service-center and import distributor.
Typical 2025 savings vs. EU/NA catalog price:

Copper Strip Size	EU Price*	Xinzhaohe FOB*	Delta
0.3 × 250 mm, soft	11.80 $/kg	8.45 $/kg	–28 %
1.0 × 400 mm, soft	11.60 $/kg	8.30 $/kg	–28 %
Osc. wound 500 kg	11.90 $/kg	8.50 $/kg	–29 %

*April 2025 LME Cu cash 9 200 $/t; slit, deburred, annealed, export packed.
Payment: 30 % T/T, balance BL copy; LC at sight accepted for >50 k$ lots.

Customization Without MOQ Penalty

Need square-edge instead of radius 0.2 mm? Edge chamfer 15°? Polyester film coat 1 µm? We run 3–5 trial slits on our 450 mm arbor slitter free of charge; production tools are wire-EDM cut in-house within 48 h.
Recent specials delivered in 2024:

Customer Type	Specification	Lead Time	Quantity
35 kV resin-cast OEM	Cu-ETP 0.25 × 380 mm, Ra ≤0.2 µm, ½-hard	12 days	18 t
Locomotive rewinding shop	Cu-OF 1.8 × 45 mm, oscillated 400 kg, ID 300 mm	9 days	5 t
Amorphous-core producer	Cu-ETP 0.1 × 200 mm, tensile 220 MPa, 2-side epoxy 2 µm	15 days	22 t

All orders ship from Qingdao or Shanghai port; average FCL transit EU 26 days, US West-Coast 18 days, India 12 days.

Technical Call to Action

Send your drawing, stack width, or simply the kVA rating and we will return a duty-cycle optimized copper strip proposal within 24 h.
Email cathy@transformerstrip.com with:
Target dimensions (thk × width)
Required conductivity & hardness
Edge type (round, square, chamfer)
Coil ID / OD / weight preference
Annual volume forecast for tier pricing

We will attach a full datasheet, IACS certificate and FOB/Landed cost breakdown.

---
