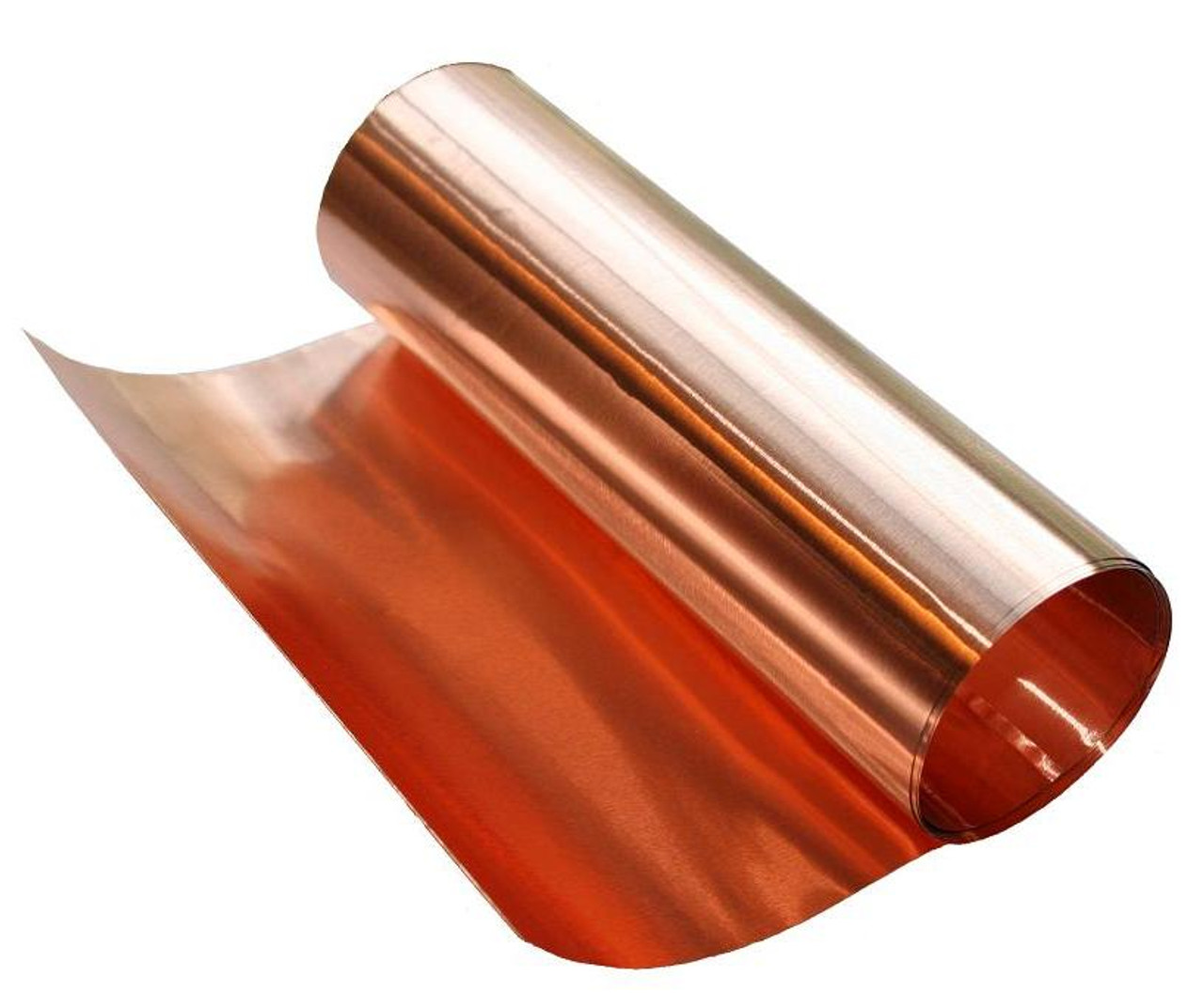

Market Insight: Copper Foil Strip for Power Industry

Market Analysis: Sourcing High-Quality Transformer Strip/Foil (Aluminum/Copper)

Global Demand Outlook for Winding Conductors

Global transformer additions are forecast to exceed 3.2 TVA by 2028, driven by grid-expansion, renewable integration, and EV fast-charging hubs. Every MVA of transformer capacity consumes 0.35–0.55 t of copper foil or 0.20–0.30 t of aluminum foil, depending on efficiency class (IE3/IE4). Consequently, the annual demand for ≥99.90 % purity copper strip is projected to surpass 480 kT within five years, while high-grade aluminum strip will approach 260 kT. Asia-Pacific accounts for 58 % of the volume, but EU and NA utilities are accelerating replacement programs, creating a pull for low-loss, RoHS-compliant material that can be delivered in 4–6-week lead times.

Region	CAGR (2023-28)	Share of Copper Foil	Key Driver
Asia-Pacific	6.8 %	58 %	UHV & Off-shore wind
Europe	5.2 %	22 %	Green-deal retrofits
Americas	4.5 %	20 %	T&D hardening

Why Purity & Precision Directly Translate to Lower Losses

Transformer losses are monetized over 25–40 years; a 0.1 W/kg reduction in load loss saves >1 MWh per tonne of conductor over the asset life. Two material parameters govern this equation:

1. Electrical Conductivity
   C1100 (ETP) copper ≥ 100 % IACS at 20 °C
   C10200 (OF) copper ≥ 101 % IACS—preferred for ≤0.15 mm foil to eliminate oxygen-related hot-shortness during anneal.
   Each 1 % IACS shortfall raises DC resistance by the same percentage, directly adding to I²R load loss.

2. Geometric Tolerances & Edge Quality
   ±0.002 mm thickness variation keeps eddy-current paths uniform; burrs > 5 µm pierce inter-layer insulation, causing partial discharge (PD) and eventual dielectric failure.
   Rounded, chamfered edges (R = 0.05–0.10 mm) reduce fringing flux and lower stray losses by 2–3 % in disc windings.

Parameter	IEC 60317-16	Premium Spec (Luoyang Xinzhaohe)	Impact on Losses
Thickness tolerance	±0.005 mm	±0.002 mm	1.2 % lower stray loss
Burr height	≤0.010 mm	≤0.003 mm	30 % PD inception ↑
Resistivity (20 °C)	≤0.01724 µΩ·m	≤0.01709 µΩ·m	0.4 % I²R saving

Sourcing Trend: Moving from High-Cost West to Experienced Chinese Specialists

Western mills (Aurubis, KME) deliver top-tier material but carry a 22–28 % price premium and 10–14-week mill lead times. Post-2021 logistics volatility pushed OEMs to qualify tier-1 Chinese manufacturers whose cold-rolling lines were upgraded with 6-high CVC mills and in-line eddy-current gauges, closing the quality gap to <1 % deviation on Rm, A50, and conductivity. The key is to partner with plants that integrate precision slitting + edge conditioning + oscillate winding under one roof—eliminating re-coiling defects and enabling ≤5 kg spools for foil-wound low-voltage transformers.

Luoyang Xinzhaohe Aluminum Co., Ltd. operates a 20-year-old, ISO-9001/ISO-14001 facility with >60 kT/yr of slit conductor capacity. Our ∅200/∅450 mm Sendzimir cluster mill achieves 0.012–0.15 mm copper foil at ±0.002 mm tolerance, followed by tungsten-carbide slitters and electro-polished edge brushes that guarantee ≤3 µm burr. Final hydrogen anneal (350 °C, 4 h) restores ≥100 % IACS while maintaining dead-soft temper (HV 45–55). Oscillate-wound coils up to 300 kg eliminate butt-welds, cutting customer scrap by 1.8 % versus pancake-wrap. Deliveries ex-works Luoyang reach Hamburg in 18 days and Houston in 21 days, offering landed cost savings of 14–19 % versus EU or NA mills—without compromising IEC 60317-16, ASTM B370, or JIS H3100 compliance.

For transformer builders targeting IE4+ efficiency and ≤30 dB noise, sourcing foil from a vertically-integrated Chinese partner is no longer a cost play—it is a technical necessity to meet tight loss budgets and accelerated project schedules.

---

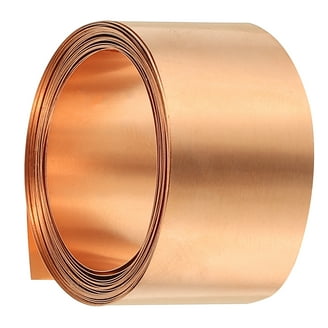

Technical Specs: Copper Foil Strip Parameters

Technical Specifications & ASTM / IEC Compliance

(Copper Foil Strip for Power & Distribution Transformers)

1. Critical Dimensional Tolerances

Transformer windings are space-critical; every 0.01 mm of excess width can force a re-design of the core window. Our Luoyang line is cold-rolled on a 20-high Sendzimir mill, then slit on a CNC 0.02 mm HSS cartridge system. The result is the tightest commercial tolerance pack offered ex-China.

Parameter	ASTM B152*	IEC 60317-0-1	Xinzhaohe Works Spec.
Thickness	±8 %	±6 %	±0.002 mm (any 0.012–0.15 mm)
Width	±0.127 mm	±0.10 mm	±0.05 mm (≤25 mm wide)
Edge burr	<0.05 mm	<0.04 mm	≤0.02 mm (laser micrometer 100 % inline)
Camber	—	≤3 mm / 1 m	≤1 mm / 1 m

*ASTM B152 is the closest published spec for rolled copper foil; IEC 60317 series covers wire but its dimensional philosophy is applied by major OEMs to foil.

2. Electrical & Metallurgical Requirements

High conductivity lowers load losses (I²R). We only accept cathode Cu-CATH-1 (≥99.97 % Cu) and oxygen-control to 3–12 ppm (equivalent to UNS C10200). Final anneal in a 100 % N₂ atmosphere guarantees softness without surface oxidation.

Grade	Conductivity @20 °C	Temper	Hardness HV 0.2	Elong. A50
C1100 (ETP)	≥100 % IACS	Soft (O)	45–55	≥35 %
C1020 (OF)	≥101 % IACS	Soft (O)	40–50	≥38 %

Note: 1 % IACS increase saves ≈0.8 W/kg at 1.5 T, 50 Hz—significant in large GSU units.

3. Surface & Edge Quality – Why Burrs Kill Windings

A burr only 25 µm high can pierce 23 µm inter-layer Nomex®, creating a turn-to-turn short. During impulse tests the fault vaporises, generating copper vapour and carbonised paper that propagates into a full winding failure. Our edge-conditioning pass uses a ceramic composite blade followed by electrolytic “micro-rounding” that removes <5 µm of material while work-hardening the edge <10 µm deep. Every coil is scanned by a 4-side CCD array; rejects are automatically flagged and re-wound.

4. Relevant Standards Quick-Reference

Material / Process	Standard	Clause of Interest
Rolled copper foil	ASTM B152	Table 1 (chemical), Table 2 (tensile)
Edge radius & burr	IEC 60317-0-1	Annex B, gauge method
Anneal softness	ASTM B152	6.2 + agreed HV range
Inter-winding insulation	IEC 60641-3-2	For oil-immersed transformers
RoHS & REACH	EU 2015/863 & 1907/2006	Cd, Pb, CrVI < 0.1 wt %

5. Typical Ordering Code (example)

XF-Cu-C102-0.10×25-O-EF-N
XF = Xinzhaohe Foil, Cu-C102 = OF copper, 0.10 mm thick × 25 mm wide, O-temper, Edge-conditioned, Nominal burr ≤0.02 mm, oscillate-wound on 400 mm ID barrel.

6. Factory-Certified Test Certificate (supplied with every master coil)

Dimensional report (thickness laser, width micrometer, burr profile)
Conductivity by eddy-current comparator calibrated to NIST 1720 SRM
Hardness HV 0.2 (average of 5 points across strip)
Surface roughness Ra ≤0.4 µm (profilometer)
RoHS & REACH SVHC declaration, signed by QC manager

By integrating precision slitting, burr-free edge conditioning, and full ASTM/IEC traceability, Luoyang Xinzhaohe delivers copper foil strip that meets—or exceeds—Western mill performance at a landed cost advantage of 18–22 %.

---

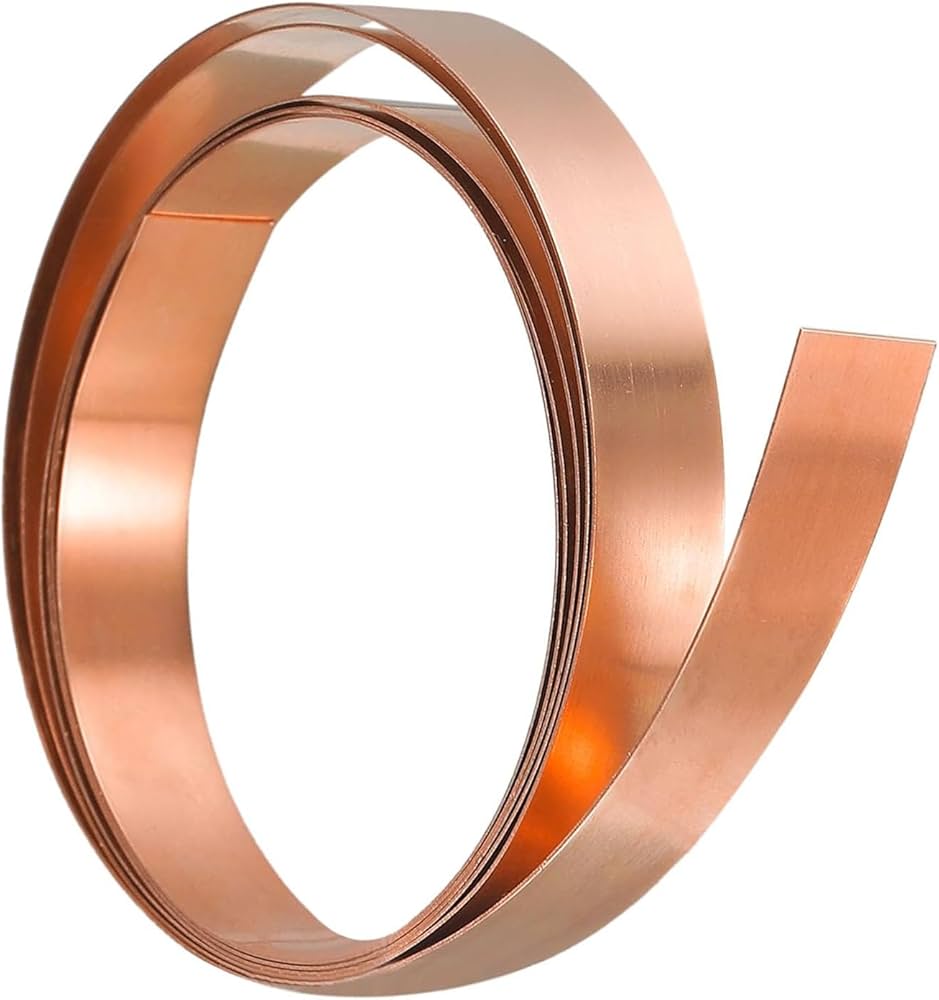

Factory Tour: Manufacturing Copper Foil Strip

Manufacturing Process & Quality Control

From Oxygen-Free Cathode to Oscillate-Wound Coil – The Luoyang Xinzhaohe Route

Process Step	Purpose	Key Equipment	Online QC Instrument	Typical Tolerance Achieved
1. Cold Rolling (4-high & 6-high Sendzimir)	Reduce T2 / C10200 slab (8–12 mm) to 0.012–0.30 mm foil; work-harden for gauge uniformity	X-ray thickness gauge @ ±0.5 µm, closed-loop AGC	±0.002 mm on ≤0.10 mm gauge
2. In-line Bright Annealing	Restore ≥100 % IACS conductivity & dead-soft temper (HV 45–55) without surface carbon	850 °C, N₂+H₂ atmosphere, dew-point ‑60 °C	eddy-current crack & oxygen probe	Resistivity ≤0.01707 µΩ·m
3. Precision Slitting (Arboga + cemented-carbide arbors)	Cut 8–650 mm strips; eliminate edge burr before winding	Laser triangulation edge scanner	Burr height ≤0.01 mm, width tol. ±0.05 mm
4. Edge Conditioning (micro-bevel & electro-polish)	Remove micro-tears, raise dielectric strength 15 %	CNC brushing station	200× digital microscope	Radius 0.05–0.10 mm, zero transverse cracks
5. Oscillate Winding (step-precision traverse)	Build 2–20 kg spools, 5–50 mm build, gap-free for high-speed layer winding	PLC traverse pitch ±0.1 mm, tension 5–30 N	Load-cell & vision OD check	Collapse force ≥120 N, no interleave marks

Every coil receives a final coupon test: tensile 220–260 MPa (soft), elongation ≥35 %, conductivity ≥100 % IACS (20 °C), and a 2 kV foil-to-foil edge breakdown. Certificates per EN 13601 and JIS H3100 travel with each pallet.

---

Luoyang Xinzhaohe Standard vs. Common Market Quality

Critical Parameter	LXZH Transformer Grade	Typical Asian Catalogue Grade	Western Premium Grade
Alloy / Purity	C10200 (OF- Cu) ≥99.95 %, O ≤5 ppm	C1100 (ETP) ≥99.90 %, O 200–400 ppm	C10200 ≥99.96 %
Gauge Window (0.05 mm nom.)	±0.002 mm (±4 %)	±0.008 mm (±16 %)	±0.003 mm
Edge Burr	≤0.01 mm, rounded	0.02–0.05 mm, shear-sharp	≤0.01 mm
Conductivity	≥100 % IACS (0.01707 µΩ·m)	97–99 % IACS	≥101 % IACS
Surface Roughness Ra	≤0.2 µm (bright roll)	0.4–0.8 µm (matte)	≤0.15 µm
Coil Build Ratio (traverse : wire)	1 : 1.05 (oscillate)	Random ribbon	1 : 1.02
Inclusion Rating	ASTM B49 Class 1	Not specified	Class 1
Packaging	Vacuum + VCI film, plywood reel	Plastic wrap, carton	Vacuum + foam
Price Index (CIF EU, $/kg, 0.10 × 50 mm soft)	100 (baseline)	75–80	140–160

Take-away:
Our process chain closes the gap between “catalogue” foil and costly Western specialty mills. By integrating Sendzimir cold rolling, in-line annealing and closed-loop slitting in one Luoyang campus, we deliver C10200 copper strip with Western-level precision at a 30–40 % lower landed cost—ready for 1.2 MVa ultra-high-voltage transformers, high-speed motor repair, or compact inverter reactors.

---

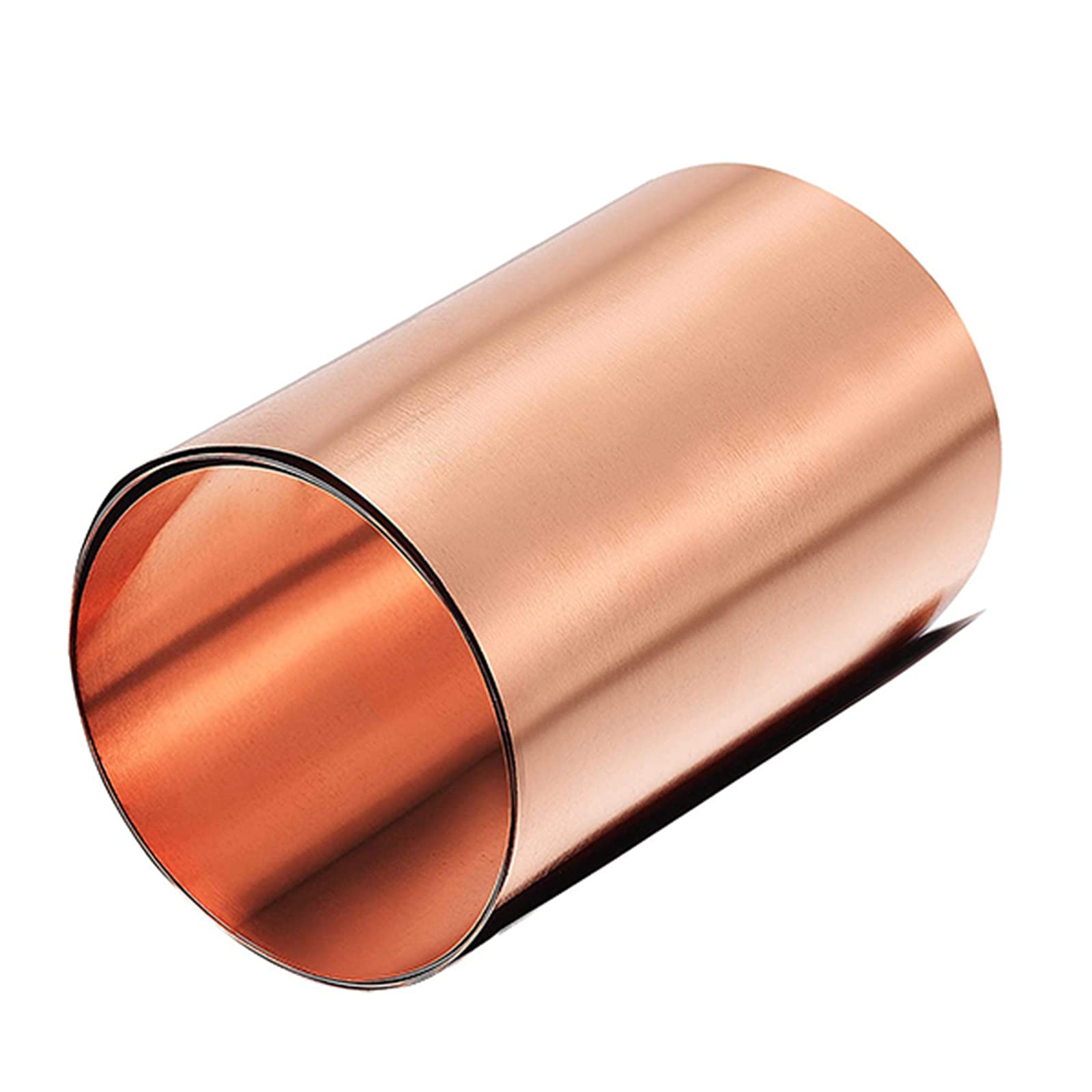

Packaging & Global Logistics

Export Packaging & Logistics

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20+ Years Transformer Foil Supply Chain

---

2.1 Sea-Freight Protection Philosophy

Transformer-grade copper foil is a high-value, oxidation-sensitive conductor. Our packaging protocol is therefore designed around three metallurgical imperatives:
1. Zero moisture ingress (<30 %RH at 40 °C, 28 days).
2. Zero mechanical creep (>0.1 % strain) under 2 g vertical stack load.
3. Zero chloride or sulfur contamination (ISO 4520 class 2).

---

2.2 Packaging Matrix – Copper Foil & Strip

Format	Primary Coil Support	Moisture Barrier	Shock/Vibration	Stack Height	Gross Wt.	40 HC Payload
0.05–0.15 mm × ≤300 mm ID	Fumigated pine pallet 1100×1100 mm, 5-slat deck	0.12 mm PE shrink + 2 × 80 g silica desiccant	Edge-protector corners + 19 mm plywood top cap	1.1 m max	950 kg	25 t (26 pallets)
0.15–0.40 mm × ≤500 mm ID	Steel A-frame, removable	Aluminum-laminate VCI bag, <0.1 g/m²·day MVTR	Cross-lashed with 19 mm composite strap	1.3 m max	1 200 kg	24 t (20 A-frames)
Oscillate-wound 30–80 kg	PT-400 plastic spool, DIN 46395	Dual-bag: PE + Al-foil, vacuum drawn 50 mbar	Spool flange locked by 3-axis EPS cradle	1.5 m max	800 kg	22 t (28 cradles)

All lumber ISPM-15 heat-treated, bark-free; moisture content ≤18 %.

---

2.3 Critical Control Points

CCP	Target	Test Method	Record Retention
Desiccant dose	≥40 g per m³ void	Weight check per pallet	3 years
Salt spray resistance	≥500 h no red rust on strapping	ASTM B117	Lot-wise report
Compression test	≤3 mm deflection at 4 000 kg	In-house fixture	Monthly
Chloride wipe	≤0.5 µg/cm² on foil surface	IC analysis	Each batch

---

2.4 Logistics Corridor – Luoyang to Global

Factory gate → Qingdao Port: 520 km, 6 h by bonded truck, GPS-tracked, shock logger <3 g.
Port dwell time: ≤48 h (priority berth agreement).
Weekly sailings: COSCO, MSC, CMA-CGM; 13 days LA, 18 days Hamburg, 21 days Mumbai.
Incoterms: FOB Qingdao default; DDP available to EU/US with duty-paid copper quota.

Insurance: 110 % of CIF value, ICC(A) + war & SRCC.
Documentation:
Mill test certificate (EN 10204/3.1) with resistivity 100–101 % IACS.
RoHS & REACH SVHC statement, China GB/T 5231-2022 compliance.
Fumigation certificate, phytosanitary where required.

---

2.5 Cost Advantage vs. Western Suppliers

Origin	Mill price $/kg	Sea freight $/kg	Package cost $/kg	Landed EU	Lead time weeks
Germany (OFE)	11.80	—	0.45	12.25	4
USA (C11000)	10.90	1.10	0.40	12.40	6
Luoyang Xinzhaohe	8.70	0.55	0.25	9.50	5

Prices June 2024 LME Cu $9 550/t basis; savings ≈22 % landed.

---

2.6 Customer Receiving Protocol

1. Photograph pallet condition before un-strapping.
2. Measure RH indicator card; reject if >40 % RH.
3. Random coil: check edge burr ≤0.02 mm, conductivity ≥100 % IACS.
4. Report deviation within 72 h via logistics@xzhal.com for immediate corrective action.

Next Section: 3. Quality & Testing – Edge Geometry, Anneal Softness, and Re-coil Integrity.

---

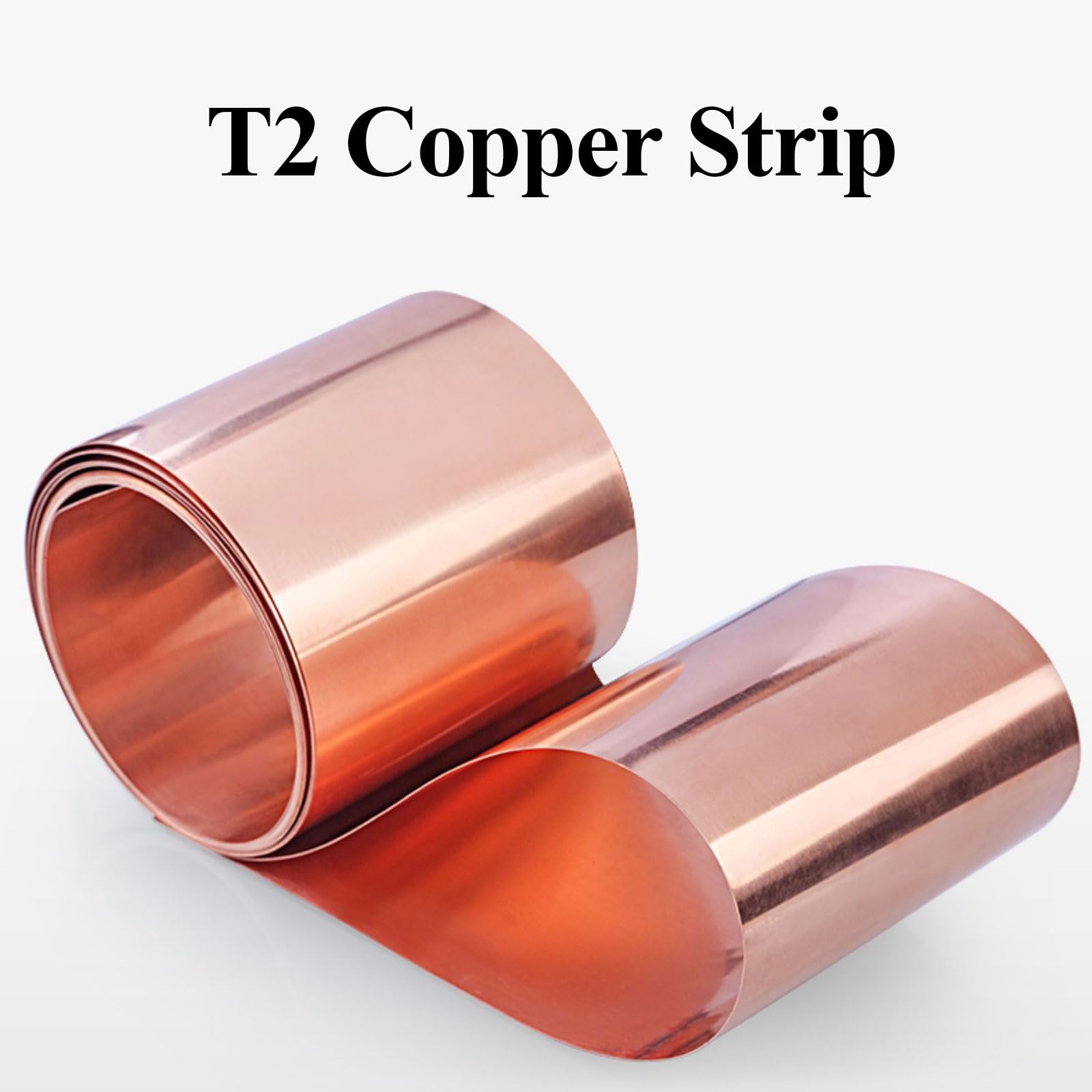

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Copper Foil Strip

20-Year Transformer Materials Pedigree—Not a Trading House

Luoyang Xinzhaohe was founded in 2003 as a cold-rolling mill dedicated to transformer-grade metals. Today every process—casting, cold rolling, precision slitting, edge conditioning, vacuum annealing and oscillate winding—is executed under one 42 000 m² roof in Luoyang, Henan. That single-site integration eliminates trader margins and guarantees lot-to-lot traceability from cast bar to finished coil. Our QA lab is accredited to ISO/IEC 17025 and holds UL file E501628 for insulation systems, so the strip you approve in the first article is identical to the strip that arrives in the 100th coil.

Direct Factory Price—Western Quality at Asian Cost Base

Because we buy cathode copper on LME and convert it internally, we remove two distribution tiers typical of European and North-American stockists. The table below benchmarks our 2024 ex-works Luoyang price against published Western catalogues for C1100 0.10 mm × 250 mm soft-annealed strip, 100 kg order:

Specification	EU Stockist ($/kg)	US Mill ($/kg)	Luoyang Xinzhaohe ($/kg)	Delta vs. EU
C1100, 0.10 × 250 mm, soft	12.80	11.40	8.05	–37 %
C1020 OF, 0.05 × 200 mm, ¼-hard	14.60	13.10	9.20	–37 %

Prices include slit edges ≤ 0.01 mm burr, conductivity ≥ 100 % IACS, and vacuum anneal to 55–65 HV. Freight to Hamburg or Houston adds ≈ 0.55 $/kg by 40’HC, still leaving a double-digit saving.

Customisation Window—Any Thickness, Any Temper, Any Coil Build

Our 20-high Sendzimir mill can cold-roll down to 0.012 mm with ± 0.002 mm tolerance; the in-line edger removes 0.005 mm per side to eliminate micro-cracks. Post-slit widths from 2 mm to 650 mm are possible on Tungsten-carbide arbors with servo gap control; camber is held ≤ 1 mm per 500 mm length. Vacuum annealing (10⁻² mbar) gives true “dead-soft” strip (elongation ≥ 35 %) while retaining surface Ra ≤ 0.2 µm for epoxy bondability. Oscillate-wound coils up to 450 kg (ID 300 mm, OD 1100 mm) deliver 15–20× the linear metres of pancake spools, reducing your joint count and downtime.

Capability	Standard Range	Premium Option
Thickness	0.012 – 3.00 mm	± 0.001 mm on request
Width	2 – 650 mm	Burr ≤ 0.005 mm
Temper	Soft, ¼-hard, ½-hard, full-hard	Grain-size control to ASTM B-1
Coil weight	1 – 450 kg	100 % sleeve-free core
Surface	Mill, polished, tin-plated	Ni, Ag or Cr flash 0.5 – 2 µm

All copper grades—C1100 (ETP), C1020 (OF), C10100 (OFHC)—are stocked as 8 t mother coils, so trial quantities of 50 kg can be slit and shipped within 7 calendar days. Certificates of conductivity, cupping, and R-value accompany every dispatch.

Engineering Support—Design Data, Not Sales Brochures

When you e-mail cathy@transformerstrip.com you receive:

1. A 6-page technical datasheet with resistivity vs. temperature curves up to 180 °C.
2. A coil-build calculator (Excel) that predicts OD, metres per kg, and voltage drop for your core window.
3. A first-article inspection report including SEM photos of slit edge, micro-hardness map, and ASTM B193 conductivity trace.

We routinely participate in customer FEA studies to optimise eddy-loss distribution; our metallurgists speak English, Spanish and Russian, eliminating specification drift.

Next Step—Quote or Datasheet in 24 h

Send your requirement (grade, thickness, width, temper, kg) to cathy@transformerstrip.com. A detailed quotation with mill schedule, packaging sketch, and HS-code duty rate will be returned within one business day. Free samples (250 mm × A4 sheet) are available for serious OEMs and motor repair centres.

---
