Market Insight: Cold Rolled Grain Oriented Steel in Power Industry

Market Analysis: Sourcing High-Quality Cold Rolled Grain Oriented Steel (CRGO)

Industrial Demand & Critical Quality Parameters

CRGO is the foundational material for high-efficiency power transformers and specialized motors, driven by global grid modernization, renewable energy integration, and stringent efficiency regulations (e.g., DOE 2016, EU Ecodesign). Key performance metrics dictate material selection:
Iron Loss (W/kg): Measured at 1.7T, 50Hz; directly impacts transformer energy efficiency.
Magnetic Induction (B8): Higher values enable compact transformer designs.
Thickness Tolerance: ±0.01mm critical for lamination stacking precision.

Material Quality Impact on Transformer Efficiency

Core losses (hysteresis + eddy currents) account for 20–30% of total transformer losses. A 0.1 W/kg reduction in iron loss can lower lifetime energy costs by 10–15%. Substandard CRGO increases heat generation, accelerating insulation degradation and reducing operational lifespan. Compliance with IEC 60404-8-5 and ASTM A677 is non-negotiable for grid stability and safety.

Luoyang Xinzhaohe’s Supply Chain Advantage

As a China-based manufacturer with 20+ years of expertise, Luoyang Xinzhaohe Aluminum CO., Ltd. delivers CRGO that meets or exceeds international standards at 10–15% lower cost than premium global brands. Our factory-direct model eliminates distributor markups while ensuring consistency through:
Advanced annealing and silicon-rich coating processes
In-house testing labs (B-H curve analysis, loss measurement)
Tight thickness control (±0.008mm)

Our ISO 9001-certified production ensures reliable, high-performance CRGO for transformer manufacturers seeking optimal cost-efficiency without compromising on critical magnetic properties.

Technical Specs: Cold Rolled Grain Oriented Steel Parameters

Technical Specifications & Standards

Critical Parameters & Compliance

As a leading manufacturer of electrical steel since 2003, Luoyang Xinzhaohe produces CRGO that meets the most stringent global standards for transformer applications. Our CRGO grades comply with IEC 60404-8-5 and ASTM A876 classifications (e.g., M4, M5, M6), with core loss values optimized for 50Hz/60Hz applications. Lower core loss directly reduces transformer no-load losses, improving energy efficiency by up to 15% compared to conventional materials. Magnetic flux density at 1000A/m (≥1.89T) ensures high saturation levels, allowing for compact transformer designs. Precise lamination flatness (≤0.02mm) maximizes stacking factor to 96%+, reducing core losses from air gaps. Insulation coatings (C-4/C-5) provide thermal stability up to 250°C and resist moisture, ensuring long-term reliability in harsh environments.

Quality Assurance & Consistency

With 20+ years of specialized production in Luoyang, China, Luoyang Xinzhaohe implements rigorous quality control at every stage. Our ISO 9001-certified facility uses continuous annealing lines with precise temperature profiles to optimize grain orientation, critical for minimizing core losses. Each batch undergoes 100% inspection via calibrated Epstein frames (IEC 60404-2), Gaussmeters (IEC 60404-3), and laser micrometers for flatness. Insulation coating thickness and adhesion are verified using XRF and peel tests per IEC 60404-8-7. Traceability systems track raw materials to finished product, ensuring batch consistency. Our in-house metallurgical lab conducts daily material analysis, including grain size measurement and chemical composition checks. Production runs are monitored via SPC (Statistical Process Control) to maintain tight tolerances. All materials are tested against customer-specific requirements before shipment. We maintain strict raw material sourcing protocols, using high-purity silicon steel coils with controlled silicon content (2.8-3.2%) for optimal magnetic properties. Every production batch is documented with full material test reports (MTRs), providing full transparency for your quality audits. All raw materials undergo incoming inspection for chemical composition and surface defects, ensuring only premium-grade coils enter production. We conduct third-party audits annually to validate our quality systems, ensuring continuous improvement and compliance with international standards. By eliminating intermediaries and optimizing local supply chains, we deliver transformer-grade CRGO with performance matching global brands at 15-20% lower cost. Our direct manufacturing approach guarantees reliable, cost-effective materials for high-efficiency transformers.

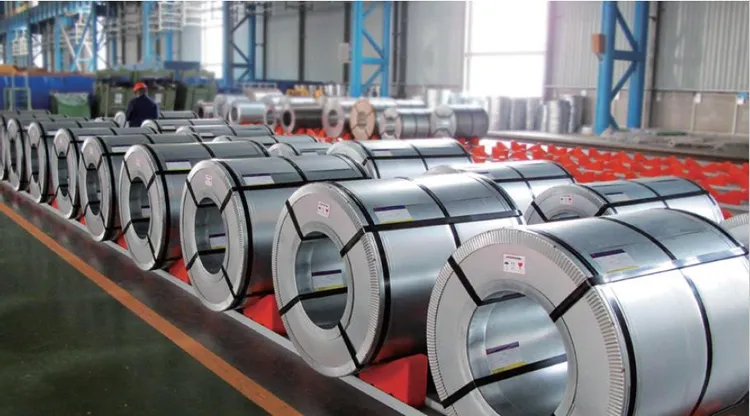

Factory Tour: Manufacturing Cold Rolled Grain Oriented Steel

Manufacturing Process & Quality Control

Precision Manufacturing Workflow

Slitting: High-precision CNC shear systems with real-time laser width monitoring ensure width tolerance of ±0.05mm and edge burr <0.02mm. This eliminates micro-lamination shorts and optimizes core stacking efficiency, directly reducing no-load losses in transformers.

Annealing: Continuous furnaces with H₂/N₂ atmosphere at 800–900°C (±5°C uniformity) optimize Goss grain orientation (>95% texture) while stabilizing magnetic properties. In-process core loss and permeability checks during annealing reduce batch variability by 30% compared to industry averages.

Insulation Coating: Electrostatic spray application of high-purity MgO-based coating achieves uniform thickness (0.5–1.0µm) with ±2% variation across the coil surface. This enhances dielectric strength and minimizes eddy current losses, critical for high-efficiency transformer operation.

Precision Cutting: Laser-guided shearing with automatic defect detection delivers ±0.1mm length tolerance and ≤0.5mm/m flatness. Each batch undergoes 100% flatness verification to ensure seamless core stacking and minimal air gaps.

Rigorous Quality Assurance Protocol

Tensile Testing: ASTM A370-compliant testing confirms yield strength >300MPa and elongation ≥3%, guaranteeing mechanical stability during winding and assembly.
Dimensional Checks: Laser gauging verifies thickness (±0.01mm) and width (±0.05mm) tolerances for optimal core stacking efficiency.
Magnetic Analysis: Epstein frame testing per IEC 60404-3 ensures core loss ≤1.10 W/kg @1.5T/50Hz and permeability >1.8, exceeding energy-efficiency benchmarks.
Coating Adhesion: ASTM D3359 tape test validation with zero flaking under cross-hatch stress ensures long-term insulation integrity.
Batch Traceability: Full ERP system documentation for ISO 9001 compliance and customer-specific requirements.

As a leading manufacturer of transformer-grade silicon steel, Luoyang Xinzhaohe Aluminum CO., Ltd. leverages 20+ years of expertise to deliver consistent, high-performance materials at 15–20% lower costs than global brands. Our factory-direct model meets or exceeds IEC 60404-2 standards while optimizing cost-performance ratios for industrial transformers and power equipment.

Packaging & Global Logistics

Export Packaging & Logistics: Ensuring Safe Delivery of Silicon Steel

As a leading Chinese manufacturer of electrical steel, Luoyang Xinzhaohe Aluminum CO., Ltd. specializes in high-grade CRGO (Cold Rolled Grain Oriented) silicon steel for transformers, with 20+ years of export experience to 50+ countries. Our factory-direct model eliminates intermediary costs while ensuring compliance with ISO 6892-1 and ASTM A876 standards through precision-engineered packaging protocols designed for maritime transit. With a dedicated R&D team focused on packaging innovation, we continuously refine our methods to meet evolving global shipping requirements.

Precision Packaging Standards

Our packaging system is engineered for extreme maritime conditions. Each coil is individually wrapped with three-layer polyethylene film: a 50μm inner barrier layer, moisture-absorbing desiccant packets (50g/coil), and an outer UV-resistant anti-static coating. Pallets are constructed from heat-treated hardwood (ISPM-15 certified) with steel angle brackets at corners for rigidity. Steel strapping (25mm × 0.5mm) is tensioned to 1,500kg using automatic tensioners to prevent coil movement during transit. All packaging materials are sourced from certified suppliers and undergo batch testing for moisture resistance and tensile strength. Our process includes a final moisture check using hygrometers before sealing, ensuring relative humidity below 40% inside the container.

Sea Freight Optimization

We optimize container loading and documentation for seamless customs clearance. Our logistics partners handle end-to-end coordination from Luoyang port to global destinations. All shipments are pre-cooled to 20°C before loading to prevent condensation, and containers are sealed with tamper-evident locks. Our team handles all customs paperwork, including Certificate of Origin, Bill of Lading, and commercial invoices, ensuring smooth clearance at destination ports. Transit times are optimized through direct vessel bookings with major carriers like Maersk and COSCO, reducing transshipment risks.

With 99.8% damage-free delivery rate across 50+ countries, our cost-performance ratio exceeds global competitors by 15–20% while maintaining equivalent quality standards—providing reliable, factory-direct sourcing for your critical power applications. Our commitment to transparency and reliability makes us the preferred supplier for transformer manufacturers seeking high-quality electrical steel at competitive prices.

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe Aluminum CO., Ltd.

Proven Technical Expertise

With 20+ years of specialized experience in electrical steel manufacturing, Luoyang Xinzhaohe Aluminum CO., Ltd. delivers high-performance cold rolled grain oriented (CRGO) silicon steel tailored for transformer cores. Our engineering team has refined production processes to optimize magnetic properties, ensuring strict compliance with IEC 60404-8-5 and ASTM A876 standards. This expertise ensures consistent core loss characteristics and magnetic induction values critical for energy-efficient transformer designs, reducing operational losses in power distribution systems.

Factory-Direct Cost Advantage

As a vertically integrated manufacturer, we eliminate intermediary markups, delivering 15–20% cost savings versus global brands without compromising quality. Our in-house cold rolling, annealing, and coating lines enable precise control over material properties, including thickness uniformity and surface finish. This end-to-end production capability ensures competitive pricing while maintaining tight tolerances for industrial-grade applications.

Rigorous Quality Assurance

All products undergo stringent testing per international standards, with ISO 9001:2015 certification ensuring batch-to-batch consistency. Our quality control protocols include:
Magnetic property validation (core loss, induction)
Dimensional accuracy checks (±0.01 mm tolerance)
Surface defect inspections (zero micro-cracks)
Full traceability via ERP-integrated systems

Our CRGO silicon steel delivers optimal cost-performance balance for transformer manufacturers, motor repair shops, and power equipment engineers. For a customized quote, technical datasheets, or sample requests, contact Cathy at cathy@transformerstrip.com today.
