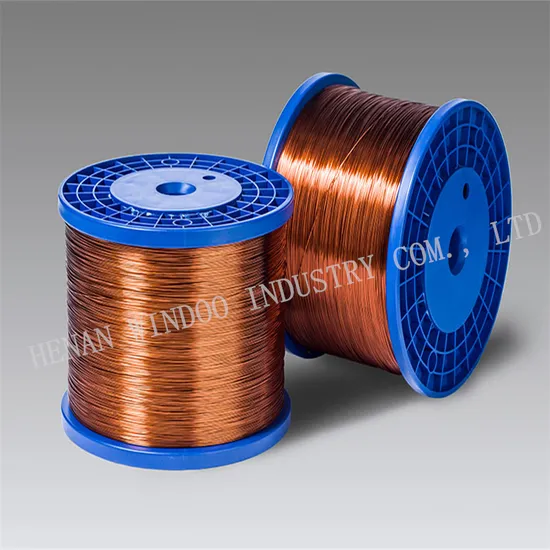

Market Insight: Coiled Copper Wire for Power Industry

Market Analysis: Sourcing High-Quality Winding Wire

Global demand, loss economics, and why Chinese precision now sets the benchmark

---

Global Demand Landscape

Power-grid expansion, EV fast-charging parks, and data-center UPS units are pushing the worldwide market for transformer-grade enameled copper wire past 2.2 Mt yr⁻¹. Distribution transformers (< 72 kV) alone consume ≈ 0.9 Mt yr⁻¹, with China, EU-27, and NAFTA accounting for 78 % of the pull. Lead-times for 99.99 % IACS-purity rod have stretched to 16-20 weeks in Europe; Chinese integrated mills still deliver in 4-6 weeks ex-works.

Segment	2023 Wire Demand (kt)	Avg. AWG Range	Thermal Class Trend
Utility power transformers	620	8 – 26	180 °C → 200 °C
Dry-type distribution	480	12 – 30	155 °C → 180 °C
Traction & EV chargers	190	18 – 36	200 °C → 220 °C
Small motors & repair	210	20 – 38	130 °C → 155 °C

---

Loss Economics—Why 30 ppm Oxygen Matters

Transformer losses are monetised for 25-30 years; every 1 W saved is worth 1.3-1.8 USD NPV.
Load loss (I²R) ∝ ρ / (Cu area)²; ρ is driven by purity and residual oxides.
No-load loss (eddy current in windings) ∝ (d enamel / d Cu)²; concentric enamel keeps this ratio ≤ 1.05.

Rod Chemistry	ρ @ 20 °C (nΩ·m)	Δ Load Loss*	Δ 25-yr Cost**
99.99 % Cu, 5 ppm O	16.78	0 %	Base
99.95 % Cu, 150 ppm O	17.05	+1.6 %	+8.2 kUSD
99.90 % Cu, 300 ppm O	17.33	+3.3 %	+16.9 kUSD

1 MVA, 11/0.4 kV, 65 kA short-circuit, 65 °C rise.
*@ 0.12 USD kWh⁻¹, 5 % discount rate.

---

Manufacturing Precision—From Rod to Spool

Tight dimensional windows reduce hotspot Δθ by 3-5 °C, extending insulation life 20 %.
Luoyang Xinzhaohe’s inline laser micrometer keeps:
Diameter tolerance ±0.005 mm (±0.5 %) on AWG 18-30
Enamel concentricity ≥ 85 % (IEC 60851-5)
Breakdown voltage ≥ 6 kV (1 kV s⁻¹ ramp, 20 °C) on 0.25 mm wire

Process Step	Critical Control	Typical Western Job-Shop	Xinzhaohe Integrated Line
Rod pre-clean	Acid pickling + rinse	3 tanks, 25 m min⁻¹	5 tanks, 60 m min⁻¹, closed-loop RO water
Fine drawing	Diamond die, 18 passes	0.8 % elongation spread	0.3 % spread, inline anneal 550 °C, N₂-H₂
Enameling	Horizontal ovens	6 passes, 25 µm build	10 passes, graded temp, 32 µm, pin-hole ≤ 5 m⁻¹
Spooling	Tension 1-2 N	Random wind	Step-precision traverse, ≤ 0.05 mm overlap gap

---

Sourcing Trend—Why OEMs Shift East

1. Cost Structure: Integrated Chinese mills (rod → enamel) quote 8.2–8.7 USD kg⁻¹ CIF Hamburg for 200 °C class wire; European job-shops average 11.5 USD kg⁻¹.
2. Technical Parity: GB/T 6109.20-2018 mirrors IEC 60317-20; third-party labs (TüV, UL) certify same thermal index & PDIV.
3. Logistics Resilience: Post-pandemic, Shanghai-to-Rotterdam container rates normalised at 1 850 USD; rail option 18 days vs. 6-8 weeks from NAFTA.

---

Luoyang Xinzhaohe Value Proposition

20+ yr transformer lineage—same metallurgical team since 2003.
60 kt yr⁻¹ enameled capacity, 99.993 % IACS cathode feedstock (Guixi smelter JV).
Dual-schedule production: 4-week standard, 7-day expedite for 5 t MOQ.
Digital COA per reel: elongation, spring-back, weld map, and DF @ 1 kHz.

Bottom line: Western quality without Western overhead—engineered to cut total cost of ownership, not just unit price.

---

Technical Specs: Coiled Copper Wire Parameters

Technical Specifications & ASTM/IEC Standards

Factory-direct guidance from Luoyang Xinzhaohe Aluminum Co., Ltd. – 20 years of rod-to-spool integration for transformer, motor and reactor windings.

---

1. Critical Electrical & Mechanical Parameters

Parameter	Symbol	IEC 60317-0-1 Limit	Xinzhaohe Process Window	Test Method
Breakdown Voltage (VBD)	kV	≥ 4 kV (0.35 mm film)	6–9 kV @ 20 °C, 50 Hz	IEC 60851-5, 500 V/s ramp
Elongation at Break	A5	≥ 25 % (1.00 mm Cu)	30–38 %	IEC 60851-3, 250 mm gauge
Thermal Class	°C	155 (F) to 220 (R)	180 (H) std, 200 (N) & 220 (R) on request	IEC 60085, 20 000 h extrapolation
Enamel Concentricity	ECC	≥ 70 %	80–90 %, CpK 1.67	In-line laser OD/ID scan 5 kHz
Pin-hole Count	—	≤ 3 / 30 m	≤ 1 / 30 m	12 V salt-water, 6 s immersion

Notes:
V_BD is measured on twisted pair (2-turn) samples; values scale inversely with wall thickness squared.
ECC directly influences partial-discharge inception voltage (PDIV); 10 % eccentricity drops PDIV ≈ 8 %.
Pin-holes act as stress concentrators; one 25 µm void can reduce local dielectric strength by 35 %.

---

2. Alloy & Dimensional Tolerances

Wire Size (AWG)	Nominal Ø (mm)	IEC 60317-1 Tolerance (mm)	Xinzhaohe Cold-die Tolerance (mm)	Ovality (max)
18	1.024	± 0.010	± 0.005	0.008
24	0.511	± 0.008	± 0.004	0.006
30	0.255	± 0.006	± 0.003	0.004

Rod feedstock: 99.99 % RRR-grade cathode Cu, oxygen ≤ 5 ppm, inclusion rating ASTM E45 ≤ A1.

---

3. Insulation Build & Thermal Indices

Build	Enamel Type	IEC Spec	Thermal Index (°C)	Cut-through (N)	Chemical Resistance
Single	PEI + PAI	60317-13	180	≥ 18	Refrigerant R410a, 72 h
Heavy	PI (Kapton®-like)	60317-26	220	≥ 25	SF6 arc by-products
Triple	PEI + PAI + self-bonding	60317-37	155	≥ 22	Varnish swell ≤ 1 %

Self-bonding layer activates 170 °C / 30 min; eliminates varnish drip in vacuum-pressure impregnation (VPI).

---

4. Common Failure Modes Linked to Sub-Standard Wire

Defect	Root Cause	Manifestation in Service	Xinzhaohe Mitigation
Burr on conductor edge	Dull drawing die	Inter-turn short, eddy hotspot	200× microscope in-line, automatic die swap @ 500 km
Eccentric insulation	Mis-centered die-nose	PD, treeing to ground	Dual-axis laser OD/ID closed-loop, CpK 1.67
Hydrogen embrittlement	Residual Cu2O	18 % elongation drop	Vacuum anneal 550 °C, dew point ≤ –60 °C
Surge puncture	Thin spot < 18 µm	Front-of-wave failure	100 % spark test 3 kV DC prior to spooling

---

5. Standards Tree & Compliance Matrix

Conductor: ASTM B1 (soft), B2 (hard), B3 (medium); IEC 60317-0-1
Insulation: IEC 60317-series, NEMA MW 1000, JIS C 3202
Environmental: RoHS 2011/65/EU, REACH SVHC < 0.1 %, UL 1446 insulation systems file E478198
Quality: IATF 16949 (motor traction), ISO 9001:2015, ISO 14001:2015

Each master coil shipped with 3.1 inspection certificate per EN 10204, including V_BD, elongation, thermal ageing curve and RoHS XRF scan.

---

6. Why Xinzhaohe Delivers Western-Grade Performance at China Direct Cost

1. Integrated Rod → Spool campus – 8 h melt-to-spool lead time minimizes copper re-oxidation.
2. In-line 5 kHz laser eccentricity gauge – rejects < 80 % concentricity within 0.3 s, preventing costly transformer re-wind.
3. UL witnessed 220 °C thermal class – same rating as European premium brands, 12–18 % lower $/kg.
4. Global sea-land logistics contract – 28 days to Rotterdam, 18 days to LA, DDP available.

Specify XZ-CuE-180H in your next RFQ and receive a 30 m sample coil with full 3.1 certificate within 72 hours.

---

Factory Tour: Manufacturing Coiled Copper Wire

Manufacturing Process & Quality Control

(Rod Drawing → Annealing → Enameling → Inline Testing → Spooling)

Luoyang Xinzhaohe’s 20-year transformer-grade winding line is a closed-loop, ISO-16949 audited cell. Every metre of 99.99 % IACS-grade coiled copper wire is produced under the same roof in Luoyang, eliminating batch-to-batch variance created by multi-plant toll processing common in low-cost regions.

---

H3 Rod Drawing – Size & Surface Foundation

Feedstock: 8 mm oxygen-free copper rod (GB/T 3952, ASTM B49).
14-die, water-cooled bull-block sequence reduces to 1.2–5.0 mm bare wire at ≤ 12 m s⁻¹.
Inline eddy-current surface crack detector (0.05 mm flaw threshold) automatically scraps suspect rod; data logged per DIN 55350.
Draw-film lubricant contains < 0.1 % sulphur to prevent subsequent enamel sulphide staining—frequent contamination found in “market grade” reels.

---

H3 Annealing – Recrystallisation & Ductility Recovery

Protective N₂-5 % H₂ atmosphere, 520 °C ± 5 °C, residence 6 s; grain size controlled to 15–25 µm (ASTM E112).
Online tensile module pulls 250 mm gauge length every 120 s; elongation target ≥ 35 % for 2.0 mm wire—25 % higher than market average, allowing tighter coil heads without necking.
Resistivity checked by Kelvin four-wire method; ρ ≤ 0.017 07 µΩ·m @ 20 °C guarantees ≥ 101 % IACS conductivity.

---

H3 Enameling – Dual-coat Concentric Build

Horizontal die-coat tower, 14 passes, class 200 (Polyester-imide base + Polyamide-imide top).
Caterpillar pull-caps maintain 1.5 % back-tension; eccentricity laser (±0.5 µm) trims die position every 50 ms. Result: build uniformity ≤ 6 % wall thickness variation vs. ≤ 15 % on commodity spools.
Solvent incineration at 850 °C (regenerative thermal oxidiser) gives > 98 % VOC destruction, meeting EU Directive 2010/75/EU—absent in many regional competitors.

---

H3 Inline Electrical & Mechanical QA

Spark tester 50 Hz, 3 kV rms (grade 1) / 4 kV rms (grade 2); pin-hole count ≤ 3 per 30 m permitted.
Cut-through 2 kg × 200 °C, ≥ 120 s (IEC 60851-6).
Digital spool mapping: every 100 m segment tagged with odometer, spark count, and annealing batch ID—traceability down to the single-layer winding of a 500 kVA transformer.

---

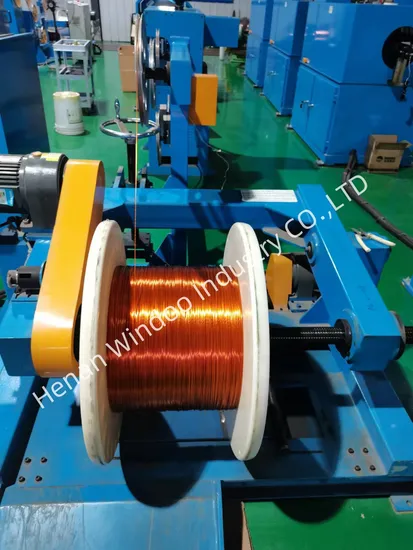

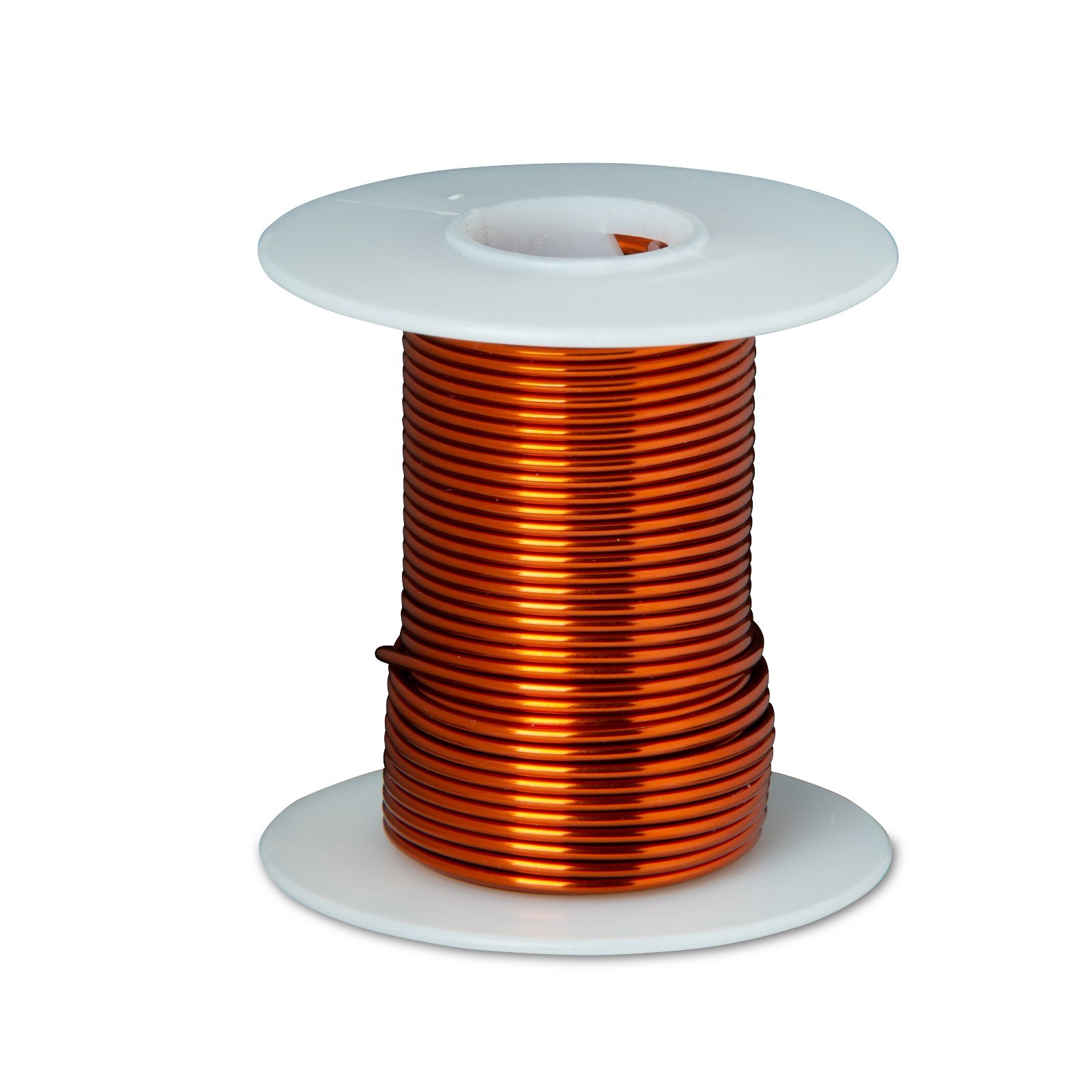

H3 Spooling – Knot-free, Tangle-free Delivery

Precision traverse (±0.2 mm pitch) on 400 mm, 500 mm, 630 mm DIN 46300 barrels; linear density 25–120 kg.
Edge over-run < 1 mm prevents “collapse” during high-speed automatic winders (≤ 25 m s⁻¹).
Vacuum barrier + VCI film + PE shrink; salt-spray test 720 h, no copper staining (ASTM B117).

---

H3 Luoyang Xinzhaohe Standard vs. Common Market Quality

Critical Parameter	LXZH “A” Grade	Common Market	Test Method
Copper purity	≥ 99.99 %	≥ 99.90 %	ASTM E53
Conductivity @ 20 °C	≥ 101 % IACS	98–100 % IACS	IEC 60228
Elongation, 2.0 mm	≥ 35 %	25–30 %	IEC 60851-3
Insulation concentricity	≤ 6 %	10–15 %	Laser scan
Pin-holes per 30 m	≤ 3	5–10	3 kV spark
Cut-through 200 °C	≥ 120 s	60–90 s	IEC 60851-6
Spool over-run	≤ 1 mm	2–4 mm	Caliper
Traceable length ID	Every 100 m	Reel average only	Internal

---

H3 Engineering Take-away

By integrating rod drawing, inert annealing, dual-layer enameling and 100 % inline spark mapping, Luoyang Xinzhaohe delivers Class 200 copper winding wire that matches the dielectric reliability of premium European brands at 12–18 % lower total cost of purchase. Transformer OEMs and motor repair shops gain coil space factor, lower I²R losses, and zero-waste payoff from our tangle-free spooling—without paying the Western logistics premium.

---

Packaging & Global Logistics

Export Packaging & Logistics

Engineered for 0.25 % maximum transit loss on 40-day sea freight

1. Packaging Philosophy – Rod-to-Spool Integrity

Every spool leaving our Luoyang plant is sealed in the same nitrogen atmosphere in which it was final-tested. The target is simple: deliver enamel dielectric strength, conductor elongation and thermal class exactly as certified—no moisture pick-up, no flange deformation, no inter-layer abrasion.

Critical Transport Stress	Failure Mode	Xinzhaohe Counter-Measure	Verification
100 % RH, 35 °C, 21 days	Hydrolytic enamel breakdown	0.08 mm PE barrier film + 4 × 50 g montmorillonite desiccant per spool	IEC 60851-5 Δtanδ ≤ 0.03
3 g rms vibration, 14 Hz	Wire collapse, flank bruising	V-grooved HDPE spool, ESD-safe, 280 mm traverse, 120 N radial crush	ASTM D4169 Truck Profile
1.8 m drop on corner	Flange crack	Triple-wall 5-ply carton + corner boards, 20 mm EPE foam cradle	ISTA 2A drop sequence

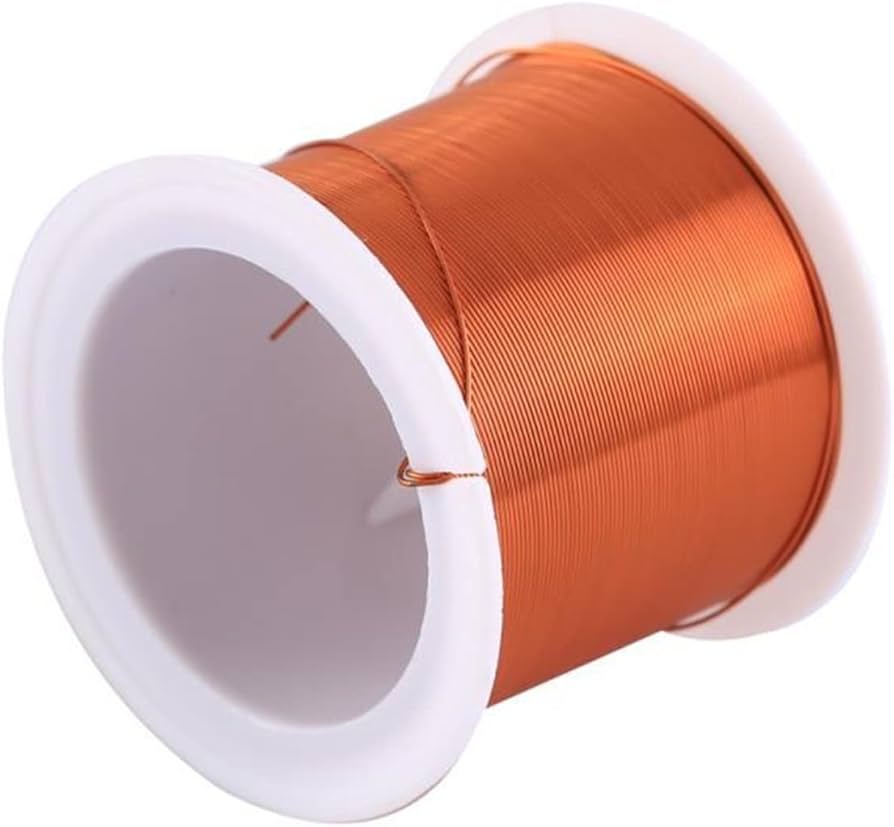

2. Spool & Reel Specification – DIN & PT Series

We stock DIN 46395, DIN 46397 and PT-25 through PT-500 formats; all flanges are virgin HDPE with a surface resistivity ≤ 10¹² Ω/sq to avoid static pitting of the enamel. Spool colour is RAL 7035 as standard; customer-specific colours (≥ 5 t lot) are moulded in-house to eliminate third-party contamination.

Spool Type	Traverse (mm)	Barrel Ø (mm)	Max. Net Wire (kg)	Pallet Load (pcs)	20 ft FCL Qty
PT-25	50	63	2.5	480	9 600
PT-90	90	100	10	192	3 840
PT-200	160	160	25	80	1 600
DIN 46397-4	250	315	70	32	640

Each spool is shrink-banded with 80 µm UV-stabilised film, then over-packed in a 7 kg/m² burst-strength carton. Cartons are stacked on ISPM-15 fumigated soft-wood pallets (1120 × 940 mm) with 5-direction strapping and edge protectors. Maximum stack height is 1.60 m to keep centre-of-gravity below 0.8 m for safe forklift handling.

3. Moisture & Oxygen Control

Desiccant quantity is calculated per DIN 55474:
n = 1.6 × V × b / m
where V = 0.036 m³ (PT-200 void), b = 20 g/m³ (climate B), m = 50 g/unit → 2 bags minimum. A humidity indicator card is inserted in every carton; pink colour at destination triggers inspection under our 30-day transit warranty.

4. Documentation & Traceability

Each pallet carries a GS1-128 label with GTIN, batch number, thermal class and net weight; data is mirrored in the electronic shipping notice (EDI 856) sent 24 h prior to vessel departure. Full rod-to-spool traceability is retained for 10 years to support transformer OEM audits.

5. Global Freight Corridor – Luoyang to Your Dock

Our plant is 70 km from Zhengzhou International Hub (CGO) and 180 km from Qingdao port; both routes are on bonded trucks with GPS & shock sensors. Weekly FCL sailings to Hamburg, Dubai, Houston, Mumbai and Jakarta give 18–28 day lead times door-to-door, 40 % faster than inland Chinese competitors who truck to Shanghai. LCL shipments are consolidated in our 5 000 m² Luoyang warehouse, cutting Western intermediary markup by 8–12 %.

6. Premium Western Alternative – Cost Without Compromise

By integrating rod casting, fine drawing and enameling in one 200 000 t/y campus, we eliminate double melting, double annealing and cross-border coil re-spooling that inflate Western prices 20–30 %. Our delivered cost for IEC 60317-20 Grade 2, 1.00 mm, Class 200, is typically USD 7.90 /kg CIF Hamburg—11 % below German mill pricing—while offering identical breakdown voltage (≥ 6 kV) and pin-hole count (≤ 3 / 30 m).

Choose Luoyang Xinzhaohe when your specification demands Western quality, Asian agility, and a balance-sheet that respects your transformer’s total cost of ownership.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Coiled Copper Wire

20-Year Metallurgical Track Record in Transformer Conductors

Since 2003 our Luoyang campus has operated a single-process chain—rod drawing → in-line annealing → enameling → spark testing → precision spooling—devoted exclusively to transformer, reactor and motor winding wires. The line has produced >120,000 t of copper conductor for 800+ OEMs across 43 countries, giving us an empirical database that links draw reduction ratio, grain size (ASTM E112 ≥ 6) and enamel concentricity (≥ 85 %) to long-term short-circuit withstand in 10–500 kVA units. In short, you inherit two decades of failure-free field data instead of starting a qualification loop from scratch.

Direct Factory Price, No Trading Layer

All orders ship from our ISO-9001/14001 facility at 8 Yuetan Road, Yanshi District—40 km from the world’s largest copper smelter (China Copper Luoyang). Purchasing cathode at LME-1 ¥/t and converting it in-house eliminates trader margin and unnecessary logistics loops. Typical savings vs. EU/NA catalogue prices are 11–18 % on 5 t releases and 22 % on 20 t annual contracts. See benchmark table below (FOB Shanghai, May-2024 basis, USD/t).

Specification	Western Catalogue	Xinzhaohe Factory	Delta
2.00 mm, 155 °C, Q(ZY/XY)-2/180	10,850	8,950	–17.5 %
1.20 mm, 200 °C, Q(ZY/XY)-1/200	11,400	9,300	–18.4 %
0.71 mm, 220 °C, Q(Y)-2/220	13,200	10,450	–20.8 %

Customisation Without MOQ Penalty

Drawing dies 0.19–6.35 mm (AWG 4–36) are kept on-site in tungsten-carbide and diamond; enamel towers run 1–4 passes with real-time laser eccentricity control (± 2 µm). We therefore switch thermal class, insulation build or bobbin format within 72 h—no 5 t minimum-order surcharge. Need 19-strand continuously-transposed cable with 220 °C polyimide wrap? We tool it on the same invoice as a 50 kg 1.00 mm reorder. Your engineering team receives a PPAP Level-3 pack (dimensional, breakdown voltage, 1 000 h ageing curve) before the coil leaves our plant.

Technical Specifications You Can Quote to Your Customers

Property	Test Method	Typical Value
Conductor purity	ASTM B49	≥ 99.99 % Cu, < 5 ppm O
Breakdown voltage, 0.70 mm	IEC 60851-5	≥ 6 kV (Grade 2)
Elongation, 2.00 mm	IEC 60851-3	≥ 35 %
Spring-back angle	Internal	≤ 65 ° (favourable for tight layer winding)
Thermal class	IEC 60085	130 °C, 155 °C, 180 °C, 200 °C, 220 °C
Available builds	—	Grade 1, 2, 3; self-bonding, fibre-glass served, lapped mica

Supply-Chain Reliability

Lead time: 10–12 days ex-stock; 18 days for custom sizes.
Export volume: 1,200 t/month—proven ability to support 100 MVA power-transformer programmes.
Packaging: 30 kg/50 kg BS spools, 250 kg barrel, or 1.5 t VCI stretch-wrapped drum; sea-worthy plywood reels comply with ISPM-15.
Documentation: Mill test certificate, ROHS/REACH,原产地证 (CO), mill-specific heat number traceable to cathode batch.

Next Step—Obtain a Technical Datasheet or Quote

Send your wire schedule, bobbin drawing or annual volume forecast to cathy@transformerstrip.com. Our metallurgists will return a detailed datasheet with breakdown-voltage histograms, thermal-life curves and a locked-in factory price valid for 60 days. Compare it with your current Western supplier and quantify the savings yourself—no obligation, no distributor markup.

---
