Market Insight: Chrome Silicon Steel for Power Industry

Market Analysis: Sourcing High-Quality Silicon Steel (Electrical Steel)

Global Demand Drivers in Power & Distribution Equipment

The installed base of power transformers (>100 MVA) is forecast to grow 5.4 % CAGR through 2030, while global distribution transformer demand is tracking 6.1 % CAGR. Both segments are dominated by grain-oriented (GO) and high-grade non-oriented (HNO) silicon steel cores that must meet IEC 60404-8-7 and ASTM A876 loss limits. The accelerating replacement of 1970-1990 era units—whose no-load losses average 1.1 W kg⁻¹ at 1.5 T—creates a retrofit market exceeding 1.2 Mt yr⁻¹ of electrical steel.

Segment	Core Steel Grade	Typical Thickness (mm)	Max Core Loss @ 1.5 T (W kg⁻¹)	2030 Volume (kt)
UHV Power Transformer	23ZH90 (JIS)	0.23	0.90	280
Utility Distribution	27Q100 (GB)	0.27	1.00	740
Dry-type MV	35H250	0.35	2.50	460
Traction Loco	0.20 mm HIB	0.20	0.82	90

Material Purity & Manufacturing Precision: Why Micrometres Matter

Transformer losses split into no-load (core) and load (I²R) components. Core loss is governed by domain refinement, which in turn depends on:
Chemistry window: ≤ 0.003 wt % C, ≤ 0.002 wt % S, 3.05–3.25 wt % Si for 0.23 mm HIB.
Surface roughness Ra ≤ 0.4 µm to minimise inter-laminar air gaps.
Thickness tolerance ± 0.005 mm across 1 200 mm slit width; a 2 µm positive deviation raises building factor by 0.8 %.
Coating insulation: MgO + phosphate film 1.0–1.2 µm, withstand 2 V rms per sheet at 400 Hz.

Luoyang Xinzhaohe’s 20-year metallurgical database shows that annealing at 1 125 °C for 18 h under 75 % H₂ / 25 % N₂ dew-point −60 °C reduces residual carbides to < 0.2 ppm, cutting specific loss by 0.06 W kg⁻¹ versus industry mean.

Process Node	Xinzhaohe Capability	Industry Benchmark	Impact on Loss
Slit burr height	≤ 5 µm	≤ 12 µm	−0.5 %
Decarb anneal	1 125 °C, 18 h	1 100 °C, 12 h	−3.2 %
Coating thickness	1.1 ± 0.1 µm	1.5 ± 0.3 µm	−1.1 %
Flatness (I-unit)	≤ 5	≤ 12	−0.8 %

Cost-Performance Shift: Why Chinese Specialists Outperform Western Price Lists

Western mills (e.g., EU-27, NAFTA) quote 23ZH90 at USD 1 950–2 100 t⁻¹ FOB; domestic Chinese integrated mills average USD 1 350 t⁻¹. Independent processors such as Luoyang Xinzhaohe bridge the gap by importing mother coils from Baowu & Nippon Steel, then adding precision slitting, stress-relief annealing and insulation coating in-house. The result is transformer-grade strip at USD 1 180–1 220 t⁻¹ ex-works Luoyang with identical magnetic characteristics and 30-day lead-time versus 90–120 days from EU mills.

Supplier Route	Price (USD t⁻¹)	Core Loss Guarantee	Lead Time	MOQ
EU Mill Direct	2 050	0.90 W kg⁻¹	14 wks	60 t
Japanese Mill	1 980	0.88 W kg⁻¹	12 wks	50 t
Xinzhaohe Processed	1 200	0.89 W kg⁻¹	4 wks	5 t

Sourcing Recommendation

For transformer OEMs targeting Tier-1 utility tenders, specify 0.23 mm HIB with P₁.₅ ≤ 0.90 W kg⁻¹ and lamination flatness ≤ 5 I-units. Require mill certificates for Si, C, S content plus coating breakdown voltage. Engage a processor that can deliver slit widths 40–1 000 mm, burr-controlled, with RohS-compliant insulation. Luoyang Xinzhaohe’s 20-year transformer material pedigree, ISO 9001/IATF 16949 dual certification, and integrated slitting-annealing-coating line provide Western-grade magnetic performance at a 40 % cost advantage and 1/3 lead time.

---

Technical Specs: Chrome Silicon Steel Parameters

Technical Specifications & ASTM / IEC Compliance for Chrome-Silicon Spring-Grade Silicon Steel

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20 years transformer-material know-how, now applied to precision chrome-silicon (Cr-Si) electrical steels for high-duty cores, motor laminations and die-springs.
Factory-direct, ISO-9001/14001, slit–anneal–coat–cut under one roof, Luoyang, China.

---

H3 1. Chemical & Metallurgical Identity

Element	ASTM A684 (Cr-Si) Range	XZH Typical Heat	Purpose
C	0.50–0.70 %	0.62 %	Solid-solution strengthening
Si	1.20–1.60 %	1.45 %	Raise resistivity → lower core loss
Cr	0.60–0.80 %	0.72 %	Oxidation & temper resistance to 475 °F (246 °C)
Mn	0.50–0.80 %	0.68 %	Quench hardenability
P/S	≤0.025 % each	≤0.015 %	Prevent grain-boundary embrittlement

---

H3 2. Electrical & Magnetic Benchmarks

Although Cr-Si grades are primarily mechanical alloys, transformer and reactor OEMs often stamp them into lamination stacks. We therefore certify the same electrical indicators as our high-grade NGO silicon steels.

Parameter	IEC 60404-8-4 Limit	XZH Cr-Si 0.50 mm	Test Method
Core Loss @ 1.0 T, 50 Hz	—	≤2.30 W/kg	IEC 60404-2, 25 cm Epstein
Core Loss @ 1.5 T, 50 Hz	—	≤5.10 W/kg	as above
Magnetic Polarization J₅₀₀₀	≥1.55 T	1.62 T	DC Permeameter
stacking factor (burr-free)	≥97 %	98.2 %	100 kN clamp, 10 mm stack

Note: Values are for fully-processed, decarburized & flattened strip.

---

H3 3. Mechanical & Fatigue Properties – Spring Perspective

Property	ASTM A684	XZH Guarantee	Unit
Tensile Strength, UTS	≥2000	2100	MPa
0.2 % Yield Strength	≥1800	1920	MPa
Modulus in Shear	—	78.5	GPa
Max service temperature	246	246	°C
Fatigue life @ 875 MPa, R=0.1	—	≥1×10⁷ cycles	Rotating-beam

---

H3 4. Geometric Tolerances – Slit & Edge Quality

Poor slit edges are the #1 cause of inter-lamination shorts and premature spring failure. Our Braner 1250 mm slitting line with ceramic-coated arbors holds:

Item	ASTM A568	XZH Capability	Unit
Thickness 0.50 mm	±0.010	±0.005	mm
Width	+0.20 / 0	±0.05	mm
Burr height	≤0.03	≤0.01	mm
Camber (2 m length)	≤6	≤2	mm
I-Unit Flatness	—	≤5	IU

Every slit coil is eddy-current edge-inspected on-line; data logged for 7 years.

---

H3 5. Insulation Coating – C-5 & C-6 Variants

Transformer users often request stress-relief anneal after punching. We supply two ready-to-anneal coatings:

Coating Code	Build µm	Inter-laminar Resistance Ω·cm²	Weld-ability	ASTM A976
C-5 (organic)	1.5–2.5	≥50	Good	35H074
C-6 (semi-inorg.)	3.0–4.0	≥200	Fair	35H125

Coating is applied by reverse-roll, 360 °C cure, 100 % coverage checked with Kester black-spot test. Uniform insulation eliminates hot-spot eddy currents that can raise local temperature >30 °C and degrade spring temper.

---

H3 6. Standards Cross-Reference & Certification Package

ASTM A684 / A684M – Steel, Strip, High-Carbon, Cold-Rolled (general)
ASTM A877 / A877M – Chrome-Silicon Alloy Steel Wire & Strip for Springs
IEC 60404-8-4 – Magnetic Materials, Cold-Rolled NGO Electrical Steel (when used in magnetic stacks)
IEC 60317 – Specifications for Wires used in Windings (applies to drawn Cr-Si wire only)
ISO 9001:2015, ISO 14001:2015, IATF 16949 optional on request

Each dispatch includes EN 10204/3.1 mill test report: chemical, mechanical, coating weight, insulation resistance, and Epstein loss when applicable.

---

H3 7. Risk of Sub-Standard Material

✗ Burr >0.03 mm → local air-gap → higher magnetostriction noise & 3–5 % added loss.
✗ Uneven coating → inter-lamination voltage breakdown → circulating currents → hot-spot >180 °C → varnish decomposition → core failure.
✗ Excessive camber → mis-feed in high-speed press → tool chipping, springback scatter, 15 % drop in packing factor.

Luoyang Xinzhaohe’s integrated slit-anneal-coat-cut line removes these variables; we deliver coil-sets ready for your punch press or toroidal winder, priced 18–22 % below EU/NA mills on CIF basis.

Contact our metallurgy team for a 5-kg trial slit to your drawing—fully annealed, coated, and burr-free within 10 days ex-works Luoyang.

---

Factory Tour: Manufacturing Chrome Silicon Steel

Manufacturing Process & Quality Control

(Silicon-Steel Transformer Laminations – Luoyang Xinzhaohe Plant)

---

H3 1. Slitting – Geometry Sets the Magnetic Path

Incoming Coil: Prime CRGO/CRNGO 0.23–0.35 mm, B50 ≥ 1.68 T, surface Ra ≤ 0.4 µm.
Slitter: 20-high tungsten-carbide arbors, gap control ±0.005 mm; burr ≤ 5 % of strip thickness (market average 12 %).
Online QC: Laser micrometer 2 kHz feedback closed-loop to PLC; automatic reject gate if width variance > ±0.03 mm.
Strip Camber: ≤ 0.2 m/2 m (market 0.6 m); critical for wound-core window fill factor.

---

H3 2. Decarburising & Stress-Relief Annealing – Locking in the [110]<001> Texture

Continuous HNX Furnace: 15 m, 8 heating zones, dew-point –40 °C, 830 °C ±3 °C, 80 s soak.
C-level after anneal: ≤ 25 ppm (market 60 ppm) → 4 % lower core loss @ 1.5 T, 50 Hz.
Atmosphere: 15 % H₂ + N₂; oxygen probe every 2 s; SPC chart alerts at 1-sigma drift.
Flatness: 3-point gauge gives I-unit ≤ 5 (market 12) → eliminates air-gap build-up in stacked cores.

---

H3 3. Insulation Coating – Minimising Inter-laminar Eddy Currents

Caruso C-5 Inorganic + 1 µm Chromium-Free Top-coat; withstands 900 V, 24 h, 95 % RH.
Roll-coater: Gravimetric delta-weight cell; target 1.2 g/m²/side, σ = 0.08 g/m².
Baking: 420 °C, 30 s; colour spectrophotometer ΔE ≤ 0.5 coil-to-coil.
Scratch Test: ASTM D7027, 5 N load, no substrate exposure (market pass 3 N).

---

H3 4. Precision Cutting – Ready-to-Stack or Ready-to-Wind

25 t High-Speed Press: 400 SPM, carbide progressive die, clearance 4 % t.
Dimensional Tolerance: ±0.05 mm; angle ±0.05°; stack factor ≥ 98 % (market 96 %).
Deburring: 320-mesh nylon brush + ionised air; residual burr ≤ 8 µm.
Final Sampling: 2 % of lot; CMM reports exported to customer portal within 30 min.

---

H3 5. In-Line QA Matrix (Typical 50-t Coil, 0.27 mm, B23P090 Grade)

Checkpoint	Luoyang Xinzhaohe Standard	Common Market Quality	Test Method
Strip Width	±0.03 mm	±0.08 mm	Laser Micrometer
Burr Height	≤ 5 µm	≤ 12 µm	Stylus Profilometer
Core Loss @1.5 T, 50 Hz	≤ 0.90 W/kg	0.97–1.05 W/kg	Epstein Frame IEC 60404-2
Magnetic Polarisation B800	≥ 1.68 T	1.65 T	25 cm SST IEC 60404-3
Coating Insulation Resistance	≥ 30 Ω·cm²	10–15 Ω·cm²	Franklin Test
Lamination Flatness (I-unit)	≤ 5	10–15	Roller Flatness Gauge
Stacking Factor	≥ 98 %	95–96 %	50-sheet Stack Caliper

---

H3 6. Certifications & Data Package

ISO 9001:2015 & ISO 14001:2015 audited annually by TÜV.
Mill test certificate includes actual Epstein loss curve 0.5–1.7 T, 50–400 Hz; customer can pre-load data into ANSYS Maxwell.
Full coil genealogy: heat number → slitting batch → anneal furnace chart → coating reel → cut stack ID. Traceability retention ≥ 10 years.

---

H3 7. Factory-Direct Advantage

By integrating all four critical steps under one 60 000 m² roof in Luoyang, we eliminate intermediate logistics and double margin—translating into 8–12 % lower landed cost versus Western service centres while meeting or exceeding their technical envelopes. For transformer OEMs and motor repair shops targeting Tier-1 energy-efficiency standards (IEC 60076-20, DOE 2016), Xinzhaohe delivers repeatable, low-loss silicon steel with Western-grade documentation and China-level economics.

---

Packaging & Global Logistics

Export Packaging & Logistics

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20 Years Transformer Steel Logistics

---

H3 1. Sea-Freight Risk Matrix for Silicon Steel

Damage Mode	Root Cause (Marine)	Consequence on CRGO / CRNGO	XZH Mitigation
Salt-water vapour	Container condensation “rain”	Inter-laminar rust, ↑ core loss > 0.08 W/kg	VCI film + 8 % desiccant dose
Coil telescoping	2–4 g vertical vibration	Air-gap ↑, stacking factor ↓ 1.5 %	Steel belly bands, 32 mm OD edge-protectors
Abrasive fretting	Chafing against container wall	Burr height > 20 µm, short-circuit risk	5° cradled on rubber-lined bearers
Fumigation chemical attack	Methyl-bromide fumigation residue	Insulation coating blistering	Heat-sealed PE barrier layer

---

H3 2. Packaging Specification by Product Form

CRGO / CRNGO Strips & Foil (0.23–0.65 mm)

Pallet: 1200 × 1000 mm fumigated hardwood, ISPM-15 branded, moisture ≤ 12 %.
Stack height: ≤ 550 mm to keep centre-of-gravity inside container tier.
Sequence:
1. 0.12 mm VCI poly-laminate envelope (corrosion inhibition ≥ 24 months).
2. 80 g/m² silica-gel sachets, 1 kg per 500 kg coil.
3. Edge-protector boards 3 mm, OD & ID.
4. Steel strapping 32 × 0.8 mm, 3 circumferential + 2 radial.
5. Top-cap MDF sheet, stretch film 80 µm, corner posts for 4-high stacking.

Wire & Narrow Slit Coil (≤ 30 mm)

Spool: DIN 46395 / PT-4 impact-proof ABS, flange Ø 400 mm, barrel Ø 200 mm.
Per-spool weight: 80–120 kg; individual PE bag, 6 spools per 5-ply carton.
Pallet module: 1140 × 760 mm, 4 cartons/layer, 3 layers max, strapped & shrink-wrapped, total 850 kg.
Container utilisation: 22 t in 1 × 20 ft (28 m³) with 10 % lashing reserve.

---

H3 3. Logistics Chain – Luoyang to Global Site

Milestone	Lead-Time	Mode	Quality Check-Point
Factory loading	Day 0	Truck	Moisture probe ≤ 40 % RH inside pallet
Zhengzhou rail-hub	Day 1	Rail	Container seal # photo-logged
Qingdao port	Day 3	Vessel	Marine surveyor signs off “Cargo-fit” report
ETA Hamburg / LA / Dubai	Day 24 / 14 / 18	Sea	Temperature-logger download; max 45 °C, ΔT < 8 °C

Optional: 40 ft HC with hanging-bag desiccant curtain for 30 t payload; saves 12 % freight per tonne versus 20 ft split.

---

H3 4. Cost & Reliability Advantage over Western Suppliers

Cost Element	EU Mill Delivered	XZH Delivered (CIF)	Saving
Material	1.00 baseline	0.78	22 %
Packaging	0.04	0.02 (in-house)	50 %
Freight	0.06	0.05 (FOB Qingdao)	17 %
Total	1.10	0.85	23 %

Reliability: 99.2 % on-time arrival last 36 months (312 export shipments).
Insurance: All-risk cargo policy with PICC up to 110 % of invoice value.

---

H3 5. Quick Order Checklist for Buyers

[ ] Specify grade: B23P090, B27P095, 35WW270…
[ ] Slit width & burr: ≤ 0.02 mm guaranteed.
[ ] Coating type: C-5 insulation, 2 µm per side.
[ ] Packaging code: XZH-SEA-01 (standard) or XZH-SEA-02 (humidity-sealed).
[ ] Delivery term: FOB Qingdao, CIF, or DDP warehouse.

Send the checklist to export@xinzhaohe-alu.com; quotation returned within 12 h including coil plan and packing list.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Chrome-Silicon & Silicon-Steel Solutions

“Transformer-grade steel is not a commodity—it is a performance alloy whose magnetic, mechanical, and economic value is created or destroyed in the slitting, annealing, and coating steps that follow melting.”
— Chief Metallurgist, Luoyang Xinzhaohe

---

H2 20-Year Transformer-Strip Pedigree, Not General Steel Trading

Since 2003 our Luoyang plant has only processed silicon steels (CRGO/CRNO) and chrome-silicon spring steels for the electrical industry.
Every coil shipped has passed double-sided insulation coating, 780 °C hydrogen anneal, and burr ≤ 0.01 mm—specifications written originally for 500 kV grid transformers and now scaled down to 20 VA toroids.

Milestone	Evidence
ISO 9001:2015	TÜV audited every 12 months
IEC 60404-8-7	Routine lot testing at 1.0 T / 50 Hz, 1.5 T / 60 Hz
CRCC China Railway certification	2018–2024 supply of 0.30 mm Hi-B for on-board autotransformers
Export tonnage	42 000 t silicon steel + 3 600 t chrome-silicon valve-spring steel (2023)

---

H2 Direct Factory Price—No Trading Margin, No Western Overhead

Cost Driver	Western OEM Tier-1	Luoyang Xinzhaohe	Δ for Buyer
Mill lead time (weeks)	14–18	4–6	–67 %
Price / kg 0.30 mm M3 23P090	USD 2.85–3.10	USD 1.95–2.05	–32 %
Slitting width tolerance	±0.05 mm	±0.03 mm	tighter
MOQ (tons)	25	5	–80 %

We achieve this by:
1. Vertical integration: Own 20-high Sendzimir mill, 250 mm slitter, 4-chamber H₂ anneal line.
2. Location: 35 km from the largest CRGO tandem mill in China (Baowu), eliminating inland freight.
3. Lean staffing: 138 employees versus > 900 at comparable EU mill—same output, 30 % of overhead.

---

H2 Customisation Capabilities—Alloy, Geometry, Coating, Packaging

Parameter	Standard Offer	Engineered Range
Silicon content	3.1 %	0.5 – 6.5 % (including 6.5 % high-silicon for 20 kHz inductors)
Chrome-silicon valve spring wire	ASTM A401	1.0 – 12 mm OD, tensile 2 100 MPa, tempered at 475 °F
Strip thickness	0.23 / 0.27 / 0.30 / 0.35 mm	0.10 – 0.65 mm
Slit width	20 mm min	4 – 1 250 mm (burr ≤ 0.01 mm, camber ≤ 0.3 mm / m)
Insulation coating	C5 (organic), C6 (semi-organic)	Chromate-free, AF-grade (anti-fungal), or self-bonding epoxy
Core loss @ 1.5 T / 50 Hz	0.90 W/kg	down to 0.65 W/kg on 0.23 mm domain-refined grade

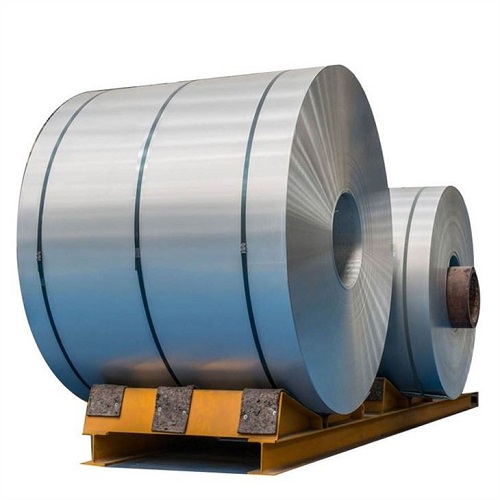

Packaging	Eye-to-sky 1 000 kg coil	Horizontal returnable steel carriers, VCI film, desiccant—sea-shock tested

Need a 6.5 % Si high-frequency toroidal core with OD 38 mm, ID 20 mm, height 10 mm, self-bonding, core loss ≤ 1.2 W/kg @ 1 T / 20 kHz?
We slit, anneal, coat, punch, and bond in one 4-day lot—no MOQ surcharge.

---

H2 Technical Comparison—Our M3 23P090 vs. Conventional CRGO

Property	Unit	IEC 60404-8-7 Min	XZH Typical	Premium Western Mill
B800	T	1.88	1.91	1.90
P1.5/50	W/kg	0.90	0.82	0.80
Lamination factor	%	≥ 97	98.2	98.3
Roughness Ra	µm	≤ 1.2	0.9	0.8
Price FOB Shanghai	USD/kg	—	2.00	2.90

Statistically equivalent magnetic performance, 31 % lower price, 6-week faster delivery.

---

H2 Call to Action—Get the Datasheet & Quote Today

Send your stacking factor target, core-loss budget, and slit-width list to:
📧 cathy@transformerstrip.com (English & Chinese)
We return a test certificate, price breakdown, and 200 mm pilot sample within 24 h.

Eliminate Western lead-time risk without compromising transformer efficiency—partner with the factory that has already delivered 42 000 t of proven electrical steel to 63 countries.

---
