Market Insight: China Enameled Copper Wire

Market Analysis: Winding Wire Demand for Transformers

Transformer manufacturing represents a dominant and rapidly expanding segment for enameled copper wire in China, driven by global energy infrastructure modernization and renewable integration. The industrial demand is intrinsically linked to the scalability of high-voltage transmission networks, electric vehicle charging stations, and distributed solar/wind power systems. China’s State Grid Corporation and global OEMs increasingly specify transformers rated for 110kV and above, demanding enameled wire with thermal classes exceeding 180°C (Class H) to handle elevated operational loads and transient overloads. This shift necessitates wire capable of sustained performance under thermal cycling and high electrical stress, directly correlating to the growth in premium-grade magnet wire consumption. Annual market expansion for transformer-grade enameled copper wire in China exceeds 7%, with export demand from Southeast Asia and Europe accelerating due to localized grid upgrades.

Critical quality parameters cannot be compromised in transformer applications. The enamel insulation must exhibit exceptional dielectric strength (>10 kV/mm), thermal stability (per IEC 60317 standards), and chemical resistance to varnishes and cooling oils. Microscopic defects—such as pinholes, thin spots, or inconsistent polymer curing—create nucleation points for partial discharges, leading to insulation degradation and eventual short circuits. Metallurgical purity of the copper core (minimum 99.97% Cu, oxygen-free) is equally vital; impurities increase electrical resistance and accelerate thermal aging. At Luoyang Xinzhaohe Aluminum, our 20-year focus on copper wire metallurgy ensures grain structure uniformity and tensile strength consistency (150–200 MPa), preventing micro-cracking during tight coil winding. Substandard wire often fails under mechanical stress during winding or thermal expansion cycles, causing catastrophic transformer failure.

The cost of quality failure far outweighs initial material savings. A single transformer failure due to insulation breakdown can incur losses exceeding $500,000 from grid downtime, replacement costs, and reputational damage. Chinese manufacturers face stringent compliance with GB/T 3953 and IEC 60172, yet inconsistent raw material sourcing and inadequate process control plague lower-tier suppliers. Key failure modes include thermal runaway from poor heat dissipation (linked to enamel thermal conductivity) and inter-turn faults from inadequate abrasion resistance. Rigorous supplier vetting must include third-party verification of thermal index (TI), elongation retention after aging, and bendability tests per ASTM D2307. For mission-critical transformers, the supply chain must prioritize partners with integrated quality control—from copper rod casting to enamel extrusion—ensuring traceability and adherence to 10 ppm maximum impurity thresholds. In this high-stakes environment, precision in wire geometry (±0.002 mm diameter tolerance) and enamel thickness uniformity (±5%) are non-negotiable for operational longevity.

Technical Specs: China Enameled Copper Wire

Technical Specifications for China Enameled Copper Wire

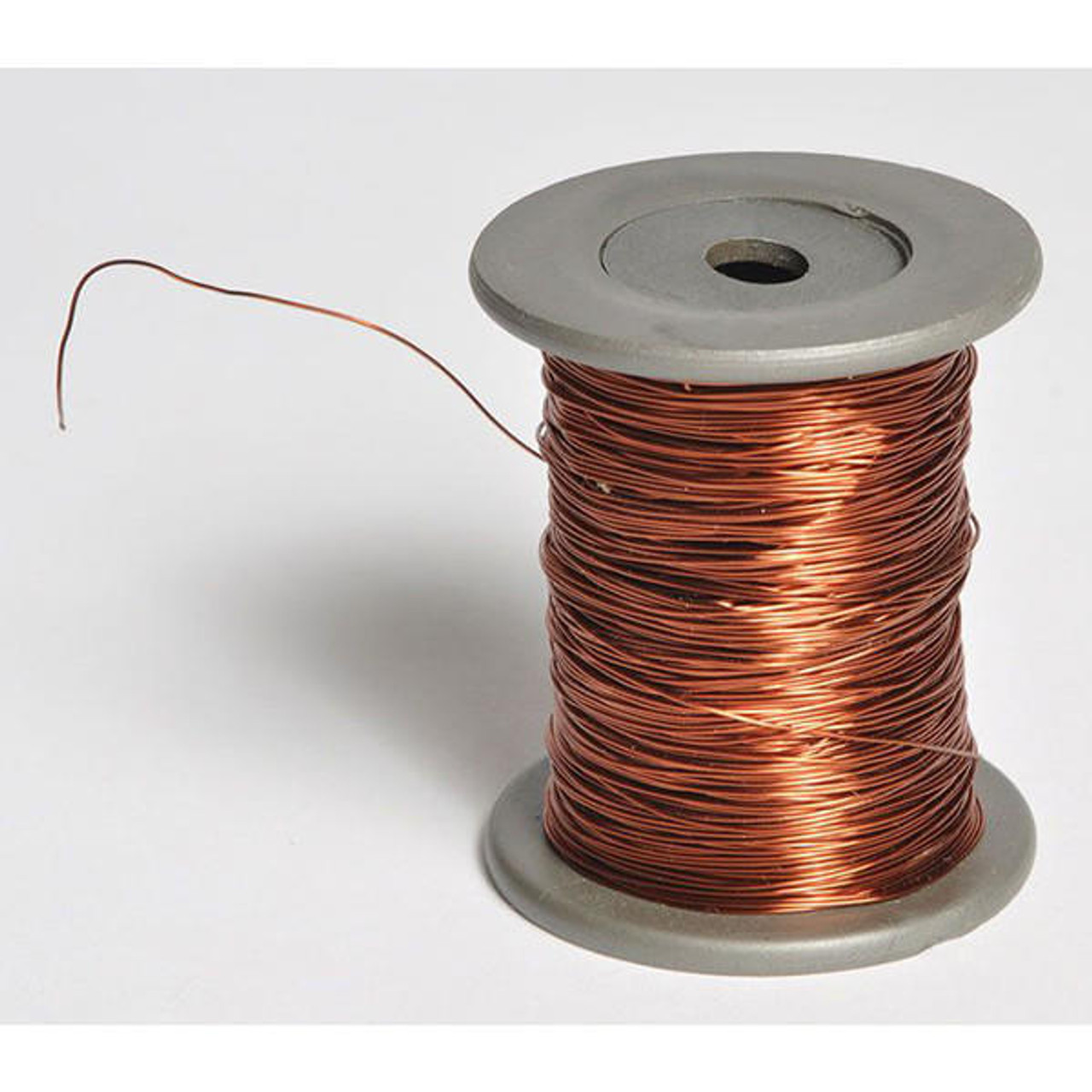

Enameled copper wire, also known as magnet wire, is a critical component in the manufacturing of electromagnetic devices such as motors, transformers, relays, and inductors. At Luoyang Xinzhaohe Aluminum Co., Ltd, with over two decades of experience in metallurgical engineering and industrial wire production, we emphasize precision in material composition and insulation performance to ensure reliability under rigorous operating conditions. The technical specifications of enameled copper wire are defined by key parameters including insulation breakdown voltage, elongation, and thermal class, all of which directly influence the wire’s electrical safety, mechanical durability, and thermal endurance.

Insulation breakdown voltage is a fundamental measure of the dielectric strength of the enamel coating. It determines the maximum voltage the insulation can withstand before electrical failure occurs. This parameter is tested under standardized conditions, typically using a step-voltage method in accordance with IEC 60317 and GB/T 4074 standards. A higher breakdown voltage indicates superior insulation integrity, which is essential for preventing short circuits in high-voltage applications. Our enameled copper wires are engineered to exceed minimum industrial requirements, ensuring robust performance in demanding electrical environments.

Elongation, expressed as a percentage, reflects the ductility of the copper conductor. It is determined through tensile testing and indicates the wire’s ability to undergo plastic deformation before fracture. High elongation values are critical for applications requiring tight winding or complex coil geometries, as they reduce the risk of cracking during processing. Copper wire with insufficient elongation may lead to mechanical failure during coil insertion or thermal cycling, compromising device functionality.

Thermal class defines the maximum continuous operating temperature that the enamel insulation can endure without significant degradation of electrical or mechanical properties. Thermal classes range from 130°C to 220°C, with higher classes utilizing advanced polymer coatings such as polyamide-imide (PAI), polyester-imide (PEI), or polyimide (PI). These materials offer enhanced thermal stability, chemical resistance, and mechanical toughness. Selection of the appropriate thermal class depends on the end-use application’s thermal load and expected service life.

The following table outlines the typical technical parameters for enameled copper wire produced to meet international quality standards.

These specifications are maintained through rigorous in-process quality control, including continuous monitoring of drawing tension, annealing temperature, and enamel coating uniformity. Our production lines are calibrated to ensure compliance with both domestic (GB) and international (IEC, ASTM) standards, enabling reliable integration into global supply chains.

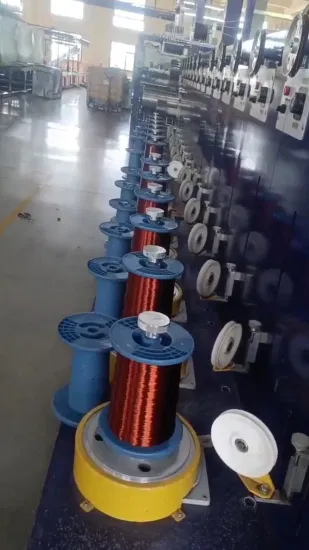

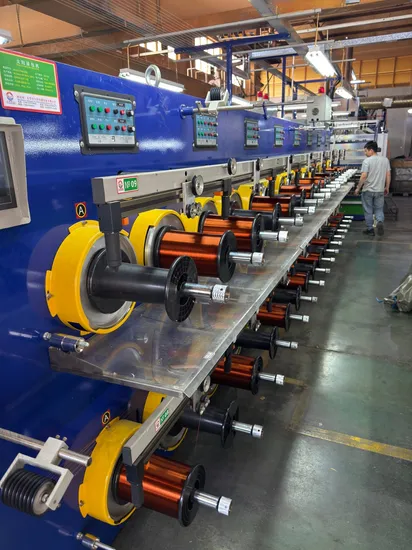

Factory Tour: Manufacturing

Manufacturing Process for High-Performance Enameled Copper Winding Wire

Luoyang Xinzhaohe Aluminum Co., Ltd leverages over two decades of specialized metallurgical and process engineering expertise to produce enameled copper winding wire meeting stringent global standards. Our vertically integrated manufacturing process ensures consistent quality from raw material to finished product, critical for demanding electrical applications. The core sequence comprises rod drawing, annealing, enameling, and comprehensive inline testing, each stage incorporating rigorous quality control.

The process initiates with high-conductivity electrolytic tough pitch (ETP) copper rod, certified to minimum 99.95% Cu purity per IEC 60028 and ASTM B3 specifications. Rod drawing occurs through a multi-die continuous block machine under precisely controlled tension and temperature. Advanced water-based lubrication systems minimize surface defects while maintaining dimensional accuracy. Critical parameters include die geometry, reduction ratio per pass, and line speed, all monitored in real-time. Intermediate surface inspection via high-resolution cameras detects micro-scratches or pits before subsequent processing. The drawn wire undergoes continuous vertical annealing within a controlled atmosphere furnace. Temperature profiles are meticulously calibrated between 550°C and 650°C depending on final wire gauge and mechanical property requirements. An oxygen-free nitrogen-hydrogen atmosphere prevents oxidation and ensures uniform recrystallization, achieving the target tensile strength and elongation per IEC 60172. Tensile strength verification via inline load cells and periodic laboratory testing on samples confirm adherence to mechanical property specifications.

Enameling applies multiple polymer insulation layers using precision die systems. Common chemistries include polyester-imide (PEI), polyamide-imide (PAI), and self-bonding variants, selected based on thermal class (155°C to 240°C) and application demands. Each layer undergoes immediate curing in high-temperature ovens with zone-specific temperature control to ensure complete cross-linking without thermal degradation. Film thickness is continuously measured using non-contact laser micrometers, with automatic feedback adjusting die pressure to maintain tolerances within ±0.002mm. Surface quality is monitored by automated optical inspection systems detecting bubbles, scratches, or contamination.

Inline electrical and mechanical testing is integral throughout the final stages. Every meter of wire undergoes high-potential (Hi-Pot) testing at voltages exceeding 3kV to verify dielectric integrity per IEC 60851-5. Mandrel winding tests assess flexibility and adhesion, while elongation checks ensure suitability for coil winding. Final dimensional verification includes outer diameter, roundness, and insulation thickness uniformity. All critical process parameters and test results are logged in our centralized manufacturing execution system (MES), enabling full traceability from rod batch to finished spool. This systematic approach, combining advanced process control with embedded QC checkpoints at every manufacturing phase, guarantees the reliability and performance essential for premium enameled copper winding wire in motors, transformers, and electronics.

Packaging & Logistics

Export Packaging for China Enameled Copper Wire – Ensuring Integrity in Global Shipments

At Luoyang Xinzhaohe Aluminum Co., Ltd, with over two decades of specialized experience in the production and international distribution of enameled copper winding wire, we recognize that packaging is not merely a logistical necessity but a critical component in preserving product integrity during extended maritime transit. Our export packaging protocol is engineered to meet the rigorous demands of global supply chains, particularly for sea freight, where prolonged exposure to humidity, temperature fluctuations, and mechanical stress presents significant risks to sensitive electrical materials.

All enameled copper wire coils are systematically wound onto precision-manufactured spools constructed from high-strength composite materials, ensuring dimensional stability and resistance to deformation. These loaded spools are then mounted onto robust wooden pallets, fabricated from kiln-dried, ISPM 15-compliant hardwood. This certification guarantees that all wooden components have undergone heat treatment to eliminate biological contaminants, fulfilling international phytosanitary standards for cross-border shipments. The use of wooden pallets provides structural rigidity, facilitates secure stacking, and enables compatibility with standard container handling equipment across global ports.

Each palletized load is then enveloped in multiple layers of industrial-grade moisture-proof film, specifically designed to create a vapor barrier against ambient humidity. This multilayer wrapping is applied using automated stretch wrapping systems to ensure uniform tension and complete coverage, minimizing the potential for condensation within the coil windings during ocean transport. The film exhibits high puncture resistance and UV stabilization, further safeguarding the product during outdoor storage or intermodal transfer.

To enhance protection, desiccant packs are strategically placed within the sealed packaging envelope to absorb residual moisture and maintain a controlled internal environment. Additionally, all external surfaces of the packaged load are labeled with weather-resistant, tamper-evident markings indicating product specifications, batch numbers, handling instructions, and orientation indicators to prevent inversion during transit.

Our packaging design conforms to ISO 11120 and IEC 60173 standards for the transport of wound electrical conductors, ensuring compatibility with containerized freight systems and adherence to international best practices. Each shipment undergoes final inspection and documentation prior to containerization, verifying seal integrity and compliance with customer-specific export requirements.

By integrating engineered materials, regulatory compliance, and process precision, Luoyang Xinzhaohe Aluminum Co., Ltd ensures that every coil of enameled copper wire arrives at its destination with undiminished electrical performance and surface quality. This disciplined approach to export packaging reinforces our commitment to reliability, safety, and technical excellence in every global delivery.

Sourcing from Luoyang Xinzhaohe

Partner with Luoyang Xinzhaohe: Your Strategic Source for Precision Enameled Copper Winding Wire

Luoyang Xinzhaohe Aluminum Co., Ltd leverages over two decades of specialized metallurgical and manufacturing expertise to deliver premium enameled copper winding wire solutions for demanding global applications. While our corporate name reflects foundational experience in aluminum processing, our dedicated winding wire division has established itself as a core competence, focusing exclusively on the stringent requirements of copper magnet wire production. We understand that the performance and reliability of your transformers, motors, and generators hinge critically on the electrical, thermal, and mechanical integrity of the enameled conductor. Our facility is engineered from the ground up to meet these exacting standards, operating as a vertically integrated specialist within the broader industrial ecosystem.

Our technical strength originates in rigorous material science and process control. We source only high-purity, oxygen-free copper rod meeting ASTM B3/B359 standards, subjecting it to proprietary multi-stage drawing and annealing processes within a strictly controlled atmosphere. This ensures optimal electrical conductivity (exceeding 100% IACS) and consistent mechanical properties essential for high-speed winding without breakage. The enamel application is a precise science; we utilize advanced multi-layer coating systems, including Polyesterimide (PEI), Polyamide-imide (PAI), and Solderable Polyurethane formulations, applied via computer-controlled dies with micron-level thickness accuracy. Each coating stage undergoes real-time infrared curing and precise temperature profiling to achieve superior dielectric strength, thermal class compliance (up to 240°C), chemical resistance, and solderability. Our metallurgical laboratory conducts continuous in-process verification, including elongation, springback, thermal shock, and dielectric breakdown testing, ensuring every meter meets or exceeds IEC 60317 and GB/T 6109 specifications.

Operational scale and supply chain resilience are fundamental to our value proposition. Our dedicated winding wire production line boasts an annual capacity exceeding 15,000 metric tons, featuring state-of-the-art German and Japanese manufacturing equipment. This scale is matched by robust inventory management systems and strategic raw material partnerships, mitigating volatility in the copper and resin markets. We maintain certified ISO 9001:2015 and IATF 16949 quality management systems, with full traceability from copper cathode lot to finished spool. Our supply chain infrastructure includes optimized domestic logistics networks within China and established export protocols, enabling reliable JIT delivery to global manufacturing hubs while minimizing lead time variance. This integration ensures consistent product availability and quality continuity critical for your production planning.

Partnering with Luoyang Xinzhaohe means securing a technically proficient manufacturer committed to solving your specific winding challenges. We move beyond commodity supply to offer collaborative engineering support, from material selection guidance for niche applications to troubleshooting winding line issues. Our technical sales team, staffed by metallurgical and electrical engineers, provides data-driven insights to optimize your component performance and manufacturability. For procurement leaders seeking a dependable, high-capacity source of enameled copper wire with verifiable quality systems and responsive technical engagement, we offer a demonstrable competitive advantage. Initiate a strategic partnership discussion today. Contact Cathy Zhang, our dedicated Technical Sourcing Manager, at cathy@transformerstrip.com to schedule a technical capability review and discuss how our precision winding wire solutions can enhance your product reliability and supply chain security.
