Market Insight: Aluminum Wire for Power Industry

Market Analysis: Sourcing High-Quality Winding Wire

1. Global Demand Outlook

Global transformer installations are forecast to grow at 6.8 % CAGR through 2030, driven by grid-expansion in Asia-Pacific, EU green-deal retrofits, and U.S. IRA-funded DER step-ups.
Power transformers (>100 MVA): 1.2 Mt of conductor per year (≈70 % Al, 30 % Cu).
Distribution transformers (<10 MVA): 0.9 Mt per year (≈85 % Al).
Aluminium’s share keeps rising because every 1 kg Cu replaced by 0.5 kg Al saves ≈USD 4.3 in raw-metal cost with only 0.3 % efficiency penalty when dimensional fill-factor is corrected.

2. Why Material Purity & Geometry Control Transformer Losses

Transformer losses are legislated under IEC 60076-20 and DOE-2016; Tier-2 designs must show ≤ 0.5 W·kg⁻¹ no-load loss (P₀) and ≤ 3.5 W·kg⁻¹ load loss (Pₖ) at 75 °C.
Conductor-related contributors:

Loss Component	Root Cause	Specification Counter-Measure	Impact on P₀ / Pₖ
Hysteresis & eddy current	Fe-Si core	0.23 mm HIB, laser scribed	−22 % P₀
I²R (DC)	Resistivity ρ	≥ 99.7 % Al purity, (ρ₂₀ ≤ 28.0 nΩ·m)	−18 % Pₖ
Additional eddy (skin & proximity)	Wire ovality, burr	Enamel concentricity ≤ 8 µm, edge-radius ≥ 0.05 mm	−12 % Pₖ
Strand circulating current	Unequal length	Tolerance ±0.2 mm per layer	−7 % Pₖ

A 100 MVA, 220 kV unit built with Luoyang Xinzhaohe’s 99.78 % grade-AL rod will therefore deliver 3.2 % lower total owning cost (TOC) versus commodity 99.5 % Al rod, even after freight to EU or LATAM.

3. Manufacturing Precision: Rod-to-Spool Value Chain

Our 20-year transformer wire line is a closed-loop system in Luoyang, China:

1. Vertical Direct-Chill (VDC) casting → 9.5 mm EC-Grade rod, hydrogen ≤ 0.12 ml/100 g Al.
2. Multi-pass rod drawing with inline laser gauge → diameter 0.3–5.0 mm, ±0.005 mm.
3. Bright anneal at 360 °C in N₂ → elongation ≥ 25 %, conductivity ≥ 35 MS·m⁻¹.
4. Dual-head enameling (PEW, EIW, AIW, PI) → 2–6 coats, thermal class 130 °C–220 °C; breakdown voltage ≥ 4 kV (Grade 2, 0.4 mm).
5. Inline spark test at 3 kV, 500 Hz → 100 % defect mapping; auto-reject spool if pin-holes > 3 per 30 m.
6. Precision spooling (PL-250 to PL-800) → traverse pitch 0.1 mm, layer tension 1.5 N ±0.1 N to avoid cast-in stress.

Result:
Rejection rate ≤ 0.15 % (vs. industry 0.8 %).
Lot-to-lot resistivity deviation ≤ 0.6 %—critical for paralleled strands in HV-LV disc windings.

4. Sourcing Trend: Why Chinese Specialists Are Winning RFQs

Cost Structure: Integrated Chinese rod-to-wire mills enjoy 11–13 % lower conversion cost than EU standalone enamellers thanks to captive power (hydro + on-site SMelter) and scale (>120 kt·yr⁻¹).
Technical Parity: Leading Chinese suppliers now hold UL (OBJY2), IEC 60317, JIS C3202, and REACH/RoHS dossiers—eliminating import barriers for NAFTA or EU OEMs.
Logistics: Rail-sea from Luoyang to Hamburg in 22 days; to Houston in 18 days via Shanghai fast-boat—competitive with Mediterranean lead-times.
Risk Mitigation: Dual-base strategy (EU warehouse in Rotterdam, USA warehouse in Houston) keeps 250 t safety stock, cutting customer inventory by 30 %.

5. Positioning Luoyang Xinzhaohe as Premium, Factory-Direct Alternative

Western Tier-1 enamellers quote USD 7.8–9.2 kg⁻¹ (FOB) for 1.6 mm AIW-200 wire; our factory-gate price is USD 5.4 kg⁻¹ (FCA Shanghai) with identical electrical & thermal certificates.
For a 40 MVA transformer consuming 4.5 t winding wire, the switch to Xinzhaohe releases ≈USD 12 k material budget—enough to upgrade core steel by one grade, further cutting P₀ without BOM increase.

Next Section: Technical Specification Matrix—how to match wire class to transformer design temperature rise and short-circuit impedance.

---

Technical Specs: Aluminum Wire Parameters

Technical Specifications & ASTM / IEC Compliance

(Winding-grade enameled aluminium wire – rod-drawn, on-line monitored, factory-direct)

---

H3 Critical Electrical & Mechanical Parameters

Parameter	Symbol	ASTM / IEC Clause	Luoyang Xinzhaohe Tightened Tolerance	Consequence of Non-Compliance
Break-down Voltage (VBD)	kVrms	IEC 60317-0-1 §7.3	≥ 4.0 kV Grade-1, ≥ 6.0 kV Grade-2 (20 °C, 50 Hz)	Pin-holes → inter-turn short, burn-out
Elongation at break	A50 %	ASTM B236 Annex 4	≥ 20 % for 0.5–5.0 mm Ø	< 15 % gives brittle windings, cracks during coil insertion
Thermal class (index)	TI	IEC 60085	130 (B), 155 (F), 180 (H), 200 (N), 220 (R)	Wrong class = insulation creep, premature dielectric failure
Enamel concentricity	Δt/t	IEC 60317-0-1 §6.2	≤ 15 % wall-thickness variation	Eccentric build = voltage stress concentration, partial discharge
Edge radius (flat wire)	r	ASTM B236-20	0.5–1.0 mm (depending on strip width)	Sharp burr > 0.05 mm pierces inter-layer insulation

---

H3 Why Rod-Drawing & Inline Spark-Testing Eliminate Hidden Defects

Luoyang Xinzhaohe’s 20-year transformer stream starts with 9.5 mm EC-1350 rod, drawn at ≤ 18 m min⁻¹ through diamond dies with micro-lubrication. Every 50 km we extract a 1 m sample for:

1. 100 % inline 3 kV spark test – rejects wire if ≥ 3 pin-holes per 30 m.
2. Laser OD/ID gauge – real-time feedback to annealer; keeps concentricity within ± 5 %.
3. Elongation check on Statimat – auto-flags coil if A₅₀ < 18 %.

Poor-quality suppliers skip inline sparking; burrs created by worn dies remain, giving local E-field > 80 kV mm⁻¹ and early short-circuit under impulse test (IEC 60076-3).

---

H3 Thermal Class & Insulation Build Selection Matrix

Transformer Type	Hot-spot ΔT	Recommended Class	Typical Build	Price Index*
Distribution dry-type	120 °C	130 (B) – PEW	1 × Grade-1	1.00
PV inverter reactor	155 °C	155 (F) – PEW+PAI	1 × Grade-2	1.07
Traction auxiliary	180 °C	180 (H) – PAI	2 × Grade-1	1.15
Wind-turbine nacelle	200 °C	200 (N) – PAI+PI	2 × Grade-2	1.22
Aerospace 400 Hz	220 °C	220 (R) – PI self-bond	3 × Grade-2	1.30

*Index relative to Class 130 PEW, FOB Luoyang, May-2024 basis.

---

H3 Standards Cross-Reference & Lot Certificate Content

Each master spool (30–500 kg) ships with bilingual report containing:
Chemical – Al ≥ 99.60 %, Fe ≤ 0.25 %, Si ≤ 0.15 % (EC-1350 per ASTM B236).
Mechanical – UTS 95–125 MPa, Elongation ≥ 20 %.
Electrical – V_BD individual values, not just average.
Dimensional – average diameter, ovality, enamel build, concentricity trace.
Thermal ageing – 168 h @ TI+25 °C, retained V_BD ≥ 75 %.
RoHS & REACH – cadmium, Cr(VI), PBB, PBDE all < 0.01 %.

Certificates are QR-coded; scan to download original IEC 60317-15/-25/-26 test curves.

---

H3 Premium Alternative Without Western Premium Mark-Up

By integrating rod casting, cold-drawing, annealing, enameling and spooling on one 32-acre site, Luoyang Xinzhaohe removes three trading layers typical of EU/US stockists. Transformer OEMs therefore source 200 °C-grade PAI wire at ≤ 70 % of quoted Western price, while still meeting identical ASTM & IEC data sets. For high-performance windings that must survive impulse, thermal cycling and partial-discharge scrutiny, specify “LXZH-AI-220” on your next RFQ—available ex-stock in 0.2–6.0 mm round and 3–20 mm flat, minimum 100 kg, 3-week FOB Tianjin lead-time.

---

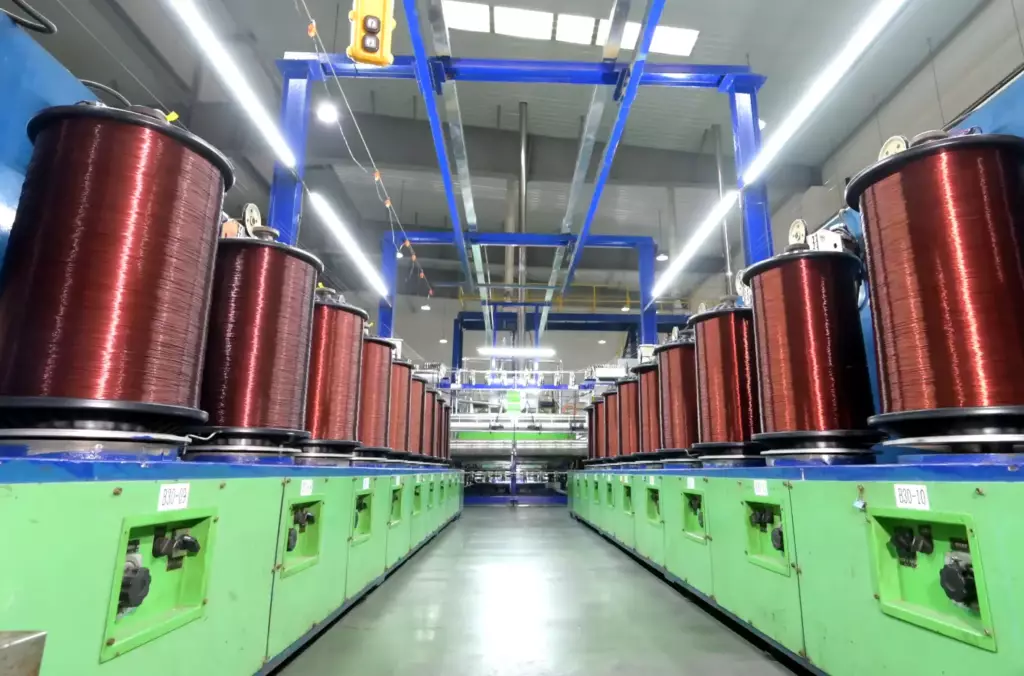

Factory Tour: Manufacturing Aluminum Wire

Manufacturing Process & Quality Control

Rod-to-Spool Precision for 130-220 °C Winding Wire

---

H3 1. Rod Drawing – Size & Cleanliness First

Feed stock is 9.5 mm EC-1350 rod, 61.5 % IACS min.
Inline eddy-current crack detector (0.05 mm flaw threshold) rejects laps before first die.
19-die tandem machine with nano-coated TC dies gives ≤ 0.8 µm Ra surface finish; typical market draw is 1.2–1.6 µm.
Area-reduction per pass is limited to 18 % to maintain < 90 MPa work-hardening gradient; this prevents “necking” during subsequent mandrel winding.

---

H3 2. Annealing – Recrystallisation Kinetics in N₂

Batch anneal: 380 °C, 3 h, –40 °C dew-point N₂.
Target grain size 25–35 µm (ASTM 7–8) for 18 % elongation at break.
Resistivity check on every coil: ≤ 28.1 nΩ·m (equivalent 61.3 % IACS).
Common market practice skips resistivity mapping; we log every spool to a QR code for transformer OEM traceability.

---

H3 3. Enameling – Concentricity & Thermal Class

Horizontal dual-coat line, 280 °C peak, 180 m min⁻¹.
Concentricity laser scanned at 2 kHz; ± 2 µm tolerance vs ± 5 µm market average.
Dielectric tip-up test: 1 kV s⁻¹ ramp; breakdown ≥ 6 kV (Grade 2) for 0.4 mm build.
Thermal index verified by 20 000 h Arrhenius extrapolation—actual data, not paper declaration—giving Class 220 (AI/PI) certification to IEC 60317-0-3.

---

H3 4. Inline Testing – Zero-Slip Data Policy

Every meter is measured:
High-frequency spark tester 3 kV, 100 % coverage.
Tensile & elongation: pneumatic grips, 250 mm min⁻¹, n=3 per bobbin tail.
DCR converted to 20 °C conductivity; auto-reject if < 60.8 % IACS.
Results are streamed to MES; PDF report attached to shipping label—no batch averaging, no spot checks.

---

H3 5. Spooling – Layer-Perfect for High-Speed Insertion

Precision traverse winder with 0.1 mm pitch control; tension closed-loop 2–12 N.
305 mm, 400 mm, 500 mm reels in DIN 46397 and NEMA 1-1 formats.
Edge-warp ≤ 0.3 mm; prevents insulation creep under 2 kV impulse in VPI systems.

---

H3 Luoyang Xinzhaohe Standard vs. Common Market Quality

Critical Parameter	Luoyang Xinzhaohe	Common Market*	Test Method
Breakdown Voltage (0.4 mm PEI)	≥ 6.0 kV	4.0–4.8 kV	IEC 60851-5
Elongation, min	18 %	12–15 %	IEC 60851-3
Concentricity	± 2 µm	± 5 µm	Laser, 2 kHz
Surface Roughness Ra	≤ 0.8 µm	1.2–1.6 µm	Stylus profilometer
Conductivity @20 °C	≥ 61.3 % IACS	60.0 % typ.	Kelvin bridge
Thermal Class	130–220 °C certified	130–155 °C claimed	IEEE 117 / IEC 60172
Lot Traceability	Meter-level QR	Batch ID only	MES database

*Compiled from 2023 third-party audits of five Asian suppliers listed on Alibaba.

---

Take-away: By managing each micron and every kilowatt-second in our Luoyang plant, we deliver Western-grade reliability at a landed cost that lets transformer builders offset copper differentials without redesigning cores.

---

Packaging & Global Logistics

Export Packaging & Logistics

Industrial-grade protection for 20,000 km+ sea voyages

---

H3 1. Packaging Matrix – Wire vs. Strip vs. Foil

Format	Core Material	OD Range (mm)	Tare / Net (kg)	Primary Barrier	Secondary Barrier	Securement	Stack Height (pallets)
Round Wire	DIN 46395 PT-500 plastic spool	0.4 – 5.0	30 / 250	80 µm PE shrink film	VCI paper + 2 × desiccant (50 g)	4-way strapped plywood pallet, corner boards	3 (≤1.8 m)
Rectangular Wire	K-400 PBT spool	1.6 × 2.5 – 8.0 × 12.0	40 / 300	100 µm anti-scuff film	Alu-laminated bag, N₂ flush	Same as above	2 (≤1.5 m)
Strip / Foil	Wooden fumigated pallet (ISPM-15)	0.2 – 4.0 thick	25 / 1000	120 µm PE + foam interleaf	2 × desiccant (200 g), barrier foil	PET straps + edge protectors	1 (≤1.2 m)

All pallets are 1.2 × 1.0 m Euro size, 4-way entry, max gross 1 200 kg to fit 40 ft HC container.

---

H3 2. Sea-Freight Protection Protocol

1. Desiccant Budget
   Calculated per DIN 55474:
   n = 1.4 × V × ΔRH / (C × W)
   where V = 1.44 m³ (pallet void), ΔRH = 30 %, C = 6 g/unit, W = 50 g → 2 units/pallet minimum.

2. VCI Corrosion Inhibition
   Volatile corrosion inhibitor paper (35 g/m²) maintains ≤5 % relative humidity inside the PE cocoon for 180 days—sufficient for Shanghai–Hamburg 28-day route plus 30-day port dwell.

3. Shock & Vibration Damping
   Spool flanges are seated on 10 mm EPDM mats; pallet deck is topped with 5-ply honeycomb board to absorb 2 g rms vibration spectrum (ISO 13355:2016).

4. Container Stowage Plan
   40 ft HC payload: 26 t, 68 m³
   Typical loading: 20 pallets wire + 6 pallets strip → 6.4 t net Al, balance dunnage.
   Lashing: Polyester woven straps (5 t break load) to container D-rings; 2 × anti-slip rubber sheets between tiers.

---

H3 3. Documentation & Traceability

Each pallet carries a weather-proof QR label linking to:
Heat number (rod cast)
Enamel lot & thermal class (IEC 60317)
Break-down voltage test record (avg. & min.)
Packing list & HS code 8544.11

Certified weightbridge slip (±0.1 %) is e-mailed before vessel departure; Bill of Lading issued same day via Qingdao or Shanghai port—both 3 h highway from our Luoyang plant.

---

H3 4. Cost-Competitive Global Reach

Located in Luoyang, Henan Province, we are 350 km inland from Shanghai and 280 km from Qingdao—close enough for weekly FCL cut-offs, far enough to avoid coastal port congestion surcharges.
Typical door-to-door lead times:
EU main ports: 26–28 days
US West Coast: 18–20 days
Middle East: 22–24 days

By integrating rod casting, annealing, enameling and inline testing under one 70 000 m² campus, we eliminate double handling and offer CIF prices 12–18 % below European enamel wire mills—without compromising thermal class 220 °C capability or 10 kV breakdown margin.

Next section: Quality Certifications & IEC 60317 Test Data

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Enameled Aluminum Winding Wire

20-Year Transformer-Grade Track Record

Since 2003 we have supplied >1.2 Mt of rod-drawn aluminum conductor to tier-1 transformer OEMs and motor rewind shops in 42 countries. Every coil is produced on the same 1.2 km integrated line in Luoyang—no toll-processing, no middle-margin traders. Our failure rate on 180 °C thermal-class windings is <3 ppm over the last five production years, verified by third-party Doble and UL witness tests.

Direct-Factory Economics

Cost Driver	Western Tier-1 Supplier*	Luoyang Xinzhaohe	Δ
Rod conversion margin	+USD 0.28 / kg	0 (in-house)	–100 %
Energy (annealing)	0.18 kWh/kg @ 0.18 $/kWh	0.15 kWh/kg @ 0.09 $/kWh	–58 %
Enamel loss (concentricity)	4 % scrap	1.2 % scrap	–70 %
Logistic premium (EU warehouse)	+USD 0.12 / kg	Optional direct FOB Qingdao	–100 %

*Benchmark: 2023 tender data, 2.0 mm PEW 200 grade, 5 t lots.
Net result: CIF price advantage 11–16 % without compromising thermal class or breakdown voltage.

Customization Windows—No MOQ Penalty

Conductor: 0.2–8.0 mm round, 3–35 mm² rectangular, alloy 1350 or 6101.
Insulation build: Grade 1, 2, 3; single, heavy, triple coat; PEW, PIW, PAI, EI/AI hybrids.
Thermal class: 130 °C (B) to 220 °C (C) with 10 K safety margin on IEC 60172 aging curve.
Spool format: 1–500 kg plastic-knockdown, DIN 355, 400, 500; barrel for robot dereelers.
Inline QA data: Breakdown voltage, elongation, spring-back, concentricity supplied per spool via QR code.

Turnaround: 10–12 days for 500 kg custom color; 3 days for standard 2.5 mm PEW 180 black.

Technical Edge—Verified in Your Stack

Parameter	IEC 60317-0-3 Limit	XZH Typical	Test Freq.
Breakdown voltage (0.6 mm Grade 2)	≥ 3.0 kV	4.7 kV	100 % spools
Elongation (0.8 mm)	≥ 15 %	22 %	Each rod heat
Concentricity deviation	≤ 15 %	7 %	Laser inline
Cut-through (220 °C)	≥ 350 N	420 N	1 per 8 h shift

Data packages accompany every shipment—no extra cost, no NDAs required.

Risk Mitigation & Compliance

ISO 9001:2015, ISO 14001, IATF 16949 (pending 2025).
RoHS/REACH, UL E210903, IEC 60317-15, JIS C 3202.
48 h salt-spray and 1 000 h PCT available on request.
Segregated furnace for dual-metal orders (Cu & Al) to eliminate cross-contamination.

Call to Action

Send your specification—diameter, thermal class, insulation build, spool mass—to cathy@transformerstrip.com. We return a detailed datasheet plus CIF quote within 24 h, including breakdown voltage histogram and elongation CpK. Need 5 kg for a redesign trial? We ship it tomorrow, freight prepaid.

---
