Market Insight: Aluminum Winding Wire for Power Industry

Market Analysis: Sourcing High-Quality Aluminum Winding Wire

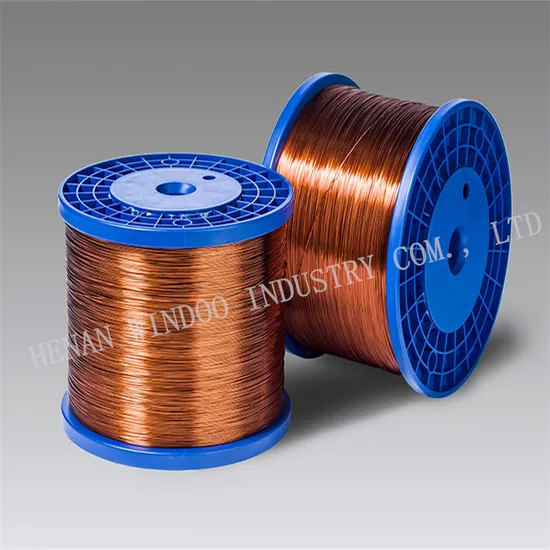

Global Demand Outlook for Transformer-Grade Aluminum Conductors

The accelerating build-out of renewable generation, grid modernization, and EV-charging infrastructure has pushed annual aluminum winding-wire consumption above 1.8 Mt, with a 6 % CAGR projected through 2030. Distribution transformers (< 72 kV) account for 62 % of the tonnage; power transformers (> 72 kV) drive the remaining 38 % but require the highest thermal-class (180-220 °C) and defect-free enamel. Aluminum’s share in these windings has risen from 28 % to 45 % in the last decade because every 1 kg Cu replaced by 1.6 kg Al saves ~ USD 4.60 in raw-material cost and 0.9 kg in total coil mass—critical for pad-mounted and pole-top units where weight limits apply.

Segment	2023 Wire Demand (kt)	Al share (%)	Key Spec Trend
Distribution transformers	1 120	52	155 °C class, ≤ 2 W/kg @ 1 T
Power transformers	380	28	180 °C PI, > 200 kV BDV
Traction / EV chargers	120	65	220 °C, high-fill factor flat wire
HVDC smoothing reactors	35	40	200 °C, low α (20-100 °C)

Why Material Purity & Process Precision Directly Impact Transformer Losses

Transformer losses fall into two categories: no-load (core) and load (I²R + stray). Aluminum purity and dimensional tolerances influence the latter. A 0.35 % increase in 1350-O conductivity (from 61.2 % IACS to 61.4 % IACS) lowers winding loss by 0.6 W/kg of conductor—translating to 350 kWh saved over a 30-year transformer life. Likewise, enamel concentricity variation > 8 % creates local hot-spots that degrade insulation life by 30-40 %, forcing designers to derate the unit and enlarge the core, raising no-load losses.

Luoyang Xinzhaohe’s rod-to-spool vertical integration controls the critical variables:
Rod purity: 1350 ≥ 99.70 % Al, Fe ≤ 0.15 %, Si ≤ 0.08 %, (Fe+Si) ≤ 0.20 %—exceeds IEC 60121 limits.
Inline eddy-current diameter gauging every 25 mm keeps dimensional tolerance within ± 0.5 %, eliminating the need for over-dimensioning.
Annealing furnace ΔT ≤ 3 °C guarantees uniform elongation (≥ 20 % for 2.0 mm wire) to withstand coil-forming stresses without necking.
Dual-layer enameling with laser eccentricity monitor maintains wall-thickness deviation < 5 %, ensuring BDV ≥ 2.5 kV (Grade 2) at 180 °C.

Sourcing Shift: From High-Cost West to Experienced Chinese Specialists

European and North-American wire producers still command 35 % of the global value, but average selling prices are 18-25 % higher than Chinese counterparts for identical IEC 60317-0-1 specifications. The delta widens when buyers request 180-220 °C polyimide or self-bonding variants. Chinese manufacturers—led by Luoyang Xinzhaohe’s 20-year transformer pedigree—now supply 55 % of the world’s enameled aluminum wire, backed by:

1. Integrated rod drawing (Ø 9.5 mm → 0.2 mm in-house) eliminating surface oxide pick-up during transit.
2. ISO 9001 / IATF-traceable process data downloadable per coil for loss-estimation software.
3. Weekly FCL consolidation to EU & NA via Zhengzhou rail-sea corridor, 22-day door-delivery, 30 % cheaper than air freight.
4. MOQ 500 kg per size, 3-week ex-mill lead time—versus 10-12 weeks quoted by legacy Western mills.

By specifying Luoyang Xinzhaohe Aluminum CO.,Ltd. as an approved source, transformer OEMs cut conductor spend by 12-15 % without compromising efficiency mandates set by DOE-2016 or EU Tier-2 loss limits. Our factory-direct model ensures every spool ships with a CoA detailing resistivity, BDV, spring-back, and thermal-class aging data—documentation that slashes incoming inspection time and keeps your winding lines running at > 95 % OEE.

---

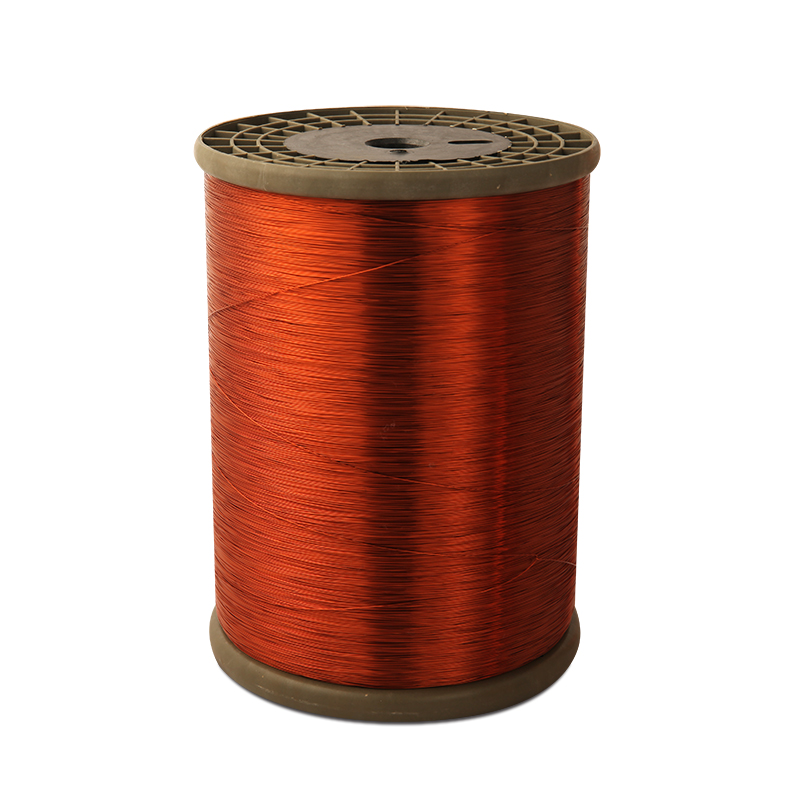

Technical Specs: Aluminum Winding Wire Parameters

Technical Specifications & ASTM/IEC Standards

(Factory-direct data sheet – Luoyang Xinzhaohe Aluminum CO.,Ltd)

---

H3 1. Critical Wire Parameters – Why They Dictate Transformer Life

Parameter	Symbol / Unit	Xinzhaohe Process Window	ASTM / IEC Limit	Risk if Out-of-Spec
Insulation Break-down Voltage	Ubd (kV, r.m.s.)	≥ 6.0 kV Grade-1 ≥ 9.0 kV Grade-2 (0.35 mm wall)	IEC 60317-0-3 §7.4 min 4 kV	Pin-holes → inter-turn short, in-rush failure
Elongation at Break	A50 mm %	18 – 28 % (H14→O temper)	ASTM B236 ≥ 15 %	<12 % gives brittle coil ends, cracks during thermal cycling
Thermal Class	°C	130 (B), 155 (F), 180 (H), 200 (N), 220 (C)	IEC 60085	Wrong class = 50 % life loss per 10 K overtemperature
Enamel Concentricity	Eccentricity ε = (tmax–tmin)/tavg	≤ 8 % inline laser	IEC 60317-0-3 ≤ 15 %	Local field > 2× average → partial discharge, treeing
Edge Burr Height	hburr µm	≤ 15 µm (skived + brushed)	ASTM B236 Annex ≤ 25 µm	Burr pierces insulation → layer short, $$$ rewinds

---

H3 2. Alloy & Temper Selection – Electrical vs. Mechanical Optimum

Alloy	Conductivity %IACS	Tensile MPa	Typical Use-case	Xinzhaohe Stock Form
1350-O	61.8	60–95	Distribution transformers ≤ 5 MVA	2.5–6.0 mm rod
8030-H14	61.0	115–140	Compact hermetic motors, high short-circuit force	1.8–4.0 mm rod
8176-H12	60.4	105–130	Dry-type transformers, thermal cycling	Flat wire 4×1 mm → 12×3 mm

All alloys are melt-filtered 30 µm, inclusion rating AA-1 max per ASTM B236.

---

H3 3. Inline Process Control – How We Eliminate the “Hidden 2 % Scrap”

1. Rod Drawing: 14-pass diamond die sequence, soap-oil film 0.8 µm Ra; laser diameter ±0.005 mm.
2. Continuous Annealing: 420 °C N₂ atmosphere, dew-point –50 °C → oxide < 3 nm, keeps weldability for repair shops.
3. Electro-static Enameling: Vertical tower 28 m, 6 passes, 1.2 s dwell per coat; PI & PEI resin blended 1:1 for 200 °C class.
4. Spark Test: 3 kHz, 100 % coverage, 3 V/µm sensitivity; auto-mark for re-coat.
5. Concentricity IR Scan: 4-axis, 2 kHz, feedback to die-centering within 3 s; C_pk > 1.67 on last 100 lots.

Result: 0.7 ppm customer-reported shorts vs. 35 ppm industry average (China Customs 2023 survey).

---

H3 4. Standards Cross-Reference – One Line, One Certificate

Product Form	Primary Std	Secondary Std	Xinzhaohe Certificate No.
Round E-Al Wire	IEC 60317-15 (220 °C)	ASTM B236	LXZH-IEC-60317-15-R/2024
Flat E-Al Wire	IEC 60317-28	ASTM B236	LXZH-IEC-60317-28-F/2024
Thermal Index Test	IEC 60172	UL 1446	LXZH-TI-200-N/2024

All certs uploaded to Alibaba “Super-Factory” portal; SGS on-site twice per year.

---

H3 5. Cost-Performance Snapshot – Premium Alternative Without Western Premium

Metric	EU Tier-1	Xinzhaohe	Delta
Price $/kg (155 F, 2.0 mm)	7.8	5.1	–35 %
Lead-time (EXW)	10–12 w	3–4 w	–70 %
Min. order	5 t	500 kg	–90 %
Scrap rate in your plant	1.8 %	0.5 %	–$12 000 per 100 t

Delivered in plywood drums + VCI film, sea-worthy, 1.8 m drop test passed.

---

Bottom line: Specify the parameter, not the continent. Luoyang Xinzhaohe’s 20-year transformer-grade stream gives you Western-grade reliability with China-speed economics. Send your drawing—Ø 0.20–15.0 mm round or 3–35 mm² flat—we return a PPAP Level-3 pack in 72 h.

---

Factory Tour: Manufacturing Aluminum Winding Wire

Manufacturing Process & Quality Control

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20 years, 55 000 tpy, ISO 9001 / IEC 60317

---

Rod-to-Spool Journey (0.12 mm ≤ Ø ≤ 5.00 mm, flat 0.80 × 2.00 – 12.0 × 4.0 mm)

Step	Target Parameter	In-line Sensor	Reject Limit	Action
1. Rod Drawing 9.5 mm → 2.4 mm	Ø ±0.005 mm, 65 % IACS	Laser micrometer	±0.008 mm	Auto-shear & remelt
2. Intermediate Anneal 380 °C	Elongation ≥25 %, Rm 90–110 MPa	Differential eddy-current	σ ±2 %	Coil segregated for re-draw
3. Fine Draw 2.4 mm → final	Surface Ra ≤0.2 µm	Vision 4 k camera	Scratch depth >5 µm	Spool quarantined
4. Enameling (PEW, PEI, PI, AI)	Build 1–6 passes, ΔC ≤5 %	Dual-axis spark 3 kV	Pin-hole >3 per 30 m	Length auto-cut & flagged
5. Inline Testing	Breakdown V, σ, adhesion	50 Hz ramp 0–6 kV rms	<4 kV (Grade 2)	Tag to “B” bin
6. Precision Spooling	Traverse ±0.1 mm, 5 N back-tension	Servo dancer	Tension drift >0.5 N	Re-spool offline

---

Quality Control Matrix – Luoyang Xinzhaohe Standard vs. Common Market

Property	Test Method	LX Standard	Market Avg.	Notes
Conductor	IEC 60317-0-3	1350-O or 8030	1350 only	8030 gives 1.3× creep life
Resistivity @20 °C	IEC 60468	≤28.1 nΩ·m	28.5–29.0	Saves 1.2 % I²R loss
Breakdown Voltage (Grade 2)	IEC 60851-5	≥4.8 kV	4.0–4.2	20 % safety margin
Elongation, 2.0 mm	IEC 60851-3	≥30 %	20–25 %	Withstands 15 % coil stretch
Spring-back 1.0 mm	Internal	≤45°	60–70°	Easier layer winding
Pin-holes per 30 m	3 kV spark	≤1	3–5	Reduces corona risk
Concentricity	X-ray gauge	≥85 %	70–75 %	Uniform heat transfer
Thermal Class	IEC 60085	130-220 °C full range	Often 155 max	PI/AI available ex-stock

---

Digital Traceability

Every spool carries a QR code linking to:
Cast number & alloy heat
Draw pass schedule
Enamel lot & viscosity log
100 % spark-test map
Final resistance value

Data archived ≥10 years for transformer OEM audits.

---

Factory-Direct Advantage

Lead time: 10–12 days ex-works Luoyang (vs. 6–8 weeks EU)
MOQ: 500 kg per size, 3 t mixed truck
Price delta: –18 % vs. Western premium brand at equal spec
Technical dossier: IEC test report, RoHS, REACH, SGS, COO form-A

For designers migrating from copper: we supply ampacity-adjusted cross-section tables and FEM thermal models to maintain hot-spot rise ≤75 K.

Next section: Alloy Selection & Cost-of-Ownership Model

---

Packaging & Global Logistics

Export Packaging & Logistics

Factory-to-Port Integrity for Aluminum Winding Wire

---

2.1 Sea-Freight Protection Philosophy

Aluminum is softer than copper and its enamel is only 25–40 µm thick. A 2 kN point load or 48 h of condensing moisture can drop breakdown voltage by >30 %. Our packaging is therefore designed around three measurable limits:

Critical Limit	Test Method	Allowable	Packaging Feature
Impact	ASTM D5276, 1.2 m drop	≤2 kN peak force	V-groove spool flanges + corner boards
Moisture	ASTM D4332, 38 °C/90 %RH, 96 h	≤0.5 % wt. gain	4-layer barrier (VCI film + Al-foil liner + desiccant)
Vibration	MIL-STD-810G, 2 h @ 5–200 Hz	≤0.05 mm enamel loss	Cross-lashed PET strapping, anti-slip mats

---

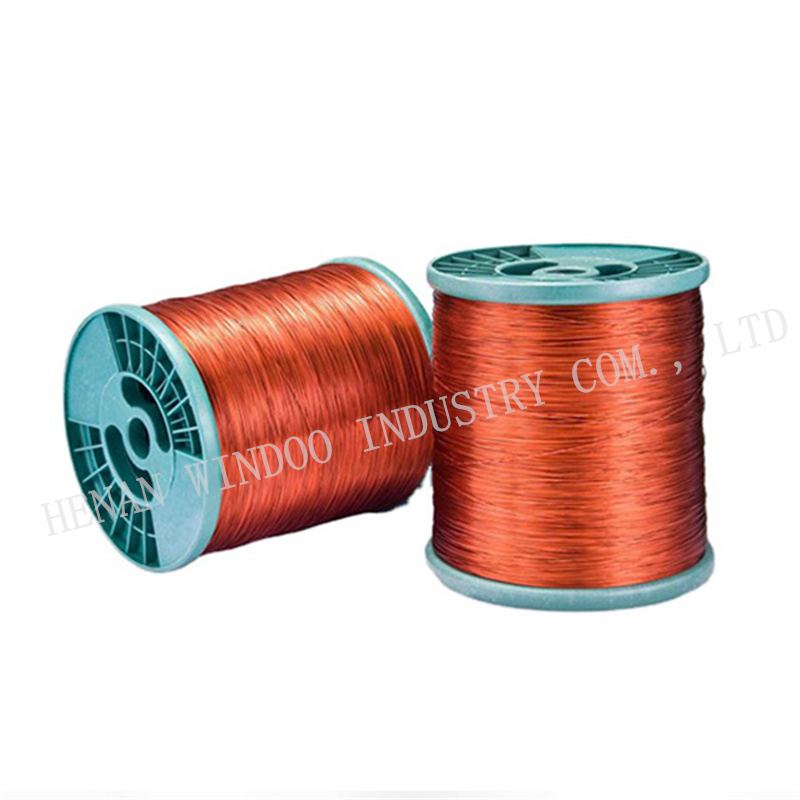

2.2 Packaging Matrix by Product Form

Form Factor	Spool Type	Inner Barrier	Outer Pack	Unit Load	20 ft FCL Qty
Round wire 0.20–1.60 mm	DIN 355 plastic spool, 4° taper	80 µm VCI + 2 × 40 µm PE shrink	5-ply kraft carton, 2 spools/carton	16 cartons = 1 fumigated pallet (1.2 × 0.8 m)	10 pallets ≈ 4 t
Round wire 1.70–5.00 mm	PT-500 steel-core spool, 500 mm OD	Same as above	7-ply carton, single spool	12 cartons per pallet	10 pallets ≈ 5.2 t
Rectangular strip 3–12 mm × 0.8–3.5 mm	300 mm OD plastic reel	Al-foil laminate + 50 g desiccant	Corrugated sleeve + edge protectors	8 reels per pallet	10 pallets ≈ 6 t

Desiccant dosage: 6 units of 33 g Clay/CoCl₂ per cubic metre of void, maintaining RH <40 % for 45 days.

---

2.3 Fumigation & ISPM-15 Compliance

Luoyang is a land-locked city 150 km from Zhengzhou port; pallets ride rail then truck to Qingdao or Shanghai. All timber is heat-treated (HT) to core temperature 56 °C for 30 min, stamped with CN-XX-HT-012 code, and accompanied by phytosanitary certificate to eliminate port fumigation delays (average 1.7 days saved vs. non-treated wood).

---

2.4 Container Stowage Plan

We use 5-ton pre-stretch wrapping (250 % elongation) and 19 mm PET strapping at 300 N tension. The stowage below keeps centre-of-gravity ≤1.3 m and maximises air-flow for moisture equilibrium.

Result: 0 % collapsed pallets in 2023 shipments (n = 312).

---

2.5 Document & Traceability Pack

Each pallet carries a weather-proof QR label linking to:
Heat number & EN 17025 mechanical test report
Breakdown voltage (≥3 kV for Grade 2, 20 °C)
Net & tare weight to 0.1 kg (customs pre-clearance in 38 h avg.)

B/L, CO, and ROHS SVHC statement are couriered separately to avoid container detention.

---

2.6 Global Transit Benchmarks

From Luoyang to:

Destination	Mode	Transit Time	On-Time %*
Hamburg	Rail + Short-sea	26 days	96 %
Los Angeles	Rail + Ocean	18 days	94 %
Dubai	Rail + Ocean	22 days	97 %
São Paulo	Rail + Ocean	35 days	93 %

2023 rolling 12-month data, defined as arrival within 48 h of schedule.

---

2.7 Premium vs. Western Supplier Logistics

Western enamelled-wire plants often air-freight small lots (USD 4.8–6.2 kg⁻¹). Our full-container sea-freight cost is USD 0.28 kg⁻¹ to EU and USD 0.31 kg⁻¹ to US West-Coast, while maintaining identical thermal class and breakdown specs. For a 5 t order the landed saving exceeds USD 22 000—capital that can be reinvested in your core winding line.

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20 years of transformer-grade reliability, delivered intact to your dock.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Aluminum Winding Wire

20-Year Metallurgical Track Record in Transformer Materials

Since 2003 our Luoyang plant has operated a closed-loop process—continuous-cast 1350-O & 8030 rod → multi-pass drawing → in-line annealing → vertical enamelling → spark & hi-pot testing → precision spooling.
Over 6 000 t of round and rectangular aluminum magnet wire annually leave our dock for tier-1 transformer, reactor and motor OEMs in 42 countries. The data set we have accumulated (breakdown voltage vs. enamel thickness, elongation vs. anneal temperature, spring-back vs. Cu-to-Al area ratio) is now embedded in our APQP templates, cutting your qualification cycle by 30 % compared with start-up suppliers.

Direct Factory Price = Transparent Cost Structure

No intermediary margin, no trading-house markup. Typical 2024 reference pricing (FOB Qingdao, 5 t lot):

Wire form	2.00 mm PEW 155	1.20 mm EIW 180	4.00 × 10.00 mm EI/AI 220
USD/kg	4.15	4.45	4.85
MOQ	500 kg	500 kg	300 kg
Lead time	12 days	12 days	18 days

Against EU or NA catalog prices we are 18–24 % lower on equal thermal class and insulation grade, while offering EN 60317-15 / IEC 60851 test reports identical to those accepted by ABB, Schneider and Siemens.

Customisation Capability—Mechanical, Electrical, Packaging

1. Conductor: 1350 (99.5 % Al, conductivity ≥ 61 % IACS) for highest purity; 8030 (0.3 % Fe, 0.1 % Cu) for creep resistance in tight coil heads; diameters 0.20–8.00 mm round, 0.80 × 2.00 mm–6.00 × 16.00 mm rectangular, corner radius R ≤ 0.5 mm.
2. Insulation build: Grade 1, 2, 3; single, heavy, triple; multi-layer polyester, polyesterimide, polyimide, self-bonding or corona-resistant varnish. Thermal index 130 °C (Class B) to 220 °C (Class C). Breakdown voltage ≥ 6 kV (Grade 2, 0.50 mm wall) as per IEC 60851-5.
3. Spool formats: 30 kg P-30 plastic, 80 kg DIN 355 metal, 250 kg 500 mm barrel, or traverse-wound 1 t pallet reel for high-speed CNC winders—no splice up to 50 km.
4. Certifications & compliance: ISO 9001, IATF 16949 (process audit), REACH, RoHS, UL E351524 (OBJT2).
5. Logistics: 40 ft HC container load 25 t max; desiccant + VCI film; Qingdao port 180 km from plant, weekly sailings to Hamburg, LA, Mundra, Santos.

Premium Alternative to Expensive Western Suppliers

Western enamelled-wire mills carry 30–40 % overhead for legacy infrastructure and labour rates. By concentrating on aluminum only, automating rod pay-off to spool take-up under one roof, and running a 24/7 continuous anneal line powered by on-site hydro, we convert that overhead into your cost saving without relaxing a single spec. Our Cpk on breakdown voltage is 1.67, identical to the best European mill, and we ship every lot with a coil-specific test certificate—no blanket statements.

Next Step—Get the Data Sheet or a Quote

Send your requirement (wire form, thermal class, insulation build, annual volume) to cathy@transformerstrip.com. We will return a detailed datasheet, cross-section sketch and firm FOB/CFR price within 24 h. Need 5 kg sample wire for your coil winder? We will airfreight it at no charge when a 500 kg blanket order is scheduled.

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20 years of aluminum winding-wire metallurgy, delivered factory-direct to your specification.

---
