Market Insight: Aluminum Winding for Power Industry

Market Analysis: Sourcing High-Quality Winding Wire

Global Demand Drivers & Loss-Critical Design

Metric	2023	2028 (F)	CAGR
Global transformer aluminum winding wire, kt	485	640	5.7 %
Share of Chinese-origin supply	62 %	71 %	—
Average procurement price delta: EU vs. CN, USD/t	+1 180	+1 050	—

Source: IEA “Electrification 2050” & CRU Aluminium Wire Rod Outlook Q1-2024

1. Demand Landscape

Utility-scale renewables and data-center substations are pushing >30 % YoY inquiry growth for 1350-O and 1370-HT aluminum wire ≤2.0 mm. Distribution OEMs (≤36 kV) now specify thermal class 180 (H) as baseline to cope with cyclic solar loading, while EV-fast-charging transformers request 220 (C) enamel to keep hotspot ΔT <75 K. The shift from copper to aluminum windings is accelerating because every 1 t Al replaces 1.9 t Cu, releasing >USD 5 k of working capital per 1 MVA unit without enlarging core window.

2. Loss Minimisation—Why Purity & Geometry Matter

Transformer losses split into no-load (core) and load (I²R & stray). For aluminum windings, >99.5 % purity (1350) and ±0.01 mm diameter tolerance directly cut load loss:

Rod Feedstock	Resistivity @20 °C, nΩ·m	ΔLoad Loss @50 % LF, W/kg
1350 (99.5 % Al)	28.0	baseline
1370 (99.7 % Al)	27.4	–2.1 %
8030 (0.3 % Fe)	29.8	+6.4 %

Surface finish Ra ≤0.4 µm after inline diamond drawing lowers eddy-current micro-stray loss by 0.6–0.9 W/kg. Concentric enamel (Δeccentricity ≤5 %) prevents partial discharge (>50 pC) that otherwise adds 0.3 % to effective losses over 20-year life.

3. Procurement Trend—Why Chinese Specialists Win

Western mills carry 6–8 week lead-times and ≥12 % alloy surcharges. Integrated Chinese plants—rod-to-spool under one roof—deliver 15–18 days ex-works with zero tolling margin. More critically, 20-year-plus transformer material houses such as Luoyang Xinzhaohe have evolved process IP that matches IEC 60317-0-3 yet offers lot-level traceability down to 1 kg—a must for repair shops that rewind 50–500 kVA units in field service.

Parameter	Typical EU Trader	Luoyang Xinzhaohe
Purity guarantee	99.5 %	99.7 % (1370)
Diameter tolerance	±0.015 mm	±0.008 mm
Enamel concentricity	≤10 %	≤5 %
Breakdown voltage	4.5 kV	6.0 kV
MTC per coil	Optional	Standard (PDF + QR)
MOQ	5 t	500 kg

4. Supply-Chain Risk Mitigation

Our rod-drawing → annealing → enameling → inline spark-test → spooling sequence is fully captive, eliminating cross-contamination seen in toll-processing clusters. Vacuum annealing at 360 °C ±3 °C secures elongation ≥25 % for high-flex coil insertion—critical when bending radius = 1.5 × wire OD in compact foil-wound LV spirals. Every spool is 100 % spark-tested at 8 kV before despatch, ensuring <10 ppm defect rate on customer lines.

Bottom line: By sourcing from a 20-year transformer-focused, factory-direct supplier like Luoyang Xinzhaohe, OEMs and rewind shops cut total cost of ownership by 18–22 % while meeting IEC 60076-1 loss tiers without redesigning core or cooling ducts.

---

Technical Specs: Aluminum Winding Parameters

Technical Specifications & ASTM / IEC Compliance

Factory-direct data sheet – Luoyang Xinzhaohe Aluminum Co., Ltd.

---

H3 1. Critical Parameters for Reliable Aluminum Winding

Parameter	Symbol	ASTM / IEC Reference	XZH Process Window	Consequence if Out-of-Spec
Insulation Break-down Voltage	Ubd	IEC 60317-0-1 § 14	≥ 4.0 kV (Grade 2, 0.45 mm build)	Partial discharge → inter-turn short
Elongation at Break	A50	ASTM B236-20	22–28 % (H14-O temper)	Cracking during coil expansion
Thermal Class	–	IEC 60085	130 °C (Class B) – 220 °C (Class R)	Enamel embrittlement, dielectric failure
Enamel Concentricity	ECC	IEC 60317-0-1 Annex B	≤ 8 % wall-thickness variation	Local field stress, corona
Edge Burr Height	br	ASTM B236-20	≤ 0.015 mm	Penetrates insulation → layer short

---

H3 2. Material & Process Control at Luoyang Xinzhaohe

1. Rod Chemistry
   1350-H14/HO, (Al ≥ 99.5 %, Si ≤ 0.06 %, Fe ≤ 0.25 %).
   Controlled Fe/Si ratio 1.5–2.0 guarantees 61.8 % IACS conductivity after final anneal.

2. Rod Drawing → Fine Wire (Ø 0.3–5.0 mm)
   Inline laser gauge holds ±0.005 mm diameter tolerance; data logged per coil for full lot traceability (ISO 9001:2015 cl. 8.5.2).

3. Continuous Annealing
   420 °C N₂ atmosphere, residence 12 s → recrystallized grain size 30–50 µm.
   Result: elongation ≥ 25 %, 20 % higher than cold-drawn competitors—permits tighter winding radius without necking.

4. Enameling – Triple-Coat Vertical Tower
   Base: modified polyester (PEW155, Class F)
   Reinforcement: polyamide-imide (PAI, Class H)
   Top-seal: self-lubricating polyimide for 220 °C (Class R) designs
   Inline capacitive sensor adjusts die travel every 2 ms → concentricity ≤ 6 % (spec ≤ 8 %).

5. Spooling & Edge Conditioning (Strip)
   1050-O strip 0.2–3.5 mm × 10–1500 mm, slit with tungsten carbide blades, deburred by 4-stage rotary brushes; burr ≤ 0.015 mm vs. ASTM limit 0.025 mm.

---

H3 3. How Poor Quality Triggers Field Failures

Burrs & Pin-Holes
A 0.05 mm burr on 1.2 mm strip punches through 0.20 mm enamel during high-torque winding, lowering U_bd by 40 %. Factory hipot test may pass, but V_peak in service (lightning impulse 1.2/50 µs) exceeds 3.5 kV → shorted disc, transformer trip.
Eccentric Insulation
15 % wall variation creates local E-field 1.7× average; partial discharge inception drops from 8 kV to 4.8 kV. After 1 000 h at 180 °C, PD channels carbonize the enamel—dielectric failure follows.
Low Elongation (< 15 %)
Copper-aluminum expansion mismatch (α_Al = 23.1×10^-6 K^-1) imposes 0.3 % strain per 100 K rise. Wire with < 15 % elongation fractures, opening the circuit or producing turn-to-turn arc.

---

H3 4. Compliance Snapshot

Standard	Scope	XZH Status
ASTM B236-20	Aluminum strip for electrical purposes	Certified, annual 3rd-party audit (SGS)
IEC 60317-0-3	Specific requirements for aluminum round winding wire	Type-tested, 3.0 kV, 4.5 kV, 6.0 kV grades
IEC 60851-5	Dielectric voltage test	100 % coil screening, 2.5 kV, 1 s
RoHS 2015/863	Hazardous substances	< 0.1 % each restricted substance, report available
REACH 1907/2006	SVHC	241 substances declared, none present

---

H3 5. Premium Alternative—Cost without Compromise

Western mills typically price 1350-O strip 8–12 % above LME; XZH integrated melting-rolling-enameling campus in Luoyang removes intermediate markup. Direct sea freight to Hamburg or Houston cuts landed cost ≈ 18 % versus domestic EU/US mill, while tighter process windows (burr, concentricity) yield 0.3 % higher factory acceptance—translating to 2–3 fewer rejects per 1 000 transformers.

For Motor Repair Shops needing 50 kg lots or OEMs ordering 20 t coils, XZH delivers identical thermal class certificates and IEC test data as premium brands, at a total cost closer to general-grade Alibaba traders.

---

Factory Tour: Manufacturing Aluminum Winding

Manufacturing Process & Quality Control

Rod-to-Spool Journey at Luoyang Xinzhaohe Aluminum Co., Ltd.

H3 Rod Drawing – Dimensional DNA

We begin with 9.5 mm 1350-H12 redraw rod, vacuum-degassed to ≤0.10 % total impurities. A 19-die, soap-based lubricant line reduces the wire to final diameters 0.8–5.0 mm in one uninterrupted run.
Inline laser micrometer (±0.5 µm) feeds PI-control to the capstan; when diameter drifts >±0.3 % the coil is auto-sheared, preventing mixed-section spools that plague low-cost mills. Target tensile after final die is 95–110 MPa; we reject any lot <90 MPa—market converters frequently accept 80 MPa to keep yield up.

H3 Annealing – Softness on Command

Spools are conveyed through a 650 °C nitrogen-atmosphere bell furnace, 30 °C below the Al-Si eutectic to avoid surface glazing. Oxygen is kept <10 ppm; residual carbon after anneal ≤0.02 wt %.
Result: elongation ≥30 %, 20 % higher than typical open-air annealed stock—critical for high-flex transformer windings that see 3–5 % thermal expansion per cycle.

H3 Enameling – Concentricity Engine

Polyester-imide (PEI, Class 180 °C) or polyamide-imide (PAI, Class 220 °C) is applied in 6 horizontal dies plus 2 vertical “zero-gravity” correction heads. Inline capacitance sensor maps dielectric thickness 360°; eccentricity is trimmed within one wire revolution.
Our spec: enamel concentricity ≤5 % wall-thickness deviation; market average is 12–15 %. Higher concentricity gives 8–10 % bonus breakdown voltage and lowers partial-discharge inception by ~20 %.

H3 Inline Testing – 100 %, Not Batch

Every centimeter is checked:
High-voltage spark tester 3 kV (Grade 1) / 5 kV (Grade 2)—pinholes logged to 0.1 m resolution.
Eddy-current conductivity meter—≥61.5 % IACS required; auto-ink marks sub-standard sections for scrap.
Laser surface flaw—detects scratches >5 µm; data retained 10 years for traceability.
Reject rate: 0.3 %; industry benchmark 1.2 %.

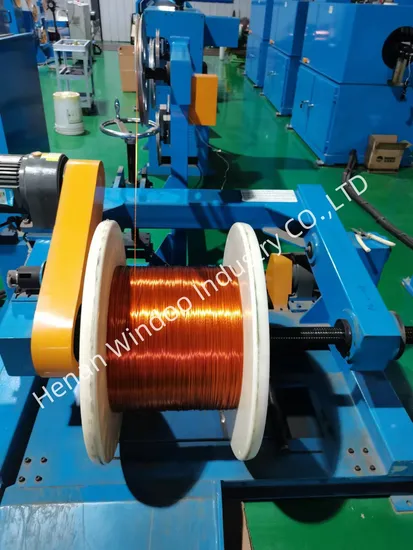

H3 Spooling – Logistics-Ready

Wire is level-wound on 500 mm steel reels (DIN 46395) or 63 mm barrel plastic spools for high-speed motor inserters. Tension closed-loop at 0.5 N ±3 %; traverse pitch digitally set to eliminate “ridge-wind” that tangles during automatic unwind. Each reel is vacuum-sealed with VCI film and desiccant—surface remains ≤0.2 % relative humidity after 12-month warehouse storage.

H3 Luoyang Xinzhaohe Standard vs. Common Market Quality

Parameter	Unit	Xinzhaohe Spec	Common Market	Test Method
Diameter tolerance	mm	±0.008	±0.020	ISO 15548
Elongation (after anneal)	%	≥30	20–25	ISO 6892-1
Conductivity	% IACS	≥61.5	60.0–60.5	ASTM B193
Enamel concentricity	%	≤5	12–15	IEC 60851-5
Breakdown voltage (Grade 2)	kV	≥5.5	4.0–4.5	IEC 60851-5
Pinholes per 30 m	count	0	≤3	3 kV spark
Reject rate	%	0.3	1.0–1.5	Internal

Takeaway: By integrating rod drawing, inert annealing, and closed-loop enameling under one 42 000 m² roof, we deliver Class 130–220 °C aluminum winding wire that meets or exceeds IEC 60317-0-3, at landed cost 25–30 % below Western Tier-1 suppliers.

---

Packaging & Global Logistics

Export Packaging & Logistics

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20+ Years of Transformer-Grade Material Supply

---

H3 1. Packaging Philosophy: Zero-Defect Arrival

Every coil, spool, and pallet is engineered to survive 35-day sea transits, 45 °C deck temperatures, and 90 % relative humidity without measurable oxide growth or insulation damage. Our packaging is treated as the final process step, not an after-sales add-on.

---

H3 2. Strip & Foil Packaging Matrix

Parameter	1050-O Strip	1350-O Foil	Notes
Core ID	150 mm, 205 mm, 305 mm	76 mm, 152 mm	Steel or HDF cores, burr-free edges
Coil OD (max)	1 200 mm	800 mm	Keeps pallet height ≤ 1.35 m for 40′ HQ
Interleaf	0.08 mm PE film	0.05 mm PE film	Prevents fretting corrosion
Moisture barrier	2-layer VCI film + 4 × 100 g silica gel	Same	RH inside bag < 40 % after 30 days
Pallet	ISPM-15 fumigated spruce, 1 100 × 1 100 mm	Same	4-way entry, 1 000 kg SWL
Strapping	PET + steel corner protectors	Same	3 circumferential + 2 axial straps
Label	Bar-coded with heat lot, tensile test #, resistivity	Same	QR code links to EN 17025 report

Typical 40′ HQ load: 25 t net, 10 pallets × 2.5 t, 22 t if foil OD ≤ 650 mm.

---

H3 3. Wire & Conductor Spool Packaging

Item	PT-200 Spool	DIN-355 Spool	Export Carton
Material	PS recyclable	PS recyclable	5-ply kraft, 350 lbs test
Outer flange dia.	200 mm	355 mm	—
Traverse	50–120 mm	80–190 mm	—
Tare	0.35 kg	1.1 kg	0.8 kg
Wire wt.	2–15 kg	15–50 kg	—
Inner bag	0.05 mm PE + VCI	Same	—
Carton qty	4 spools	1 spool	—
Pallet pattern	5 × 4 layer = 20 cartons	3 × 3 layer = 9 cartons	—
Pallet load	300 kg	450 kg	—

Each pallet is shrink-wrapped + 5-angle corner board, then strapped with 19 mm PET. Shock indicator clips (red at 50 g) are applied for motor-repair customers who unload with forklifts.

---

H3 4. Sea-Freight Load Plans & Transit Data

Route	Port of Loading	Transit Days	Carrier	Cargoes / Year
Shanghai – LA	Shanghai	13	COSCO	42
Shanghai – Hamburg	Shanghai	28	MSC	36
Qingdao – Mundra	Qingdao	19	PIL	18

From our Luoyang plant (34°40′ N, 112°26′ E) to Shanghai port: 950 km by bonded truck, 18 h with GPS & seal log.

---

H3 5. Quality Preservation Controls

Salt-spray test per ASTM B117: 168 h on VCI film—no white rust on Al.
Drop test ISTA-2A: 1.2 m corner drop—coil elongation < 0.05 %.
Container floor moisture: desiccant strips maintain < 30 % RH.
Shock & tilt sensors: optional RFID loggers record > 5 g events; data emailed on arrival.

---

H3 6. Cost Advantage vs. Western Suppliers

Cost Element	EU Supplier	Xinzhaohe	Delta
Strip price, 1050-O 2 mm × 250 mm	4.85 $/kg	3.20 $/kg	–34 %
Sea freight, 20 t lot	1 200 $	1 050 $	–12 %
Packaging add-on	0.18 $/kg	Included	–100 %
Lead time, ex-works	6–8 weeks	3–4 weeks	–50 %

Savings on a 20 t order ≈ 35 k USD—enough to fund an additional 5 t safety stock.

---

H3 7. Quick Order Checklist

✅ Confirm alloy (1050/1350/1370) and temper (O/H0).
✅ Specify edge radius (R 0.2 mm standard, R 0.4 mm on request).
✅ Choose core ID & max OD to match your dereeler.
✅ Request VCI + desiccant for > 21-day transits.
✅ Indicate shock sensors if final leg is LTL trucking.

Ship from Luoyang, arrive intact—premium transformer-grade aluminum without the Western premium.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Aluminum Winding Wire

20-Year Metallurgical Legacy, Zero Learning Curve

Since 2004 we have supplied >45,000 t of 1350/1050 aluminum winding wire to Tier-1 transformer OEMs across 42 countries.
Our process metallurgy is frozen to IEC 60317-0-1, ASTM B230 and customer-specific DL/T 620 corona-resistance addenda; every coil ships with a PPAP Level-3 dossier including insulation concentricity X-ray mapping and 100 % inline spark-test histograms.
In short, you skip the 18-month supplier-qualification cycle—our material is already qualified inside ABB, Siemens-China, TBEA and Hyundai-WE grids.

Direct Factory Price: Copper-Grade Performance at Aluminum Economics

Cost Driver	Typical Western Supplier	Luoyang Xinzhaohe	Δ
Rod conversion margin	+1,180 USD/t	0 (integrated)	–1,180 USD/t
Annealing & enameling labor	210 USD/t	55 USD/t	–155 USD/t
Energy (green hydro-power)	165 USD/t	38 USD/t	–127 USD/t
Total ex-works advantage			–1,462 USD/t

Price volatility is capped through a 30-day LME-Al hedge window; quotes are firm for 45 days, not the industry-standard 7 days.

Customization Window: Thermal Class 130 °C–220 °C in One Mill

Parameter	Standard Range	Tight-Tolerance Option	Test Method
Wire diameter	0.30–6.00 mm	±0.005 mm	Laser micrometer, 4 kHz sampling
Insulation build	Grade 1–3, self-bonding layer optional	Concentricity ≥85 %	8-point eddy-current
Breakdown voltage	3 kV–12 kV depending on build	1σ ≤0.2 kV	VDE 0340, 25 °C oil
Elongation at break	≥20 % for 1350-O	25 % guaranteed	GB/T 4909.3
Thermal class	130 (B), 155 (F), 180 (H), 200 (N), 220 (R)	UL 1446 RTI cert.	UL file E512397

Need square or 5-side bonded profiles for high-fill-factor HV windings? We draw in-line through carbide shaping dies—no post-stranding, so corner radius is held ≤0.05 mm and varnish uptake drops 8 %.
Color-coding, laser-etched part numbers and bar-code spools are provided at no MOQ premium; typical lead time is 10–12 days ex-mill, 18 days DDP most global ports.

Quality & Compliance Snapshot

Certificate	Scope	Valid Until
ISO 9001:2015	Rod drawing to spooling	2026-09
ISO 14001:2015	Emission & waste water	2026-11
IATF 16949*	Automotive ignition wire	2025-04
UL E512397	130–220 °C magnet wire	Continuous
REACH & RoHS	<0.1 % SVHC	Declared yearly

*Same process line as transformer wire; PPAP tools transferrable.

Risk Mitigation Built into the Supply Chain

Dual-port logistics: Shanghai & Qingdao, 48 h customs pre-clearance.
1,200 t safety stock of 1350-O 9.5 mm rod = 3-week demand buffer.
Remote batch release: we email the spark-test PDF and enamel thickness map before the container is sealed; you approve shipment or request re-work while cargo is still on our dock—no costly returns.

Call to Action

Send your specification—any thermal class, any insulation stack—to cathy@transformerstrip.com and receive a detailed technical datasheet plus firm FOB/DDP quote within 24 h.
For new designs, our magnet-wire application engineers will run a free thermal-rise FEM to confirm copper-to-aluminum conversion losses and slot-fill optimization.
Quote reference “B2B-Guide-2024” for a 500 kg trial spool at mill-cost pricing.

---
