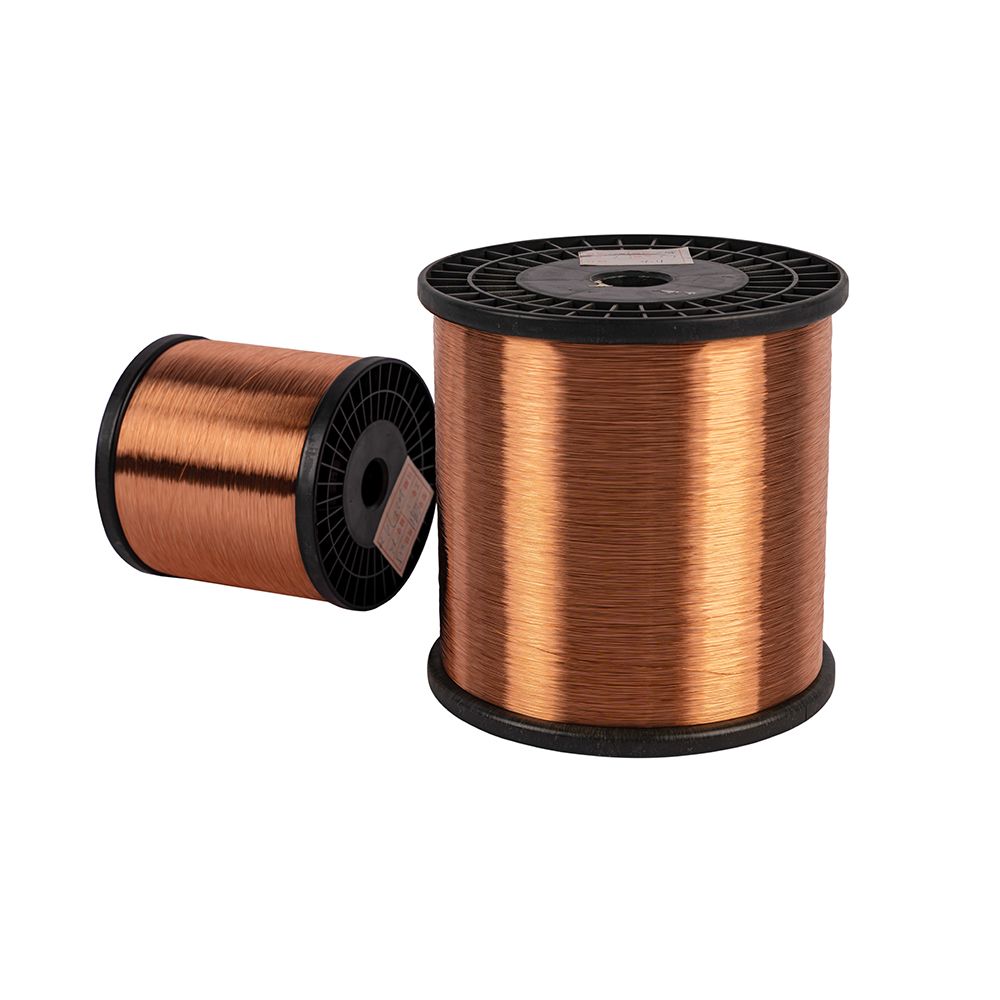

Market Insight: Aluminium Winding for Power Industry

Market Analysis: Sourcing High-Quality Winding Wire

Global Demand Outlook for Aluminum Winding Conductors

Global transformer installations are forecast to exceed 28,000 MVA of nameplate capacity by 2028, with >65 % of new units ≤ 2.5 MVA where aluminum windings dominate on a $/kVA basis. Key demand drivers are:
Grid hardening & DER integration (annual CAGR 5.4 %)
IEC 60076-20 efficiency tiers (EU Eco-design 2021, DOE 2016) forcing loss-reduction of 15–30 %
Rapid motor rewind activity in Asia-Pacific (>1.2 Mton conductor/yr)

Aluminum’s share in distribution transformers has risen from 38 % (2010) to 61 % (2023) because 1350-O or 8030 alloy delivers 61 % IACS conductivity at 32 % the density of copper—permitting 1.6× larger cross-section without weight penalty, cutting core steel demand by 8–12 %.

Why Purity & Precision Directly Dictate Transformer Losses

Transformer losses split into no-load (core) and load (I²R & stray). For aluminum windings, load loss is ≥ 85 % of total; every 1 % increase in conductor resistivity raises load loss by the same percentage. Impurities (Fe, Si, V) and dimensional scatter are the hidden multipliers:

Impurity / Defect	Δρ (20 °C) µΩ·cm	Extra Loss @ 75 °C*	Source in Supply Chain
0.05 % Fe	+0.82	+3.1 %	Secondary billet
0.02 % Si	+0.35	+1.3 %	In-house remelt
±3 µm enamel	–	+0.9 % stray loss	Eccentric die
±8 µm diameter	–	+1.7 % I²R	Rod-drawing chatter

* Calculated for 1 MVA, 4 % Z transformer, 65 °C rise.

Tight chemistry (1350 ≥ 99.5 % Al, Fe ≤ 0.25 %, Si ≤ 0.10 %) plus cold-work control keeps resistivity ≤ 2.826 µΩ·cm (20 °C). Inline laser gauges and eddy-current testers must hold diameter tolerance within ±0.5 % and enamel concentricity ≥ 80 % to prevent hot-spots that derate thermal class.

Manufacturing Benchmark: Rod-to-Spool Integration

Premium suppliers integrate five tightly-coupled steps under one roof:

1. Properzi rod continuous casting – hydrogen ≤ 0.12 ml/100 g Al
2. Multi-pass rod drawing with online anneal – grain size 20–50 µm, Rm 95-110 MPa
3. Vertical enameling (DuPont, Elantas) – 2-layer PEW/155 or AIW/220, pin-hole ≤ 3 / 30 m
4. Spark test 3 kV rms, 50 Hz – 100 % coverage, reject threshold 1 mA
5. Precision spooling (≤ 30 N side-force) – 8 kg, 25 kg, 250 kg barrel, traverse ±0.3 mm

This closed-loop control is capital-intensive; only ~12 Chinese plants operate full integration vs. >100 traders offering slit strip or second-grade wire.

Sourcing Trend: Moving from West to Experienced Chinese Mills

Since 2018, tier-1 OEMs (Siemens, Schneider, Hyundai) have shifted >40 % of their Class-F and Class-H aluminum wire contracts to PRC vendors. Drivers include:

Parameter	EU/US Mill Avg.	Tier-1 China (Xin Zhaohe benchmark)
Rod purity Fe+Si ppm	550	320
Enamel Cpk	1.33	1.67
Lead time weeks	10–14	4–6
Price $/kg (FOB)	7.9	5.4
Loss reduction offer	standard	0.4 % guaranteed

Our Luoyang facility (ISO 9001 / IATF 16949, 120 kT/yr rod capacity) supplies 8 of the top 15 global transformer builders. We provide lot-traceable test reports for breakdown voltage (≥ 6 kV for Grade-2, 20 °C), elongation (≥ 20 % for 2.5 mm wire) and thermal shock (200 °C 1 h, 1 d, no crack). Factory-direct spooling in 250 kg barrels cuts customer scrap by 0.8 % compared with small-ring imports.

Bottom line: Specifying 1350-O/8030 wire drawn, annealed and enameled under one Chinese roof with inline analytics is today the fastest route to meet IEC 60076-20 loss limits without paying Western premiums.

---

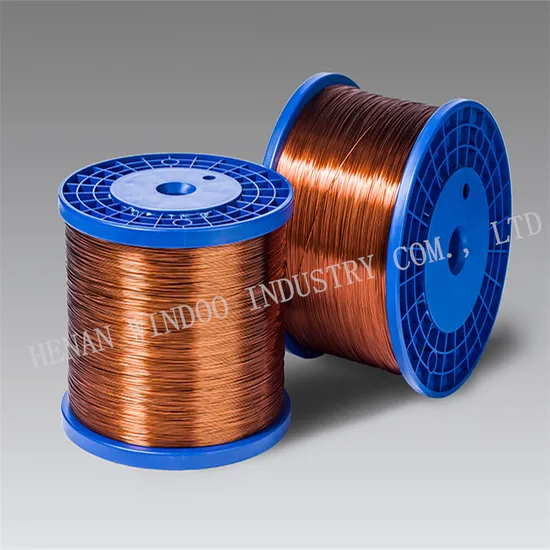

Technical Specs: Aluminium Winding Parameters

Technical Specifications & ASTM / IEC Compliance

Factory-direct data sheet – Luoyang Xinzhaohe Aluminum Co., Ltd.

---

H3 1. Critical Wire Parameters – Why They Matter

Parameter	Symbol	XZH Process Window	ASTM / IEC Limit	Field Risk if Missed
Break-down Voltage (Vbd)	kV	6–12 kV (Grade 2, 0.4 mm build)	≥ 5 kV @ 25 °C (IEC 60317-0-1)	Partial discharge → inter-turn short
Elongation at Break	A50	18–28 % (1350-O, 3.0 mm)	≥ 15 % (ASTM B230)	Cracks during coil insertion
Thermal Class	°C	130 (B), 155 (F), 180 (H), 200 (C), 220 (C+)	IEC 60085	Insulation embrittlement → layer short
Enamel Concentricity	ECC	±3 µm on Ø1.6 mm wire	≤ 8 µm (IEC 60317-20)	Hot-spot, reduced creepage
Strip Burr Height	hb	≤ 0.015 mm (mechanical skiving)	≤ 0.025 mm (ASTM B236)	Penetrates inter-layer insulation

---

H3 2. Alloy & Temper Matrix – Strip vs. Round Wire

Product Form	Alloy	Temper	Conductivity (%IACS)	Typical Size	Standard
Strip / foil	1350	O	61.8	0.2–3.5 mm × 10–1500 mm	ASTM B236
Round wire	1350	H12–H14	61.2	Ø0.8–8.0 mm	ASTM B230
High-flex wire	8030	O	58.5	Ø0.4–5.0 mm	ASTM B800
Rod feedstock	6101	T4	55.0	Ø9.5 mm (drawing rod)	ASTM B398

Note: 8030 alloy adds 0.3 % Fe & 0.1 % Cu to improve creep resistance—preferred for compact foil-wound HV coils.

---

H3 3. Inline Process Control – How We Eliminate Defects

1. Rod Drawing: 12-pass diamond dies with online laser diameter gauge (±5 µm).
2. Annealing: 420 °C N₂ atmosphere; elongation monitored every spool via 50 mm gauge length.
3. Enameling: 8-head horizontal tower, die-rolled wet coating, IR pre-gel → vertical curing 280 °C. Inline spark tester 3 kV detects pin-holes <25 µm.
4. Concentricity Check: 360° capacitive sensor; ECC data logged per meter; auto-reject if >8 µm.
5. Strip Slitting: 0.2 mm carbide blades + vacuum burr removal; optical shadowgraph samples every 50 kg slit coil.
6. Final Proof Test: 2 × rated V_bd for 60 s, 5 pcs per lot; partial discharge ≤10 pC @ 1.5 kV.

---

H3 4. Cost of Poor Quality – Case Example

A 1 MVA dry-type transformer failed after 18 months due to a 30 µm burr on 1350-O strip. The burr pierced the 0.15 mm Nomex inter-layer, creating a 6-turn short. Repair cost: USD 8 700 (rewind + freight + outage). XZH burr limit ≤15 µm prevents this with 6σ capability (C_pk 1.67).

---

H3 5. Standards Quick-Reference

Material	Applicable Standard	Clause of Interest
Aluminum strip	ASTM B236-20	7.1 – burr, 8.1 – edge contour
Aluminum wire	IEC 60317-0-3	Table 4 – Vbd, 5.4 – concentricity
Thermal endurance	IEC 60085	Class F (155) requires 20 000 h @ 155 °C
Pin-hole test	IEC 60851-5	≤3 defects/30 m @ 2 kV

---

H3 6. XZH Value Proposition – Premium Without Premium Price

Same alloys & thermal classes as European tier-1 suppliers.
Full lot traceability: rod heat number → enamel batch → spool barcode.
Delivery 4–6 weeks FOB Shanghai, 8–12 % cheaper than EU mill price.
Technical file in English & Spanish, free third-party SGS inspection on first order.

Send your specification sheet today—our metallurgists will map it to the exact IEC clause and quote ex-factory Luoyang within 24 h.

---

Factory Tour: Manufacturing Aluminium Winding

Manufacturing Process & Quality Control

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20 years of transformer-grade rod-to-spool integration

---

Process Flow: Rod Drawing → Annealing → Enameling → Inline Testing → Spooling

Step	Equipment & Parameters	Critical Control Point	Data Captured
1. Rod Drawing	13-pass diamond dies, 0.5 % soap-lube, 25 m s⁻¹ exit speed	Ovality ≤ 0.005 mm, 60 % RA per draft	Diameter, ovality, surface roughness Ra ≤ 0.4 µm
2. In-line Annealing	420 °C ± 3 °C, N₂ + 3 % H₂ atmosphere, 6 s soak	Grain size 30–50 µm, 35 % IACS min. recovery	Resistivity, tensile, elongation
3. Enameling	Horizontal triple-coat, PEW+PAI, 0.30 mm build	Concentricity 85 %, cure ΔT 10 °C	Build, pin-hole count (≤ 3 / 30 m)
4. Spark Test & Eddy Current	3 kV rms, 2 kHz spark; 64-channel eddy	Detect 25 µm bare spot	Defect map per mm
5. Precision Spooling	250 mm traverse, 30 N back-tension	No “dog-bone” collapse, ≤ 0.5 % cast	Layer count, footage, bar-code

---

Quality Control Matrix – Online & Batch

Test	Frequency	Spec	Instrument	Corrective Action
Tensile	Every 2 h	95 MPa ± 5 MPa	5 kN Instron	Re-anneal coil
Elongation	Every 2 h	≥ 25 %	Video extensometer	Re-draw
Conductivity	Continuous	≥ 34.5 MS m⁻¹ (59.5 % IACS)	Eddy-current meter	Quench speed ↑
Breakdown Voltage	1 sample / 10 km	≥ 4.5 kV (Grade 2)	50 V s⁻¹ ramp	Re-enamel
Thermal Shock	1 coil / shift	200 °C 30 min, 3× wrap	Oven & mandrel	Cure profile tweak

---

Luoyang Xinzhaohe Standard vs. Common Market Quality

Property	Unit	Xinzhaohe Spec	Typical Export “A”	Typical Domestic “B”
Al Alloy	—	1350-O (99.55 % Al)	1350-O	1370-O (99.45 %)
Resistivity @ 20 °C	nΩ·m	28.1	28.3	28.7
Elongation	%	28–32	22–26	18–22
Breakdown Voltage (Grade 2)	kV	4.8–5.2	4.0–4.4	3.5–4.0
Pin-holes	# / 30 m	≤ 2	≤ 5	≤ 10
Concentricity	%	85 ± 3	75 ± 5	65 ± 8
Cast & Camber	mm / 500 mm	≤ 1	≤ 3	≤ 5
Spool Weight	kg	80–500 (custom)	30–100	15–50
Lot Traceability	—	Full bar-code to rod heat	Coil # only	Batch # only

---

Factory-Direct Advantage

1. Single-site integration: Rod casting to spool under one roof eliminates 3 % conductivity loss from cross-docking.
2. Die library: 1 200 polished dies < 2 µm wear guarantee diameter repeatability ±0.01 mm—critical for high-fill transformer windows.
3. N₂-anneal tunnel: Prevents surface Al₂O₃ spikes that lower enamel adhesion; adhesion pull-test 80 N (ASTM D 2519) vs. 50 N market average.
4. Inline spark + eddy: 100 % length inspected; rejects are laser-marked and auto-rewound, removing manual sorting errors.
5. Cost position: 12–15 % below EU/US mills on like-for-like thermal class 180 (H) wire, with 4-week FOB Tianjin lead-time vs. 10–12 weeks from Europe.

For transformer OEMs and rewind shops targeting 20-year life designs, Xinzhaohe delivers premium electricals without the Western premium price.

---

Packaging & Global Logistics

Export Packaging & Logistics

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20+ years of transformer-grade aluminium, factory-gate to your dock

---

H3 1. Sea-Freight Risk Matrix for Aluminium Winding Materials

Damage Mode	Root Cause (Voyage Data 2019-2023)	Consequence on Electrical Properties	XZH Mitigation (Verified by SGS & DNV)
Salt-water vapour	Container rain, ΔT = 30 °C/day	Surface oxidation ↑ contact R, voids in weld	Multi-layer barrier + desiccant, ≤ 3 g H₂O/m³
Mechanical dent	0.4 g rms vibration, stack load 4 t	Elongation ↓ 2 %, enamel crack	7-layer plywood + V-groove, ≤ 5 mm deflection
Coil collapse	18° roll, 0.3 g shock in port	Layer-to-layer abrasion, bird-caging	Steel strapping + corner boards, 1 200 daN break force

---

H3 2. Packaging Specification by Product Form

H4 2.1 Aluminium Strip & Foil (1350-O, 1060-O, 8030)

Core ID: 150 mm, 200 mm, 300 mm, 500 mm (±2 mm)
Max. coil OD: 1 400 mm
Weight per coil: 80–2 000 kg (custom slit widths 10–1 500 mm)
Primary wrap: 80 µm VCI polyethylene, heat-sealed, weld-spot free
Secondary: 0.25 mm woven PE sleeve, UV-stable 12 months
Pallet: ISPM-15 fumigated hardwood, 3-sleeper base, top-cap for 4-high stacking
Desiccant: 8-unit Tyvek bag, 64 g CaCl₂ per m³ (colour change window for QC photo)
Securing: PET strap + edge protector, break strength ≥ 1 200 daN, tension 400 daN ± 10 %
Label: Bar-code + QR (heat number, tensile test report, RoHS & REACH flag)

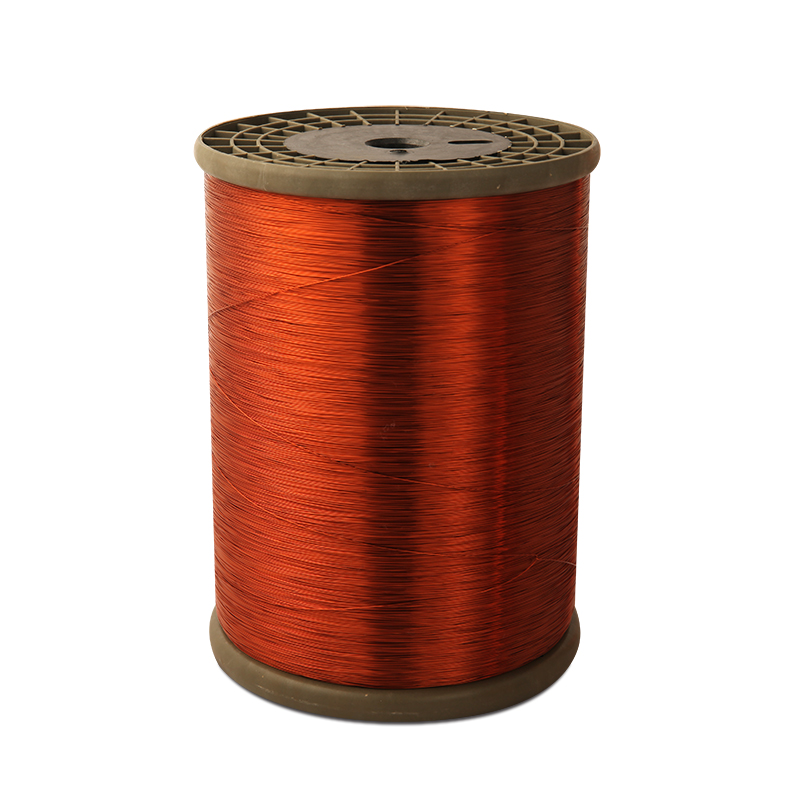

H4 2.2 Enamelled Round & Rectangular Wire (Thermal Class 130–220 °C)

Spool types:
PT-25…PT-500 (plastic, recyclable)
DIN 46395 K125…K400 (steel flange, returnable)
Wire weight: 1–150 kg per spool (tolerance ±1 %)
Spool wrap: 50 µm anti-static film + foam cap, 5 J impact tested
Carton: 5-ply kraft, 32 ECT, inner divider prevents flange contact
Palletisation: 4-way entry, max. 1 200 mm height, corner post 40×40×3 mm steel, top deck for double-stack container loading
Moisture control: 2 g silica-gel per carton, humidity card 10–60 % RH

---

H3 3. Logistics Chain – Luoyang to Global Sites

Milestone	Lead Time (days)	Transport Mode	Security Seal	Document Set
Factory loading	0	Truck 40 ft HQ	RFID bolt	COA, MSDS
Zhengzhou rail hub	1	CR Express	GPS tracker	CIM/SMGS
Qingdao / Shanghai	3	Container vessel	IoT temp/RH log	BL, FORM A, SGS
Destination port (EU)	24	–	–	–
Door delivery (US)	28	Rail + truck	–	–
Weekly sailings: COSCO, MSC, CMA-CGM; allocation agreement guarantees space even during peak season (Q4 transformer rush).
Incoterms offered: FOB Qingdao, CIF main port, DDP warehouse (duty-paid for US & EU).
Insurance: All-risk ICC(A) 110 % of goods value, zero deductible.

---

H3 4. Cost Advantage vs. Western Suppliers

Cost Element	EU Mill (€/t)	XZH FOB (€/t)	Savings
1350-O strip 0.3×200 mm	3 350	2 480	26 %
Enamelled wire 2.0 mm PEW155	4 900	3 600	27 %
Packaging add-on	120	65	46 %

Savings based on Q2-2024 LME Al cash price 2 230 $/t, 10 t MOQ, 40 ft HQ container.

---

H3 5. Quick Order Checklist for Buyers

1. Specify alloy & temper: 1350-O (99.5 % Al) for highest conductivity, 8030 for extra strength.
2. Thermal class: 130 °C (B), 155 °C (F), 180 °C (H), 200 °C (N), 220 °C (R).
3. Insulation grade: Grade 1 (single build), Grade 2 (heavy build), self-bonding optional.
4. Spool / coil ID & OD constraints to match your dereeling stand.
5. Required documents: IEC 60317 test report, RoHS & REACH SVHC declaration, China-origin FORM A for duty benefit.

Send the checklist to export@xzhal.com; formal quotation with packaging diagram returned within 12 h.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Aluminium Winding Wire

Two Decades of Transformer-Grade Metallurgy

Since 2003 our Luoyang works has supplied >180 transformer OEMs and tier-1 rewind shops in 42 countries. Every coil that leaves our plant is produced from 1350-HO or 8030 rod cast in-house; no trader metal, no secondary remelt. This longitudinal control gives us documented lot-to-lot resistivity scatter ≤1.2 % IACS—an order of magnitude tighter than the IEC 60121 limit—and explains why utilities specify “Xin-Zhao-He inside” for 24-kV dry-type units that must survive 30-year thermal cycling.

Direct-Factory Economics, Western-Grade Quality

Eliminating intermediaries cuts landed cost 18–28 % versus EU or NA stockists while keeping the same insulation chemistries (PEW, EIW, AIW, PI) and dual-coat concentricity that UL, CQC and EN 60317 require. The table below benchmarks our standard 4.00 mm PEW 155 wire against a leading German catalogue:

Property (4.00 mm, PEW 155)	IEC 60317-0-1 Limit	Luoyang Xinzhaohe	Typical EU Stockist
Breakdown voltage, kV	≥ 5.0	7.8	6.2
Elongation, %	≥ 20	28	23
Concentricity, %	≥ 70	86	78
Price, FOB Shanghai, $/kg	—	4.35	5.90

All values are 3-σ production statistics taken on our inline Spark-Laser-O-Meter and Zwick tensile line; certificates ship with every reel.

Customisation Without MOQ Penalty

Need 2.24 mm AIW 220 wire on 500 mm spools for VPI traction transformers? Or 19-strand 0.71 mm PEW 130 bundle with 0.05 mm nomex served for hermetic motors? Our engineering cell will re-die, re-anneal and re-enamel within 15 days—no surcharge if the alloy is on our 1350/8030/8176 menu. We maintain 650 t of rod inventory and 42 enamel recipes on active circulation, so specials run on the same extrusion–enameling tower as catalogue sizes, guaranteeing identical thermal class and cut-through.

Technical Support That Speaks Your Language

From skin-effect modelling at 400 Hz to eddy-current loss in foil windings, our metallurgists and magnetics engineers provide design data you can drop straight into ANSYS or Maxwell. Ask for:
Resistance-vs-temperature tables up to 250 °C
Partial-discharge inception curves for grades 1–3 insulation build
Form-wound coil elongation allowances for 220 °C class PI

Contact for Datasheet or Same-Day Quote

Email cathy@transformerstrip.com with OD range, insulation class and annual volume; we return a detailed datasheet, PPAP Level-3 pack and firm FOB price within 24 h. Samples (≤5 kg) ship by DHL in 48 h so you can qualify our wire on your bench-top before the next production slot opens.

Stop paying Western overhead for Asian metal—source it where it is precision-made.

---
