Market Insight: Aluminium Enamel Wire

Market Analysis: Aluminum Enamel Wire Demand in Transformer Manufacturing

The global transformer industry exhibits a significant and growing industrial demand for aluminum enamel wire, driven primarily by the relentless pursuit of cost optimization and weight reduction without compromising core electrical performance. Aluminum offers a compelling economic advantage over copper due to its lower base material cost and approximately 60% lower density, directly translating to lighter transformer units. This weight reduction is critical for distribution transformers deployed in urban infrastructure, renewable energy integration points, and mobile applications where transportation and installation logistics are major cost factors. Consequently, aluminum enamel wire has become the dominant material choice for low and medium voltage distribution transformers worldwide, representing a substantial and stable segment within the winding wire market. This shift is not merely economic; stringent energy efficiency regulations globally necessitate optimized designs where aluminum’s properties, when correctly engineered, support compliance with modern efficiency standards like DOE 2016 and IEC 60076-30.

However, the adoption of aluminum introduces specific technical challenges demanding rigorous quality control, making material and process consistency paramount. Aluminum possesses higher electrical resistivity than copper (approximately 61% IACS versus 100% IACS for annealed copper), necessitating a larger cross-sectional area to achieve equivalent current carrying capacity. This inherently increases the mechanical stresses during winding and elevates the criticality of the wire’s ductility and surface integrity. Crucially, aluminum readily forms a non-conductive oxide layer, which, if not meticulously managed during conductor manufacturing, stranding, and especially termination/jointing processes, leads to increased contact resistance, localized heating, and potential joint failure. Furthermore, aluminum’s greater coefficient of thermal expansion compared to common insulation materials and core steel imposes higher cyclic mechanical stress on the enamel coating during transformer load cycling.

The consequences of substandard aluminum enamel wire are severe and directly impact transformer reliability and lifespan. Inadequate enamel adhesion or dielectric strength, often stemming from inconsistent curing processes or contamination, results in insulation breakdown under electrical stress or thermal cycling. This manifests as interturn shorts, phase-to-phase faults, or ground faults, causing catastrophic transformer failure. Poor conductor metallurgical properties, such as inconsistent annealing leading to variable hardness or surface defects like scratches or pits, create weak points prone to fracture during winding or under electromagnetic forces during operation. Compromised oxide layer management at joints accelerates thermal runaway at connection points. These failure modes lead to unplanned outages, costly field replacements, warranty claims, and significant damage to the transformer manufacturer’s reputation. The total cost of ownership for a transformer is heavily influenced by its operational reliability; therefore, the initial procurement cost of the winding wire must be evaluated against the far greater financial and reputational risks associated with premature failure.

For transformer manufacturers, selecting an aluminum enamel wire supplier with demonstrable metallurgical expertise and stringent process control is not optional—it is a fundamental requirement for product integrity. Consistent wire diameter tolerance, precise elongation control, flawless surface finish, and guaranteed enamel properties (adhesion, dielectric strength, thermal class rating per IEC 60317) are non-negotiable technical parameters. Luoyang Xinzhaohe Aluminum Co., Ltd leverages over two decades of specialized experience in aluminum conductor production to deliver this critical consistency. Our integrated supply chain, from high-purity aluminum rod sourcing through precision drawing, annealing, and enamel application under tightly controlled environments, ensures the metallurgical homogeneity and insulation integrity essential for reliable, long-life transformer operation in demanding global grids. Quality in aluminum enamel wire is the bedrock of transformer performance and durability.

---

Technical Specs: Aluminium Enamel Wire

Technical Specifications for Aluminium Enamel Wire

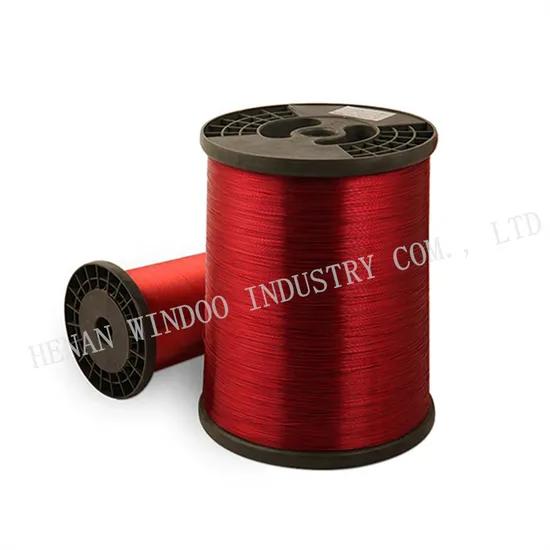

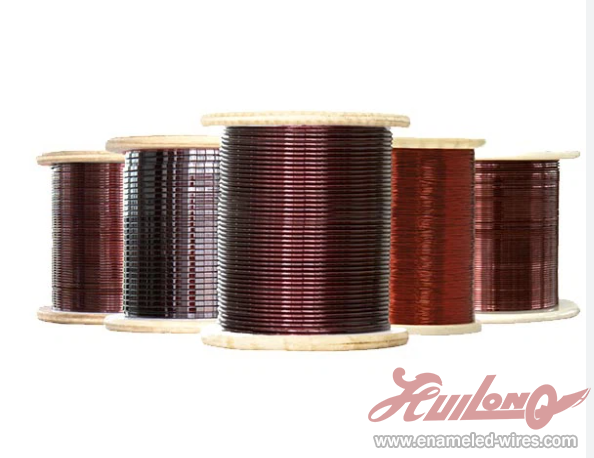

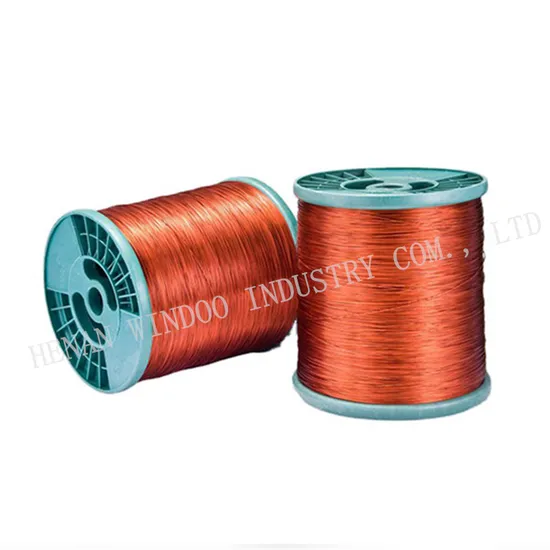

Luoyang Xinzhaohe Aluminum Co., Ltd. manufactures high-performance aluminium enamel wire engineered for reliable operation in demanding electrical and thermal environments. As a critical component in motors, transformers, and inductors, the wire must exhibit consistent electrical insulation integrity, mechanical ductility, and thermal stability. The following technical parameters define the performance benchmarks for our aluminium enamel wire products, ensuring compliance with international standards such as IEC 60317 and GB/T 23312.

A primary performance indicator for enamel-coated conductors is the insulation breakdown voltage, which reflects the dielectric strength of the polymer coating under standardized test conditions. Our aluminium enamel wires are designed to withstand a minimum breakdown voltage of 2,500 V AC at room temperature, with values reaching up to 4,000 V AC depending on wire diameter and insulation thickness. This high dielectric strength ensures robust electrical isolation between turns in winding applications, minimizing the risk of short circuits and enhancing long-term reliability. The breakdown voltage is measured using a step-voltage method in accordance with IEC 60173, with test samples subjected to controlled tension and environmental conditions.

Elongation, or tensile ductility, is another essential mechanical property, particularly during coil winding and lead forming processes. Our aluminium enamel wire demonstrates minimum elongation values ranging from 15% to 25%, depending on the temper condition and conductor diameter. This level of elongation ensures the wire can endure significant plastic deformation without cracking the insulation or fracturing the aluminium core. The elongation is determined via tensile testing per GB/T 4909.3, with specimens tested under controlled strain rates to ensure repeatability and accuracy.

Thermal performance is categorized by the Thermal Class rating, which defines the maximum continuous operating temperature the insulation system can withstand without significant degradation. Our product line supports thermal classes from 130°C to 220°C, accommodating a wide range of industrial and automotive applications. Higher thermal classes utilize advanced polymer coatings such as polyamide-imide (PAI) or polyester-imide (PEI), offering excellent thermal oxidation resistance and mechanical retention at elevated temperatures. Each thermal class is validated through thermal endurance testing per IEC 60172, where insulation life is plotted against temperature to determine the extrapolated service life at rated conditions.

The following table summarizes the key technical parameters for standard grades of aluminium enamel wire offered by Luoyang Xinzhaohe Aluminum Co., Ltd.

Parameter	Test Method	Value Range
Conductor Material	GB/T 8170	EC Grade Aluminium (99.5% min)
Insulation Breakdown Voltage	IEC 60173	2,500 – 4,000 V AC (rms)
Elongation	GB/T 4909.3	15% – 25%
Thermal Class	IEC 60172	130°C, 155°C, 180°C, 200°C, 220°C
Temperature Index (TI)	IEC 60172	130 to 220 (based on class)
Adhesion (Needle Test)	GB/T 23312.4	Pass (no flaking or peeling)
Resistance to Soldering Heat	GB/T 23312.5	Pass (no blistering at 300°C)

These specifications reflect our commitment to delivering aluminium enamel wire with consistent quality, engineered for superior performance in modern electromagnetic devices.

---

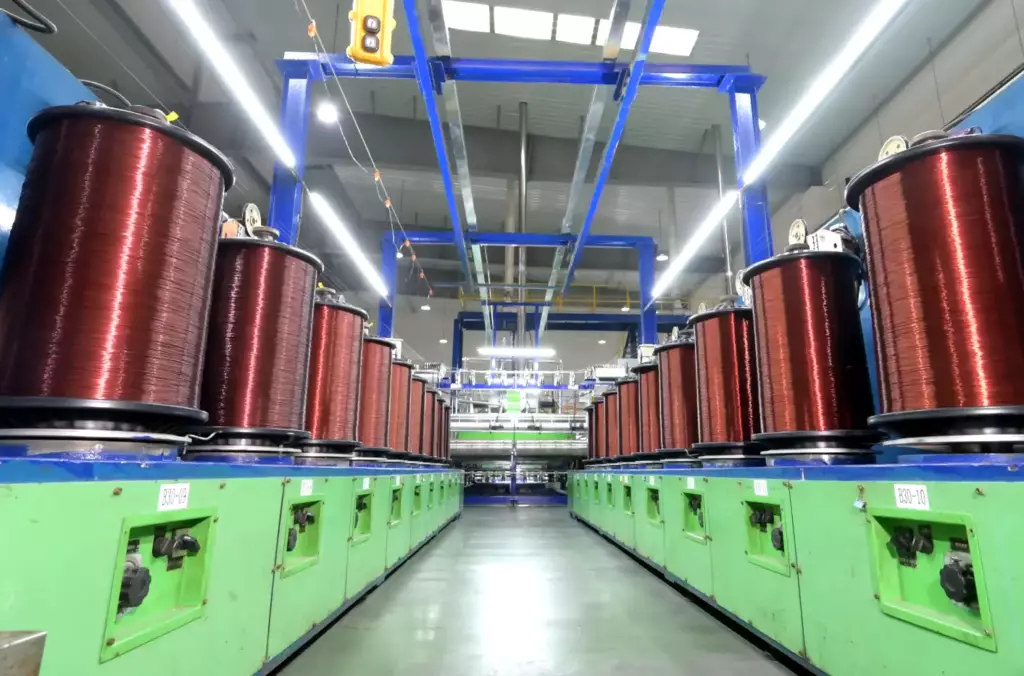

Factory Tour: Manufacturing

Aluminum Enamel Wire Manufacturing Process: Precision Engineering for Critical Applications

Luoyang Xinzhaohe Aluminum Co., Ltd employs a rigorously controlled, integrated production flow for aluminum enamel wire, ensuring optimal electrical, mechanical, and thermal performance for demanding winding applications. The process commences with high-purity aluminum rod (99.99% min) sourced under stringent material certification protocols. Rod Drawing utilizes multi-die continuous block machines with precision tungsten carbide dies, progressively reducing diameter under controlled tension and lubrication. This cold working achieves the target wire gauge while maintaining metallurgical integrity; critical parameters include reduction ratio per pass (typically 10-15%), drawing speed (5-15 m/s), and surface finish monitoring. In-process QC verifies diameter tolerance (±0.002 mm for AWG 20-30), ovality (<0.003 mm), and surface defect detection via laser micrometers and automated optical inspection, rejecting any wire exhibiting scratches, pits, or inconsistent dimensional control.

Subsequent Annealing occurs in a continuous inert atmosphere furnace (N₂/H₂ mix, <10 ppm O₂) to eliminate residual stresses and achieve full recrystallization. Temperature profiles (typically 350-450°C) and residence time are precisely calibrated to the specific alloy and gauge, optimizing electrical conductivity (≥61% IACS) while preventing grain coarsening or surface oxidation. Post-annealing, wire undergoes immediate quenching in deionized water followed by thorough drying. QC at this stage mandates 100% conductivity validation via eddy current testing against IEC 60028 standards and random destructive sampling for microstructure analysis to confirm uniform, fine-grained structure.

The Enameling stage applies multiple polymer coatings (typically polyester-imide or polyamide-imide base) via precision capillary or die coating systems. Solvent-based or UV-curable resins are applied in 2-4 layers with strict control over viscosity (20-50 cP), oven temperature gradients (250-400°C), and line speed (8-20 m/min) to ensure uniform film thickness, void-free insulation, and complete cure. Critical QC checks include dry film thickness measurement (micrometer or optical interferometry per IEC 60851-5), adhesion testing (mandrel wrap per IEC 60851-3), and thermal class verification via thermal endurance testing (20,000-hour extrapolation per NEMA MW 1000).

Final Inline Testing subjects 100% of production to high-voltage breakdown verification (minimum 2500 V AC, 60 Hz), continuity checks, and diameter consistency scans. Automated systems flag deviations in real-time for immediate correction. Comprehensive batch validation includes elongation (≥1.5%), springiness (≤0.2 mm residual bend), and solderability tests. All process parameters and QC results are digitally logged, enabling full traceability from rod lot to finished coil per ISO 9001 requirements. This integrated approach guarantees wire meeting IEC 60317 specifications for reliability in motors, transformers, and inductors.

Critical Inline Quality Control Parameters

Parameter	Test Method	Standard Reference	Acceptance Criteria
Conductor Diameter	Laser Micrometer	IEC 60851-2	±0.002 mm (AWG 20-30)
Breakdown Voltage	High-Potential Tester	IEC 60851-5	≥2500 V AC (60 Hz)
Insulation Thickness	Optical Interferometry	IEC 60851-5	±5% nominal thickness
Adhesion	Mandrel Wrap Test	IEC 60851-3	No flaking/cracking
Electrical Conductivity	Eddy Current	IEC 60028	≥61% IACS

---

Packaging & Logistics

Export Packaging for Aluminium Enamel Wire – Luoyang Xinzhaohe Aluminum Co., Ltd

At Luoyang Xinzhaohe Aluminum Co., Ltd, with over two decades of specialized manufacturing experience in winding wire products, we recognize that reliable export packaging is integral to preserving the integrity of aluminium enamel wire during international transit. Our packaging protocols are engineered to meet the rigorous demands of global logistics, particularly for sea freight, which remains the primary mode of transport for bulk industrial shipments.

All export-grade aluminium enamel wire is wound onto high-strength cardboard or composite spools, which are then secured onto robust wooden pallets constructed from kiln-dried, ISPM-15 certified hardwood. These pallets are designed to withstand stacking loads and dynamic stresses encountered during ocean transport, including vessel motion, humidity fluctuations, and prolonged storage. The use of ISPM-15 compliant wood ensures that our packaging meets international phytosanitary standards, eliminating the risk of pest infestation and facilitating customs clearance across global markets.

Each loaded pallet undergoes a multi-layer protective wrapping process. The wire spools are first individually sealed with a high-density polyethylene moisture-proof film to create a vapor barrier that prevents condensation and ingress of ambient humidity. This is critical, as exposure to moisture can compromise the dielectric properties of the enamel insulation and initiate surface oxidation of the aluminium conductor, both of which degrade performance in end-use applications such as motors, transformers, and inductors.

Following initial sealing, the entire palletized load is stretch-wrapped with industrial-grade, UV-resistant polyolefin film to ensure mechanical stability and resistance to abrasion during handling. The outer wrap is applied under controlled tension to avoid displacement of spools while maintaining breathability where necessary to prevent trapped moisture accumulation. Additionally, all packaged units are labeled with weather-resistant, tamper-evident identification tags that include product specifications, batch numbers, net weight, and handling instructions compliant with IMDG and IATA cargo regulations.

Our packaging design has been validated through accelerated climate chamber testing and real-world shipping trials across major trade routes, including trans-Pacific and trans-Atlantic containerized services. These evaluations confirm that the combination of wooden pallet support and multi-layer film encapsulation effectively mitigates risks associated with salt-laden air, temperature cycling, and condensation in marine environments.

For clients requiring enhanced protection, we offer optional vacuum-sealing and desiccant integration within the primary film layer, particularly recommended for extended voyages or destinations with high ambient humidity. All packaging configurations are scalable to accommodate standard 20-foot and 40-foot dry or refrigerated containers, optimizing space utilization and minimizing freight costs.

Luoyang Xinzhaohe Aluminum Co., Ltd maintains strict in-process audits of packaging operations, ensuring consistency and compliance with ISO 9001 quality management standards. This systematic approach guarantees that every shipment of aluminium enamel wire arrives at its destination in optimal condition, ready for immediate integration into downstream production processes.

---

Sourcing from Luoyang Xinzhaohe

Integrated Manufacturing Excellence for Aluminum Enamel Wire

Luoyang Xinzhaohe Aluminum Co., Ltd leverages over two decades of specialized focus in aluminum winding wire production to deliver uncompromising quality for transformer, inductor, and motor manufacturers. Our vertically integrated facility in Henan Province operates under stringent ISO 9001 and IATF 16949 frameworks, ensuring end-to-end control from raw material sourcing to finished coil. We maintain direct partnerships with primary aluminum smelters, guaranteeing consistent 99.99% purity AA-1350 and AA-8079 alloy ingots that meet ASTM B354 specifications. This foundational material integrity directly translates to superior electrical conductivity (≥61% IACS) and mechanical stability in final wire products.

Our production ecosystem integrates advanced German and Japanese extrusion lines with precision enamel coating systems. Continuous annealing furnaces operate under inert atmospheres to eliminate oxidation, achieving tensile strength tolerance of ±3% across diameters from 0.08mm to 5.0mm. Enamel application utilizes solvent-based polyester-imide and polyamide-imide resins applied via multi-stage dipping, yielding dielectric strength exceeding 5000VAC at 100µm build. Every production lot undergoes 100%在线 testing for elongation (15–22%), springback angle (≤15°), and thermal shock resistance per IEC 60317 standards. Helium leak detection systems monitor enamel continuity to prevent micro-porosity defects that compromise insulation performance in high-voltage applications.

Supply chain resilience is engineered through dual-sourced resin suppliers and strategic raw material inventory buffers covering 45+ days of production. This mitigates volatility in global polymer markets while ensuring on-time delivery rates above 98.5%. Our logistics hub in Luoyang connects directly to the Eurasian rail corridor and Qingdao Port, enabling cost-efficient containerized shipments to global destinations with lead times averaging 25–30 days ex-factory.

Technical collaboration defines our partnership model. Our metallurgical engineering team provides application-specific support including:
Wire suitability analysis for high-temperature Class 200+ insulation systems
Customized temper profiles for automated winding machinery compatibility
Failure mode analysis for field returns with root-cause corrective actions

Production Capabilities Summary
| Parameter | Specification | Testing Standard |
|———–|—————|——————|
| Diameter Range | 0.08–5.00 mm | ASTM B354 |
| Enamel Types | Polyester-imide, Polyamide-imide | IEC 60317-40/42 |
| Annual Capacity | 12,000 metric tons | Internal QC-007 |
| Min. Bend Radius | 2x conductor diameter | UL 1446 |
| Thermal Class | 180°C to 240°C | NEMA MW 1000 |

Partnering with Luoyang Xinzhaohe eliminates supply chain fragmentation while providing direct access to process metallurgy expertise. We optimize total cost of ownership through reduced scrap rates in your winding operations and guaranteed material traceability from ingot to spool. Request a technical datasheet or schedule a virtual factory audit to validate our capabilities against your sourcing requirements. Contact Cathy Zhang, Technical Sales Manager, at cathy@transformerstrip.com for immediate consultation on your aluminum enamel wire specifications.

---
