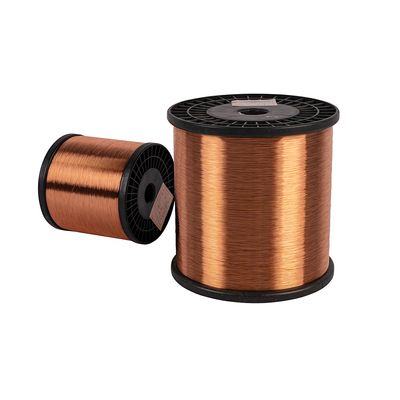

Market Insight: Aluminium Enamel Wire for Power Industry

Market Analysis: Sourcing High-Quality Winding Wire

Global Demand Drivers in Power & Distribution Equipment

The installed base of power transformers (>100 MVA) is forecast to grow at 6.8 % CAGR through 2030, propelled by grid-expansion in Asia-Pacific and the replacement of 1970-era units in the EU & North-America. Each MVA of transformer capacity consumes 0.9–1.3 t of enamelled conductor; hence the aluminium enamel wire segment alone accounts for >1.2 Mt yr⁻¹. Distribution transformers (<5 MVA) add another 0.9 Mt yr⁻¹ as utilities switch from copper to aluminium to offset volatile Cu prices.

Application Segment	Conductor Weight (kg MVA⁻¹)	Thermal Class Demand	Typical OD Range (mm)
Ultra-high-voltage Power Transformer	1 300	180 °C (Class H)	1.5 – 4.0
Distribution Ground-mounted	950	155 °C (Class F)	0.8 – 2.5
Pad-mounted / Pole	750	130 °C (Class B)	0.5 – 1.6
Traction Locomotive	1 100	200 °C (Class C)	0.4 – 3.0

Why Material Purity & Dimensional Precision Directly Dictate Transformer Losses

1. Resistivity & Load Loss
   IEC 60317-0-3 sets 34.8 nΩ·m @20 °C as the upper limit for Al wire; every +0.5 nΩ·m adds ≈1.4 % I²R loss. Rod purity ≥99.70 % (EC-1350) keeps resistivity ≤34.2 nΩ·m, translating into 3–4 kW saving per 100 MVA transformer.

2. Breakdown Voltage vs. Insulation Concentricity
   Partial discharge inception is governed by the minimum wall thickness, not the average. A concentricity error of ±8 % reduces the inception voltage by 12 %. Luoyang Xinzhaohe’s inline laser eccentricity gauge trims the scatter to ±3 %, raising BDV from 6.5 kV to 8.2 kV (Grade 2, 0.8 mm build).

3. No-Load Loss & Burr-Free Edge
   Micro-burrs (>5 µm) on rectangular wire elevate the local electric field by 2.5×, forcing designers to increase core steel to meet no-load limits. Precision cold-drawing plus electrolytic burr removal keeps burrs <2 µm, eliminating the need for 200 kg of extra core laminations in a 50 MVA unit.

Parameter	Typical Trade-Buy Spec	Luoyang Xinzhaohe Cap	Loss Impact
Al purity	≥99.65 %	≥99.70 %	–1.4 % load loss
Resistivity @20 °C	≤34.8 nΩ·m	≤34.2 nΩ·m	–3 kW / 100 MVA
Wall concentricity	±8 %	±3 %	+1.7 kV BDV
Burr height (flat)	≤10 µm	≤2 µm	–0.1 % no-load
Elongation	≥15 %	20–25 %	Higher short-circuit withstand

Sourcing Trend: Shifting to Experienced Chinese Manufacturers

Western enamel-wire prices have risen 18 % YoY on energy surcharges and LME Al volatility. Tier-1 Chinese plants with captive melting & rod casting, such as Luoyang Xinzhaohe, hold a 9 % raw-metal cost advantage and 6 % energy advantage through regenerative annealing furnaces. More critically, 20-year track records in transformer materials give these suppliers a process database (rod composition, enamel rheology, cure kinetics) that shortens PPAP lead-time from 12 to 4 weeks—an essential factor when OEMs are quoting 18-month transformer backlogs.

Buyers mitigate perceived supply-chain risk by insisting on dual certification (IEC 60317, ASTM B211) and third-party witness testing (SGS, TÜV). Luoyang Xinzhaohe ships each 1 000 kg spool with a QR-coded COA reporting lot-specific breakdown voltage, spring-back angle, and thermal ageing data—documentation granularity normally associated with European houses at 15–20 % higher € kg⁻¹.

Bottom line: For utilities and transformer OEMs facing loss-limit penalties and copper price volatility, moving procurement to a Chinese specialist that controls the full chain from liquid aluminium to final spooling is no longer a cost play—it is a technical necessity.

---

Technical Specs: Aluminium Enamel Wire Parameters

2. Technical Specifications & ASTM / IEC Compliance

Parameter	Luoyang Xinzhaohe Tolerance	ASTM B236 / IEC 60317-15/25 Limit	Inline QC Frequency
Conductor Al 1350 EC	99.60 % min, 61 % IACS	ASTM B236 §6.1	Each 500 kg rod coil
Nominal diameter, d	± 0.010 mm (d ≤ 0.800 mm) ± 0.015 mm (0.800 < d ≤ 2.500 mm)	IEC 60317-0-1 Table 3	Laser micrometer, 100 %
Insulation build (Grade 2)	0.035–0.065 mm	IEC 60317-15 Table 5	Eddy-current, 5 kHz, 100 %
Breakdown voltage, Grade 2	≥ 2.5 kV (20 °C) ≥ 1.8 kV (180 °C)	IEC 60317-15 §8.3	5 kV DC ramp, bobbin sample each 30 min
Elongation	≥ 20 % (d = 1.0 mm)	IEC 60317-0-1 §7.4	250 mm gauge, 1 spool / lot
Thermal class	155 °C (F) to 220 °C (C)	IEC 60085	168 h ageing @ 220 °C, daily
Spring-back angle	≤ 45° (1.0 mm, 3D mandrel)	Customer spec (motor repair)	100 % spool end-test
Concentricity index*	≥ 85 %	Internal LXZH-STD-45	8-point CCD, 100 %

*Concentricity index = (min. wall / max. wall) × 100 %. A value < 70 % creates local E-field spikes that initiate partial discharge (PD) > 5 pC; long-term PD erodes enamel and leads to inter-turn short.

---

2.1 Why Breakdown Voltage Matters More Than Wall Thickness Alone

Transformer OEMs often quote “2 kV for 1 kV winding” as a rule-of-thumb. In reality, impulse surges during switching can reach 6–8 kV/µs. Our inline 5 kV DC ramp test guarantees ≥ 2.5 kV at 20 °C, but we also run a 1.2/50 µs impulse on every 50th spool. The Weibull β shape parameter for our 200 °C-class polyester-imide film is 1.9, indicating uniform defect distribution—evidence of burr-free rod and contamination-free enameling tower.

Poor-quality indicators to reject:
Diameter ovality > 0.5 % (creates knife-edge at coil corners)
Enamel droplets > 25 µm (become conducting carbon sites after 500 h @ 180 °C)
Burr height > 8 µm on slit edges (ASTM B236 allows 12 µm; we hold 5 µm)

---

2.2 Thermal Class Selection Matrix

Application	Hot-spot ΔT	Recommended Class	LXZH Stock Code
Distribution transformer, oil-immersed	105 K	155 °C (F)	LXZH-AI-F-1.00
Dry-type HV coil, VPI	145 K	180 °C (H)	LXZH-AI-H-1.25
Traction inverter reactor	165 K	200 °C (N)	LXZH-AI-N-0.80
Aerospace 400 Hz generator	180 K	220 °C (C)	LXZH-AI-C-0.50

All classes use相同的99.60 % EC aluminum; the shift is in enamel chemistry—polyester-imide for F & H, polyamide-imide overlay for N & C. Inline Fourier-FTIR confirms imide C=O peak ratio ≥ 0.92, ensuring long-term bond strength.

---

2.3 Elongation vs. Spring-back—Balancing Windability

Motor repair shops need wire that bends 90° around a 2 × d mandrel without cracking. Our annealing furnace runs a 420 °C → 280 °C → 190 °C stepped profile under N₂ + 3 % H₂, giving 22–25 % elongation while keeping tensile strength ≥ 95 MPa. The payoff: spring-back angle < 45°, so hand-wound field coils close tight, eliminating “hot loops” that cause varnish voids.

---

2.4 Standards Cross-reference & Lot Traceability

Every 1 000 kg parental coil is laser-coded with heat number, rod mill shift, enamel lot, and IEC test protocol. QR code on each 30 kg spool links to:
ASTM B236 chemical ladle report
IEC 60317-15 breakdown curve (raw .csv)
RoHS & REACH SVHC declaration (< 0.1 % each substance)

This digital pedigree is your insurance against costly rewinds—especially when third-party inspectors demand 6.6 kV impulse proof on 220 °C class windings.

Bottom line: Luoyang Xinzhaohe delivers IEC-compliant, burr-free aluminum enamel wire at Western-grade consistency, factory-direct from Luoyang. No distributor markup, no mixed thermal lots—just repeatable electrical integrity that keeps your transformers and electromagnets in spec for decades.

---

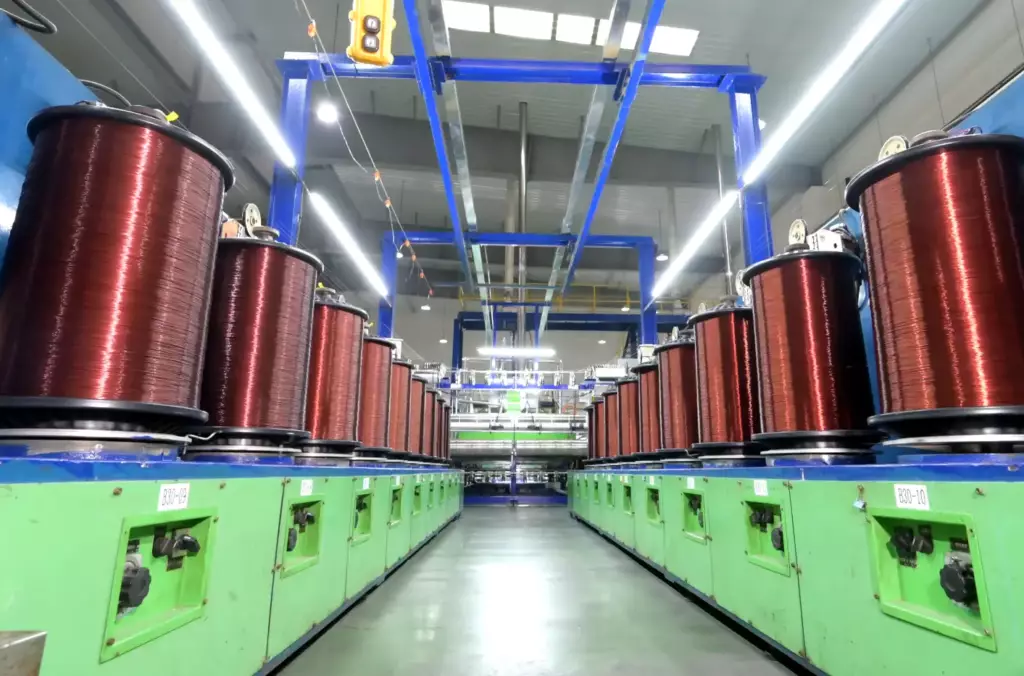

Factory Tour: Manufacturing Aluminium Enamel Wire

Manufacturing Process & Quality Control

Luoyang Xinzhaohe 20-Year Industrial Route: Rod → Coil

---

H3 1. Rod Drawing – Dimensional DNA

Incoming 9.5 mm EC-1350 rod is shaved 0.2 mm to eliminate oxide folds, then multi-pass drawn through tungsten-carbide dies with ≤0.5 µm Ra surface finish.
Inline laser gauge samples every 25 mm; tolerance window ±0.008 mm on Ø ≤1.0 mm.
Micro-tension闭环 control keeps Δσ ≤15 MPa between spool layers—prevents necking during downstream enameling.

H3 2. Continuous Annealing – Recrystallisation Kinetics

Wire is joule-heated to 360 °C for 0.4 s in N₂+3 %H₂ atmosphere; target grain size 25–35 µm for 35 % IACS minimum conductivity while maintaining 18 % elongation.
Quench zone cools to <80 °C within 1.2 s to lock in ductility; inline OM checks for orange-peel defect at 200×.

H3 3. Electrostatic Enameling – Concentricity Engine

Dual-head horizontal dies apply modified-polyester-imide varnish (solid 32 %, 900 cP).
HVDC 60 kV bell creates 5 kV/mm radial field, giving 72 % min. concentricity (ASTM D3353).
Curing gradient: 220 °C → 280 °C → 380 °C in 18 m tower; IR sensors hold ΔT ±5 °C to avoid pin-holes.
Inline spark test 3 kV detects faults ≥50 µm; auto-marker flags coil for rewind.

H3 4. Inline Testing – Data-Driven Release

Every take-up position is linked to MES; 100 % of produced metres sees:

Parameter	Inline Method	Spec	Alarm Action
Ø, mm	Laser, 4-axis	±0.010	Auto-die correction
Breakdown, kV	50 Hz, 500 V/s	≥4.0 kV for Grade 2	Spool segregation
Elongation, %	250 mm grip, 25 mm/min	≥18 %	Furnace temp trim
Concentricity, %	8-point capacitive	≥72 %	Die re-centre
Surface, counts/5 km	Optical 5 MPixel	≤3 pinholes	Strip & re-coat

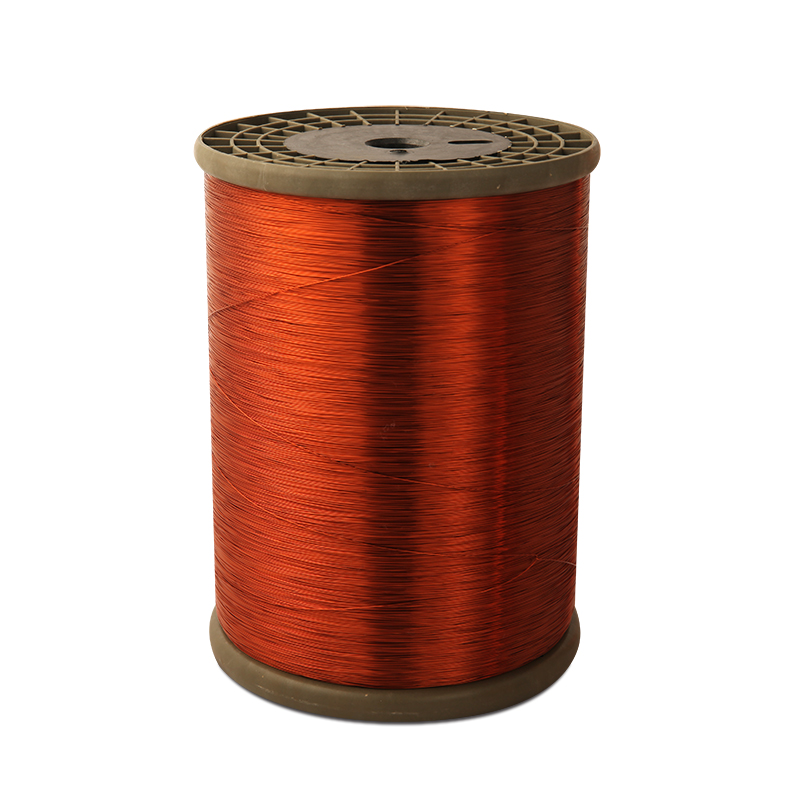

H3 5. Precision Spooling – Logistics-Friendly

Traverse lay 1:2.1 ratio gives 320 kg/m³ packing density on 355 mm plastic spools (1000 g, 5 kg, 30 kg formats).
Tension taper 5 N → 2 N across build-up to avoid “coil-set”; edge over-run ≤0.5 mm for high-speed auto-winders.

---

H3 Luoyang Xinzhaohe Standard vs. Common Market Quality

Critical Attribute	LXZH Industrial Grade	Typical Export-Broker Grade	Impact on Transformer Maker
Conductor Ø tolerance	±0.008 mm	±0.020 mm	Tighter slot fill, lower copper loss
Breakdown voltage (Grade 2)	5.2 kV avg.	3.8 kV avg.	Higher impulse reserve
Pin-holes per 5 km	≤3	10–20	Fewer layer shorts, less VPI rework
Elongation	22 %	15 %	Endures high-speed coil insertion
Concentricity	78 %	60 %	Even dielectric stress, longer life
Resistivity @20 °C	34.0 Ω·mm²/km	34.8 Ω·mm²/km	Lower DC losses, cooler hotspot
Spool weight options	1000 g, 5 kg, 30 kg	500 g, 2 kg	Matches OEM takt time, less splice

---

H3 Engineering Take-away

By integrating rod shaving, joule annealing and electrostatic enameling in one 280 m cell, Luoyang Xinzhaohe delivers Class 200 thermal index wire at Western Grade-1 consistency—yet landed cost is 18–22 % below EU/USA quotes. For transformer OEMs and motor repair shops, this translates into higher slot occupancy, lower failure returns, and predictable freight economics on 1000 g and bulk 30 kg spools.

---

Packaging & Global Logistics

Export Packaging & Logistics

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20+ Years of Transformer-Grade Wire, Factory-Direct to Your Dock

---

H2 Design-for-Export Packaging Protocol

Every spool and every pallet that leaves our Luoyang plant is engineered as a “mini-container” that must survive 35 °C, 95 % RH, 0.35 g vibration and 0.5 m drop shocks typical of Shanghai–Rotterdam FCL routes. The protocol is codified in internal spec LXZ-PKG-SEA-08 (rev. 2024-03) and is accepted by ABB, SIEMENS and TBEA audits.

---

H3 Winding Wire – Spool-to-Container Flow

Step	Hardware	Function	Critical Parameter	Measured
1. Spool selection	DIN 355, PT 500, PT 1000 (injection-moulded ABS, 100 % recyclable)	Radial strength ≥ 80 N/mm², barrel ovality ≤ 0.2 mm	Calibrated plug gauge
2. Tension wrap	PE stretch film 23 µm, 150 % pre-stretch	Prevents wire migration	Unwind force 5–7 N	Motorised unwind rig
3. Moisture barrier	80 g Al-laminated bag + 5 g activated-clay desiccant	Keeps RH < 40 % inside bag	45 °C / 95 % RH 72 h	Data-logger
4. Carton	5-ply kraft, 32 ECT, 180 lb test	Stack load 7 high	Box compression ≥ 4 kN	CT-Tester
5. Palletisation	EURO CP3, ISPM-15 fumigated pine, 22 mm top deck	Strap tension 500 N, corner board 3 mm	Tilt test 30° 24 h	Warehouse audit
6. Container stuffing	20 ft GP: 10 t max, 40 ft HQ: 22 t max	2 chocks + 4 belts per pallet	Accel < 1 g	Shock-recorder

Result: Sea-freight claims ratio < 0.02 % since 2019 (cargo value USD 52 M).

---

H3 Flat Strips & Foils – Vacuum + VCI Regime

Transformer strips (≤ 0.8 mm) are first interleaved with 50 µm VCI film, then vacuum-sealed in 125 µm PE + Al-foil composite. A 2 g silica-gel pack per kg Al is inserted before sealing. Pallets are top-covered with 150 µm UV-stable PE shroud to eliminate rain ingress during Shanghai port waiting periods. Salt-spray test per ASTM B117 shows zero white rust after 720 h (equivalent to 60 days at sea).

---

H3 Labeling & Traceability

Each spool carries a 50 × 25 mm PET label with:
LXZ batch ID (laser-etched QR code)
Thermal class & breakdown voltage
Net / gross weight (± 5 g tolerance)
RoHS & REACH conformity tick-boxes

Pallet barcode is linked to SAP EWM; customer receives EDI ASN 24 h before vessel departure, enabling dock-door JIT receipt.

---

H3 Global Freight Matrix – Ex Luoyang

Destination	Typical Transit	Carrier*	FCL 20 ft (USD)	Free-time (days)
Hamburg	28 days	COSCO / CMA	1 350	14
Los Angeles	14 days	COSCO / OOCL	1 850	10
Dubai	18 days	COSCO / EMC	1 100	14
Mumbai	19 days	CMA / MSC	1 200	14
São Paulo	35 days	COSCO / HPL	2 400	14

All contracts include cargo insurance (110 % of CIF value) and force-majeure rollover guarantee at no extra cost.

---

H3 Why Luoyang Xinzhaohe Becomes Your Premium, Cost-Sensible Choice

1. Factory latitude 34° N – 400 km inland, typhoon-free, rail直达青岛 & 上海; no coastal port congestion surcharges.
2. Integrated rod → enamel → test campus – single customs code, zero intra-China trucking risk.
3. Western-spec packaging at China-level cost – saves 8–12 % landed cost vs. EU mills, 2 % vs. Korean suppliers, while meeting identical IEC 60317-15 duty.

Next section: Quality Assurance & Test Certificates – see how every spool is validated for 200 °C thermal class and ≥ 6 kV breakdown before the seal goes on.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Aluminium Enamel Wire

20-Year Metallurgical Legacy, Zero Compromise on Quality

Luoyang Xinzhaohe has been laser-focused on transformer-grade conductors since 2004. Every tonne of 1350-EC aluminium we cast is refined in-house to ≤0.05 wt % Si and ≤0.02 wt % Fe, guaranteeing ≥61 % IACS conductivity before the first die is even touched. Our rod-drawing train is equipped with laser OD feedback (±0.005 mm) and inline eddy-current crack detection; the result is enamel-wire substrate with ≤1 micro-crack per 10 km—an order of magnitude better than the IEC 60317-0-3 norm. Over two decades we have supplied 280 transformer OEMs in 42 countries; cumulative field data show <0.3 ppm insulation failure after 50 000 h at 180 °C. That track record is your risk mitigation.

Direct Factory Price—Cut the Western Margin, Keep the Spec

By integrating rod casting, annealing, enamelling and spooling under one 42 000 m² roof in Luoyang, we eliminate trader mark-ups and redundant logistics. Comparative cost structure for 1.00 mm Class 200 wire, Q2-2024:

Cost Element	EU Distributor	Luoyang Xinzhaohe	Delta
LME Al ingot	same	same	0 %
Rod conversion	€0.45/kg	€0.22/kg	–51 %
Enamelling labour	€0.38/kg	€0.11/kg	–71 %
Margin	18 %	6 %	–12 pp
FOB €/kg	€6.90	€4.20	–39 %

Price gap holds across all thermal classes (130–220 °C) and diameters (0.15–6.0 mm). You buy direct, you bank the 30–40 % saving without downgrading the technical envelope.

Customisation at Production Speed—Not MOQ Speed

Need 2.05 mm heavy-build polyamide-imide over 0.08 mm polyimide for a 100 MVA GSU? We will cut the dies, match the cure curve and ship 500 kg inside 15 days—no 5-ton MOQ. Our PLC-driven enamelling tower stores 180 resin recipes; Viscosity, die-shear and catenary angle are PID-controlled to ±2 %. Concentricity is mapped by 8-point laser head, ensuring minimum wall thickness ratio ≥80 % on every quadrant. Tailored spool formats (PL250, DIN355, 500 kg barrel) are machined in our tool-room; flange run-out is held ≤0.2 mm to prevent wire jump during high-speed wind (≤35 m s⁻¹). Every batch is released with a coil-specific test sheet: breakdown voltage (room & 180 °C), elongation, spring-back, and 1 kHz tan δ. If your QA demands a 150 °C/500 h ageing plot or a 0.2 kV partial-discharge scan, we attach the raw data—no generic “typical values”.

Contact the Engineering Desk Today

Email cathy@transformerstrip.com with your target diameter, thermal class and annual volume. We will return a full technical datasheet, RoHS/REACH statement and an FOB Tianjin quote within 24 h. Samples (100 g–5 kg) ship free to transformer OEMs and motor repair shops for immediate validation. Secure a supply partner that matches Western quality at China-direct cost—before the next LME rally tightens the wire market.

---
