Market Insight: 42 Gauge Magnet Wire in Power Industry

Market Analysis: Sourcing High-Quality Winding Wire

Industrial Demand Drivers for 42 Gauge Magnet Wire

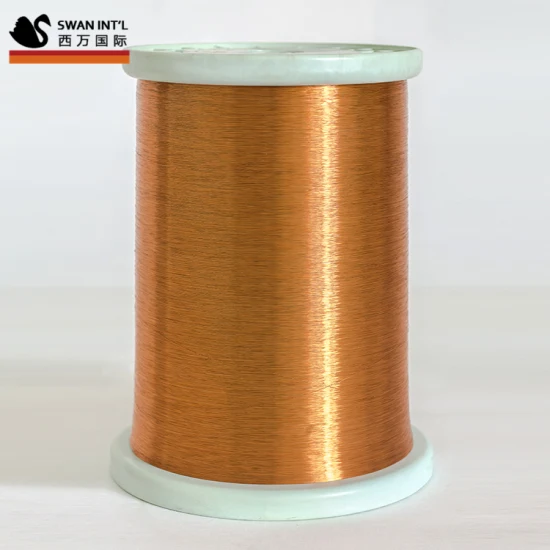

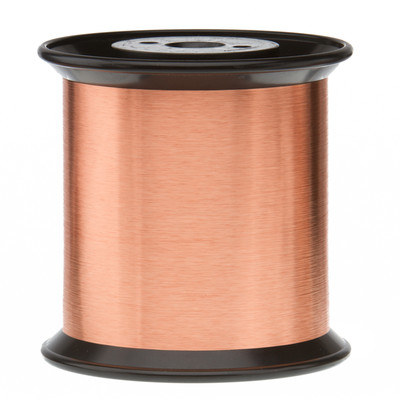

42 gauge magnet wire (0.051 mm diameter) is critical in high-frequency transformers, small motors, and compact power electronics such as SMPS units, medical imaging devices, and electric vehicle control systems. The trend toward miniaturization in consumer electronics and renewable energy inverters has intensified demand for precise, high-purity conductors. Industry standards like IEC 60317-0-3 mandate strict tolerances for diameter (±0.001 mm), insulation thickness, and electrical properties—non-negotiable for maintaining efficiency in space-constrained designs.

Critical Quality Parameters for Transformer Efficiency

Material defects directly impact efficiency and reliability. Copper purity below 99.95% increases resistivity, raising I²R losses and operational temperatures—each 0.1% impurity can elevate losses by 0.3%. Inconsistent insulation thickness compromises dielectric strength, risking short circuits under high voltage stress. Tensile strength variations cause wire breakage during winding, leading to production downtime (up to 15% loss in throughput). Thermal class (e.g., Class 155°C vs. 180°C) determines maximum operating temperature; substandard materials degrade faster, reducing transformer lifespan by 30% and increasing lifecycle costs. Quality control at every production stage is non-negotiable for mission-critical applications.

Luoyang Xinzhaohe’s Supply Chain Advantage

With 20+ years of manufacturing expertise, Luoyang Xinzhaohe Aluminum Co., Ltd. delivers premium 42 gauge magnet wire with superior cost-performance ratios. Our factory-direct model eliminates middlemen, ensuring competitive pricing (15-20% lower than global brands) while maintaining strict compliance with IEC 60317 and ASTM B170 standards. We implement real-time process monitoring and 100% inspection for critical parameters, guaranteeing batch-to-batch consistency. Our ISO 9001-certified production facilities support global supply chain needs, with on-time delivery rates exceeding 98% for international orders.

As a trusted global supplier, we provide tailored solutions for transformer manufacturers and motor repair shops, ensuring reliable performance and cost efficiency. Partner with us for engineered quality that meets your most stringent requirements.

Technical Specs: 42 Gauge Magnet Wire Parameters

Technical Specifications & Standards for 42 Gauge Magnet Wire

Critical Parameters & Compliance

Our 42 gauge magnet wire adheres to stringent international standards while optimizing performance for high-frequency transformer and motor applications. Key specifications are rigorously validated through certified testing protocols:

Quality Assurance Protocol

Luoyang Xinzhaohe implements a multi-stage quality assurance protocol to ensure every 42 gauge magnet wire coil meets exacting standards. Production begins with high-purity copper rod (99.99% Cu), followed by precision drawing and automated enamel application with real-time thickness monitoring. Each coil undergoes 100% insulation breakdown voltage testing at 1.8 kV (IEC 60317), with 10% sampling for thermal aging validation (IEC 60085). Enamel concentricity is verified using laser micrometers (±0.1μm tolerance), while elongation is tested per ASTM B193 to ensure flexibility.

Our QC process includes three-stage inspections: raw material analysis (spectral analysis for copper purity), in-process checks (every 15 minutes for wire diameter, enamel thickness, and concentricity), and final coil certification. Thermal class validation involves 1000-hour accelerated aging tests at rated temperatures, with mechanical property retention ≥90% post-test. All processes adhere to ISO 9001 standards, and each batch is accompanied by a comprehensive test report with traceable data for your quality audits. We conduct daily calibration of all testing equipment per ISO/IEC 17025, and our technicians are certified per ASNT Level II for non-destructive testing. Every production run includes statistical process control (SPC) charts to monitor key parameters, ensuring process stability and minimizing variation.

Our advanced enamel formulations (e.g., polyester-imide for H-class) provide exceptional thermal stability and chemical resistance, critical for high-efficiency transformers. This rigorous approach ensures consistent performance in high-frequency transformers, motors, and aerospace applications, reducing downtime and maintenance costs for your operations. With 20+ years of expertise, we deliver factory-direct reliability at 15-20% lower cost than global brands, without compromising on critical specifications.

Factory Tour: Manufacturing 42 Gauge Magnet Wire

Manufacturing Process & Quality Control

Precision Manufacturing Process

Our 42 gauge magnet wire production adheres to strict industrial protocols to ensure consistency and reliability.
Rod Drawing: High-purity electrolytic copper (≥99.95% Cu) undergoes 12-stage precision die drawing with real-time laser diameter monitoring. Achieves 0.0315mm ±0.00025mm tolerance (±0.8%) and micro-scratch-free surfaces.
Annealing: Continuous nitrogen atmosphere annealing at 450°C±5°C with controlled cooling rates preserves 100% IACS conductivity and 18–22% elongation.
Enameling: Electrostatic spray application with four-stage curing ovens (200–250°C) ensures enamel thickness of 10.5±0.5μm per IEC 60317-0-2. UV and cross-section inspections verify uniformity.
Inline Testing: Real-time voltage breakdown tests (≥5kV), laser micrometer diameter checks (±0.1μm), and laser profilometry for enamel integrity. All data logged in ERP for traceability.
Spooling: Computer-controlled tension systems (0.5–1.5N) with edge alignment sensors prevent damage during spooling, ensuring 100% spool integrity for seamless winding integration.

Quality Control Benchmarks

Our QC protocol exceeds ISO 9001 standards. Tensile tests occur every 200m using Instron 5969 testers; dimensional checks use Mitutoyo laser micrometers (±0.1μm accuracy). Enamel thickness is verified via XRF spectrometry. All results are digitally archived for full compliance reporting.

By integrating advanced process control with rigorous QC, Luoyang Xinzhaohe delivers 42 gauge magnet wire with 15% lower costs than Tier-1 brands while meeting or exceeding IEC standards. Our factory-direct approach ensures consistent performance for high-reliability transformer and motor applications.

Packaging & Global Logistics

Export Packaging & Logistics for 42 Gauge Magnet Wire

Robust Packaging Specifications

Our packaging system is engineered to meet IEC 60317 and ASTM B175 standards while ensuring zero damage during transit. Key components are rigorously tested for marine environments:

Sea Freight Optimization

We optimize every step of ocean shipping to guarantee on-time delivery and product integrity:

Since 2003, our Luoyang facility has shipped over 50,000 metric tons of magnet wire globally, maintaining a 99.9% damage-free rate through rigorous quality control. Our factory-direct model eliminates distributor markups, delivering precise dimensional tolerances and consistent material integrity at 15–20% lower cost than European premium brands. For transformer manufacturers and power equipment engineers, this combination of engineered packaging, IoT-enabled logistics, and 20+ years of export expertise ensures seamless integration into your supply chain with zero compromise on reliability.

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe Aluminum CO., Ltd?

As a leading manufacturer of transformer materials with 20+ years of specialized expertise, Luoyang Xinzhaohe Aluminum CO., Ltd. delivers precision-engineered 42-gauge magnet wire tailored for high-performance transformer and motor applications. Our technical team optimizes production processes to ensure dimensional accuracy, electrical consistency, and thermal stability—critical for compact, high-frequency designs. Every batch undergoes metallurgical analysis and process validation to meet IEC 60317 and NEMA MW 1000 standards, ensuring reliability in demanding environments.

Factory-Direct Cost Efficiency

By eliminating distributor markups and maintaining full control over production, we deliver 15–20% lower costs without compromising quality. Our vertically integrated supply chain—from raw material sourcing to final testing—ensures rapid turnaround and predictable lead times. Strategic location in Luoyang, China, further reduces logistics overhead for global clients.

ISO 9001 Certified Quality Assurance

Our ISO 9001:2015-certified quality system guarantees rigorous batch testing for electrical, mechanical, and thermal properties. Each 42-gauge magnet wire specification is validated against international benchmarks to ensure defect-free performance:

All products undergo real-time monitoring during extrusion and coating processes, with traceable quality records for full compliance.

Ready to Optimize Your Supply Chain?

For technical specifications, custom solutions, or volume pricing, contact Cathy at cathy@transformerstrip.com. Our engineering team provides end-to-end support—from material selection to application-specific optimization—to ensure seamless integration into your manufacturing process.
