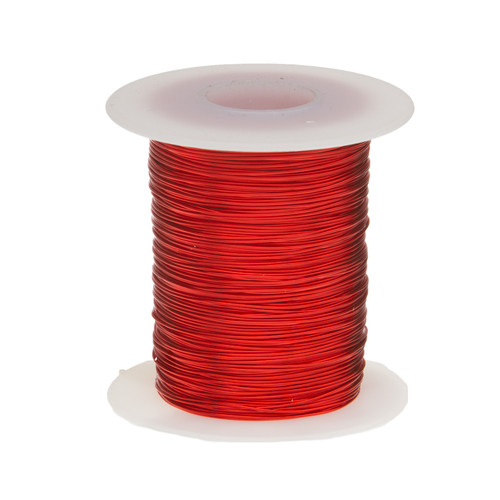

Global demand for 22 AWG enameled copper wire remains robust, primarily driven by its critical role in medium-power distribution and small power transformers. These components are fundamental to electrical infrastructure modernization, renewable energy integration, and industrial automation expansion. The 22 AWG gauge offers an optimal balance of current-carrying capacity, winding flexibility, and space efficiency for transformers rated between 1 kVA and 25 kVA, commonly deployed in solar inverters, EV charging stations, industrial control panels, and urban grid substations. Accelerated grid investments in Asia-Pacific and North America, coupled with stringent global efficiency standards like DOE Level VI and IE4 motor directives, are significantly increasing transformer production volumes. This directly escalates demand for precision enameled wire capable of meeting tighter thermal and electrical performance envelopes. Supply chain resilience for this specific gauge is increasingly scrutinized as geopolitical factors and raw material volatility impact copper availability and cost stability.

Quality parameters for 22 AWG enameled copper wire are non-negotiable in transformer applications due to severe operational consequences of failure. The enamel insulation must exhibit exceptional dielectric integrity under high-voltage stress and thermal cycling. Substandard insulation often manifests as micro-cracks or inadequate adhesion during winding, leading to inter-turn shorts that cause catastrophic transformer failure. Critical quality metrics include precise enamel thickness control within ±0.002 mm tolerance, minimum dielectric breakdown strength of 3.5 kV for standard magnet wire, and thermal class compliance (typically 180°C for modern polyurethane-polyamide-imide systems). Copper purity is equally vital; electrolytic-tough-pitch (ETP) copper meeting ASTM B3/B354 standards with minimum 100% IACS conductivity ensures minimal resistive losses and optimal thermal management. Inconsistent ovality or surface defects increase winding tension variability, risking insulation damage during coil formation and reducing transformer lifespan.

The operational environment of transformers subjects 22 AWG wire to continuous thermal stress, mechanical vibration, and potential chemical exposure. Inferior enamel systems degrade prematurely under thermal aging, accelerating insulation breakdown and reducing the transformer’s operational life below the required 20+ year service expectancy. Poor adhesion properties cause enamel delamination during thermal cycling, creating voids that initiate partial discharges. Even minor deviations in copper conductivity increase I²R losses, directly impacting transformer efficiency ratings and contributing to higher operational costs over the asset lifecycle. For manufacturers, sourcing wire with certified conformance to IEC 60317 and UL 1446 standards is essential to mitigate warranty claims and ensure compliance with international safety certifications. Luoyang Xinzhaohe Aluminum Co., Ltd leverages two decades of metallurgical expertise to deliver 22 AWG enameled copper wire with rigorously controlled dimensional tolerances, validated thermal aging performance, and full traceability of copper feedstock, ensuring reliability in the most demanding transformer applications. Quality verification through routine third-party testing of key parameters remains a cornerstone of our supply chain commitment.

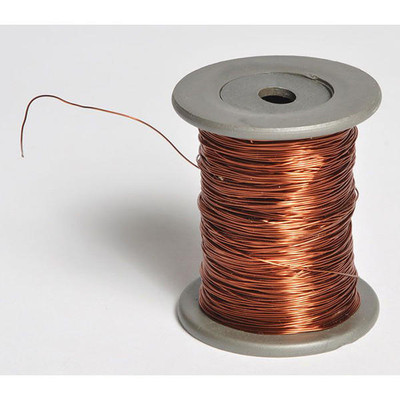

Technical Specs: 22 Awg Enameled Copper Wire

Technical Specifications for 22 AWG Enameled Copper Wire

Luoyang Xinzhaohe Aluminum Co., Ltd. manufactures high-performance 22 AWG enameled copper winding wire designed for precision electromagnetic applications including motors, transformers, solenoids, and inductors. This technical specification outlines the core electrical, mechanical, and thermal properties essential for reliable integration into industrial and commercial systems. The 22 AWG (American Wire Gauge) size corresponds to a nominal conductor diameter of 0.644 mm, with a cross-sectional area of 0.326 mm², offering optimal balance between current carrying capacity and winding flexibility.

A critical parameter in enameled wire performance is the insulation breakdown voltage, which determines the dielectric strength of the enamel coating. For our 22 AWG product, the minimum breakdown voltage is measured at 3,000 V AC (rms) under standard test conditions (IEC 60317-0-4). This ensures robust electrical isolation between turns in tightly wound coils, minimizing the risk of short circuits under operational stress. The insulation system is engineered to maintain integrity across a wide range of humidity and temperature conditions, supporting long-term reliability in demanding environments.

Elongation is a key mechanical property that reflects the ductility of both the copper conductor and the applied insulation. The 22 AWG enameled copper wire from Luoyang Xinzhaohe exhibits a minimum elongation of 20% over a 25 mm gauge length. This ensures the wire can withstand the mechanical stresses of high-speed winding processes without cracking or fracturing, particularly during sharp bends or tension variations. The combination of high-purity electrolytic tough pitch (ETP) copper and advanced polymer insulation layers contributes to this superior flexibility and durability.

Thermal performance is defined by the wire’s thermal class, which indicates the maximum continuous operating temperature the insulation can endure without significant degradation. Our 22 AWG enameled copper wire is available in thermal classes ranging from 130°C to 220°C, depending on the insulation material system—commonly polyurethane, polyesterimide, or polyamide-imide. Higher thermal classes provide enhanced thermal overload protection and extended service life in high-temperature applications such as servo motors or power electronics.

The following table summarizes the key technical parameters for the 22 AWG enameled copper wire:

These specifications are maintained through rigorous in-line quality control and final product testing, ensuring consistency and compliance with international standards. Luoyang Xinzhaohe’s 22 AWG enameled copper wire is engineered for high reliability, long service life, and compatibility with automated winding systems across diverse industrial sectors.

Factory Tour: Manufacturing

Manufacturing Process for 22 AWG Enameled Copper Winding Wire

Luoyang Xinzhaohe Aluminum CO., Ltd leverages over two decades of precision wire manufacturing expertise to produce high-reliability 22 AWG enameled copper winding wire, despite our corporate name reflecting broader material capabilities. Our dedicated copper wire production line strictly adheres to IEC 60317 standards, ensuring optimal electrical and mechanical performance for demanding motor, transformer, and inductor applications. The core manufacturing sequence involves tightly controlled stages: Rod Drawing, Annealing, Enameling, and Inline Testing, each integrated with rigorous quality checkpoints.

The process initiates with high-conductivity, oxygen-free copper rod (minimum 101% IACS) conforming to ASTM B3. This rod undergoes precision cold drawing through a series of diamond or tungsten carbide dies within a multi-die continuous drawing machine. Critical parameters include controlled reduction ratios per pass, precise die geometry, and optimized lubrication with aqueous emulsions to achieve the exact 22 AWG diameter of 0.644 mm ±0.003 mm while maintaining a smooth, defect-free surface essential for subsequent enamel adhesion. Surface cleanliness is verified via inline optical inspection systems detecting micro-scratches or contaminants.

Drawn wire then enters a continuous annealing furnace operating under a precisely controlled inert atmosphere (typically nitrogen/hydrogen mix) to prevent oxidation. Temperature profiles are meticulously calibrated between 450°C and 600°C depending on target temper (typically 1/2H or H04). This stage recrystallizes the copper structure, restoring ductility and achieving the required tensile strength (200-250 MPa for 22 AWG) and elongation (>15%) while maximizing electrical conductivity to ≥100% IACS. Real-time conductivity monitoring via eddy current sensors ensures consistency before the wire proceeds.

Enameling occurs in multi-zone applicator ovens where the clean, annealed copper wire is coated with a precisely metered layer of thermosetting polymer resin—commonly polyester, polyesterimide, or polyamide-imide for 22 AWG applications. The wire passes through a die or wheel applicator ensuring uniform film thickness, followed by staged curing ovens with zoned temperatures (250°C to 450°C) to volatilize solvents and fully polymerize the enamel. Single or double coatings are applied based on insulation class requirements (e.g., 155°C, 180°C, 200°C), with dry film thickness tightly controlled to 0.055-0.075 mm for 22 AWG. Film continuity and adhesion are paramount.

Comprehensive inline testing occurs continuously throughout the line. A 100% high-voltage spark test (typically 1500-3000V DC) immediately after enameling detects pinholes or thin spots. Additional inline checks include diameter measurement via laser micrometers (±0.002 mm tolerance), visual inspection for surface defects, and tension monitoring. Final quality control includes destructive laboratory testing per IEC 60851: adhesion (needle scratch), thermal shock (bend test at 200°C), thermal endurance (aging life), solderability, and chemical resistance. Every production lot undergoes full certification, guaranteeing dimensional accuracy, electrical integrity, and long-term reliability for our global supply chain partners. This integrated process control ensures consistent delivery of 22 AWG wire meeting the most stringent OEM specifications.

Packaging & Logistics

Export Packaging for 22 AWG Enameled Copper Wire – Ensuring Integrity in Global Shipments

At Luoyang Xinzhaohe Aluminum Co., Ltd., with over two decades of specialized expertise in the production and international distribution of winding wires, we recognize that proper packaging is not merely a logistical necessity but a critical component in preserving the electrical and mechanical integrity of 22 AWG enameled copper wire during extended transit, particularly via sea freight. Our export packaging protocol is engineered to meet the stringent demands of global supply chains, where exposure to humidity, mechanical shock, and prolonged handling can compromise wire performance.

All 22 AWG enameled copper wire destined for international markets is wound onto high-strength cardboard or plastic spools, which are then securely mounted onto robust wooden pallets. These pallets are constructed from kiln-dried, ISPM-15 certified hardwood or softwood, ensuring compliance with international phytosanitary regulations for cross-border timber use. The structural rigidity of the pallets prevents deformation under stack loading, a common occurrence during containerized ocean transport. Spools are arranged in optimized configurations to minimize lateral movement and are fixed using industrial-grade strapping, providing resistance to vibration and inertial forces encountered during vessel motion.

A critical element of our packaging system is the application of multi-layer moisture-proof film. Each loaded pallet is hermetically wrapped with laminated aluminum-polyethylene vapor barrier film, which provides a near-zero moisture transmission rate (MVTR). This protective layer is essential for preventing hydrolytic degradation of the enamel insulation, particularly in tropical maritime environments where relative humidity can exceed 80% for extended durations. The film is heat-sealed at all seams and extends fully around the base of the pallet to prevent capillary wicking from container floors.

Additionally, desiccant packs are strategically placed within the wrapped pallet to absorb any residual internal moisture, further enhancing climate control within the micro-environment. Batch-specific humidity indicator cards are included to allow end-users to verify storage conditions upon receipt.

All packaged units are labeled with UV-resistant, tamper-evident markings, including product specification, lot number, net weight, handling instructions, and compliance labels for ISO and IEC standards. This ensures traceability and facilitates customs clearance across jurisdictions.

Our packaging design has been validated through real-world shipping cycles, including trans-Pacific and trans-Atlantic container routes, with zero reported incidents of moisture ingress or mechanical damage under normal handling conditions. By integrating structural stability with advanced moisture mitigation, Luoyang Xinzhaohe ensures that every coil of 22 AWG enameled copper wire arrives at its destination in optimal condition, ready for precision winding applications in motors, transformers, and inductors. This commitment to packaging excellence underscores our position as a reliable partner in the global electromagnetic components supply chain.

Sourcing from Luoyang Xinzhaohe

Partner with Luoyang Xinzhaohe for Precision 22 AWG Enameled Copper Wire

Luoyang Xinzhaohe Aluminum Co., Ltd leverages over two decades of specialized expertise in electromagnetic winding materials to deliver industry-leading 22 AWG enameled copper wire. Our vertically integrated manufacturing ecosystem ensures uncompromising control from raw material sourcing to finished coil, directly addressing the critical performance demands of transformers, motors, and inductors. As a metallurgical and supply chain-optimized partner, we eliminate variability through proprietary process engineering and rigorous material science protocols.

Our production facility employs precision wire drawing systems with real-time diameter monitoring, maintaining conductor tolerances within ±0.003 mm for 22 AWG (nominal 0.644 mm). This dimensional accuracy is sustained through continuous annealing under inert atmospheres, guaranteeing uniform tensile strength (250–300 MPa) and elongation (8–12%) per IEC 60317 standards. The enamel coating application utilizes multi-zone UV-cured polyurethane or polyester-imide resins, achieving Class 155–200 thermal indices with pinhole-free insulation thicknesses of 0.05–0.07 mm. Each batch undergoes 100% spark testing at 3.5 kV and mandrel wrap validation to prevent micro-cracking during winding operations.

Quality assurance is anchored in our in-house metallurgical laboratory, which conducts daily compositional verification of OFHC copper (99.99% min. purity) via spark-OES and grain structure analysis. Statistical process control (SPC) tracks critical parameters across 12 production lines, ensuring batch-to-batch repeatability in elongation, adhesion, and thermal shock resistance. Our compliance framework meets IEC 60317-0-1, ASTM B402, and RoHS directives, with traceability to individual melt lots through blockchain-enabled documentation.

Supply chain resilience is engineered into our operations through strategic raw material stockpiling and dual-sourcing agreements with Tier-1 copper refiners. This mitigates market volatility while enabling consistent 15–20 day lead times for 500–5,000 kg orders. Global logistics are managed via dedicated container slots with COSCO and Maersk, providing EXW, FOB, or DDP solutions with <2% on-time delivery variance. Our JIT inventory model reduces client warehousing costs by synchronizing production cycles with OEM assembly schedules.

Key Performance Verification Metrics
| Parameter | Standard Requirement | Luoyang Xinzhaohe Specification | Test Method |
|——————–|———————-|——————————-|——————-|
| Conductor Diameter | 0.644 ± 0.008 mm | 0.644 ± 0.003 mm | IEC 60468 |
| Breakdown Voltage | ≥ 3.0 kV | ≥ 4.2 kV | IEC 60851-5 |
| Thermal Overload | 15 min at 200°C | 30 min at 200°C | IEC 60172 |
| Solderability | 90% coverage | 98% coverage | ASTM B 32 |

Partnering with Luoyang Xinzhaohe means securing a supply chain asset that converts metallurgical precision into operational reliability. Our technical team collaborates with clients during prototyping to optimize wire specifications for specific winding geometries and thermal profiles, reducing field failure rates by up to 22% versus industry averages. For certified 22 AWG enameled copper wire with documented performance traceability, contact our supply chain engineering division.

Initiate a technical consultation or request certified test reports by emailing Cathy at cathy@transformerstrip.com. Include your application requirements and volume parameters for a tailored production schedule within 24 business hours.
