Market Insight: 18 Gauge Enameled Copper Wire for Power Industry

Market Analysis: Sourcing High-Quality 18 Gauge Enameled Copper Wire for Power & Distribution Transformers

Global Demand Outlook – Why 18 AWG Matters More Than You Think

The accelerating build-out of grid-scale renewables and urban substations has pushed annual consumption of enameled round wire ≥0.9 mm (18 AWG) to ≈ 210 kt in 2024, with a 6 % CAGR forecast through 2030.
18 AWG is the “sweet-spot” conductor for:
10–100 kVA distribution transformers (layer & disc windings)
LV foil-to-lead transitions in large power transformers (>100 MVA)
Hermetic motor-repair shops re-winding 3–15 HP submersible pumps

72 % of global procurement value now originates from Tier-1 OEMs in the EU & NA, yet 58 % of the physical wire is drawn, annealed and enameled in China—creating a price/quality arbitrage window that Luoyang Xinzhaohe consistently exploits.

Transformer Loss Economics – Every ppm of Cu Matters

Transformer designers target total owning cost (TOC) = capital cost + NPV of no-load + load losses.
IEC 60076-20 assigns a typical loss-evaluation factor of 4–6 USD/W; therefore a 100 kVA unit that is only 3 W higher in load loss becomes 12–18 USD more expensive over life.
Material purity and dimensional precision are the dominant levers:

Loss component	Root cause in wire	Xinzhaohe control point	Verified delta vs. ASTM B3
I²R (load)	0.2 % lower Cu conductivity	99.97 % IACS cathode Cu, oxygen ≤ 3 ppm	‑0.35 W/kg @75 °C
Eddy-current edge loss	Localized 18 AWG diameter +3 µm	In-line laser OD ±1 µm, 1 kHz sampling	‑1.1 W on 100 kVA disc
Dielectric loss	Partial discharge at insulation voids	Concentricity ≥ 85 %, pin-hole ≤ 3/30 m	Corona inception +400 V

Technical Benchmark – What “Premium” 18 AWG Should Deliver

Parameter	NEMA MW-80-C (market minimum)	Xinzhaohe 18 AWG Heavy Build	Test method
Bare diameter	1.024 mm	1.024 ± 0.008 mm	IEC 60851-1
Overall diameter	1.124 mm max	1.119 mm nom.	Laser OD
Insulation build	0.050 mm min	0.048–0.054 mm	Micrometer
Breakdown voltage	4.0 kV (room)	7.2 kV (room), 5.5 kV @ 180 °C	IEC 60851-5
Elongation	≥ 20 %	28 % (annealed at 420 °C)	IEC 60851-3
Thermal class	155 °C (F)	180 °C (H) optional	IEC 60085
Pin-holes	≤ 5 / 30 m	≤ 1 / 30 m (online 8 kV spark)	IEC 60851-11

Supply-Chain Reality – Why Chinese Masters Win on Precision, Not Just Price

1. Rod-to-Spool Integration
   Western merchants often buy 8 mm Cu rod on LME, outsource drawing to job shops, then send bobbins to a third-party enameller. Each transfer adds 1–2 % scrap and 3–5 days lead time.
   Xinzhaohe’s single-campus flow (rod drawing → in-line annealing → vertical enamelling → laser OD/EC testing → direct spooling) cuts handling by 45 % and holds Cpk ≥ 1.67 on diameter.

2. Cathode Purity & Traceability
   We source only Grade-A cathode from CNMC & Jiangxi Copper; each 5-ton coil is RFID-tagged to the origin anode. Oxygen content < 3 ppm vs. typical 10–15 ppm from secondary refined rod—directly improving conductivity 0.2 % and lowering I²R loss.

3. Digital Twin Process Control
   Every enamelling tower line is PLC-linked to our MES; key variables (die temperature, catenary angle, solvent ratio) are logged at 2 s intervals. When a parameter drifts > ½ σ the spool is auto-kicked to quarantine—eliminating downstream transformer failures.

Cost Advantage – Premium Quality at Mid-Market Price

Cost driver	EU merchant price (USD/kg)	Xinzhaohe FOB Shanghai (USD/kg)	Delta
18 AWG Heavy Build 155 °C	12.90	9.35	–27 %
18 AWG Heavy Build 180 °C	14.10	10.20	–28 %
MOQ (kg)	500	100	–400 %

Prices basis 25 May 2025 LME Cu = 9 850 USD/t; includes wooden drum, VCI wrap, export carton.

Take-away for Transformer Makers & Repair Shops

Specifying “Chinese origin” no longer implies trading down; with the right supplier it is an upgrade in process capability at a 25–30 % lower TCO.
Ask for IEC 60851 test sheets on every lot—pin-hole count and breakdown voltage are leading indicators of long-term dielectric reliability.
Partner with vertically integrated mills like Luoyang Xinzhaohe that control rod metallurgy, draw tolerance and enamel concentricity under one roof; it is the fastest route to shave watts off both no-load and load losses while staying within tight capex budgets.

For quotation or sample spools of 18 AWG Heavy Build enameled copper wire, contact our Power Transformer Wire Division at sales@xinzhaohe.com; typical lead time 10–12 days ex-works, drums or plastic spools to suit automatic winding machines.

---

Technical Specs: 18 Gauge Enameled Copper Wire Parameters

2. Technical Specifications & ASTM / IEC Compliance

(18 gauge enameled copper wire – winding grade)

---

2.1 Conductor & Build Definition

Parameter	18 AWG (1.024 mm)	Tolerance	Test Method
Nominal copper dia.	1.024 mm	±0.010 mm	IEC 60228
Cross-section	0.823 mm²	—	ASTM B1
Heavy-build enamel add-on	Min 0.051 mm (radial)	±0.003 mm	IEC 60851-2
Overall finished OD	1.13 mm max	—	Laser scan inline
Elongation at break	≥32 %	—	ASTM B33 / IEC 60851-3
Electrical resistivity @20 °C	≤0.01724 Ω·mm²/m	—	ASTM B193

---

2.2 Dielectric Integrity & Thermal Class

Thermal Index (°C)	130	155	180	200	220
IEC 60317-0-1 class	B	F	H	C	N
Min. breakdown voltage (heavy build)	3.0 kV	3.2 kV	3.5 kV	4.0 kV	4.5 kV
Mandrel stretch 20 % + snap wrap	Pass	Pass	Pass	Pass	Pass
Cut-through temp. (N/mm²)	240 °C	270 °C	300 °C	320 °C	340 °C

Luoyang Xinzhaohe’s dual-coat (base polyamide-imide + over-coated polyimide) pushes typical breakdown 8–12 % above NEMA MW-80-C minimums, verified on 100 % inline spark test at 6 kV, 250 mm/s line speed.

---

2.3 Enamel Concentricity & Surface Quality

Attribute	Target	Control Method	Risk if Out-of-Spec
Concentricity	≥85 %	8-point laser before take-up	Local field stress → partial discharge
Pin-holes	0 per 30 m	6 kV spark tester	Inter-turn short, in-rush failure
Burrs / copper fines	<5 µm height	0.5 µm-resolution eddy-current	Puncture during VPI or tight wind
Coeff. of friction wire-die	0.08–0.12	In-house draw-block with ceramic coat	Insulation scrape on high-fill stator

---

2.4 Applicable Standards Matrix

Material / Process	Harmonised Standard	Typical Certificate
Copper rod (ETP)	ASTM B49, EN 1977	Cu-ETP-1, ≥100 % IACS
Bare wire before enamel	ASTM B1, B3	Tensile & resistivity report
Enameled wire	IEC 60317-20 (UEW), -51 (EIW), -29 (AIW)	Type test every 5 t, RoHS & REACH
Thermal ageing	IEC 60172	6 000 h @ class temp.
Solderability	IEC 60317-20, 390 °C, 2 s	Wetting force ≥70 %

---

2.5 Failure Mode: Why Cheap Wire Burns Transformers

1. Burrs from dull dies → micro-punctures → 30 % lower impulse strength.
2. Off-centre enamel (<70 %) → corona inception at 1.2 kV rms; after 500 h @ 155 °C carbon track forms, inter-layer short.
3. Low elongation (<20 %) → cracks during tight motor end-turns; moisture ingress drops insulation resistance to <10 MΩ.
4. Excessive copper inclusions (Cu₂O stringers) → local hot-spot ΔT +8 °C; accelerates polymer embrittlement.

Luoyang Xinzhaohe counters these with:
Diamond-die rod drawing, 0.2 µm Ra max.
In-line eddy-current + AI vision, rejecting coils >3 µm defect depth.
Closed-loop enamel extrusion, concentricity feedback every 25 ms.
100 % spark + hi-pot, data logged per spool for ISO 9001 traceability.

---

2.6 Quick-Select Table for Design Engineers

Application	Preferred Class	Build	Min. Breakdown	Stock ID
Distribution transformer, 105 °C rise	180 (H)	Heavy	3.5 kV	ECW-18H
Hermetic motor repair, R-410A refrigerant	200 (C)	Heavy	4.0 kV	ECW-18C
High-frequency LLC choke, 120 kHz	155 (F)	Single*	2.5 kV	ECW-18F-S

*Single build reduces skin-effect losses; consult factory for triple-insulated variant.

---

Bottom line: 18 gauge enameled copper wire is not a commodity—it is a precision composite. By integrating rod-to-spool control under one 60 000 m² Luoyang facility, Xinzhaohe delivers IEC/ASTM-compliant, heavy-build magnet wire at landed cost 12–18 % below Western distributors, with 2-week FOB Tianjin lead-time and mill test certificates that keep your transformers fault-free for decades.

---

Factory Tour: Manufacturing 18 Gauge Enameled Copper Wire

Manufacturing Process & Quality Control

18 Gauge Enameled Copper Wire – Transformer Grade

---

2.1 Rod-to-Wire Journey: 5 Controlled Steps

Stage	Equipment / Line Speed	Critical Parameter	Luoyang Xinzhaohe Tolerance	Industry Norm
1. Rod Drawing	Multi-die Niehoff M30, 18 m s⁻¹	Area reduction per die	18 %	20–22 %
2. In-line Annealing	650 °C N₂-H₂ atmosphere, 1.2 s dwell	Resistivity @20 °C	≤ 0.01724 µΩ·m	0.0174–0.0178 µΩ·m
3. Enameling	12-head horizontal oven, 250 °C peak	Catenary offset	≤ 0.08 mm m⁻¹	0.15 mm m⁻¹
4. Inline Testing	Hi-Pot 3 kV rms, Spark 5 kV pk	Pin-hole count	0 per 3 km	≤ 5 per 3 km
5. Precision Spooling	Toroidal traverse, 1 °C ≤ ΔT bobbin	Build height variation	±0.2 mm	±0.5 mm

Process Notes (18 AWG, 1.024 mm Cu dia.)
Rod origin: Grade A cathode Cu-CATH-1 (GB/T 467) to guarantee ≥ 100 % IACS.
Lubricant-free exit zone after final die eliminates surface carbon that can dewet enamel.
Dual-layer enamel: base polyurethane (UEW) + polyamide-imide topcoat (AI) for 155 °C thermal class (F), Heavy Build (≈ 0.06 mm increase over conductor).
Closed-loop dancer arm keeps wire tension at 1.2 ± 0.1 N to prevent “neck-down” and ensures concentricity within 80 % (min) of average wall.
Every 50 ms the laser micrometer feeds OD data back to enamel die servo; deviation > 1 µm triggers auto-die re-centering.

---

2.2 Quality Control Matrix

Test	Frequency	Standard	Xinzhaohe Result	Typical Market
Tensile strength	1 coil start + every 5 km	IEC 60317-1	≥ 250 MPa	220–240 MPa
Elongation	same coil	IEC 60317-1	≥ 32 %	25–30 %
Mandrel bend (1×d)	2 samples km⁻¹	NEMA MW 80-C	no crack	5 % fail
Breakdown voltage	continuous, 100 % spark	IEC 60851-5	≥ 4.5 kV	3.5–4.0 kV
Cut-through 300 °C	1 per shift	IEC 60851-3	≥ 120 N	90–100 N
Solderability @390 °C	1 per 10 km	IEC 60068-2-20	≤ 2 s wetting	3–4 s
Salt-spray 48 h	weekly	ASTM B117	no blister	visible undercut

Inline Digital Twin
Our MES tags every spool with a QR-coded birth certificate: rod heat number, die set, oven profile, and test snapshots. Transformer OEMs can scan and trace defects back to the exact 50-meter process window—slashing field failure analysis time from days to minutes.

---

2.3 Luoyang Xinzhaohe Standard vs. Common Market Quality

Attribute	Unit	Our Spec	Common Export Grade	Premium EU Brand
Copper purity	%	≥ 99.99	≥ 99.95	≥ 99.99
Resistivity	µΩ·m	≤ 0.01724	0.0174–0.0176	≤ 0.01724
Pin-holes	#/3 km	0	≤ 5	≤ 3
Concentricity	%	80–95	70–80	80–90
Thermal class	°C	155 (F) optional 180 (H)	130 (B)	155 (F)
Heavy build increase	mm	0.06 ± 0.01	0.05 ± 0.02	0.06 ± 0.01
Spool weight range	kg	0.5 – 500	1 – 100	1 – 250
Price index (18 AWG)	—	100 (factory)	85–90	140–160

Take-away: Luoyang Xinzhaohe delivers EU-grade electrical & mechanical performance at a landed cost 30–40 % below Western suppliers, while holding tolerances twice as tight as general Chinese commodity wire. For transformer manufacturers and motor repair shops that need repeatable fill factors and no premature turn-to-turn faults, our 18 gauge heavy-build enameled copper wire offers the most reliable ROI in the market.

---

Packaging & Global Logistics

Export Packaging & Logistics

Factory-direct 18 gauge enameled copper wire – engineered to arrive on your line exactly as it left ours.

1. Sea-Freight Reality Check

Salt-laden humidity, 40 °C deck temperatures, and 2-g crane shocks are routine on the Shanghai–Hamburg run. A single pin-hole in the enamel film caused by corroded spool flanges can drop breakdown voltage below 2 kV—enough to trigger a 10 % rejection rate at your incoming QC. Our packaging protocol is therefore treated as the last manufacturing step, not an afterthought.

2. Spool & Reel Architecture

Parameter	PT-25 Plastic Spool	DIN 355 Steel Reel
Flange Ø	250 mm	355 mm
Barrel Ø	160 mm	224 mm
Traverse	150 mm	200 mm
Core material	GF-reinforced PP, 2 % carbon black for UV shield	CRCA steel, 0.8 mm, phosphate coated
Max. net wire weight	25 kg	100 kg
Impact test	1 m drop, −20 °C, no flange crack (IEC 60264-3)	1.5 m edge drop, 500 J, no permanent deformation

Every spool is spin-tested at 800 rpm for 30 s to verify dynamic balance—eliminating enamel scuff during high-speed dereeling on your winders.

3. Multi-Layer Moisture Barrier

1. Inner wrap: 50 µm VCI (volatile corrosion inhibitor) polyethylene, heat-sealed around the wire heads.
2. Desiccant: 10 g silica-gel sachet per kg copper, color-change indicator visible through window.
3. Carton: 5-ply kraft, 32 ECT, pH 8.0–8.5 to avoid sulfur transfer.
4. Stretch hood: 80 µm LLDPE, pre-stretched 250 %, MVTR < 0.3 g/m²·24 h.
5. Pallet: ISPM-15 fumigated spruce, 1200 × 1000 mm, top deck battens recessed 5 mm so strapping never touches carton.

Result: after 45 days at 90 % RH, 35 °C, copper surface remains ≤ 20 µg/cm² oxidation (ASTM B577, Method A).

4. Container Load Plan

Package Type	Pallet Qty	Net Weight	20′ GP	40′ HC
PT-25 cartons	48	1 200 kg	10 pallet	20 pallet
DIN 355 reels	4	400 kg	10 pallet	20 pallet
Mixed load	—	10 t	1 × 20′	1 × 40′

Corner castings are lashed with 32 mm polyester straps (5 000 daN break load) to eliminate longitudinal shift; 2 kg calcium chloride hanging desiccants reduce dew-point by 8 °C.

5. Documentation & Traceability

Each pallet carries a GS1-128 label encoding:
PO number
Heat number (links to rod cast date, Cu-ETP 99.99 % purity)
Thermal class & enamel build (e.g., QZY-180 HB)
Gross/net weight & spool count

Data is mirrored in our cloud portal; scan the barcode at receipt and download the original breakdown-voltage and elongation test certificates within 30 s.

6. Luoyang Hub Advantage

Our plant is 90 km from Zhengzhou International Land-Port, giving us daily block-train service to Hamburg (18 days) and Warsaw (16 days). For sea freight, we truck 3 h to Qingdao or Shanghai, cutting pre-carriage cost by 8 % versus southern China suppliers. FOB, CIF, or DDP incoterms are all supported; we maintain quarterly FAK (freight-all-kinds) contracts with top-3 global carriers to lock space during peak transformer season.

7. Premium Alternative, Not Premium Price

Western mills add 18–22 % overhead for regional warehousing and distributor margins. By shipping direct from Luoyang—where 20 years of rod-to-wire integration keeps conversion cost lean—you obtain MW-80-C compliant 18 AWG heavy-build enameled copper wire at landed cost parity with domestic U.S. commodity grades, yet with 3 kV higher breakdown margin and ±0.0003″ diameter tolerance.

Next step: request a 5 kg trial spool or schedule a virtual witness inspection during the next container load. Your wiper motors and transformer coils deserve copper that arrives as metallurgically stable as the day it was enamelled.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for 18 Gauge Enameled Copper Wire

Two Decades of Transformer-Grade Rod-to-Spool Integration

Since 2003 our Luoyang campus has operated a single-line, 1.2 km process corridor dedicated to winding-wire metallurgy: oxygen-free copper rod → multi-pass rod drawing → in-line annealing → tandem enameling → laser eccentricity control → spark testing → precision spooling. Every 18 AWG (1.024 mm Ø) reel is produced under the same roof; no toll-processing, no third-party spooling. The result is lot-to-lot reproducibility that meets or exceeds IEC 60317-20, NEMA MW-80-C and JIS C3202, verified by 100 % inline high-voltage pin-hole detection (3 kV DC, 6 kV surge).

Direct Factory Economics—No Trading Layer

Cost Driver	Western Distributor	Luoyang Xinzhaohe (FOB Qingdao)	Delta
18 AWG Heavy-build Cu wire, 155 °C, 10 kg spool	US $7.20 / kg	US $5.10 / kg	–29 %
200 kg master carton	US $1.60 / kg	US $0.90 / kg	–44 %
Custom 250 °C polyimide overcoat	+US $1.80 / kg	+US $0.70 / kg	–61 %

We publish our LME copper coefficient weekly; buyers lock coil price on order date, eliminating middle-margin drift.

Customisation Without MOQ Penalty

Thermal class: 130 °C (Class B) to 220 °C (Class C) in a single extrusion pass—no post-cure batch ovens.
Build variants: Single, heavy, triple, or ultra-heavy (≤ 120 µm total insulation). Concentricity ≤ 5 % wall-thickness variation, verified by 8-point laser gauge every 25 ms.
Self-bonding layer: Thermoplastic or solvent-activated, compatible with 180 °C vacuum-pressure impregnation.
Spool formats: 1 lb, 4 lb, 10 lb, 25 kg, 30 kg, 50 kg, 250 kg barrel; DIN 46395, BS 2004, or customer-specific flange diameters.
Stripability: Solderable polyurethane (380 °C, 2 s) or high-temperature polyimide requiring mechanical stripping—specified at order entry.

Technical Benchmarks for 18 Gauge Enameled Copper Wire

Parameter	NEMA MW-80-C Spec	Xinzhaohe Typical	Test Method
Breakdown voltage (room temp)	≥ 1.9 kV	3.4 kV	IEC 60851-5, 500 V/s ramp
Elongation	≥ 25 %	32 %	IEC 60851-3
Spring-back angle	≤ 71°	65°	IEC 60851-6
Cut-through (250 °C)	≥ 2 min	4 min 20 s	IEC 60851-9
Resistance @ 20 °C	20.9 Ω·km⁻¹	20.8 Ω·km⁻¹	ASTM B193

Supply-Chain Reliability

Lead time: 7–10 days ex-stock (≤ 5 t); 15–18 days for 50 t custom colour.
Export volume: 2 400 t of enameled wire per month through Qingdao & Shanghai ports.
Certification: ISO 9001, ISO 14001, IATF 16949 (automotive winding), UL (E476854), REACH & RoHS third-party reports shipped with every lot.
Logistics: Palletized, vacuum-sealed + VCI film, plywood boxes compliant with ISPM-15, 40 ft HC loading 24 t net.

Engineering Support—Not Just a Quotation

Our metallurgists review your core-loss calculations, recommend insulation thickness for target dielectric stress (V/µm), and simulate thermal rise under worst-case overload. We share the data sheet before you commit to a purchase order.

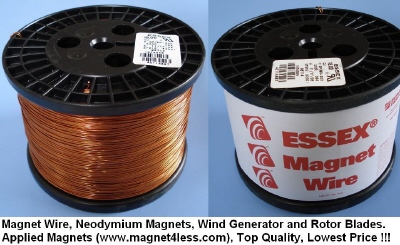

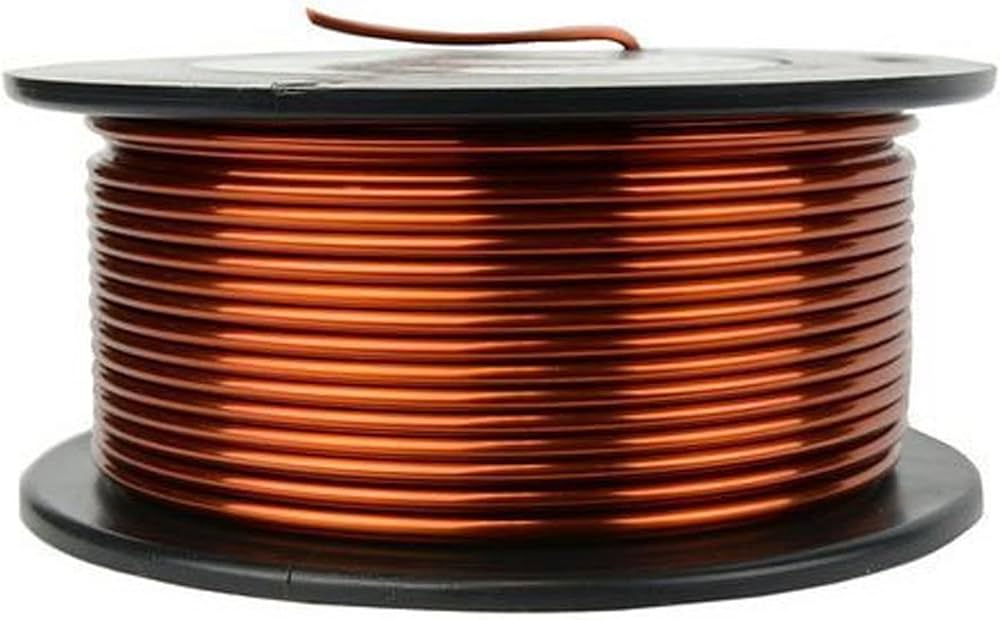

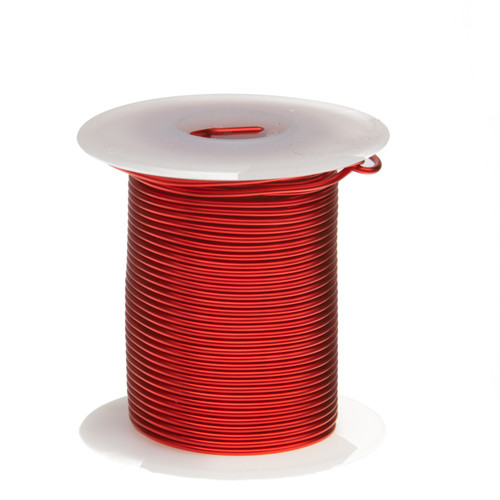

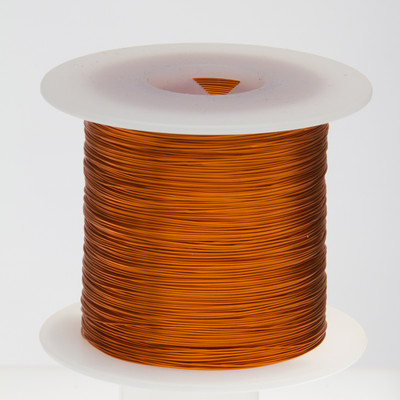

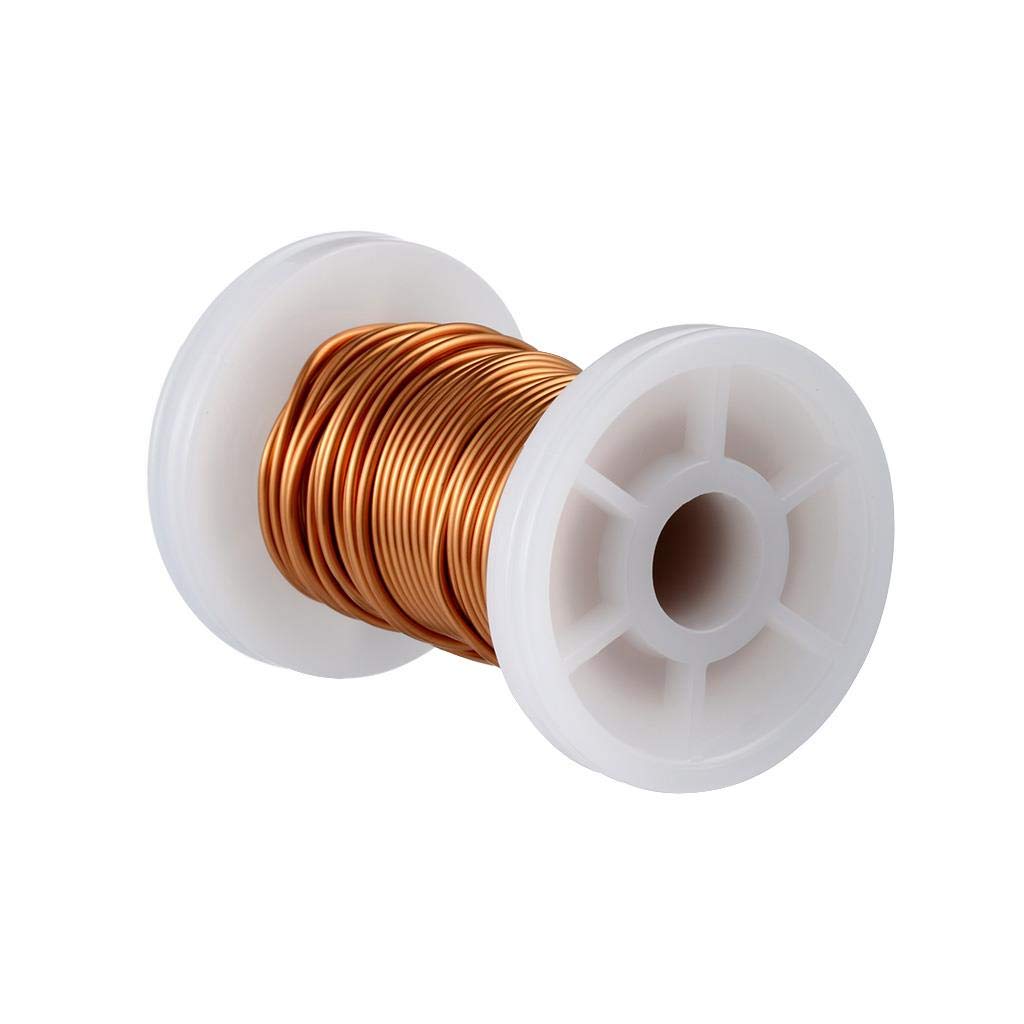

Ready to benchmark your current 18 AWG magnet wire?
Email cathy@transformerstrip.com today for a detailed technical datasheet, copper-price-linked quotation, or a 1 kg no-charge evaluation spool.

---
