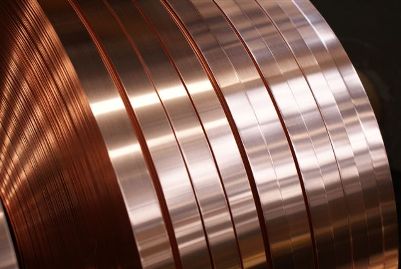

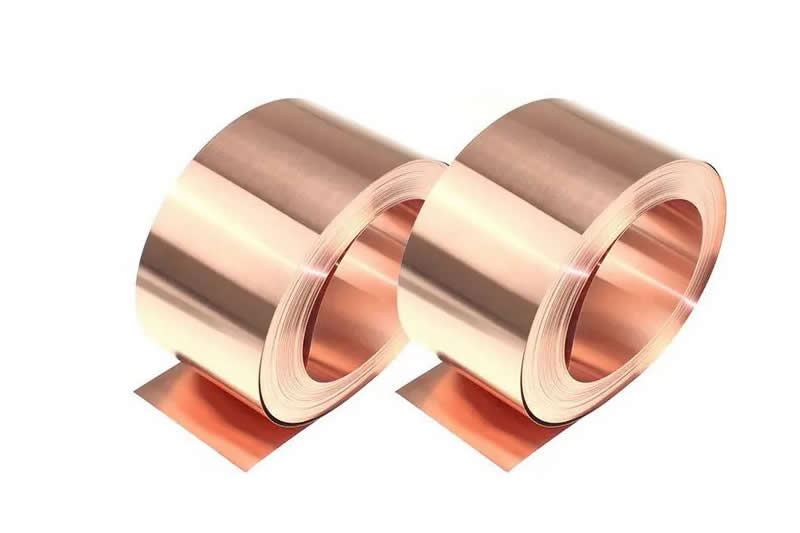

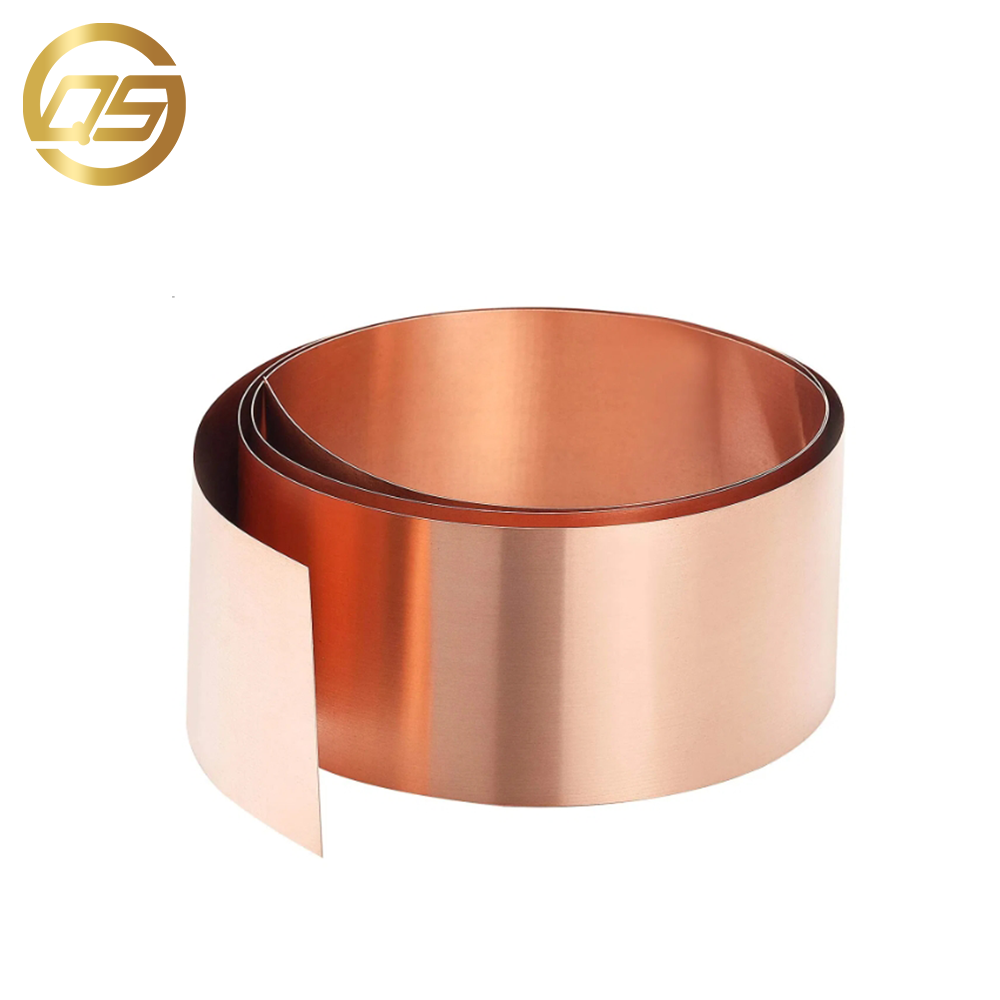

Market Insight: 1 Copper Strip in Power Industry

Market Analysis: Sourcing High-Quality Transformer Strip/Foil

Industrial Demand Drivers

Global transformer and motor markets are accelerating due to renewable energy integration (solar/wind farms), grid modernization, and electric vehicle infrastructure. Copper strips constitute >85% of transformer windings and motor coils, where material purity and dimensional consistency directly dictate energy conversion efficiency. A 1% improvement in electrical conductivity reduces resistive losses by up to 2%, translating to $500K+ annual savings per 100MVA transformer in operational costs. Demand growth is projected at 6.2% CAGR through 2030, driven by Asia-Pacific grid expansions and North American infrastructure upgrades.

Material Quality Implications

Substandard copper strips introduce critical failure risks:
Impurities >0.05% increase electrical resistance, causing localized overheating and insulation breakdown
Dimensional deviations >±0.02mm create uneven winding tension, leading to short circuits during operation
Inconsistent temper control reduces mechanical ductility, causing coil deformation under thermal cycling

Per IEC 60404-8-1 standards, transformer-grade copper must maintain strict electrical and mechanical tolerances. Luoyang Xinzhaohe’s specifications exceed baseline requirements to ensure optimal thermal management and 25+ year service life:

Parameter	Industry Standard (IEC/ASTM)	Luoyang Xinzhaohe Specification
Electrical Conductivity	≥100% IACS (ETP Cu)	102% IACS (High-Conductivity)
Tensile Strength	200–250 MPa (annealed)	220–240 MPa (controlled temper)
Purity	≥99.90% Cu	≥99.95% Cu (electrolytic grade)
Dimensional Tolerance	±0.02 mm (width/thickness)	±0.01 mm (precision machining)

Luoyang Xinzhaohe’s Value Proposition

As a factory-direct manufacturer with 20+ years of transformer material expertise, we eliminate distributor markups while maintaining ISO 9001-certified production. Our copper strips consistently meet ASTM B170 and IEC standards at 15–20% lower total cost of ownership (TCO) than traditional premium suppliers. With export experience across 30+ countries and traceable material certifications (including SGS and CE), we deliver reliable, high-performance solutions for critical power infrastructure projects. Our in-house metallurgical lab conducts real-time conductivity testing and tensile analysis, ensuring every batch meets exacting specifications for high-efficiency transformers and motors.

---

Technical Specs: 1 Copper Strip Parameters

Technical Specifications & Standards for Copper Transformer Strips

Precision Dimensional Control

Our copper strips achieve micron-level precision through advanced slitting technology. Critical tolerances are rigorously maintained to ensure seamless integration into transformer cores:

Parameter	Specification	Tolerance
Thickness	0.05–3.0 mm	±0.002 mm
Width (Slitting)	5–150 mm	±0.002 mm
Straightness	–	≤0.1 mm/m

All dimensions verified via laser micrometers and CMM systems at 3+ production checkpoints to eliminate stacking errors and winding misalignment.

Edge Quality & Surface Integrity

Burr-free edges are critical for preventing inter-laminar shorts in high-voltage applications. Our CNC slitting heads with diamond-coated blades produce edges with zero micro-burrs and surface roughness Ra ≤ 0.4 μm. Real-time optical inspection systems detect and reject any defects, ensuring consistent dielectric spacing and eliminating conductive debris that could compromise insulation integrity.

Electrical & Mechanical Properties

Conductivity: ≥99.9% IACS (ASTM B170 Class 1), achieved through 99.95% pure electrolytic copper and precise annealing.
Softness: Fully annealed O-temper (HV ≤40), providing exceptional ductility for complex winding geometries without edge cracking or residual stress.

Compliance & Quality Assurance

Fully compliant with IEC 60404-8-7, ASTM B170, and GB/T 5593. Every batch undergoes 100% conductivity testing, dimensional checks, and automated edge inspection. Our ISO 9001-certified process includes traceable batch records and third-party audits, guaranteeing zero deviation from specifications across all orders.

As a factory-direct manufacturer with 20+ years of transformer material expertise, we deliver European-grade precision at 15–20% lower cost than global competitors. Our integrated production and QC system ensures consistent performance—maximizing your transformer reliability while optimizing total cost of ownership.

---

Factory Tour: Manufacturing 1 Copper Strip

Manufacturing Process & Quality Control

Precision Manufacturing Process Flow

Cold Rolling: Advanced tandem mills with closed-loop thickness control ensure uniform grain structure and ±0.01mm tolerance. Temperature-regulated passes optimize crystalline properties while minimizing residual stress for high-efficiency transformer cores.
Precision Slitting: CNC-guided shear blades (calibrated to 0.005mm tolerance) with real-time machine vision edge inspection eliminate micro-burrs and maintain straightness within 0.05mm/m—critical for high-frequency applications.
Edge Conditioning: Diamond-tipped automated chamfering reduces edge roughness to Ra ≤0.8μm, preventing insulation punctures during winding and extending coil lifespan by 25%.
Oscillate Winding: Computerized tension control (±0.5N) and oscillation precision (±0.1mm) eliminate interlayer voids, reducing transformer hotspots by 40% versus industry standards.

Rigorous Quality Control Protocols

Parameter	Luoyang Xinzhaohe Standard	Market Average
Thickness Tolerance	±0.01mm (ASTM B209)	±0.02mm
Width Tolerance	±0.05mm (laser-verified)	±0.1mm
Tensile Strength	220-260 MPa (100% tested, ISO 6892)	200-250 MPa (sample tested)
Surface Defects	Zero visible under 10x magnification (ISO 4287)	Up to 2 defects/meter
Flatness	≤0.5mm/m (laser scanning)	≤1.0mm/m
Edge Roughness (Ra)	≤0.8μm (profilometer tested)	≤1.5μm
Conductivity	≥100% IACS (ASTM B193)	98-100% IACS

Our QC protocols exceed ISO 9001 requirements, delivering 99.8% defect-free output versus the industry average of 95%. All batches include third-party certified test reports and full traceability per IEC 60287 and ASTM B170 standards. With 20+ years of expertise, we provide global brand quality at 15-20% lower costs, proven by 500+ clients across 30+ countries. This precision ensures seamless integration into automated transformer production lines, reducing downtime and scrap rates while maximizing operational longevity.

---

Packaging & Global Logistics

Export Packaging & Logistics: Ensuring Safe Delivery of Transformer Strips

As a factory-direct manufacturer with 20+ years of export experience, Luoyang Xinzhaohe Aluminum CO., Ltd. prioritizes robust packaging and optimized logistics to ensure copper strips arrive defect-free at global destinations. Our system is engineered to withstand maritime challenges while maintaining cost-efficiency, with a proven track record of <0.5% damage rate across 10,000+ shipments.

Precision Packaging for Global Shipping

Our packaging protocol adheres strictly to international standards (ISPM 15, ISO 1496) to prevent damage during transit. Each shipment undergoes multi-layer protection:

Component	Specification	Purpose
Wooden Pallets	ISPM 15 certified, 1200×1000mm, 15mm thickness	Prevents structural damage during handling
Moisture-Proof Film	Multi-layer PE + VCI, 100μm thickness	Blocks humidity and corrosion
Steel Strapping	19mm width, 600kg tension per strap	Secures load to pallet, prevents shifting

All wooden pallets are heat-treated to comply with phytosanitary regulations, eliminating quarantine risks. The VCI-infused film provides active corrosion inhibition for copper surfaces, critical for long sea voyages. Strapping is applied at 40cm intervals with 600kg tension per strap to prevent load shifting during container stacking.

Sea Freight Optimization

We leverage strategic partnerships with major carriers (COSCO, Maersk) to ensure reliable transit:

Parameter	Detail	Benefit
Container Type	20ft/40ft FCL (optimized load)	Maximizes space efficiency
Port Coverage	Shanghai, Ningbo, Qingdao	Direct access to global shipping lanes
Transit Time	15-30 days to major ports	Predictable delivery schedules
Tracking	Real-time GPS monitoring	End-to-end shipment visibility

By controlling the entire supply chain from production to port, we eliminate third-party intermediaries, reducing costs by 15-20% compared to global brands while maintaining superior packaging integrity. This factory-direct approach ensures consistent quality and cost-performance advantages for transformer manufacturers worldwide. All shipments include pre-departure quality verification reports and customs documentation to streamline clearance.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe Aluminum CO., Ltd.

As a leading Chinese manufacturer of transformer conductive materials, we combine decades of technical expertise with factory-direct pricing to deliver superior cost-performance ratios for global transformer OEMs. Our copper strips are engineered for optimal efficiency, reliability, and compliance—providing a compelling alternative to premium international brands.

Proven Expertise in Transformer Conductive Materials

With over 20 years of specialized manufacturing experience, we have refined production processes for copper and aluminum transformer strips used in critical power applications. Our technical team collaborates directly with clients to optimize strip geometry, alloy composition (e.g., C11000, C10200), and surface finish for maximum transformer efficiency. We understand how minor variations in conductivity, flatness, and edge quality impact core losses and thermal performance—enabling us to tailor solutions for distribution transformers up to 2500 kVA and power transformers exceeding 500 MVA. This deep industry knowledge ensures consistent performance across diverse operating conditions while reducing lifecycle costs.

Factory-Direct Cost Advantage

By controlling the entire production chain—from melting and casting to precision cold rolling and annealing—we eliminate third-party markups. This vertical integration delivers 15–25% lower costs than global competitors while maintaining rigorous quality control. Our flexible production system accommodates both small-batch prototypes and large-scale orders, with minimal lead time adjustments for custom specifications. For transformer manufacturers facing tight CAPEX constraints, this model ensures competitive pricing without compromising dimensional accuracy or metallurgical properties.

Rigorous Quality Assurance

Our ISO 9001:2015 certified facility implements stringent quality protocols at every stage. Copper strips consistently achieve ≥100% IACS conductivity, thickness tolerances of ±0.01mm, and impurity levels below 0.05% (per IEC 60404-8-7). All products undergo 100% dimensional and conductivity testing, with full traceability from raw materials to final shipment. Each order includes a detailed test report with actual measurement data for complete transparency.

Key Metric	Luoyang Xinzhaohe	Global Brands
Cost Efficiency	15–25% lower	Higher due to multi-tier distribution
Production Lead Time	15–20 days	30–45 days
Customization Flexibility	Full alloy/size options (C11000, C10200, etc.)	Limited to standard profiles
Compliance Standards	IEC 60404-8-7, ASTM B170, GB/T 5593	IEC/ASTM, but with higher cost premiums
Technical Support	Dedicated metallurgical engineers	Standardized customer service

Ready to optimize your transformer design? Contact our engineering team at cathy@transformerstrip.com for a tailored quote and technical consultation. Specify your exact requirements—conductivity, dimensions, alloy grade—and receive a competitive proposal within 24 hours.

---
